2017 HONDA ODYSSEY Button

108
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w *1.
■Using the Settings menu on the audio/information screen
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Clock,
then Clock Adjustment .
2. Move or to select Clock.
Rotate to select Clock Adjustment,
then press .
3. Rotate to change hour, then press .
4. Rotate to change minute, then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
Move , , or to select secondary menu.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 295
You can turn the clock display on and off. 2 Customized Features P. 295
Models with navigation system
Models with one display
Models with two displays
All models
Models without navigation system
Models with one display
Models with two displays
All models
17 US ODYSSEY (KA KC)-31TK86600.book 108 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

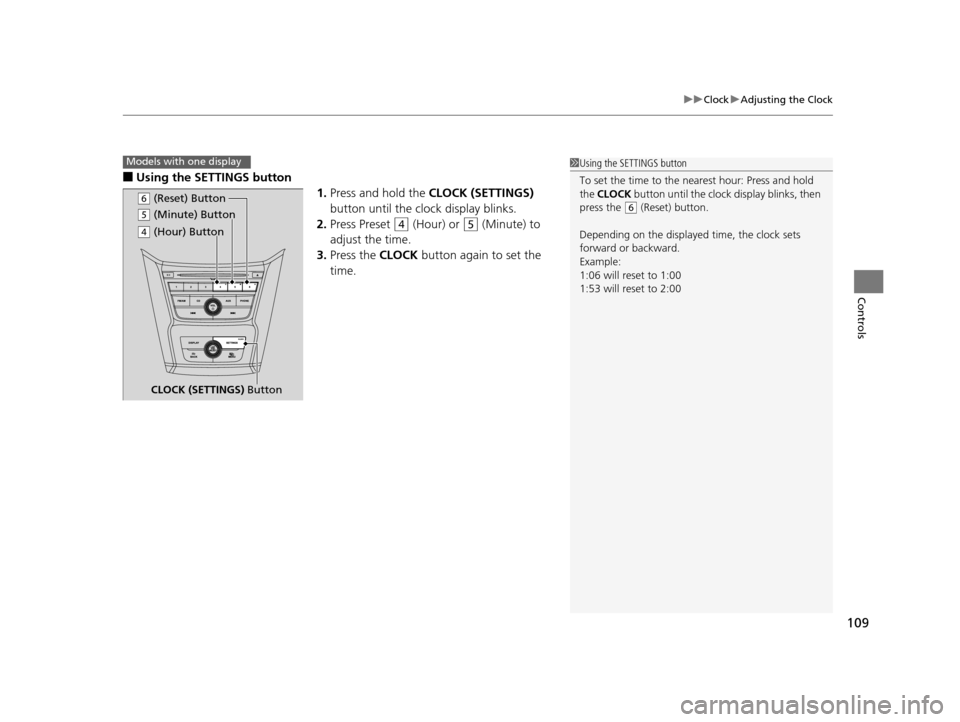

109
uuClock uAdjusting the Clock
Controls
■Using the SETTINGS button
1.Press and hold the CLOCK (SETTINGS)
button until the clock display blinks.
2. Press Preset
(4 (Hour) or (5 (Minute) to
adjust the time.
3. Press the CLOCK button again to set the
time.
1 Using the SETTINGS button
To set the time to the nearest hour: Press and hold
the CLOCK button until the clock display blinks, then
press the
( 6 (Reset) button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
( 5 (Minute) Button
CLOCK (SETTINGS) Button
(6 (Reset) Button
(4 (Hour) Button
17 US ODYSSEY (KA KC)-31TK86600.book 109 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

113
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors and open the
tailgate.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the tailgate within
about 32 inches (80 cm) radius from the
tailgate outer handle.
■Locking the doors and the tailgate
Press the door lock button on the front door
or the tailgate.
u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*
Door Lock Button
Lock Button
1Using the Smart Entry with Push Button Start System*
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a door handle wearing gloves, the door
sensor may be slow to respond or may not respond
by unlocking the doors.
•You cannot unlock the door by gripping the handle
after two seconds of unlocking it.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may not
be able to lock/unlock the doors with the smart entry
remote if it is above or below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 500
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 99, 295
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 113 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

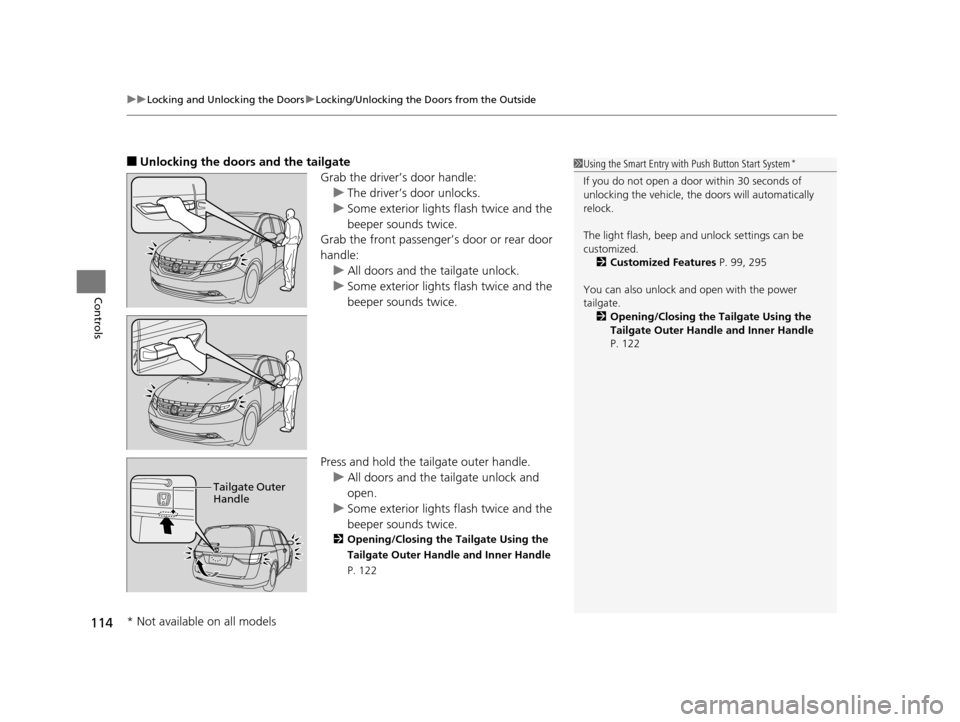

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
114
Controls
■Unlocking the doors and the tailgate
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door or rear door
handle:
u All doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press and hold the tailgate outer handle. u All doors and the tailgate unlock and
open.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Opening/Closing the Tailgate Using the
Tailgate Outer Handle and Inner Handle
P. 122
1Using the Smart Entry with Push Button Start System*
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
The light flash, beep a nd unlock settings can be
customized. 2 Customized Features P. 99, 295
You can also unlock and open with the power
tailgate. 2 Opening/Closing the Tailgate Using the
Tailgate Outer Handle and Inner Handle
P. 122
Tailgate Outer
Handle
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 114 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

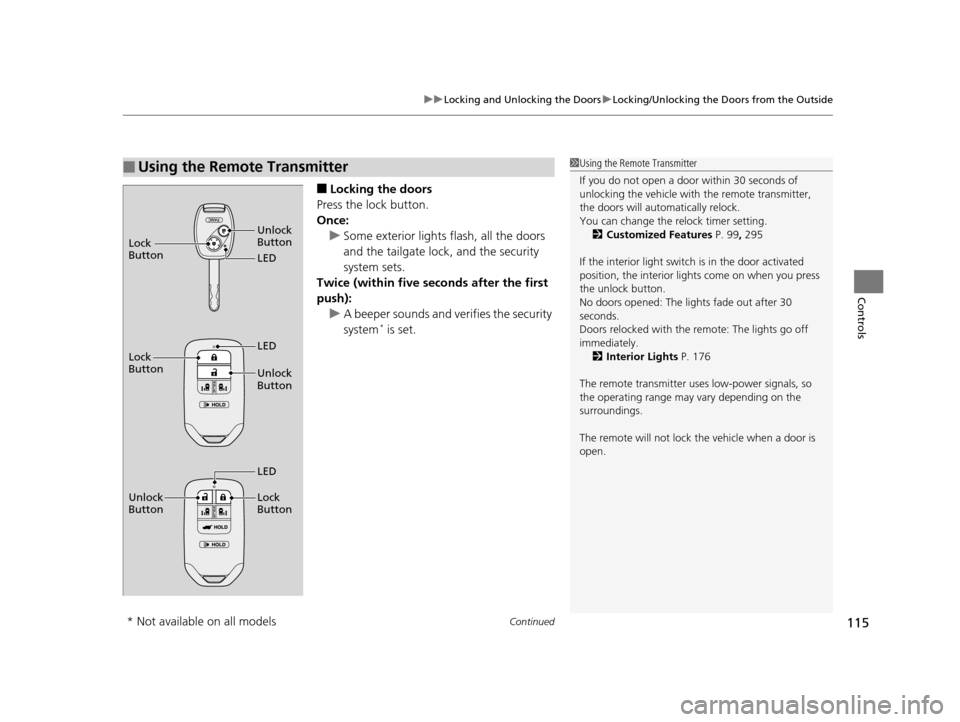

Continued115
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and the tailgate lock , and the security
system sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system
* is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 99, 295
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 176
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
LED Unlock
Button
Lock
Button
Unlock
Button LED
Lock
Button
Unlock
Button Lock
Button
LED
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 115 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

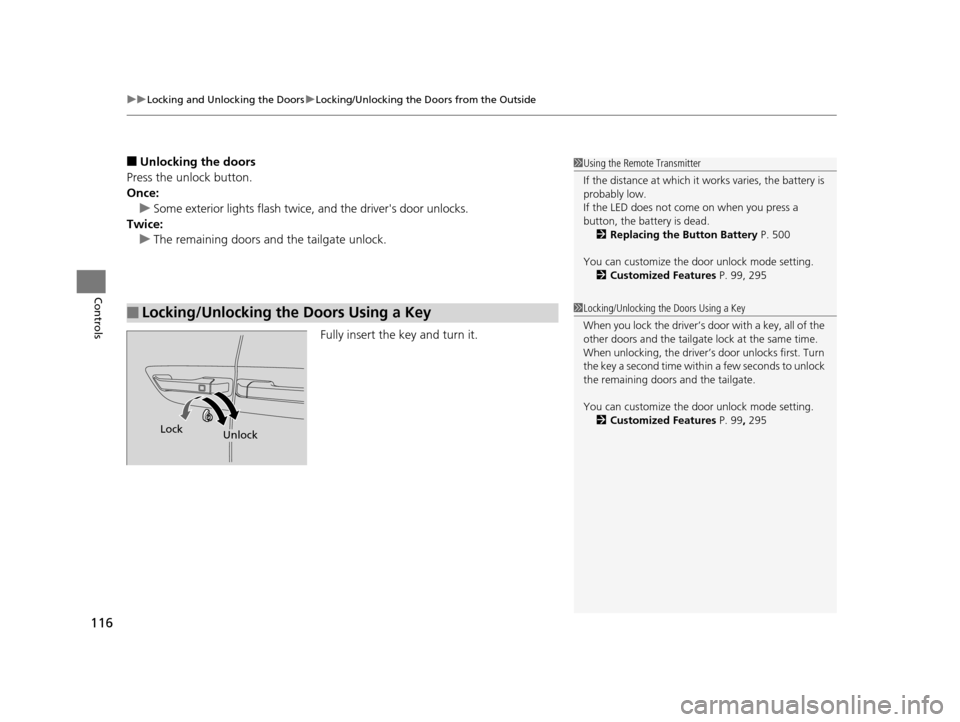

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
116
Controls
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver's door unlocks.
Twice: u The remaining doors and the tailgate unlock.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1Using the Remote Transmitter
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 500
You can customize the door unlock mode setting. 2 Customized Features P. 99, 295
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all of the
other doors and the tailgate lock at the same time.
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 99, 295
LockUnlock
17 US ODYSSEY (KA KC)-31TK86600.book 116 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

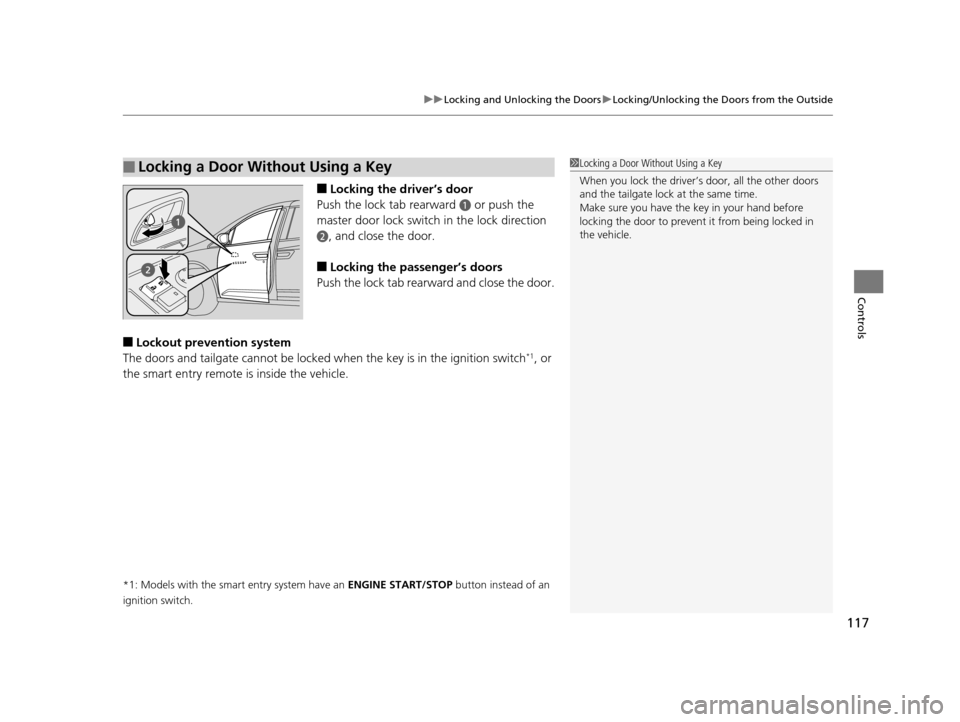

117
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the driver’s door
Push the lock tab rearward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger’s doors
Push the lock tab rearward and close the door.
■Lockout prevention system
The doors and tailgate cannot be locked when the key is in the ignition switch*1, or
the smart entry remote is inside the vehicle.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and the tailgate lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
17 US ODYSSEY (KA KC)-31TK86600.book 117 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

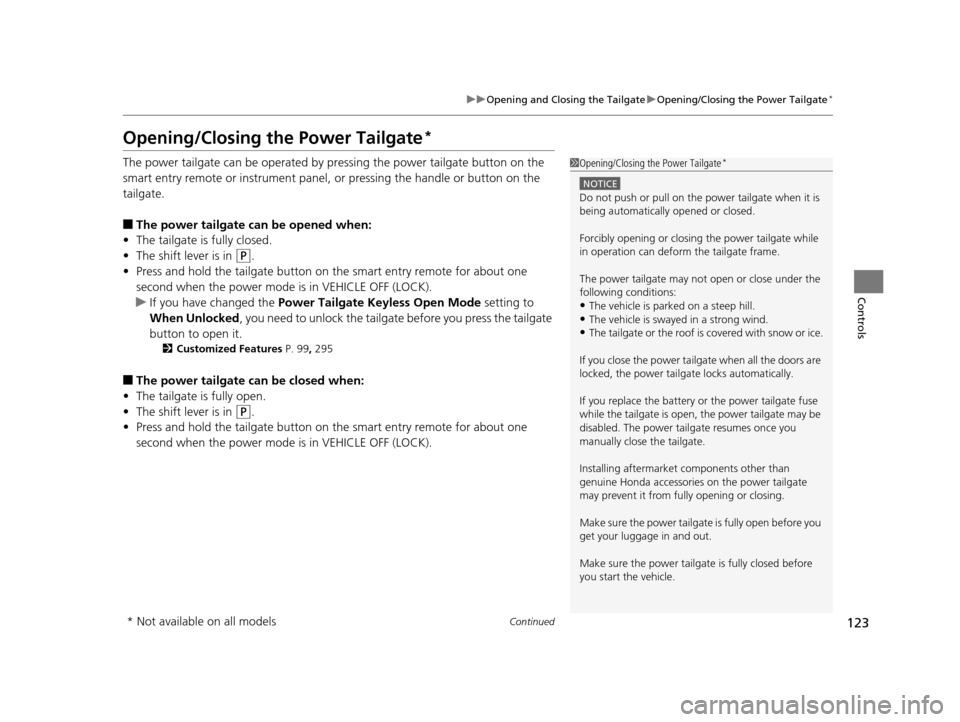

123
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Opening/Closing the Power Tailgate*
The power tailgate can be operated by pr essing the power tailgate button on the
smart entry remote or instrument panel, or pressing the handle or button on the
tailgate.
■The power tailgate can be opened when:
• The tailgate is fully closed.
• The shift lever is in
(P.
• Press and hold the tailgate button on the smart entry remote for about one
second when the power mode is in VEHICLE OFF (LOCK).
u If you have changed the Power Tailgate Keyless Open Mode setting to
When Unlocked , you need to unlock the tailgate before you press the tailgate
button to open it.
2 Customized Features P. 99, 295
■The power tailgate ca n be closed when:
• The tailgate is fully open.
• The shift lever is in
(P.
• Press and hold the tailgate button on the smart entry remote for about one
second when the power mode is in VEHICLE OFF (LOCK).
1Opening/Closing the Power Tailgate*
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
The power tailgate may not open or close under the
following conditions:
•The vehicle is park ed on a steep hill.
•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgat e is fully closed before
you start the vehicle.
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 123 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
