2017 HONDA CIVIC Owners Manual

368
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

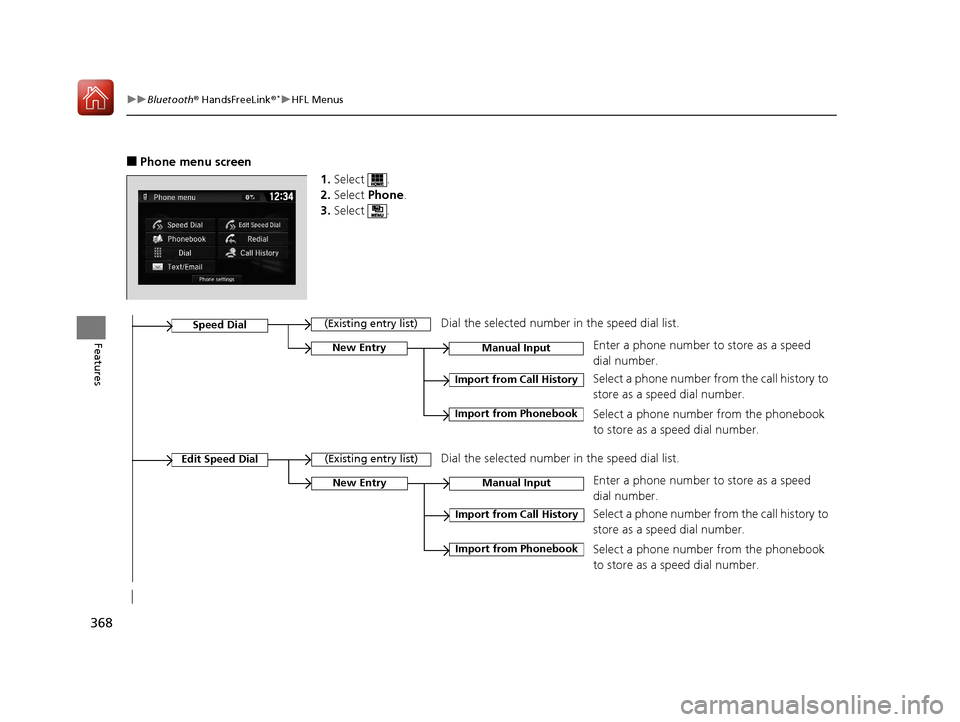

■Phone menu screen
1.Select .
2. Select Phone .
3. Select .
Select a phone number from the call history to
store as a speed dial number.
Speed Dial
Manual InputNew Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
(Existing entry list)Dial the selected number in the speed dial list.
Select a phone number from the call history to
store as a speed dial number.
Manual InputNew Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
(Existing entry list)Dial the selected number in the speed dial list.Edit Speed Dial
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 368 ページ ２０１６年８月３１日　水曜日　午後６時５分

369
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
See the previous message.
Text/EmailRead/Stop(Existing message list)
See the next message. System reads received message aloud, or
stop message from being read.
Select AccountSelect a mail or text message account.
Reply to a received message using one of six
fixed phrases.
DialMake a call to the sender.
Reply
Display the last outgoing, incoming and missed calls.Call HistoryAll
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.
MissedDisplay the last missed calls.
Dial
Redial
Enter a phone number to dial. Redial the last number dialed.
PhonebookDisplay the paired phone’s phonebook.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 369 ページ ２０１６年８月３１日　水曜日　午後６時５分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
370
Features

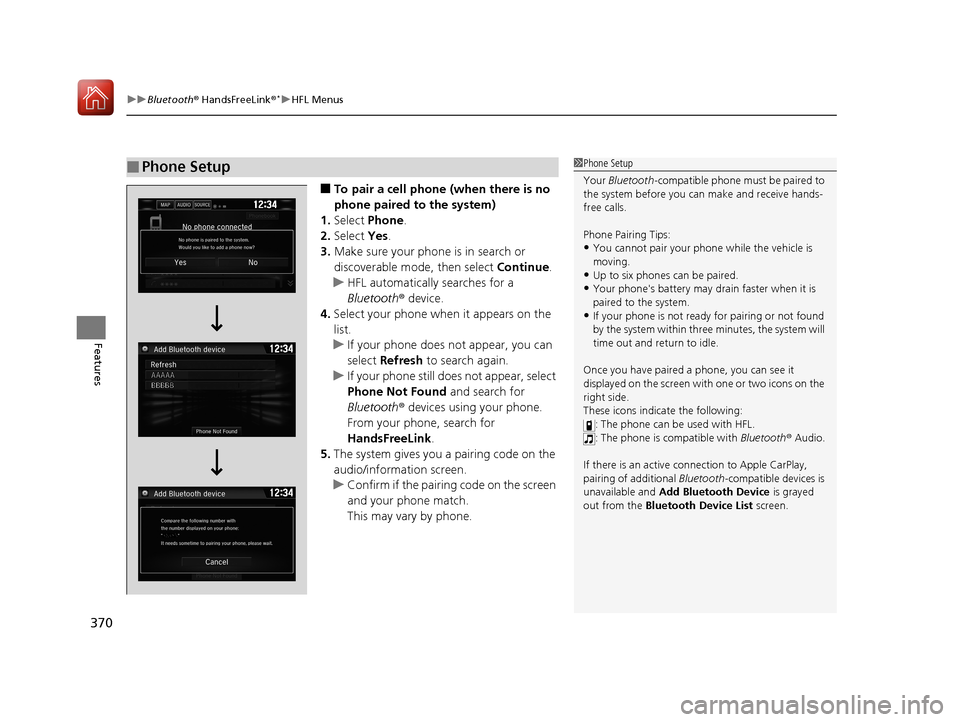

■To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone .
2. Select Yes.
3. Make sure your phone is in search or
discoverable mode, then select Continue.
u HFL automatically searches for a
Bluetooth ® device.
4. Select your phone when it appears on the
list.
u If your phone does not appear, you can
select Refresh to search again.
u If your phone still does not appear, select
Phone Not Found and search for
Bluetooth ® devices using your phone.
From your phone, search for
HandsFreeLink .
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
■Phone Setup1Phone Setup
Your Bluetooth -compatible phone must be paired to
the system before you ca n make and receive hands-
free calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone's battery may dr ain faster when it is
paired to the system.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following: : The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
If there is an active c onnection to Apple CarPlay,
pairing of additional Bluetooth-compatible devices is
unavailable and Add Bluetooth Device is grayed
out from the Bluetooth Device List screen.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 370 ページ ２０１６年８月３１日　水曜日　午後６時５分

Continued371
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

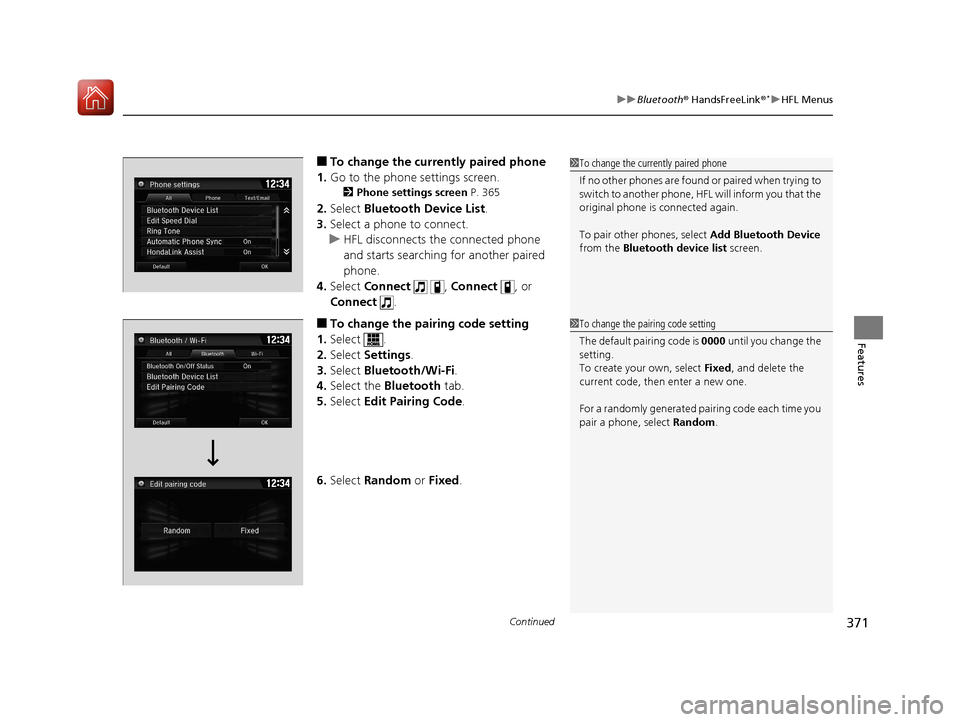

■To change the currently paired phone
1. Go to the phone settings screen.
2 Phone settings screen P. 365
2.Select Bluetooth Device List .
3. Select a phone to connect.
u HFL disconnects the connected phone
and starts searching for another paired
phone.
4. Select Connect , Connect , or
Connect .
■To change the pairing code setting
1. Select .
2. Select Settings .
3. Select Bluetooth/Wi-Fi .
4. Select the Bluetooth tab.
5. Select Edit Pairing Code .
6. Select Random or Fixed .
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HFL will inform you that the
original phone is connected again.
To pair other phones, select Add Bluetooth Device
from the Bluetooth device list screen.
1To change the pairing code setting
The default pair ing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pa iring code each time you
pair a phone , select Random .
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 371 ページ ２０１６年８月３１日　水曜日　午後６時５分

372
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

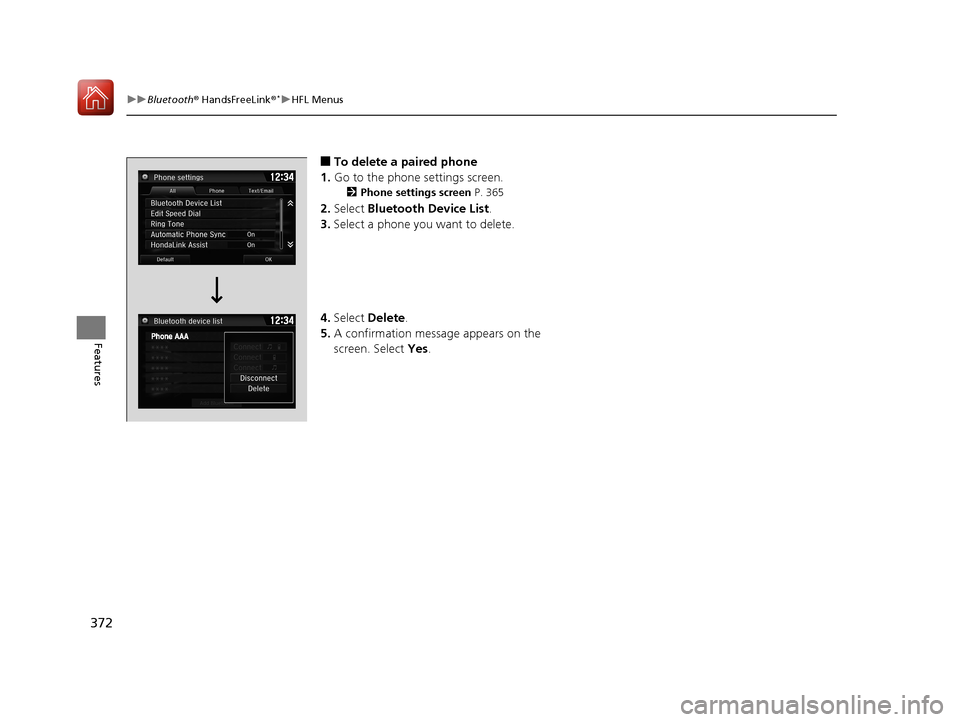

■To delete a paired phone
1. Go to the phone settings screen.
2 Phone settings screen P. 365
2.Select Bluetooth Device List .
3. Select a phone you want to delete.
4. Select Delete.
5. A confirmation message appears on the
screen. Select Yes.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 372 ページ ２０１６年８月３１日　水曜日　午後６時５分

Continued373
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

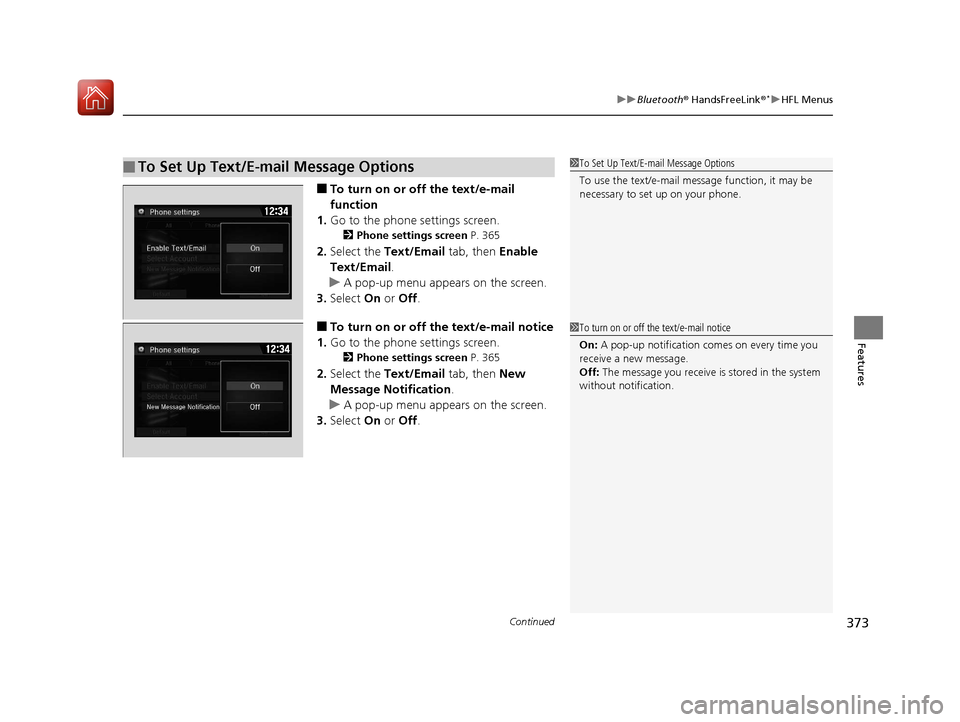

■To turn on or off the text/e-mail
function
1. Go to the phone settings screen.
2 Phone settings screen P. 365
2.Select the Text/Email tab, then Enable
Text/Email .
u A pop-up menu appears on the screen.
3. Select On or Off .
■To turn on or off the text/e-mail notice
1. Go to the phone settings screen.
2 Phone settings screen P. 365
2.Select the Text/Email tab, then New
Message Notification .
u A pop-up menu appears on the screen.
3. Select On or Off .
■To Set Up Text/E-mail Message Options1To Set Up Text/E-mail Message Options
To use the text/e-mail message function, it may be
necessary to set up on your phone.
1To turn on or off the text/e-mail notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without not ification.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 373 ページ ２０１６年８月３１日　水曜日　午後６時５分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
374
Features

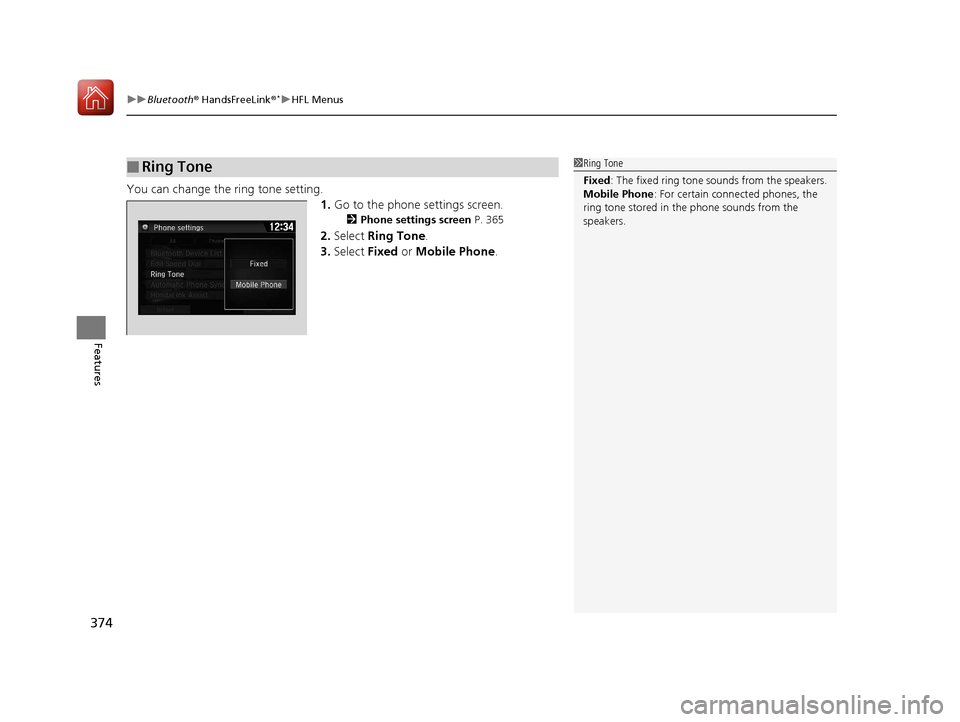

You can change the ring tone setting.
1.Go to the phone settings screen.
2 Phone settings screen P. 365
2.Select Ring Tone .
3. Select Fixed or Mobile Phone .
■Ring Tone1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone : For certain conne cted phones, the
ring tone stored in the phone sounds from the
speakers.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 374 ページ ２０１６年８月３１日　水曜日　午後６時５分

Continued375
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■When Automatic Phone Sync is set to
On:
When your phone is paired, the contents of its
phonebook and call history are automatically
imported to the system.
■Changing the Automatic Phone Sync
setting
1. Go to the phone settings screen.
2 Phone settings screen P. 365
2.Select Automatic Phone Sync .
3. Select On or Off .
■Automatic Import of Cellular Phonebook and Call History1Automatic Import of Cellular Phonebook and Call History
When you select a name from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
On some phones, it may not be possible to import the
category icons to the system.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Home
Mobile
Work
PagerFax
Car
Other
Voice
Pref
Blank
