2017 HONDA CIVIC COUPE Owners Manual

576
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 576 ページ ２０１６年８月３１日　水曜日　午後５時４３分

577Continued
Information

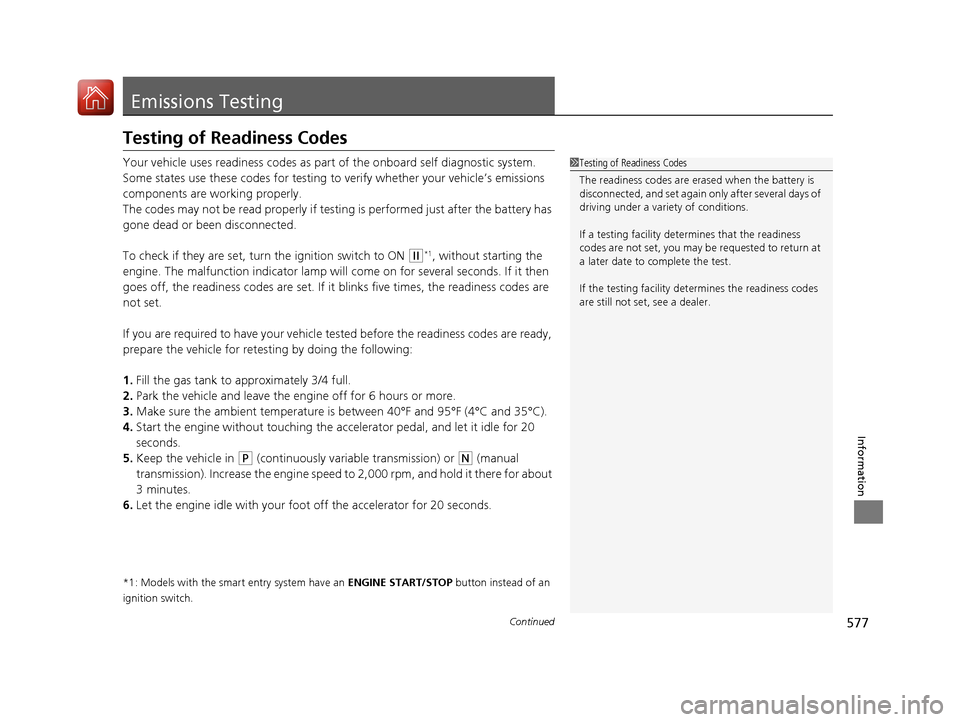

Emissions Testing
Testing of Readiness Codes
Your vehicle uses readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmis
sion). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 577 ページ ２０１６年８月３１日　水曜日　午後５時４３分

578
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual transmission). Do not use
cruise control. When tra ffic allows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least 30
seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 578 ページ ２０１６年８月３１日　水曜日　午後５時４３分

579Continued
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 579 ページ ２０１６年８月３１日　水曜日　午後５時４３分

580
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 580 ページ ２０１６年８月３１日　水曜日　午後５時４３分

581
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 581 ページ ２０１６年８月３１日　水曜日　午後５時４３分

582
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 574
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 582 ページ ２０１６年８月３１日　水曜日　午後５時４３分

Index
583
Index
Index
Numbers
7-Speed Manual Shift Mode................... 405
Operation ............................................... 406
A
ABS (Anti-lock Brake System) .................. 457
Accessories and Modifications ................ 535
Accessory Power Socket ........................... 180
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ........................... 90, 416
Adding the Coolant ................................. 500
Additives
Coolant .................................................. 499
Engine Oil ............................................... 492
Washer ................................................... 503
Additives, Engine Oil ............................... 492
Adjusting
Armrest .................................................. 173
Clock ...................................................... 120
Front Head Restraints .............................. 168
Front Seats.............................................. 166
Mirrors.................................................... 163
Rear Seats ............................................... 172
Steering Wheel ....................................... 162
Temperature ................................... 113, 117
Adjusting the Clock ................................. 120
Adjusting the Sound ........................ 206, 241
Agile Handling Assist ............................... 443 Air Conditioning System (Climate Control
System) .................................................... 185
Changing the Mode ................................ 187
Defrosting the Windshield and Windows ............................................... 188
Dust and Pollen Filter ............................... 529
Recirculation/Fresh Air Mode ................... 187
Sensor ..................................................... 191
Synchronized Mode ................................. 190
Using Automatic Climate Control ............ 185
Air Pressure ............................... 517, 571, 573
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 208, 248
Android Auto ............................................ 285
Anti-lock Brake System (ABS) .................. 457
Indicator .................................................... 81
Apple CarPlay ........................................... 282
Armrest ..................................................... 173
Audio Remote Controls ............................ 197 Audio System
............................ 194, 201, 219
Adjusting the Sound........................ 206, 241
Audio/Information Screen................ 202, 220
Changing the Home Screen Icon Layout ................................................... 224
Changing the Screen Interface ................ 238
Closing Apps ........................................... 240
Customizing the Meter............................ 225
Display Setup .................................. 207, 242
Error Messages ........................................ 289
General Information ................................ 292
Home Screen........................................... 231
iPod ................................................ 210, 260
Limitations for Manual Operation ............ 243
Menu Customize ..................................... 239
MP3/WMA/AAC .............................. 213, 269
Reactivating ............................................ 196
Recommended Devices............................ 293
Remote Controls ..................................... 197
Security Code .......................................... 196
Selecting an Audio Source ....................... 243
Status Area ............................................. 237
Theft Protection ...................................... 196
USB Flash Drives ...................................... 293
USB Port(s) .............................................. 195
Wallpaper Setup.............................. 204, 229
Audio/Information Screen ............... 202, 220
Authorized Manuals ................................ 581
Auto Door Locking/Unlocking ................. 135
Customize ....................................... 136, 298
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 583 ページ ２０１６年８月３１日　水曜日　午後５時４３分
