28

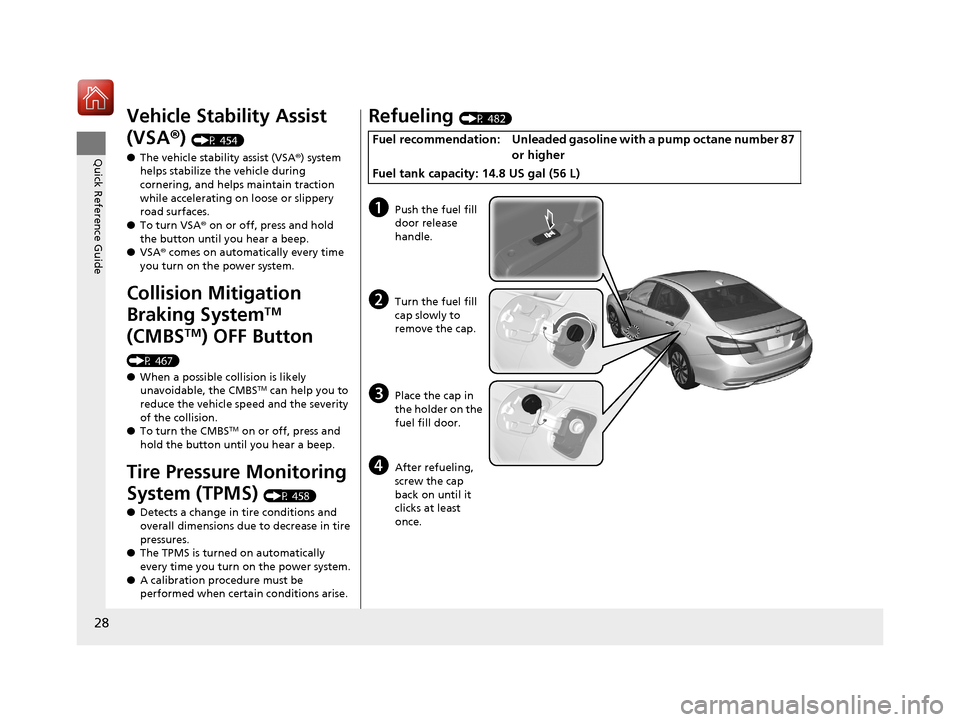

Quick Reference Guide
Vehicle Stability Assist
(VSA®)
(P 454)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
● VSA ® comes on automatically every time
you turn on the power system.
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button
(P 467)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 458)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you turn on the power system.
● A calibration procedure must be
performed when certain conditions arise.
Refueling (P 482)
Fuel recommendation: Unleaded gasoline with a pump octane number 87
or higher
Fuel tank capacity: 14.8 US gal (56 L)
aPush the fuel fill
door release
handle.
bTurn the fuel fill
cap slowly to
remove the cap.
cPlace the cap in
the holder on the
fuel fill door.
dAfter refueling,
screw the cap
back on until it
clicks at least
once.
