2017 HONDA ACCORD COUPE window

32 || 33
V
EHICLE CONTROLSVEHICLE CONTROLS

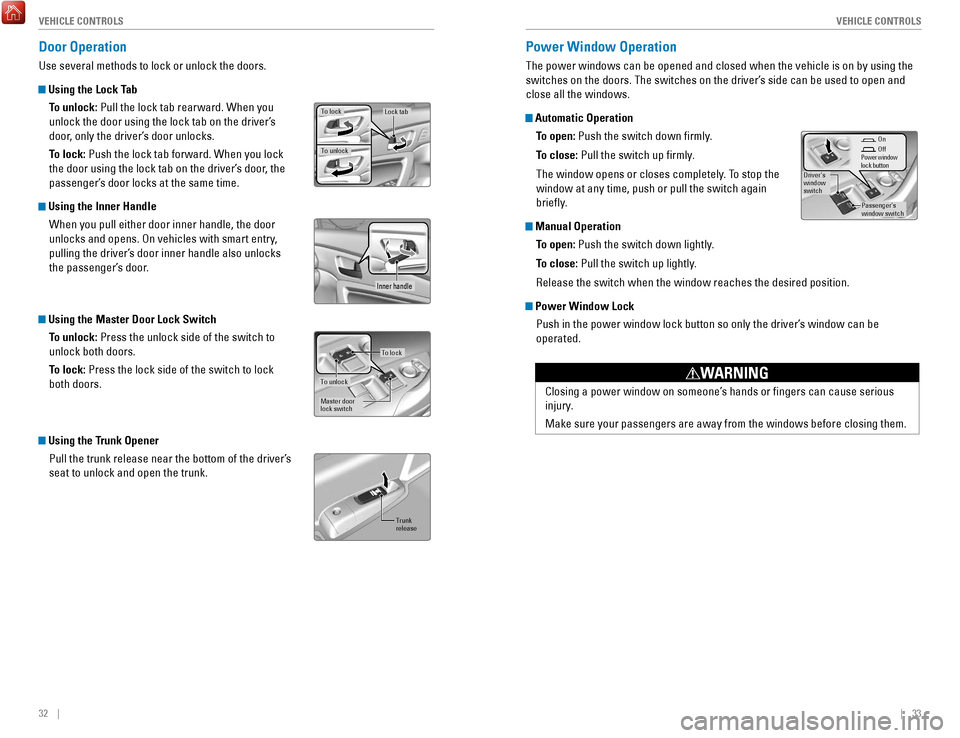

Door Operation
Use several methods to lock or unlock the doors.
Using the Lock Tab
To unlock: Pull the lock tab rearward. When you
unlock the door using the lock tab on the driver’s
door, only the driver’s door unlocks.
To lock: Push the lock tab forward. When you lock
the door using the lock tab on the driver’s door, the
passenger’s door locks at the same time.
Using the Inner HandleWhen you pull either door inner handle, the door
unlocks and opens.
on vehicles with smart entry

,
pulling the driver’s door inner handle also unlocks
the passenger’s door.
Using the Master Door Lock Switch
To unlock: Press the unlock side of the switch to
unlock both doors.
To lock: Press the lock side of the switch to lock
both doors.
Using the Trunk OpenerPull the trunk release near the bottom of the driver’s
seat to unlock and open the trunk.
To unlock
Lock ta bTo lock
Inner handle
To unloc k
Master door
lock switch
To lock
Trunk
release
Power Window Operation
The power windows can be opened and closed when the vehicle is on by usi\
ng the
switches on the doors. The switches on the driver’s side can be used to open and
close all the windows.
Automatic Operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To stop the
window at any time, push or pull the switch again
briefly.
Manual OperationTo open: Push the switch down lightly.
To close: Pull the switch up lightly.
release the switch when the window reaches the desired position.
Power Window LockPush in the power window lock button so only the driver’s window can be
operated.
On
Off
Power window
lock button
Driver’s
window
switch
Passenger’s
window switch
Closing a power window on someone’s hands or fingers can cause serious
injury.
Make sure your passengers are away from the windows before closing them.
WARNING

78 || 79
Models with touchscreen
Basic HFL Operation
Make and receive phone calls using the vehicle’s audio system, without handling
your phone.
visit

handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check
phone compatibility.
When your iPhone is connected to Apple CarPlay or Android Auto, calls ca\
n only be
made through Apple CarPlay or Android Auto, not through Bluetooth HandsFreeLink.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Stop or pull over \
to perform
the function. Voice commands are also available.
HFL Controls
Use the controls to enter information and make selections.
Pick-Up button: Answer an incoming call.
Hang-Up/Back button:
end or decline a call, or cancel an
operation.
T

alk button: Make a call using a stored voice tag.
+ / - buttons: Scroll the list.
SOURCE button: Press to enter a selection.
MENU button: From the phone screen, press to display
speed dial, call history, or redial.
Incoming call display
Talk Button Tips •
When using the Talk button, wait for a beep before saying a command.
•
To bypass the system prompts, simply press the T

alk button again to say your
command.
•
When the Talk button is pressed, all available voice commands are high

lighted
in yellow.
•
Speak in a clear, natural voice.
•
reduce all background noise.
•
Close the windows and moonroof.
Phone: Display
the phone screen.
MENU: From the
phone screen,
select various
call options.
BACK: Go back
to the previous
display. Settings: Select
Phone from the
Settings screen
for phone pairing
and more.
BLUETOOTH® HANDSFreeLINK®BLUETOOTH® HANDSFreeLINK®

86 || 87
NAVIGATION
NAVIGATION
Learn how to enter a destination and operate the navigation system.
Basic Navigation Operation
A real-time navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination. You can operate the system
using voice commands or the touchscreen.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Voice commands are always
available.
Steering Wheel Controls
Use the steering wheel controls to control the system.
NAVIGATION*
*if equipped
Back button: Press to cancel
a command or operation.
Talk button: Press to say
navigation commands.
Talk Button Tips•
When using the Talk button, wait for a beep before saying a command.
•
To bypass the system prompts, simply press the T

alk button again to say your
command.
•
Speak in a clear, natural voice.
•
reduce all background noise.
•
Close the windows and moonroof.
System Guidance Volume Adjust the navigation system volume.
1.
From the HoMe screen, select Settings.
2.
Select System.
3.
Select the Sound/Beep tab.
4.
Select Guidance volume, and adjust the level.
Select
oK when complete.
5.
Press BACK to exit the menus.
Using the navigation system while driving can take your attention away f\
rom
the road, causing a crash in which you could be seriously injured or kil\
led.
operate system controls only when the conditions permit you to safely do \
s

o.
WARNING
Navigation Display and ControlsTouch icons on the screen to enter information and make selections.
Navigation: Display
the navigation screen.
BACK: Go back to
the previous display. MENU: Display
navigation options.
Traffic flow
Current vehicle
position Traffic incident
icon
Search icon
Map menu
MAP: Display the
map screen.
Street name

92 || 93
DRIVING
NAVIGATION
Traffic
view traffic flow and incidents in major metro areas. Y

ou can also select traffic to
avoid. Traffic coverage is limited in Canada.
Viewing traffic
1.
From the map screen, select the traffic icon.
2.
Select Traffic Conditions.
3.
Traffic icons are shown on the map. Select the
magnifying glass icon to display a full list of
traffic delays.
A

voiding traffic on your route
1.
From the map screen, select the traffic icon.
2.
Select Traffic on route.
3.
Select an incident to avoid from the list.
4.
Select the menu icon.
5.
Select Avoid.
DRIVING
Learn about preparation for driving, as well as other features.
Before Driving
Check the following items before you begin driving.
Exterior Checks •
Make sure there are no obstructions on the windows, door mirrors, exteri\
or
lights, or other parts of the vehicle.
•
remove any frost, snow

, or ice.
•
Make sure the hood is securely closed.
•
Heat from the engine and exhaust can ignite flammable materials left u\
nder
the hood, causing a fire. If you’ve parked your vehicle for an exte\
nded period,
inspect and remove any debris that may have collected, such as dried gra\
ss and leaves that have fallen or have been carried in for use as a nest by\
a

small
animal. Also check under the hood for leftover flammable materials aft\
er you or
someone else has performed maintenance on your vehicle.
•
Make sure the tires are in good condition.
•
Make sure there are no people or objects behind or around the vehicle.
Interior Checks •
Store or secure all items on board properly.
•
Do not pile items higher in the cargo area than the seat-back height.
•
Do not place anything in the front seat footwells. Make sure to secure t\
he floor
mats.
•
If you have any animals on board, do not let them move freely around in \
the
vehicle.
•
Securely close and lock all doors and the trunk.
•
Adjust your seating position, mirrors, and steering wheel properly.
•
Make sure items placed on the floor behind the front seats cannot roll\
under the
seats.
•
everyone in the vehicle must fasten their seat belt.
•
Make sure that the indicators in the instrument panel come on when you s\
tart
the vehicle, and go off soon after.
If the doors are frozen shut, use warm water around the door edges to me\
lt any
ice. Do not try to force them open, as this can damage the rubber trim a\
round the
doors. When done, wipe dry to avoid further freezing.
NOTICE

98 || 99
DRIVING
DRIVING
Remote Engine Start*
Start your vehicle’s engine using the remote transmitter before you enter the vehicle.
Make sure the vehicle is in a safe location when using remote engine start (i.e., a
well-ventilated area, away from any flammable materials).
Starting the Engine
Press the Lock button, then press and hold the
engine button within 5 seconds to
remotely start the engine.
The engine runs for up to 10 minutes. T

o extend the run time for another 10
minutes, repeat the procedure during the initial 10 minutes.
While the engine is running, the climate control system adjusts the cabi\
n
temperature, the security system remains on, and lights and accessories remain
off.
Stopping the Engine
Press and hold the
engine button.
The engine will also stop if it has been running for more than 10 minute\
s

, or if any
door is opened without using the remote or smart entry.
engine exhaust contains toxic carbon monoxide gas.
Breathing carbon monoxide can kill you or cause unconsciousness.
Never use the remote engine starter when the vehicle is parked in a gara\
ge or
other area with limited ventilation.
WARNING
Lock button
Engine button
*if equipped
Starting to Drive
Turn on the vehicle and start the engine to begin driving.
Before Starting the Engine Continuously Variable Transmission (CVT)
Check that the shift lever is in Park (P), then press
the brake pedal. Keep your foot firmly on the brake
pedal when starting the engine.
Manual transmission
Check that the shift lever is in Neutral (N), then
press the brake pedal with your right foot and the
clutch pedal with your left foot. The clutch must be
fully pressed to start the engine.
The engine is harder to start in cold weather and in thinner air found a\
t altitudes
above 8,000 feet (2,400 m). When starting the engine in cold weather, turn off
all electrical accessories such as the lights, climate control system, a\
nd rear
defogger in order to reduce battery drain.
Starting the Ignition*Insert the key into the ignition and turn to turn on the vehicle or star\
t the engine.
0 LOCK: Insert and remove the key in this position.
I ACCESSORY: operate the audio system and other
accessories in this position.
II ON: operate other electrical items, such as
wipers and power windows. This is also the position
when driving.
III START: This position is for starting the engine. The switch returns to oN when
you release the key.
Manual transmission models
*if equipped
Brake peda l
Brake pedal
Clutch pedal
removing the key from the ignition switch while driving locks the steerin\
g.
This can cause you to lose control of the vehicle.
remove the key from the ignition switch only when parked.
WARNING

128 || 129
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Interior Fuse Box
Located under the dashboard on the driver’s side.
*if equipped
Circuit ProtectedAmps1A/C7.5 A2DRL7.5 A345Meter7.5 A6SRS7.5 A7Optio n(7.5 A)8MISS SOL10A9Fuel Pump20A10ABS/VSA7.5A1112Front Wipe r7.5A13ACG15 A
14Rear Accessory Power Socket
(Console Compartment)(2 0A )
15Driver’s Power Seat
Reclining*(20A )
16Moonroof*(20A )17Front Seat Heaters*(20A )18
19Passenger Side Door
Unlock10A
20 Driver Side Rear Door
Unlock 10
A
21 Driver’s Door Lock 10A
22 Passenger Side Door Lock 10A
23 Driver’s Door Unlock 10A
24 SRS 10A
25 Illumination 10A
26 Key Lock 7.5A
27 Parking Lights 10A
28 Lumbar Suppor t
*(10A )
29 Right Headlight High Beam 10A
30 Washer 15A
31 SMART
*(10A )
32 Driver’s Power Window 20A
33 Front Passenger’s Power
Window 20
A
34 Rear Driver Side Power
Window 20
A
35 Rear Passenger Side Power
Window 20
A
36 Driver’s Power Seat Sliding
*(20 A)
37 ACCESSORY 7.5A
38
39 Left Headlight High Beam 10A
40
Front Accessory Pow er Socket
(Con sole Panel)20A
41 Driver Side Rear Door Lock 10A
42 Door Lock 20A
a Audio
*(7.5 A)
b ACM*(20 A)
c Rear Seat Heaters*(15 A)
d Premium Amp*(20 A)
e
f
g Passenger’s Power Seat
Reclining
*(20 A)
h Passenger’s Power Seat
Sliding
*(20 A)
Circuit Protected Amps
*
*
* * *
Fuse label
Circuit Protected Amps
1 A/C 7.5 A
2 DRL 7.5 A
3
4
5 Meter 7.5 A
6 SRS 7.5 A
7 Option (7.5 A)
8 MISS SOL 10A
9 Fuel Pump 20A
10 ABS/VSA 7.5A
11
12 Front Wiper 7.5A
13 ACG 15A
14
Rear Accessory Power Socket
(Console Compartment)(2 0A )
15 Driver’s Power Seat
Reclining
*(20A )
16 Moonroof
*(2 0A )
17 Front Seat Heaters*(20A )
18
19 Passenger Side Door
Unlock 10
A
20 Driver Side Rear Door
Unlock 10
A
21Driver’s Door Lock10A22Passenger Side Door Lock10A23Driver’s Door Unlock10A24SRS10A25Illumination10A26Key Lock7.5A27Parking Lights10 A28Lumbar Suppor t*(10A )29Right Headlight High Beam10A30Washe r15A31SMART*(10A )32Driver’s Power Window20A
33Front Passenger’s Power
Window20A
34Rear Driver Side Power
Window20A
35Rear Passenger Side Power
Window20A
36Driver’s Power Seat Sliding*(20 A)37ACCESSORY7.5A3839Left Headlight High Beam10A
40Front Accessory Pow er Socket
(Con sole Panel)20A
41Driver Side Rear Door Lock10A42Door Lock20AaAudio*(7.5 A)bACM*(20 A)cRear Seat Heaters*(15 A)dPremium Amp*(20 A)ef
gPassenger’s Power Seat
Reclining*(20 A)
hPassenger’s Power Seat Sliding*(20 A)
Circuit ProtectedAmps
*
*
* * *
Inspecting and Changing Fuses1.
Turn the vehicle off, including all lights and
accessories.
2.
remove the fuse box cover

.
3.
Check the large fuse in the engine compartment.
If the fuse is blown, use a Phillips-head
screwdriver to remove the screws and replace
the fuse with a new one.
reinstall the screws.
4.
Inspect the small fuses in the engine
compartment and the vehicle interior.
If there is a burned out fuse, remove it with the
fuse puller and replace it with a new one.
Combined
fuse Blown fuse
Fuse puller
replacing a fuse with one that has a higher rating greatly increases the \
chances of
damaging the electrical system.
NOTICE

140 || 141
M
AINTENANCEMAINTENANCE
Checking the Battery
Check the battery terminals for corrosion monthly.
The battery condition is monitored by a sensor on
the negative terminal. If there is a problem with the
sensor, a message on the information display*/multi-
information display* appears. Have your vehicle
checked by a dealer.
WARNING: Battery posts, terminals, and related accessories contain lead and lead\

compounds. Wash your hands after handling.
The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to\
kill or
seriously hurt you.
When conducting any battery maintenance, wear protective clothing and a \
face shield, or have a skilled technician do it.
WARNING
Window Washer Fluid
If the washer fluid level is low, fill the washer reservoir.
Pour the washer fluid carefully. Do not overflow the
reservoir.
Canadian models
If the washer fluid level is low, the washer level
indicator or a message appears on the multi-information
display.
Do not use engine antifreeze or a vinegar/water solution in the windshie\
ld washer
reservoir. Antifreeze can damage your vehicle’s paint. A vinegar/water solution
can damage the windshield washer pump.
NOTICE
*if equipped
Changing Wiper Blades
If the wiper blades leave streaks across the windshield, try cleaning th\
em first with a
paper towel or soft cloth and wiper fluid. If the wiper blade rubber h\
as deteriorated,
you should change the wiper blades.
1.
Lift the driver side wiper arm first, then the
passenger side.
2.
Press and hold the tab, then slide the holder from
the wiper arm.
3.
Slide the wiper blade out from its holder by pulling
the tabbed end out.
4.
remove the retainers from the rubber blade that
has been removed, and mount to a new rubber
blade. Correctly align the rubber protrusion and the
retainer grooves.
5.
Slide the new wiper blade onto the holder from the
bottom end. The tab on the holder should fit in the
indent of the wiper blade.
6.
Slide the wiper holder onto the wiper arm, then
push down the lock tab.
7.
Lower the passenger side wiper arm first, then the
driver side.
end cap at
the bottom
Holder
Holder Cap
Tab
Blade
TopRetainer
Blade
Tab
Indent
Avoid dropping the wiper arm, as it may damage the windshield.
NOTICE

158 || 159
INDEX
INDEX
Driving ....................................................................... 93
Adaptive Cruise Control (ACC) ......................... 108
Braking ................................................................. 105
Collision Mitigation Braking System ............... 113
Continuously variable Transmission ....... 100

, 102
Cruise Control
..................................................... 107eco Assist System .............................................. 106eNGINe ST

A
rT/SToP button ............................ 100
Forward Collision W

arning (FCW)
... 110

, 111, 113
Ignition
................................................................... 99
Lane Keeping Assist System (LKAS) ............... 111
LaneW

atch™....................................................... 112
Manual Transmission
........................................ 104
Maximum Load Limit ............................................ 95
Multi-view rear Camera ................................... 115
Paddle Shifters ........................................... 101

, 103
Parking Sensor System
..................................... 114
Power Mode ........................................................ 100refueling .............................................................. 116remote engine Start ............................................ 98road Departure Mitigation (rDM)

................... 110
Shifting
................................................................. 100
T

owing a Trailer
.................................................... 97vehicle Stability Assist (vSA®) ....................... 106
Wiper Blades ...................................................... 141
Driving Position Memory System ......................... 43eco Assist System

................................................. 106
eCoN Button .......................................................... 106eCoN mode .............................................................. 26electric Power Steering (ePS) .............................. 24e-Mail ........................................................................\
83emergency engine Stop ....................................... 121emergency T

owing
............................................... 121engine and Fuel ............................................. 149

, 151
engine Coolant

....................................................... 138
engine oil

................................................................ 135
eNGINe ST

A
rT/SToP button .............................. 100exterior lights ........................................................... 26exterior Lights .......................................................... 35
Fastening a Seat Belt ............................................... 7
Flat T

ire
................................................................... 124
Floor Mats ................................................................ 40
Fluids ............................................................... 150

, 151
FM/AM
radio ..................................................... 54

, 66
FM/AM
radio Commands .................................... 156
Fog lights .................................................................. 26
Foot Brake .............................................................. 105
Frequently Asked Questions ............................... 152
Front Airbags (SrS) .................................................. 8
Fuel Information .................................................... 116
Fuse Locations

....................................................... 127
Garage
opener ........................................................ 45
Hazards ..................................................................... 26
Headlight-Wiper Integration ................................. 37
Head restraints ....................................................... 41High beams
..............................................................
26
Home Address ......................................................... 88
HomeLink® Garage opener .................................. 45
HondaLink™ ............................................................. 62
HondaLink™ Assist ................................................. 84
Honda roadside Assistance ............................... 153
Hood ........................................................................\
133
Ignition ...................................................................... 99
i-MID ........................................................................\
. 28
Immobilizer ............................................................... 25
Information Display

................................................. 27
Instrument Panel
..................................................... 23
Interior Lights

........................................................... 35
Intermittent Wipers................................................. 37
iPod®
.................................................................. 56

, 69
iPod® Commands
................................................. 156
Jump Starting ........................................................ 118
Key ........................................................................\
..... 30
Lane Keeping Assist System (LKAS)

............ 25, 111
LaneWatch™
......................................................... 112
Lap/Shoulder Seat Belts .......................................... 5
LATCH-Compatible Child Seat ............................... 17
Light Bulbs

...................................................... 149, 151
Light control
............................................................. 24
lights ........................................................................\
.. 26
Lights ........................................................................\
. 35
LKAS ........................................................................\
.. 26
Lock T

ab
.................................................................... 32
Low fuel .................................................................... 25
Low oil pressure ...................................................... 23
Low tire pressure .................................................... 25
Maintenance

.......................................................... 130
Battery
.................................................................. 140
Brake Fluid ........................................................... 139
Clutch Fluid .......................................................... 139engine Coolant .................................................... 138engine oil ............................................................. 135
Maintenance Minder™ ..................................... 131
Service Codes ..................................................... 132
Under the Hood ................................................... 133
Window Washer Fluid ....................................... 140
Wiper Blades ...................................................... 141
Making a Call ..................................................... 75

, 81
Malfunction indicator lamp
................................... 24
Malfunction Indicators

........................................... 23
Manual Seats........................................................... 40 Manual Transmission
........................................... 104
Map Legend ............................................................. 91
Master Door Lock Switch ...................................... 32
Maximum Load Limit............................................... 95
Mirrors
...................................................................... 44
Moonroof .................................................................. 34
Multi-Information Display (MID)

........................... 28
Multi-
view rear Camera ..................................... 115
Music search ......................................................... 156Navigation
................................................................
86
Display and Controls ............................................ 87entering a Destination ......................................... 88
Home Address ...................................................... 88
Map Legend .......................................................... 91
Place Category ..................................................... 89recent Places ....................................................... 89routing ................................................................... 91
Saved Places ........................................................ 90
Steering Wheel Controls ..................................... 86
Street Address ...................................................... 88
System Guidance volume ................................... 86
T

alk Button Tips
.................................................... 86
T

raffic
..................................................................... 92
T

urn-by-turn directions
....................................... 91
Navigation Commands ......................................... 155one Display Audio operation ................................ 53one-T
ouch Turn Signal ........................................... 38on/off Indicators ..................................................... 26opening the Hood ................................................. 134overheating

............................................................ 120
Paddle Shifters
.............................................. 101

, 103
Pairing a Phone
................................................. 74

, 80
Pandora®
........................................................... 59

, 72
Pandora® Commands
.......................................... 156
Parking brake........................................................... 25 Parking Brake
........................................................ 105
Parking sensor system ........................................... 24
Parking Sensor System ........................................ 114
Passenger Airbag off Indicator ............................ 11
Phone .................................................................. 74

, 80
Phonebook
......................................................... 76

, 82
Phone Commands
................................................. 155
Place Category ........................................................ 89
Power Door Mirrors

................................................ 44
Power Driver’s Seat
................................................ 39
Power Mode .......................................................... 100
Power Moonroof operation .................................. 34
Power Window operation ..................................... 33radio ........................................................................\
. 66rain-Sensing Wipers

.............................................. 38
readiness Codes

................................................... 148
rear Camera .......................................................... 115rear Seats ................................................................ 42rearview Mirror ...................................................... 44recent Places

.......................................................... 89
refueling

................................................................. 116
remote Battery Strength ..................................... 117remote engine Start ............................................... 98remote T

ransmitter
................................................ 30reporting Safety Defects

....................................... 22
road Departure Mitigation (rDM) ............... 25

, 110
roadside Assistance ............................................ 153routing ...................................................................... 91
Safety Information .................................................... 3Airbags
.....................................................................
8
Child Safety ........................................................... 14reporting Safety Defects .................................... 22
Safety Label Locations ........................................ 21
Safety Messages .................................................... 3
Seat Belts ................................................................ 5
Saved Places ........................................................... 90
Seat belt reminder .................................................. 25
Seat Belts ................................................................... 5
Fastening a Seat Belt ............................................. 7
Seat Belt Inspection .............................................. 6
Seat Heaters ............................................................ 46
Seats ........................................................................\
. 39
Select/reset knob .................................................... 27
Sequential Shift Mode
.......................................... 103
Service Codes........................................................ 132 Settings ............................................................... 29 , 47
Setting the Clock ..................................................... 48
Shifting .................................................................... 100
Shift Lever Does Not Move ................................. 117
Side Airbags............................................................... 9 Side Curtain Airbags................................................. 9
Siri
eyes Free ........................................................... 85
SiriusXM® radio .................................................... 67
SiriusXM® radio Commands ............................. 156
Smart entry system ................................................. 23
Smart entry System ................................................ 31
SMS T

ext Messaging
....................................... 77,

83
Song By
voice™ Commands ............................... 156
Sound ........................................................................\
52
Specifications ........................................................ 149
Speed Dial .......................................................... 75

, 81
S
rS (Supplemental restraint) Indicator ............. 10
Starter system ......................................................... 24
Steering Wheel

........................................................ 43
Steering Wheel and Nearby Controls
................... 1
Steering Wheel Controls

.................................. 51, 86
Street Address......................................................... 88 Supplemental
restraint System (SrS) ................ 23
System Guidance volume ...................................... 86
System message ..................................................... 25
T

alk Button Tips
................................................. 79

, 86
Text Messaging
................................................. 77

, 83
