Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
*2:Models with LKAS
*3:Models without LKAS
*4:4-cylinder models
*5:6-cylinder models
Circuit ProtectedAmps
1Battery125 A
2
EPS70 A
Fuse Box Main 1 (60 A)
Fuse Box Option 1(40 A)
−−
−−
ABS/VSA FSR 20 A*2
40 A*3
ABS/VSA Motor
40 A*2
30 A*3
3
−−
−−
−−
−−
4 Front Fog Light*(10 A)
5Horn10 A
6 Stop Light 10 A
7FI Sub15 A
8 DRL (7.5 A)
9IG Coil15 A
10 Injector*4
−*5(20 A)*4
−*5
*6:Models with smart entry system
*7:Models without smart entry system
Circuit ProtectedAmps
11Hazard15 A
12 Fuse Box Main 2 60 A
Fuse Box Option 2 (40 A)
IG Main 1 30 A
*6
50 A*7
IG Main 2*6
−*730 A*6
−*7
Sub Fan Motor 20 A*4
30 A*5
Headlight Low Beam Main 30 A
Fuse Box 30 A
Wiper Motor 30 A
Main Fan Motor 30 A Starter Motor
*6
−*730 A*6
−*7
13Rear Defogger40 A
14 Heater Motor 40 A
15FI Main15 A
16 Heated Door Mirror*, *4
−*5(10 A)*4
−*5
17MG Clutch7.5 A
18 DBW 15 A
19Small Light20 A
20 Interior Light 7.5 A
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 576 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

577
uuFuses uFuse Locations
Continued
Handling the Unexpected
*2:Models with LKAS
*3:Models without LKAS

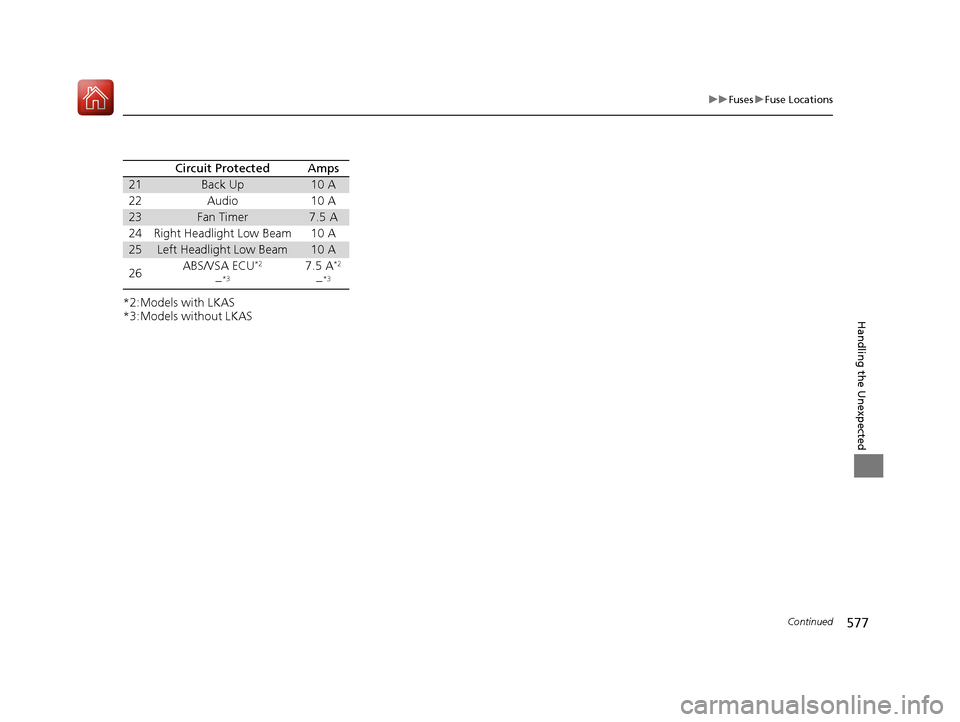

Circuit ProtectedAmps
21Back Up10 A
22 Audio 10 A
23Fan Timer7.5 A
24 Right Headlight Low Beam 10 A
25Left Headlight Low Beam10 A
26 ABS/VSA ECU*2
−*37.5 A*2
−*3
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 577 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

578
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3−−
4−−
5Meter7.5 A
6SRS7.5 A
7Option*(7.5 A)
8MISS SOL10 A
9Fuel Pump20 A
10ABS/VSA7.5 A
11−−
12Front Wiper7.5 A
13ACG15 A
14Rear Accessory Power Socket
(Console Compartment)(20 A)
15Driver’s Power Seat Reclining*(20 A)
16Moonroof*(20 A)
17Front Seat Heaters*(20 A)
18−−
19Passenger Side Door Unlock10 A
20Driver Side Rear Door
Unlock*10 A
21Driver’s Door Lock10 A
22Passenger Side Door Lock10 A
23Driver’s Door Unlock10 A
24SRS10 A
25Illumination10 A
26Key Lock7.5 A
27Parking Lights10 A
28Lumbar Support*(10 A)
29Right Headlight High Beam10 A
30Washer15 A
31SMART*(10 A)
32Driver’s Power Window20 A
Circuit ProtectedAmps
33Front Passenger’s Power Window20 A
34Rear Driver Side Power Window*20 A
35Rear Passenger Side Power Window*20 A
36Driver’s Power Seat Sliding*(20 A)
37ACCESSORY7.5 A
38−−
39Left Headlight High Beam10 A
40Front Accessory Power Socket
(Console Panel)20 A
41Driver Side Rear Door Lock*10 A
42Door Lock20 A
aAudio*(7.5 A)
bACM*(20 A)
cRear Seat Heaters*(15 A)
dPremium Amp*(20 A)
e−−
f−−
gPassenger’s Power Seat Reclining*(20 A)
hPassenger’s Power Seat Sliding*(20 A)
Circuit ProtectedAmps
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 578 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

579
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of
an ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 576 to 578.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 579 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

580
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 580 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

581
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 582
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 586
Devices that Emit Radio Waves ....... 587
Reporting Safety Defects ................. 588Emissions Testing
Testing of Readiness Codes.............. 589
Warranty Coverages ........................ 591
Authorized Manuals ......................... 593
Customer Service Information ......... 594
