2017 HONDA ACCORD COUPE stop start

574
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 574 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

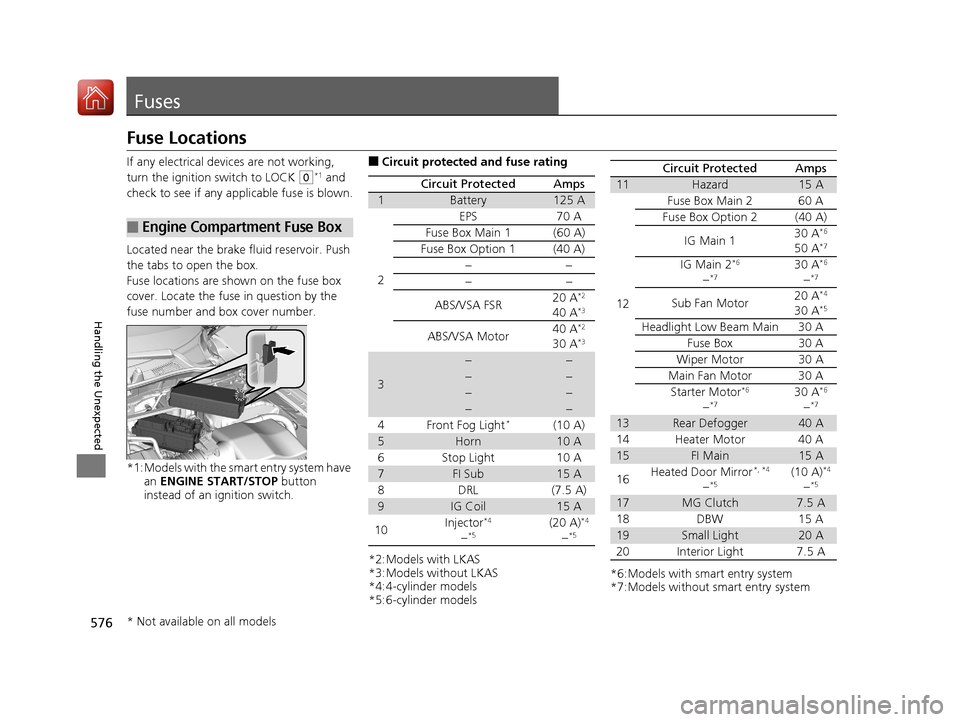

576
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
*2:Models with LKAS
*3:Models without LKAS
*4:4-cylinder models
*5:6-cylinder models
Circuit ProtectedAmps
1Battery125 A
2
EPS70 A
Fuse Box Main 1 (60 A)
Fuse Box Option 1(40 A)
−−
−−
ABS/VSA FSR 20 A*2
40 A*3
ABS/VSA Motor
40 A*2
30 A*3
3
−−
−−
−−
−−
4 Front Fog Light*(10 A)
5Horn10 A
6 Stop Light 10 A
7FI Sub15 A
8 DRL (7.5 A)
9IG Coil15 A
10 Injector*4
−*5(20 A)*4
−*5
*6:Models with smart entry system
*7:Models without smart entry system
Circuit ProtectedAmps
11Hazard15 A
12 Fuse Box Main 2 60 A
Fuse Box Option 2 (40 A)
IG Main 1 30 A
*6
50 A*7
IG Main 2*6
−*730 A*6
−*7
Sub Fan Motor 20 A*4
30 A*5
Headlight Low Beam Main 30 A
Fuse Box 30 A
Wiper Motor 30 A
Main Fan Motor 30 A Starter Motor
*6
−*730 A*6
−*7
13Rear Defogger40 A
14 Heater Motor 40 A
15FI Main15 A
16 Heated Door Mirror*, *4
−*5(10 A)*4
−*5
17MG Clutch7.5 A
18 DBW 15 A
19Small Light20 A
20 Interior Light 7.5 A
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 576 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

579
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of
an ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 576 to 578.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 579 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

589Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (automatic transmission/CVT) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 589 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

600
Index
Continuously Variable Transmission (CVT)Creeping ................................................. 429
Fluid ........................................................ 525
Kickdown ................................................ 429
Operating the Shift Lever ................... 19, 431
Shift Lever Does Not Move....................... 569
Shifting.................................................... 430
Controls ..................................................... 115
Coolant (Engine) ....................................... 523
Adding to the Engine Coolant Reserve Tank ...................................................... 523
Adding to the Radiator ............................ 524
Overheating............................................. 570
Creeping (Automatic Transmission
/CVT) ........................................................ 429
Cruise Control ........................................... 442
Indicator .................................................... 81
Cup Holders ............................................... 173
Customer Service Information ................. 594
Customized Features ................ 106, 298, 316
D
Daytime Running Lights ........................... 151
Dead Battery ............................................. 566
Defaulting All the Settings .............. 315, 339
Defrosting the Windshield and
Windows .................................................. 181
Devices that Emit Radio Waves ................ 587
Dimming
Headlights ............................................... 145 Rearview Mirror....................................... 159
Dipstick (Engine Oil) ................................. 518
Directional Signals (Turn Signal) ............. 145
Display Button .................................. 193, 216
Door Mirrors ............................................. 160
Doors ......................................................... 118
Auto Door Locking .................................. 128
Auto Door Unlocking .............................. 128
Door and Trunk Open Indicator ........... 33, 77
Keys ........................................................ 118
Locking/Unlocking the Doors from
the Inside .............................................. 126
Locking/Unlocking the Doors from the Outside ........................................... 121
Lockout Prevention System ...................... 125
DOT Tire Quality Grading ........................ 540
Driving ...................................................... 411
Adaptive Cruise Control (ACC) ................ 447
Automatic Transmission/CVT ................... 429
Braking ................................................... 479
Cruise Control ......................................... 442
Shifting Gear ................................... 434, 438
Shifting Position ...................................... 430
Starting the Engine.......................... 421, 423
Driving Position Memory System ............ 156
Dust and Pollen Filter ............................... 549
E
Eco Assist® System ........................................ 9
ECON Button ............................................ 441 Elapsed Time
............................................ 104
Electric Power Steering (EPS) System
Indicator ........................................... 77, 574
Electronic Stability Control (ESC) ............ 471
Emergency ................................................ 580
Emergency Engine Stop ........................... 565
Emergency Trunk Opener ....................... 132
Emissions Testing (Readiness Codes) ...... 589
Engine ....................................................... 586
Coolant .................................................. 523
Jump Starting ......................................... 566
Oil .......................................................... 517
Remote Engine Start ............................... 425
Starting........................................... 421, 423
Switch Buzzer ......................................... 140
Engine Coolant ........................................ 523
Adding to the Engine Coolant Reserve
Tank ..................................................... 523
Adding to the Radiator ........................... 524
Overheating ............................................ 570
Temperature Gauge .................................. 98
Engine Oil ................................................. 517
Adding ................................................... 520
Checking ................................................ 518
Displaying Oil Life ........................... 505, 509
Low Oil Pressure Indicator ................. 71, 572
Recommended Engine Oil ....................... 517
ENGINE START/STOP Button .................... 141
EPS (Electric Power Steering) System ............................................... 77, 574
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 600 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

605
Index
Security System........................................ 133
Immobilizer System Indicator..................... 80
Security System Alarm Indicator ................ 80
SEL/RESET Button ..................................... 103
Select/Reset Knob ...................................... 99
Selecting a Child Seat ................................ 58
Selector Knob (Audio) ............................. 192
Sequential Shift Mode ............................. 436
Operation ............................................... 437
Shift Lever .......................... 19, 430, 434, 438
Operation ......................... 19, 431, 435, 438
Releasing ................................................ 569
Won’t Move ........................................... 569
Shift Lever Position Indicator .... 72, 431, 435
Shifting (Transmission) ............ 430, 434, 438
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
Siri ® Eyes Free ........................................... 285
SiriusXM ® Radio ....................................... 244
Smart Entry Remote ......................... 118, 425
Smart Entry with Push Button Start System ..................................................... 121
Snow Tires ................................................ 545
Song By Voice
TM (SBV) .............................. 258
Spare Tire ................................. 557, 583, 585
Spark Plugs ....................................... 582, 584
Specifications ........................................... 582
Specified Fuel ........................... 497, 582, 584
Speedometer .............................................. 98
SRS Airbags (Airbags) ................................ 44 Starting the Engine
.......................... 421, 423
Does Not Start ......................................... 563
Engine Switch Buzzer .............................. 140
Jump Starting .......................................... 566
Remote Engine Start ................................ 425
Steering Wheel Adjusting ................................................. 158
Stopping .................................................... 491
Summer Tires ............................................ 545
Sunglasses Holder ..................................... 178
Supplemental Restraint System (SRS) ........ 44
Switches (Around the Steering Wheel) ............................................. 4, 5, 140
SYNC Mode ............................................... 182
System Message Indicator .......................... 79
T
Tachometer................................................. 98
Temperature Outside Temperature Display ........... 101, 105
Temperature Sensor ................. 101, 105, 183
Time (Setting) ........................................... 116
Tire Pressure Monitoring System
(TPMS) ..................................................... 475
Indicator ............................................ 78, 575
Tires ........................................................... 537
Air Pressure ............................. 538, 583, 585
Checking and Maintaining ....................... 537
Inspection ................................................ 537 Labeling .................................................. 538
Puncture (Flat Tire) .................................. 557
Regulations ............................................. 540
Rotation .................................................. 544
Spare Tire ................................ 557, 583, 585
Summer .................................................. 545
Tire Chains .............................................. 545
Wear Indicators ....................................... 542
Winter..................................................... 545
Tools .......................................................... 556
Towing a Trailer ....................................... 417
Equipment and Accessories ..................... 418
Load Limits .............................................. 417
Towing Your Vehicle ................................ 420
Emergency .............................................. 580
TPMS (Tire Pressure Monitoring System) .................................................... 475
Indicator............................................ 78, 575
Transmission ............................. 430, 434, 438
Automatic ............................................... 434
Continuously Variable (CVT) .................... 430
Fluid ................................................ 525, 526
Manual ................................................... 438
Number................................................... 586
Shift Lever Position Indicator...... 72, 431, 435
Trip Meter ......................................... 100, 104
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 605 ページ ２０１５年９月２５日　金曜日　午前１１時３９分
