2017 GENESIS G90 headlamp

7-78
Maintenance
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So
if you need to have your vehicle dis-
posed, you should remove the HID
headlamps before disposal. The
removed HID headlamps should be
recycled, re-used or disposed as haz-
ardous waste.
Information
HID lamps have superior perform-
ance vs. halogen bulbs.
HID lamps are estimated by the man-
ufacturer to last twice as long or
longer than halogen bulbs depending
on their frequency of use. They will
probably require replacement at some
point in the life of the vehicle. Cycling
the headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs thus
have higher replacement cost.
Parking lamp/Daytime running
light/Side marker
Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized Dealer of
Genesis Brand Products.
Type B – LED headlamp
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Parking lamp
(4) Turn signal/Daytime running light
(5) Side marker
Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized Dealer of
Genesis Brand Products.
i
i
OHI076039N

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E

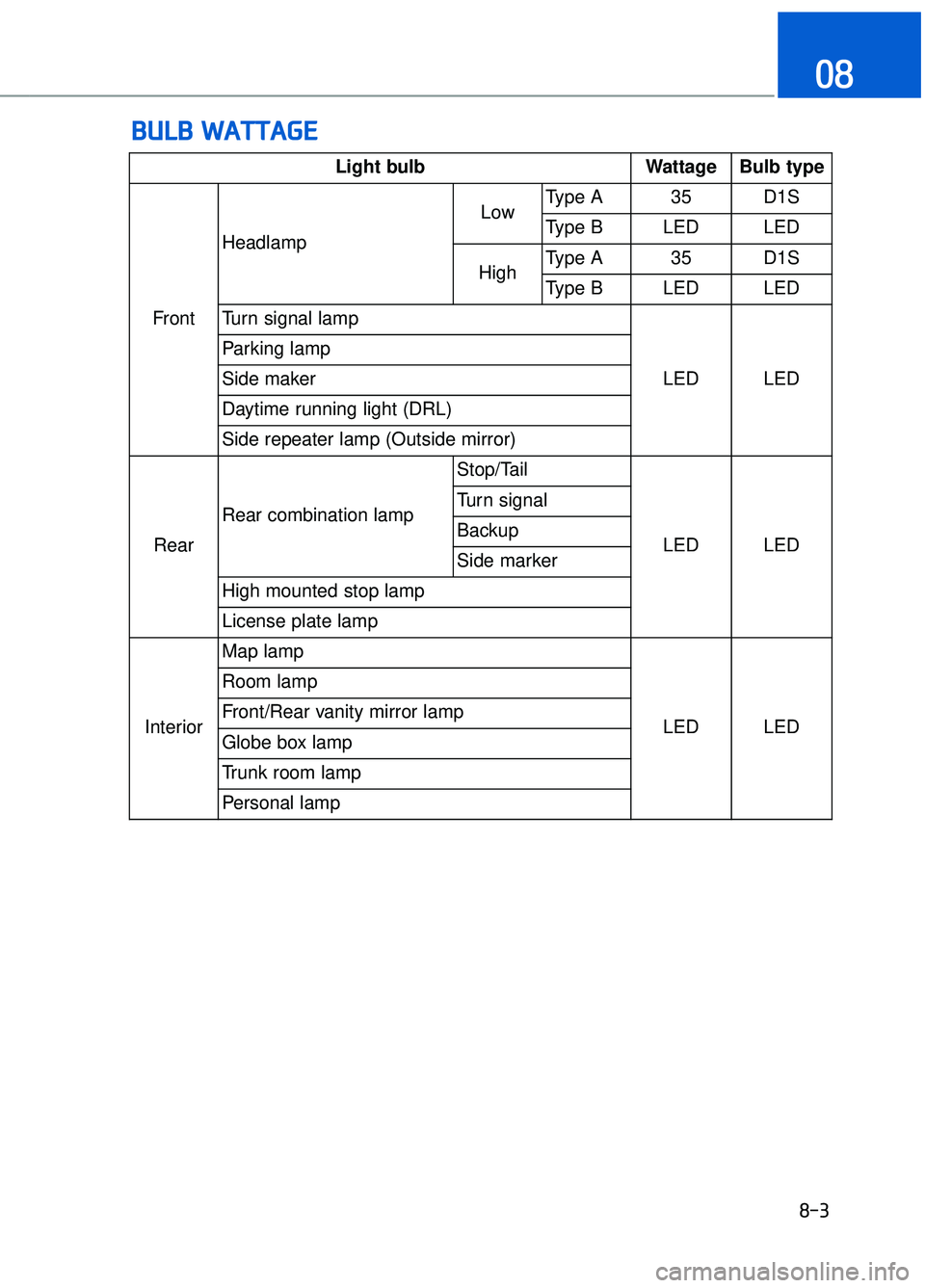

8-3
08
Light bulb Wattage Bulb type
Front Headlamp
Low
Type A 35 D1S
Type B LED LED
High Type A 35 D1S
Type B LED LED
Turn signal lamp
LED LED
Parking lamp
Side maker
Daytime running light (DRL)
Side repeater lamp (Outside mirror)
Rear Rear combination lamp Stop/Tail
LED LED
Turn signal
Backup
Side marker
High mounted stop lamp
License plate lamp
Interior Map lamp
LED LED
Room lamp
Front/Rear vanity mirror lamp
Globe box lamp
Trunk room lamp
Personal lamp
