2017 FORD POLICE INTERCEPTOR SEDAN remote start

On-board Diagnostics (OBD-II)
WARNING
Do not connect wireless plug-in
devices to the data link connector.
Unauthorized third parties could gain
access to vehicle data and impair the
performance of safety related systems.
Only allow repair facilities that follow our
service and repair instructions to connect
their equipment to the data link connector. Your vehicle
’s On-board Diagnostics
(OBD-II) system has a data port for
diagnostics, repair and reprogramming
services with diagnostic scan tools.
Installing a non-Ford-approved
aftermarket OBD plug-in device that uses
the port during normal driving, for example
remote insurance company monitoring,
remote vehicle diagnostics, telematics or
engine reprogramming, may cause
interference or damage to vehicle systems.
We do not recommend or endorse the use
of any non-Ford-approved aftermarket
OBD plug-in devices. The vehicle Warranty
may not cover damage caused by any
non-Ford-approved aftermarket OBD
plug-in device.
My Fleet Management
This feature allows a fleet administrator
to control specific vehicle settings using a
Ford authorized service tool. This helps the
fleet administrator set certain vehicle
settings to match administrative policy.
The configurable settings are: •
Vehicle Speed: Select an alternative
speed limit that is below your vehicle's
maximum capability. A message
displays and a tone sounds when
starting your vehicle to indicate the
customized speed limit.
• Audio Volume: Select a limit for the
maximum volume of the audio system
in the range of 0% (full mute) to 100%
(no limit) in 10% increments.
For more information regarding the My
Fleet Management feature
configuration process, reference the
procedure in the Police Upfit &
Modifier ’s Guide found at: Web Address
www.fordpoliceinterceptorupfit.com
MOBILE COMMUNICATIONS
EQUIPMENT WARNING
Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving. Using mobile communications equipment
is becoming increasingly important in the
conduct of business and personal affairs.
However, you must not compromise your
own or others’
safety when using such
equipment. Mobile communications can
enhance personal safety and security when
13
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Introduction

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of
the following could cause a decrease in
operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
The radio frequency used by your remote
control can also be used by other short
distance radio transmissions, for example
amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems. If the frequencies are
jammed, you will not be able to use your
remote control. You can lock and unlock
the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Note:
The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
REMOTE CONTROL Note:
If there are problems with the remote
entry system, make sure to take all remote
entry transmitters with you to an authorized
dealer to aid in troubleshooting the problem.
Changing the Remote Control
Battery
The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent. Make sure that you dispose of
old batteries in an
environmentally friendly way.
Seek advice from your local authority
about recycling old batteries.
48
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Keys and Remote ControlsE215678 E107998

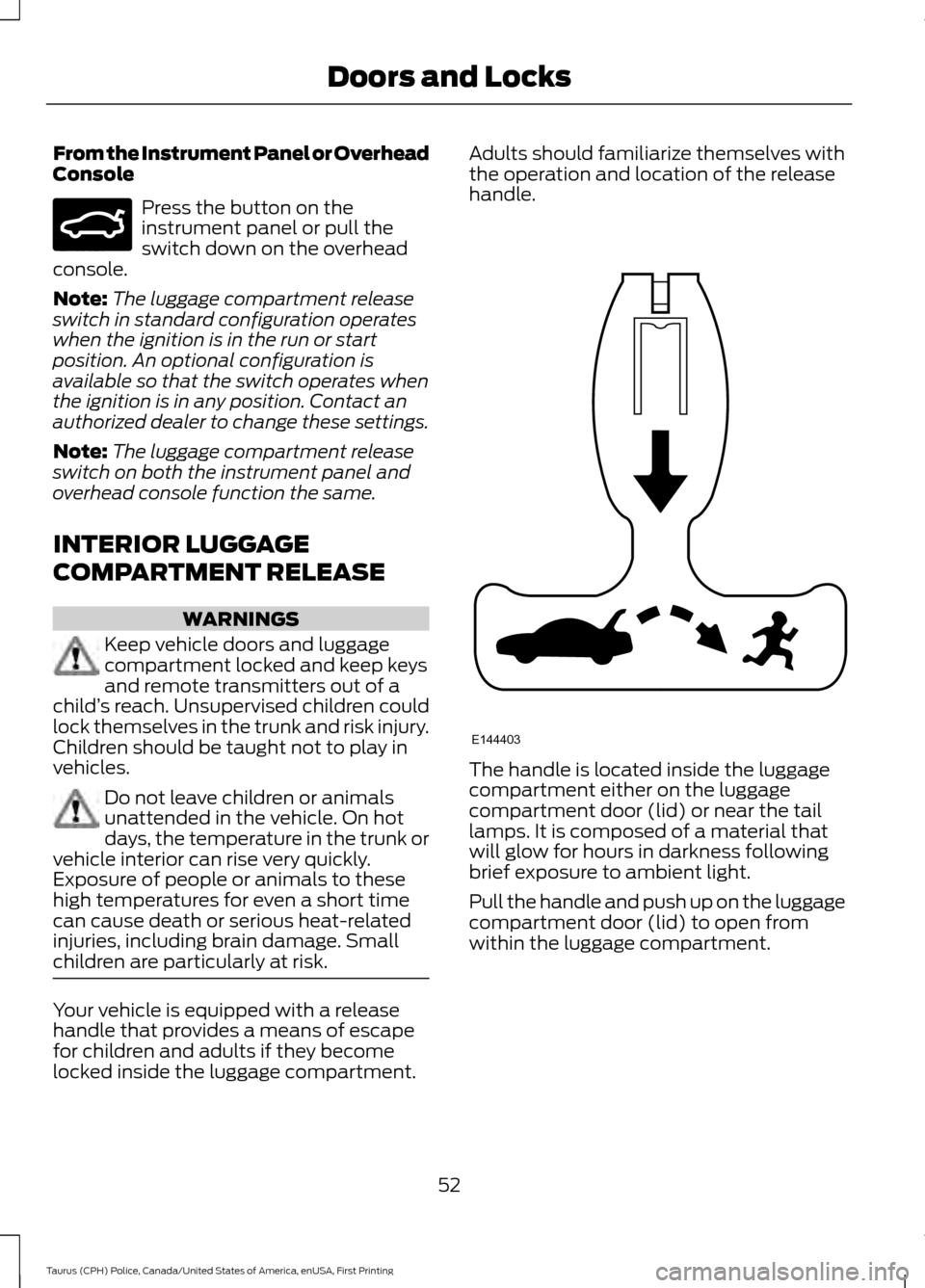

From the Instrument Panel or Overhead
Console
Press the button on the
instrument panel or pull the
switch down on the overhead
console.
Note: The luggage compartment release
switch in standard configuration operates
when the ignition is in the run or start
position. An optional configuration is
available so that the switch operates when
the ignition is in any position. Contact an
authorized dealer to change these settings.
Note: The luggage compartment release
switch on both the instrument panel and
overhead console function the same.
INTERIOR LUGGAGE
COMPARTMENT RELEASE WARNINGS
Keep vehicle doors and luggage
compartment locked and keep keys
and remote transmitters out of a
child ’s reach. Unsupervised children could
lock themselves in the trunk and risk injury.
Children should be taught not to play in
vehicles. Do not leave children or animals
unattended in the vehicle. On hot
days, the temperature in the trunk or
vehicle interior can rise very quickly.
Exposure of people or animals to these
high temperatures for even a short time
can cause death or serious heat-related
injuries, including brain damage. Small
children are particularly at risk. Your vehicle is equipped with a release
handle that provides a means of escape
for children and adults if they become
locked inside the luggage compartment. Adults should familiarize themselves with
the operation and location of the release
handle.
The handle is located inside the luggage
compartment either on the luggage
compartment door (lid) or near the tail
lamps. It is composed of a material that
will glow for hours in darkness following
brief exposure to ambient light.
Pull the handle and push up on the luggage
compartment door (lid) to open from
within the luggage compartment.
52
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Doors and LocksE159323 E144403

Interior Luggage Compartment
Release............................................................52
Interior Mirror...................................................64 Auto-Dimming Mirror......................................... 64
Introduction.........................................................7
J
Jump Starting the Vehicle.........................148
Connecting the Jumper Cables..................... 148
Jump Starting....................................................... 149
Preparing Your Vehicle..................................... 148
Removing the Jumper Cables........................ 149
K
Keys and Remote Controls
........................48
L
Lighting Control
..............................................58
Headlamp Flasher............................................... 59
High Beams............................................................ 58
Spot Lamp Control.............................................. 59
Lighting..............................................................58 General Information............................................ 58
Load Carrying.................................................132
Load Limit........................................................132 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................. 137
Vehicle Loading - with and without a Trailer.................................................................. 132
Locking and Unlocking................................50 Battery Saver.......................................................... 51
Hidden Rear Door Locks.................................... 50
Illuminated Entry................................................... 51
Illuminated Exit...................................................... 51
Locking and Unlocking the Doors with the Key Blade............................................................. 51
Opening a Rear Door From the Inside...........51
Opening the Luggage Compartment............51
Power Door Locks................................................ 50
Remote Control.................................................... 50
Lug Nuts See: Changing a Road Wheel........................ 218M
Maintenance..................................................169
General Information.......................................... 169
Manual Climate Control
..............................80
Manual Seats..................................................86
Lumbar Adjustment............................................ 87
Moving the Seat Backward and Forward.............................................................. 86
Recline Adjustment............................................ 86
Media Hub
.......................................................257
Message Center See: Information Displays.................................. 71
Mirrors See: Heated Windows and Mirrors................82
See: Windows and Mirrors................................ 62
Mobile Communications Equipment.......13
Motorcraft Parts - 2.0L EcoBoost™.................................................226
Motorcraft Parts - 3.5L Duratec.............228
Motorcraft Parts - 3.5L Ecoboost™.................................................229
Motorcraft Parts - 3.7L
...............................230
N
Normal Scheduled Maintenance..........304 Intelligent Oil-Life Monitor™........................ 304
Normal Maintenance Intervals.................... 305
O
Oil Change Indicator Reset........................176
Oil Check See: Engine Oil Check........................................ 174
Opening and Closing the Hood...............169 Closing the Hood................................................ 170
Opening the Hood............................................. 169
Ordering Additional Owner's Literature.......................................................155
Obtaining a French Owner ’s Manual..........156
Overhead Console.........................................89
P
Parking Aids
....................................................120
Principle of Operation....................................... 120
Parking Brake
..................................................116
351
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Index
