2017 FORD FOCUS ELECTRIC transmission fluid

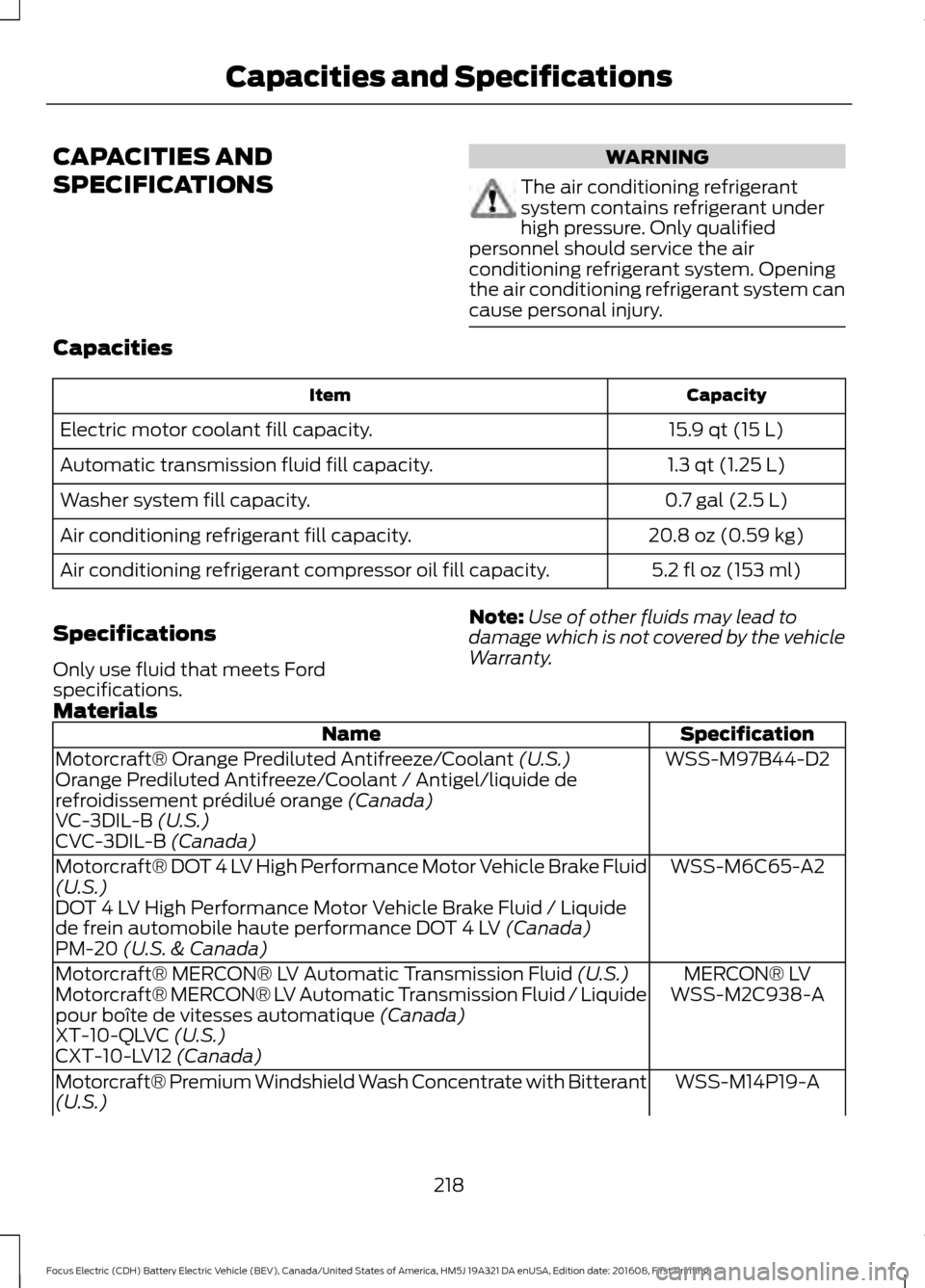

CAPACITIES AND
SPECIFICATIONS WARNING
The air conditioning refrigerant
system contains refrigerant under
high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury. Capacities
Capacity
Item
15.9 qt (15 L)
Electric motor coolant fill capacity.
1.3 qt (1.25 L)
Automatic transmission fluid fill capacity.
0.7 gal (2.5 L)
Washer system fill capacity.
20.8 oz (0.59 kg)
Air conditioning refrigerant fill capacity.
5.2 fl oz (153 ml)
Air conditioning refrigerant compressor oil fill capacity.
Specifications
Only use fluid that meets Ford
specifications. Note:
Use of other fluids may lead to
damage which is not covered by the vehicle
Warranty.
Materials Specification
Name
WSS-M97B44-D2
Motorcraft® Orange Prediluted Antifreeze/Coolant (U.S.)
Orange Prediluted Antifreeze/Coolant / Antigel/liquide de
refroidissement prédilué orange
(Canada)
VC-3DIL-B (U.S.)
CVC-3DIL-B (Canada)
WSS-M6C65-A2
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
(U.S.)
DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide
de frein automobile haute performance DOT 4 LV
(Canada)
PM-20 (U.S. & Canada)
MERCON® LV
Motorcraft® MERCON® LV Automatic Transmission Fluid
(U.S.)
WSS-M2C938-A
Motorcraft® MERCON® LV Automatic Transmission Fluid / Liquide
pour boîte de vitesses automatique
(Canada)
XT-10-QLVC (U.S.)
CXT-10-LV12 (Canada)
WSS-M14P19-A
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
(U.S.)
218
Focus Electric (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, HM5J 19A321 DA enUSA, Edition date: 201608, First Printing Capacities and Specifications

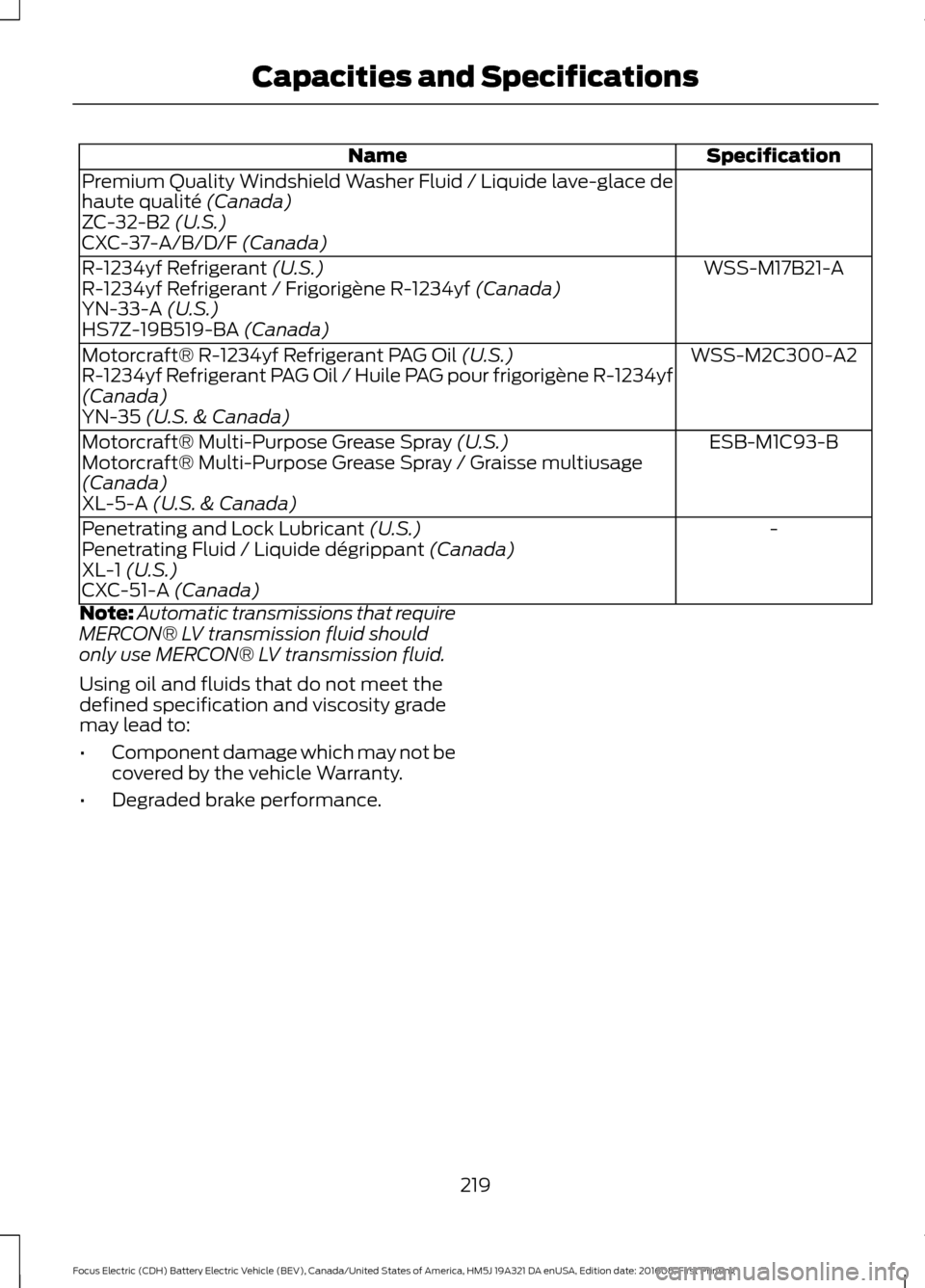

Specification
Name
Premium Quality Windshield Washer Fluid / Liquide lave-glace de
haute qualité (Canada)
ZC-32-B2 (U.S.)
CXC-37-A/B/D/F (Canada)
WSS-M17B21-A
R-1234yf Refrigerant
(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf (Canada)
YN-33-A (U.S.)
HS7Z-19B519-BA (Canada)
WSS-M2C300-A2
Motorcraft® R-1234yf Refrigerant PAG Oil
(U.S.)
R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
(Canada)
YN-35
(U.S. & Canada)
ESB-M1C93-B
Motorcraft® Multi-Purpose Grease Spray
(U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse multiusage
(Canada)
XL-5-A
(U.S. & Canada)
-
Penetrating and Lock Lubricant
(U.S.)
Penetrating Fluid / Liquide dégrippant (Canada)
XL-1 (U.S.)
CXC-51-A (Canada)
Note: Automatic transmissions that require
MERCON® LV transmission fluid should
only use MERCON® LV transmission fluid.
Using oil and fluids that do not meet the
defined specification and viscosity grade
may lead to:
• Component damage which may not be
covered by the vehicle Warranty.
• Degraded brake performance.
219
Focus Electric (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, HM5J 19A321 DA enUSA, Edition date: 201608, First Printing Capacities and Specifications

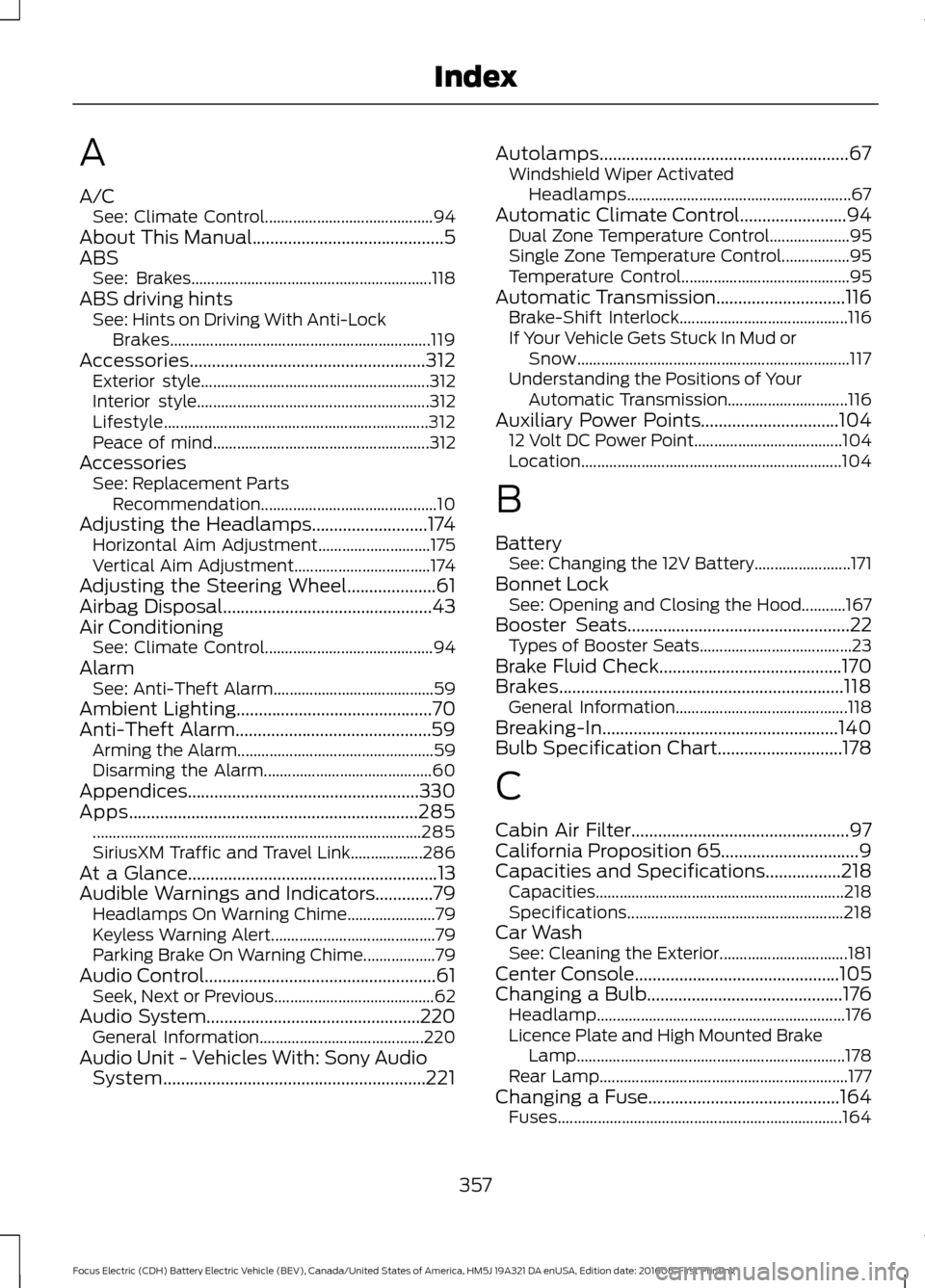

A
A/C
See: Climate Control.......................................... 94
About This Manual...........................................5
ABS See: Brakes............................................................ 118
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 119
Accessories.....................................................312 Exterior style......................................................... 312
Interior style.......................................................... 312
Lifestyle.................................................................. 312
Peace of mind...................................................... 312
Accessories See: Replacement Parts
Recommendation............................................ 10
Adjusting the Headlamps..........................174 Horizontal Aim Adjustment............................ 175
Vertical Aim Adjustment.................................. 174
Adjusting the Steering Wheel....................61
Airbag Disposal...............................................43
Air Conditioning See: Climate Control.......................................... 94
Alarm See: Anti-Theft Alarm........................................ 59
Ambient Lighting
............................................70
Anti-Theft Alarm............................................59 Arming the Alarm................................................. 59
Disarming the Alarm.......................................... 60
Appendices....................................................330
Apps
.................................................................285
........................................................................\
.......... 285
SiriusXM Traffic and Travel Link.................. 286
At a Glance
........................................................13
Audible Warnings and Indicators.............79 Headlamps On Warning Chime...................... 79
Keyless Warning Alert......................................... 79
Parking Brake On Warning Chime.................. 79
Audio Control....................................................61 Seek, Next or Previous........................................ 62
Audio System................................................220 General Information......................................... 220
Audio Unit - Vehicles With: Sony Audio System...........................................................221 Autolamps........................................................67
Windshield Wiper Activated
Headlamps........................................................ 67
Automatic Climate Control
........................94
Dual Zone Temperature Control.................... 95
Single Zone Temperature Control.................95
Temperature Control.......................................... 95
Automatic Transmission
.............................116
Brake-Shift Interlock.......................................... 116
If Your Vehicle Gets Stuck In Mud or Snow.................................................................... 117
Understanding the Positions of Your Automatic Transmission.............................. 116
Auxiliary Power Points
...............................104
12 Volt DC Power Point..................................... 104
Location................................................................. 104
B
Battery See: Changing the 12V Battery........................ 171
Bonnet Lock See: Opening and Closing the Hood...........167
Booster Seats
..................................................22
Types of Booster Seats...................................... 23
Brake Fluid Check.........................................170
Brakes................................................................118 General Information........................................... 118
Breaking-In.....................................................140
Bulb Specification Chart............................178
C
Cabin Air Filter.................................................97
California Proposition 65...............................9
Capacities and Specifications
.................218
Capacities.............................................................. 218
Specifications...................................................... 218
Car Wash See: Cleaning the Exterior................................ 181
Center Console
..............................................105
Changing a Bulb............................................176
Headlamp.............................................................. 176
Licence Plate and High Mounted Brake Lamp................................................................... 178
Rear Lamp.............................................................. 177
Changing a Fuse
...........................................164
Fuses....................................................................... 164
357
Focus Electric (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, HM5J 19A321 DA enUSA, Edition date: 201608, First Printing Index
