2017 FORD FIESTA technical specifications

Opening and Closing the Hood...............182
Under Hood Overview - 1.0L
EcoBoost™................................................184
Under Hood Overview - 1.6L Duratec-16V Ti-VCT (Sigma)........................................185
Engine Oil Dipstick - 1.0L EcoBoost™................................................186
Engine Oil Dipstick - 1.6L Duratec-16V Ti-VCT (Sigma)........................................186
Engine Oil Check..........................................186
Oil Change Indicator Reset
.......................187
Engine Cooling Fan
......................................188
Engine Coolant Check................................188
Automatic Transmission Fluid Check............................................................192
Brake Fluid Check.........................................192
Clutch Fluid Check - Manual Transmission..............................................192
Washer Fluid Check.....................................193
Changing the 12V Battery..........................193
Checking the Wiper Blades......................194
Changing the Front Wiper Blades..........195
Changing the Rear Wiper Blades...........195
Adjusting the Headlamps
.........................195
Removing a Headlamp
...............................197
Changing a Bulb - 4-Door.........................197
Changing a Bulb - 5-Door........................203
Bulb Specification Chart..........................208
Changing the Engine Air Filter................209
Drive Belt Routing - 1.0L EcoBoost™.................................................210
Drive Belt Routing - 1.6L Duratec-16V Ti-VCT (Sigma)........................................210
Vehicle Care
Cleaning Products
.........................................211
Cleaning the Exterior...................................212
Waxing
..............................................................213
Cleaning the Engine.....................................213
Cleaning the Windows and Wiper Blades...........................................................214 Cleaning the Interior....................................214
Cleaning the Instrument Panel and
Instrument Cluster Lens.........................215
Cleaning Leather Seats
..............................215
Repairing Minor Paint Damage...............216
Cleaning the Wheels...................................216
Vehicle Storage.............................................216
Wheels and Tires
General Information....................................219
Tire Care
...........................................................219
Using Summer Tires
...................................234
Using Winter Tires.......................................234
Using Snow Chains.....................................234
Tire Pressure Monitoring System...........234
Changing a Road Wheel
...........................238
Technical Specifications
...........................242
Capacities and Specific- ations
Engine Specifications - 1.0L EcoBoost™................................................243
Engine Specifications - 1.6L Duratec-16V Ti-VCT (Sigma).......................................243
Transmission Specifications - 1.0L EcoBoost™, Automatic
Transmission.............................................243
Transmission Specifications - 1.6L Duratec-16V Ti-VCT (Sigma),
Automatic Transmission......................244
Transmission Specifications - 5-Speed Manual Transmission
.............................245
Motorcraft Parts - 1.0L EcoBoost™......246
Motorcraft Parts - 1.6L Duratec-16V Ti-VCT (Sigma)
........................................247
Vehicle Identification Number................248
Vehicle Certification Label.......................249
Transmission Code Designation............249
Capacities and Specifications - 1.0L EcoBoost™...............................................250
Capacities and Specifications - 1.6L Duratec-16V Ti-VCT (Sigma)
.............253
4
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Table of Contents

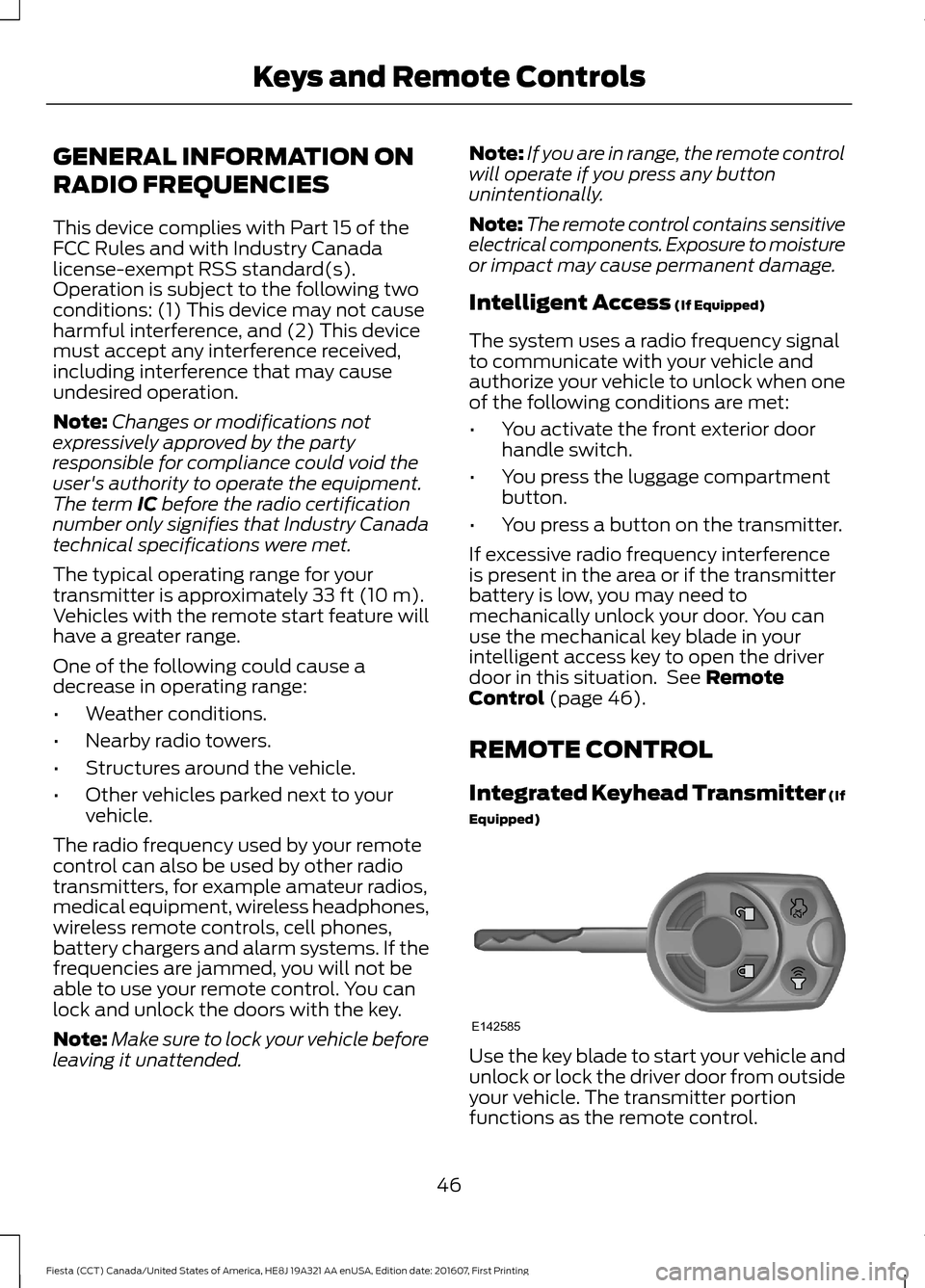

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.
One of the following could cause a
decrease in operating range:
• Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended. Note:
If you are in range, the remote control
will operate if you press any button
unintentionally.
Note: The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 46).
REMOTE CONTROL
Integrated Keyhead Transmitter (If
Equipped) Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. The transmitter portion
functions as the remote control.
46
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Keys and Remote ControlsE142585

12. Indentations in the sills show the
location of the jacking points. 13. Remove the lug nuts with the lug
wrench.
14. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered.
15. Lower the wheel by turning the jack handle counterclockwise. 16.
Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page
242).
Stowing the Flat Tire
The full-size road wheel can be stowed in
the spare tire compartment.
1. Lift the carpeted wheel cover at an angle to access the spare tire
compartment.
2. Place the wheel in the spare tire well with the valve stem facing down. Use
the mini-spare bolt to secure the
wheel.
3. Place the jack and tools back into the spare tire compartment.
4. Replace the carpeted wheel cover.
241
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Wheels and TiresE145908 E142553 12
3
4
E90589

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore.
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
242
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Wheels and TiresE145950

Seatbelt Height Adjustment......................32
Seatbelt Reminder.........................................33
Belt-Minder™........................................................ 33
Seatbelts...........................................................29 Principle of Operation........................................ 29
Seatbelt Warning Lamp and Indicator Chime...............................................................32
Conditions of operation..................................... 33
Seats.................................................................102
Security..............................................................64
Settings............................................................367 911 Assist................................................................ 372
Ambient Lighting................................................ 377
Bluetooth.............................................................. 369
Clock...................................................................... 368
Display.................................................................... 378
General.................................................................. 376
Media Player....................................................... 368
Mobile Apps......................................................... 375
Navigation............................................................. 373
Phone..................................................................... 369
Radio....................................................................... 372
Sound..................................................................... 367
Valet Mode........................................................... 379
Vehicle.................................................................... 377
Voice Control....................................................... 379
Wi-Fi........................................................................\
377
Side Airbags
......................................................41
Side Curtain Airbags.....................................43
Sitting in the Correct Position..................102
Snow Chains See: Using Snow Chains................................. 234
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
On Board Diagnostics Data Link Connector............................................................ 13
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance..............................................402
Exceptions........................................................... 403
Speed Control See: Cruise Control............................................. 143
Stability Control
............................................135
Principle of Operation....................................... 135
Starter Switch See: Ignition Switch............................................. 111
Starting a Gasoline Engine.........................113 Cold or Hot Engine............................................... 113Engine Idle Speed after Starting....................
114
Failure to Start...................................................... 114
Flooded Engine..................................................... 114
Starting and Stopping the Engine............111 General Information............................................ 111
Steering............................................................145 Electric Power Steering.................................... 145
Steering Wheel
................................................67
Storage Compartments..............................110
Sunroof See: Moonroof....................................................... 79
Supplementary Restraints System..........37 Principle of Operation......................................... 37
Switching Off the Engine............................114 Vehicles With a Turbocharger......................... 114
Symbols Glossary
.............................................7
SYNC™ 3........................................................323
General Information.......................................... 323
SYNC™ 3 Troubleshooting......................379
SYNC™ Applications and Services........................................................294
911 Assist............................................................... 294
SYNC Services: Traffic, Directions & Information (TDI) (If Equipped, United
States Only)................................................... 298
Vehicle Health Report (If Equipped, United States Only)................................................... 296
SYNC™ AppLink ™
.....................................302
SYNC Mobile Apps............................................ 302
SYNC™............................................................276 General Information.......................................... 276
SYNC™ Troubleshooting..........................314
T
Tailgate See: Manual Liftgate........................................... 59
Technical Specifications See: Capacities and Specifications............243
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................167
Tire Care
...........................................................219
Glossary of Tire Terminology.......................... 221
Important information for 205/40R17 low-profile tires and wheels...................... 219
Information About Uniform Tire Quality Grading.............................................................. 219
446
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Index

Vehicle Certification Label.......................249
Vehicle Identification Number................248
Vehicle Storage.............................................216 Battery..................................................................... 217
Body........................................................................\
. 217
Brakes...................................................................... 217
Cooling system..................................................... 217
Engine...................................................................... 217
Fuel system........................................................... 217
General.................................................................... 217
Miscellaneous...................................................... 218
Removing Vehicle From Storage.................. 218
Tires........................................................................\
.. 217
Ventilation See: Climate Control........................................... 95
VIN See: Vehicle Identification Number............248
Voice Control
...................................................68
W
Warning Lamps and Indicators..................81 Airbag Warning Lamp.......................................... 81
Anti-Lock Brake System Warning Lamp..................................................................... 81
Brake System Warning Lamp........................... 81
Cruise Control Indicator..................................... 82
Direction Indicator................................................ 82
Door Ajar Warning Lamp................................... 82
Engine Coolant Temperature Warning Lamp.................................................................... 82
Engine Warning Lamps...................................... 82
Fasten Seatbelt Warning Lamp...................... 82
Front Fog Lamp Indicator................................. 83
Headlamp High Beam Indicator..................... 83
Ignition Warning Lamp....................................... 83
Lamps on Indicator............................................. 83
Low Fuel Level Warning Lamp........................ 83
Low Tire Pressure Warning Lamp.................. 83
Message Center Indicator................................. 83
Oil Pressure Warning Lamp............................. 83
Shift Indicator........................................................ 83
Stability Control and Traction Control Indicator.............................................................. 83
Stability Control and Traction Control Off Warning Lamp.................................................. 83
Washer Fluid Check
.....................................193 Washers
See: Cleaning the Exterior................................ 212
See: Wipers and Washers................................. 69
Waxing
..............................................................213
Wheel Nuts See: Changing a Road Wheel....................... 238
Wheels and Tires..........................................219 General Information.......................................... 219
Technical Specifications................................. 242
Windows and Mirrors....................................76
Windshield Washers
.....................................69
Windshield Wipers........................................69 Intermittent Wipe................................................ 69
Speed Dependent Wipers................................ 69
Winter Tires See: Using Winter Tires................................... 234
Wiper Blades See: Checking the Wiper Blades.................. 194
Wipers and Washers.....................................69
Wrecker Towing See: Transporting the Vehicle........................ 154
448
Fiesta (CCT) Canada/United States of America, HE8J 19A321 AA enUSA, Edition date: 201607, First Printing Index
