2017 FORD ESCAPE Owners Manual

ENGINE SPECIFICATIONS - 1.5L ECOBOOST™
Specification
Measurement
92
Cubic inches
10.0:1
Compression ratio
1-3-4-2
Firing order
0.025-0.029 in. (0.65- 0.75 mm)
Spark plug gap
Drivebelt Routing ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
2.0L EcoBoost Engine
Engine Component
122
Cubic inches
Minimum 87 octane
Required fuel
9.3:1
Compression ratio
0.027 - 0.031 in. (0.70 - 0.80 mm)
Spark plug gap
294
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE167586

Drivebelt Routing
The long drivebelt is on the first
pulley groove closest to the
engine.
A.
The short drivebelt is on the
second pulley groove farthest
from engine.
B.
ENGINE SPECIFICATIONS - 2.5L 2.5L Engine
Engine Component
152
Cubic inches
Minimum 87 octane
Required fuel
9.7:1
Compression ratio
0.049 - 0.053 in. (1.25 - 1.35 mm)
Spark plug gap
295
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE161383
A
B

Drivebelt Routing
The long drivebelt is on the first
pulley groove closest to the
engine.
A.
The short drivebelt is on the
second pulley groove farthest
from the engine.
B.
MOTORCRAFT PARTS - 1.5L ECOBOOST™ Motorcraft Part number
Component
FA-1908
Air filter element.
FL-910-S
Oil filter.
BXT-96R-590
Battery.
BAGM-48H6-760
Battery (with auto-start-stop / intelligent
access).
SP-539
Spark plugs.
FP-70
Cabin air filter.
WW-2750 (driver side)
Windshield wiper blade.
WW-2705 (passenger side)WW-1106 (rear window)
We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company ’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals.
296
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE161383
A
B

MOTORCRAFT PARTS - 2.0L ECOBOOST™
Motorcraft Part number
Component
FA-1908
Air filter element.
FL-910-S
Oil filter.
BXT-96R-590
Battery.
BAGM-48H6-760
Battery (with auto-start-stop / intelligent
access).
SP-537
Spark plugs.
FP-70
Cabin air filter.
WW-2750 (driver side)
Windshield wiper blade.
WW-2705 (passenger side)WW-1106 (rear window)
We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company ’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals.
297
Escape/Kuga (TM2), enUSA, First Printing Capacities and Specifications

MOTORCRAFT PARTS - 2.5L
2.5L Engine
Component
FA-1910
Air filter element
FL-910-S
Oil filter
BXT-96R-590
Battery
SP-530
Spark plugs
FP-70
Cabin air filter
WW-2750 (driver side)
Windshield wiper blade
WW-2705 (passenger side)WW-1106 (rear window)
We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company ’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals.
298
Escape/Kuga (TM2), enUSA, First Printing Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
299
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE142476 E142477

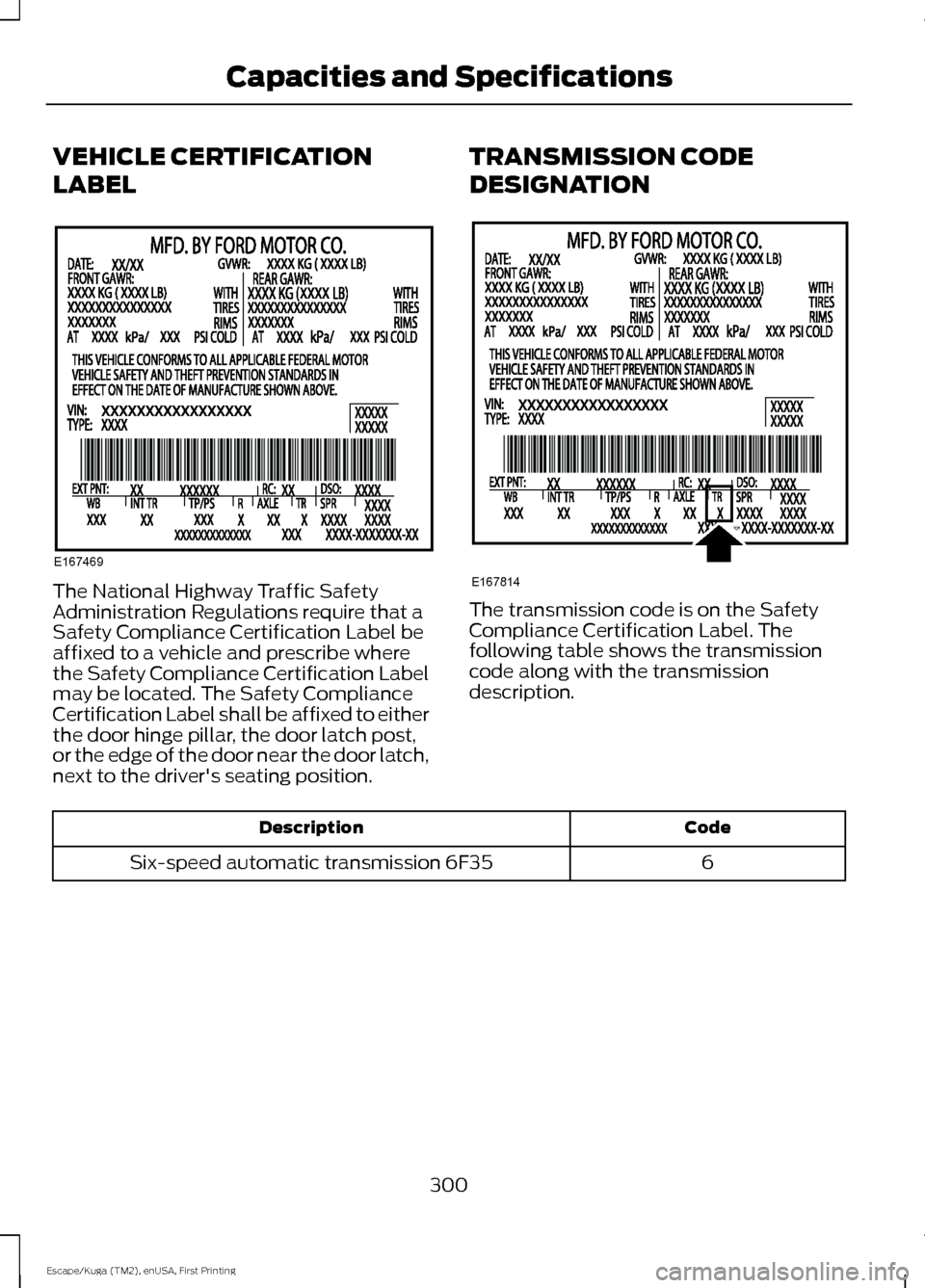

VEHICLE CERTIFICATION
LABEL
The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.
TRANSMISSION CODE
DESIGNATION The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.
Code
Description
6
Six-speed automatic transmission 6F35
300
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE167469 E167814

CAPACITIES AND SPECIFICATIONS - 1.5L ECOBOOST™
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.
Capacity
Item
4.3 qt (4.1 L)
Engine oil (with oil filter)
12.5 qt (11.8 L)
Engine coolant
Between MIN/MAX on brake fluid reservoir
Brake fluid
2.4 pt (1.15 L)
Rear differential fluid (All Wheel Drive)
17.9 fl oz (0.53 L)
Power Transfer Unit (PTU) fluid
9.0 qt (8.5 L)*
Automatic transmission fluid
Fill as required
Windshield washer fluid
16.2 gal (61.3 L)
Fuel tank
24 oz (0.68 kg)
A/C refrigerant
4.5 fl oz (133 ml)
A/C refrigerant compressor oil
* Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials Specification
Name
WSS-M2C945-A
Recommended motor oil (U.S.):
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor
Oil
XO-5W20-QSP
WSS-M2C945-A
Recommended motor oil (Canada):
Motorcraft® SAE 5W-20 Super Premium Blend Motor
Oil
CXO-5W20-LSP12
WSS-M2C945-A
Recommended motor oil (Mexico):
301
Escape/Kuga (TM2), enUSA, First Printing Capacities and Specifications
