2017 FIAT DOBLO COMBI display

TRIP COMPUTER
IN BRIEF
The Trip computer is used to display
information on vehicle operation
when the ignition key is turned to
MAR. This function allows you to
define two separate trips, called "Trip
A" and "Trip B", for monitoring the
"complete mission" (journey) of
the vehicle in a reciprocally
independent manner. Both functions
can be reset (reset means start of
a new journey).
"Trip A" can be used to display the
values relating to:
Outside Temperature
Range
Distance travelled A
Average consumption A
Instantaneous consumption
Average speed A
Trip time A (driving time)
Reset Trip A
"Trip B", available on multifunction
display only, is used to display
the values relating to:
Distance travelled B
Average consumption B
Average speed B
Trip time B (driving time)
Trip B reset
11)
Values displayed
Outside temperature (for versions/
markets, where provided)
Indicates the temperature outside the
vehicle passenger compartment.
Range (for versions/markets, where
provided)
This indicates the distance that can still
be travelled with the fuel in the tank,
assuming that driving style remains
unvaried. The display will show the
reading '-----' when the following
events take place:
range is lower than 50 km (or
corresponding figure in mi)
vehicle is left parked with the engine
running for a long time
IMPORTANT The range can be affected
by several factors: driving style (see
“Driving style” in the “Starting and
driving” section), type of route
(motorway, towns and cities, mountain
roads, etc.), conditions of use (load,
tyre pressures, etc.). Trip planning must
therefore take the above into account.Distance travelled
This value shows the distance travelled
from the start of the new journey.
Average consumption (for versions/
markets, where provided)
This value shows the approximate
average fuel consumption from the start
of the new journey.
Instant consumption (for versions/
markets where provided)
This value shows the fuel consumption.
The value is constantly updated. The
display will show "----" if the car is
parked with the engine running.
Average speed
This value shows the car's average
speed based on the overall time
elapsed since the start of the new
journey.
80
KNOWING THE INSTRUMENT PANEL

Journey time
Time elapsed since the start of the new
journey.
IMPORTANT If there is no information,
the Trip computer displays "----" in
place of the value. When normal
operating conditions are restored, the
counting of the various values is
resumed, without either zeroing the
values displayed prior to the problem,
or starting a new mission.
TRIP control button
The TRIP button, located on the top of
the right steering column stalk fig.
121, is used (with ignition at MAR) to
display these values and reset them to
start a new journey:
brief press to access the various
values displays;
long press to reset and then start a
new mission.New mission
This begins after a reset:
“manual” resetting by the user, by
pressing the relevant button;
“automatic” resetting, when the “trip
distance” reaches 9999.9 km or when
the “trip time” reaches 999:59 (999
hours and 59 minutes);
after disconnection/reconnection of
the battery.
IMPORTANT The reset operation when
“Trip A” details are being displayed
only resets the information associated
with this function. "Range" and
"Instantaneous fuel consumption"
information can not be reset.
IMPORTANT The reset operation when
“Trip B” details are being displayed
resets only the information associated
with this function. "Range" and
"Instantaneous fuel consumption"
information can not be reset.
Start of journey procedure
With the ignition key at MAR, reset by
holding the TRIP 0.00 button down
for more than 2 seconds.Exit Trip
You can automatically exit the TRIP
function once all the values have been
displayed or by holding theMENU
button (*) down for more than 1
second.
(*) For versions/markets, where
provided.
WARNING
11)The "Trip B" function may be disabled
(see the "Activating Trip B" paragraph).
"Range" and "Instant consumption" values
cannot be reset.
121F0V0010
81

EOBD SYSTEM
47)
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis
of emission-related components on
the vehicle to be made. It also alerts the
driver, by turning on warning light
in the instrument panel (together
with the relevant message in the display
on some versions), when these
components are no longer in peak
condition (see "Warning lights and
messages" section).
The goal of the system is to:
monitor the efficiency of the system;
indicate an increase in emissions
due to vehicle malfunction;
indicate the need to replace
components which have deteriorated.
The system also has a connector
that can be interfaced with appropriate
equipment, which makes it possible
to read the error codes stored in the
control unit together with a series
of specific parameters for engine
operation and diagnosis.
This check can also be carried out by
traffic control authorities.
IMPORTANT After eliminating the
failure, to check the system completely,
Fiat Dealerships run a bench test and,
if necessary, road tests which may
also call for a long journey.
WARNING
47)If, when the ignition key is turned to
MAR, thewarning light does not
switch on, switches on constantly or
flashes when driving (on certain versions
together with the message on the display),
contact a Fiat Dealership as soon as
possible. The operation of
warning
light may be checked by the traffic police
using specific devices. Always comply with
the traffic regulations in force in the
country where you are driving.
82
KNOWING THE INSTRUMENT PANEL

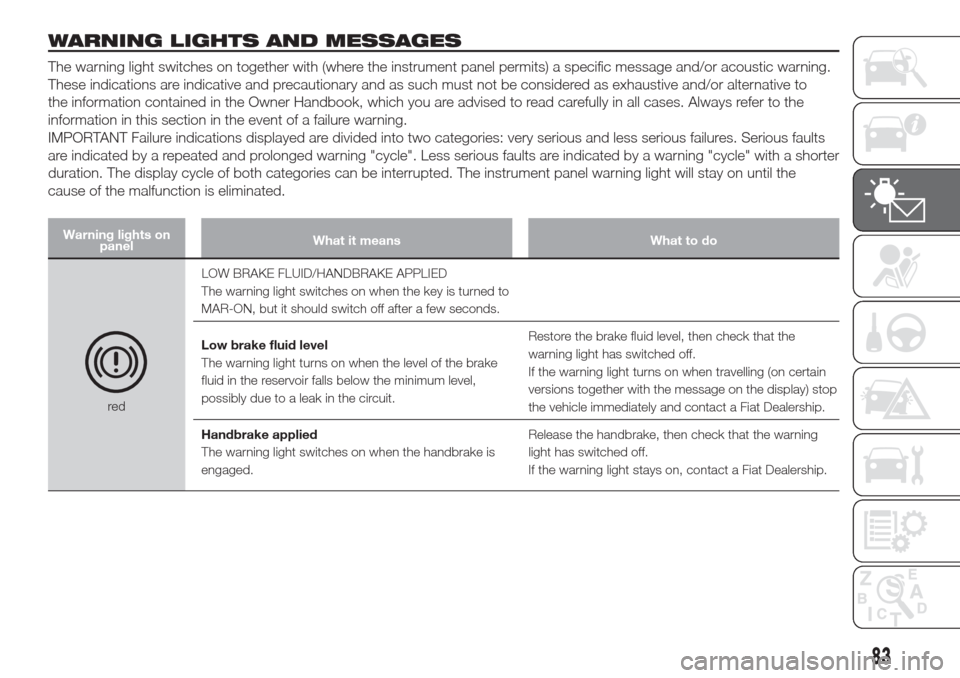

WARNING LIGHTS AND MESSAGES
The warning light switches on together with (where the instrument panel permits) a specific message and/or acoustic warning.
These indications are indicative and precautionary and as such must not be considered as exhaustive and/or alternative to
the information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always refer to the
information in this section in the event of a failure warning.
IMPORTANT Failure indications displayed are divided into two categories: very serious and less serious failures. Serious faults
are indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning "cycle" with a shorter
duration. The display cycle of both categories can be interrupted. The instrument panel warning light will stay on until the
cause of the malfunction is eliminated.
Warning lights on
panelWhat it means What to do
redLOW BRAKE FLUID/HANDBRAKE APPLIED
The warning light switches on when the key is turned to
MAR-ON, but it should switch off after a few seconds.
Low brake fluid level
The warning light turns on when the level of the brake
fluid in the reservoir falls below the minimum level,
possibly due to a leak in the circuit.Restore the brake fluid level, then check that the
warning light has switched off.
If the warning light turns on when travelling (on certain
versions together with the message on the display) stop
the vehicle immediately and contact a Fiat Dealership.
Handbrake applied
The warning light switches on when the handbrake is
engaged.Release the handbrake, then check that the warning
light has switched off.
If the warning light stays on, contact a Fiat Dealership.
83

Warning lights on
panelWhat it means What to do
red
amber
amberEBD FAILURE
The simultaneous switching on of the
(red),
(amber) and(amber) warning lights (for
versions/markets, where provided) with the engine on
indicates either an anomaly of the EBD system or that
the system is not available. In this case, the rear wheels
may suddenly lock and the vehicle may swerve when
braking sharply.
The display shows the dedicated message.Drive very carefully to the nearest Fiat Dealership to
have the system inspected immediately.
redAIR BAG FAILURE
The warning light comes on when the ignition key is
turned to MAR, but should go off after a few seconds.
The warning light stays on constantly if there is a failure
in the airbag system.
On some versions the display shows the dedicated
message.
48) 49)
84
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
redSEAT BELTS REMINDER
(for versions/markets, where provided)
The warning light switches on constantly with the
vehicle stationary and the driver's side or passenger
side seat belt (in versions where provided) not fastened.
The warning light flashes and a buzzer will sound if the
car is in motion and the driver’s seat belt is not correctly
fastened.For permanent deactivation of the acoustic signal
(buzzer) of the SBR. (Seat Belt Reminder) system
contact a Fiat Dealership.
Warning lights on
panelWhat it means What to do
ENGINE COOLANT TEMPERATURE TOO HIGH
The warning light comes on when the ignition key
is turned to MAR, but should go off after a few
seconds. The warning light turns on when the
engine is overheated.
The display shows the dedicated message.In normal driving conditions: stop the car, switch off the engine
and check that the water level in the reservoir is not below the
MIN mark. In this case, wait for the engine to cool down, then
slowly and carefully open the cap, top up with coolant and
check that the level is between the MIN and MAX marks on
the reservoir itself. Also check visually for any fluid leaks. If,
when restarting, the warning light switches on again, contact a
Fiat Dealership.
If the vehicle is used under demanding conditions (e.g. in
high-performance driving): slow down and, if the warning light
stays on, stop the vehicle. Wait for 2 or 3 minutes with the
engine running and slightly accelerated to further favour the
coolant circulation. Then stop the engine. Check that the
coolant level is correct as described above.
IMPORTANT Over demanding routes, it is advisable to keep
the engine on and slightly accelerated for a few minutes before
switching it off.
85

Warning lights on
panelWhat it means What to do
redLOW ENGINE OIL PRESSURE
When the key is turned to MAR, the digital warning light switches on, but it should
switch off as soon as the engine is started.
The warning light switches on constantly together with the message in the display
when the system detects that the engine oil pressure is insufficient.
12)
DECAYED ENGINE OIL
(MultiJet versions with DPF only)
The warning light starts to flash together with a message on the display (for
versions/markets, where provided) when the system detects that the engine oil
has deteriorated.
If the warning light flashes, this does not mean that the vehicle is faulty, but simply
informs the driver that it is now necessary to change the engine oil as a result of
regular vehicle use. If the oil is not changed, warning light
will also come on
and engine operation is limited to 3000 rpm when a second threshold is reached.
If the oil is still not changed, when a third deterioration threshold is reached, the
engine is limited to 1500 rpm to avoid damage.Contact a Fiat Dealership as
soon as possible.
50) 51)
Remember that the
deterioration of the engine oil
is accelerated by:
– mainly town use of the
vehicle which makes the DPF
regeneration process more
frequent
– use of the vehicle for short
trips, preventing the engine
from reaching operating
temperature
– repeated interruption of the
regeneration process,
signalled by the DPF warning
light coming on.
redLOW ENGINE OIL LEVEL
When turning the ignition key to MAR, the warning light turns on but it should go
off after a few seconds.
This warning light appears on the panel when the engine oil level falls below the
minimum recommended value.
On certain versions a dedicated message is displayed.Restore the correct engine oil
level (see “Checking fluid
levels” in the "Maintenance
and care" section).
87

Warning lights on
panelWhat it means What to do
redDOORS OPEN
On certain versions, the warning light turns on when one or more doors or the
boot are not properly closed.
A buzzer will sound when doors/tailgate are open and the vehicle is moving.
WARNING
48)If thewarning light does not switch on when the key is turned to MAR or if it stays on when driving (together with the message on the
display), there may be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the event of an accident
or, in a lower number of cases, they could deploy erroneously. Before continuing, contact a Fiat Dealership to have the system checked
immediately.
49)A failure of the
warning light is indicated by the blinkingwarning light. In this case, thewarning light may not indicate a possible
problem with the airbag restraint system. Before continuing, contact a Fiat Dealership to have the system checked immediately.
50)If the
warning light comes on, the exhausted engine oil should be changed as soon as possible, never drive more than 500 km from
the first switching-on of this warning light. Failure to observe the above may result in severe damage to the engine and invalidate the warranty.
Remember that when this warning light comes on, it does not mean that the level of engine oil is low, so if it flashes you do not need to top
up the engine oil.
51)If the
warning light flashes when driving, contact a Fiat Dealership.
88
KNOWING THE INSTRUMENT PANEL
WARNING
12)If thewarning light switches on when driving, stop the engine immediately and contact a Fiat Dealership.
