WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts fully until the vehicle has been
lowered. Failure to follow this warning may result in
serious injury.
8. Lower the vehicle by turning the jack screw counter- clockwise with the jack handle.
9. Finish tightening the lug nuts. Push down on the wrench while at the end of the handle for increased
leverage. Tighten the lug nuts in a star pattern until each
nut has been tightened twice. For the correct lug nut
torque refer to Torque Specifications in this section. If in
doubt about the correct tightness, have them checked
with a torque wrench by your authorized dealer or
service station.
10. Lower the jack to its fully closed position.
11. Place the deflated (flat) tire in the cargo area. Do not
stow the deflated tire in the spare tire stowage
location. Have the deflated (flat) tire repaired or re-
placed as soon as possible. 12. To stow the winch cable and retainer, fit the assembled
jack-handle over the winch drive nut. Rotate the jack-
handle assembly clockwise until you hear the winch
mechanism click three times. It cannot be over tight-
ened.
13. Stow the jack-handle and jack. Remove the wheel blocks from the vehicle and release the park brake.
14. Check the tire pressure as soon as possible. Adjust the tire pressure as required.
Road Tire Installation
Vehicles Equipped With Wheel Covers
1. Mount the road tire on the axle.
2. To ease the installation process for steel wheels withwheel covers, install two lug nuts on the mounting
studs which are on each side of the valve stem. Install
the lug nuts with the cone shaped end of the nut toward
the wheel. Lightly tighten the lug nuts.
6
WHAT TO DO IN EMERGENCIES 415

WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts fully until the vehicle has been
lowered. Failure to follow this warning may result in
serious injury.3. Align the valve notch in the wheel cover with the valve
stem on the wheel. Install the cover by hand, snapping
the cover over the two lug nuts. Do not use a hammer or
excessive force to install the cover.
4. Install the remaining lug nuts with the cone shaped end of the nut toward the wheel. Lightly tighten the lug
nuts.
WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts fully until the vehicle has been
lowered. Failure to follow this warning may result in
serious injury.
5. Lower the vehicle to the ground by turning the jack handle counterclockwise.
6. Finish tightening the lug nuts. Push down on the wrench while at the end of the handle for increased
leverage. Tighten the lug nuts in a star pattern until each
nut has been tightened twice. For the correct lug nut
torque refer to Torque Specifications in this section. If in
doubt about the correct tightness, have them checked
with a torque wrench by your authorized dealer or
service station.
Tire And Wheel Cover Or Center Cap
1 — Valve Stem 4 — Wheel Cover
2 — Valve Notch 5 — Road Wheel
3 — Wheel Lug Nut 416 WHAT TO DO IN EMERGENCIES

7. After 25 miles (40 km) check the lug nut torque with atorque wrench to ensure that all lug nuts are properly
seated against the wheel.
Vehicles Without Wheel Covers
1. Mount the road tire on the axle.
2. Install the remaining lug nuts with the cone shaped endof the nut toward the wheel. Lightly tighten the lug
nuts.
WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts fully until the vehicle has been
lowered. Failure to follow this warning may result in
serious injury.
3. Lower the vehicle to the ground by turning the jack handle counterclockwise.
4.
Finish tightening the lug nuts. Push down on the wrench
while at the end of the handle for increased leverage.
Tighten the lug nuts in a star pattern until each nut has
been tightened twice. For proper lug nut torque refer to
Torque Specifications in this secton. If in doubt about the correct tightness, have them checked with a torque
wrench by your authorized dealer or service station.
5. After 25 miles (40 km) check the lug nut torque with a
torque wrench to ensure that all lug nuts are properly
seated against the wheel.
JUMP-STARTING
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in another
vehicle or by using a portable battery booster pack. Jump-
starting can be dangerous if done improperly so please
follow the procedures in this section carefully.
WARNING!
Do not attempt jump-starting if the battery is frozen. It
could rupture or explode and cause personal injury.
CAUTION!
Do not use a portable battery booster pack or any other
booster source with a system voltage greater than 12
Volts or damage to the battery, starter motor, alternator
or electrical system may occur.
6
WHAT TO DO IN EMERGENCIES 417

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric condi-
tions change to allow the condensation to change back into
a vapor. Turning the lamps on will usually accelerate the
clearing process.
Front Low/High Beam Headlamp, Turn Signal/Park
Lamp, And Side Marker Lamp
1. Open the hood.
NOTE: It may be necessary to remove the air cleaner filter
housing and position the Totally Integrated Power Module
(TIPM) aside to replace certain lamps in the left headlamp
housing.
2. Rotate the applicable bulb and connector assembly ¼ turn counterclockwise and remove the assembly from
the headlamp housing. 3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
7
MAINTAINING YOUR VEHICLE 467

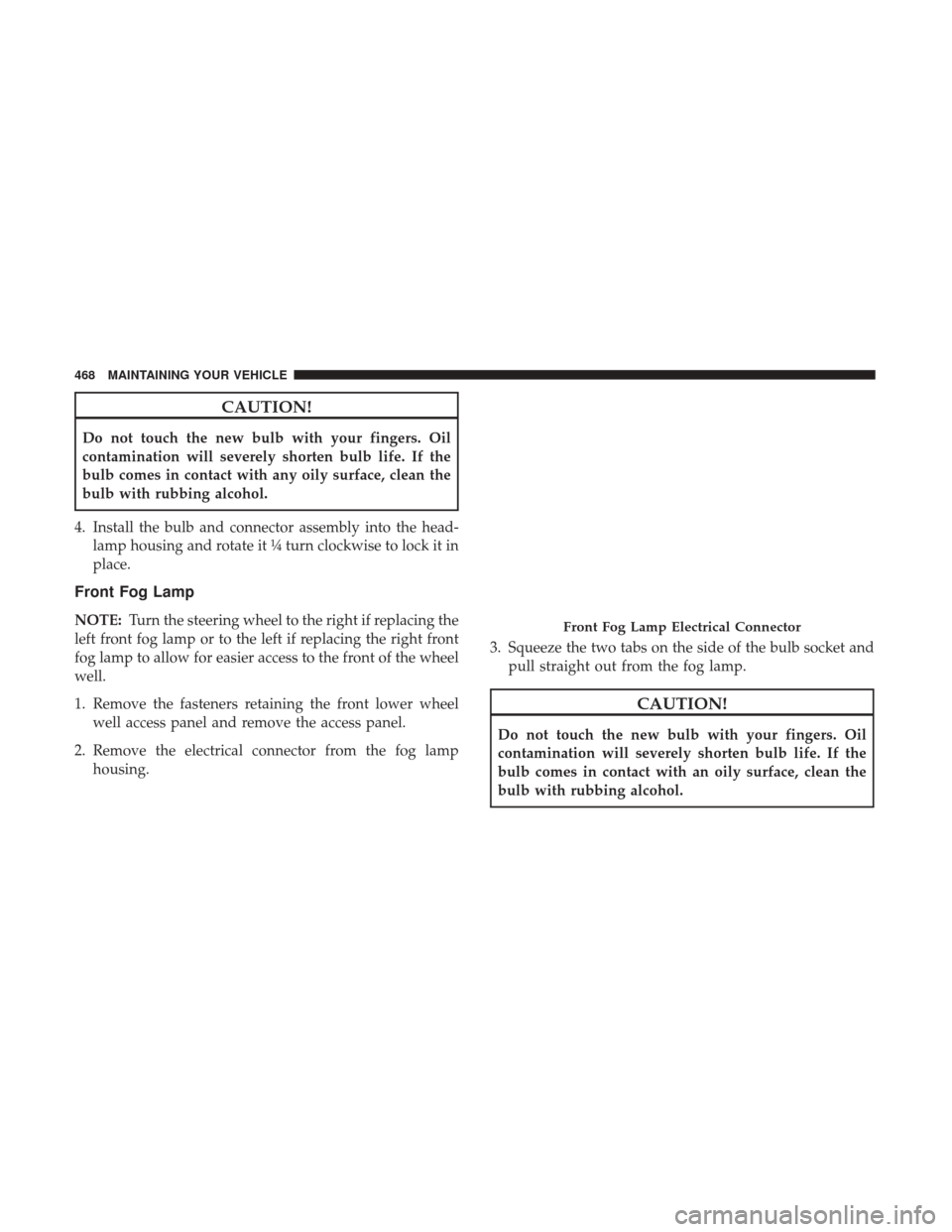

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the head- lamp housing and rotate it ¼ turn clockwise to lock it in
place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing the
left front fog lamp or to the left if replacing the right front
fog lamp to allow for easier access to the front of the wheel
well.
1. Remove the fasteners retaining the front lower wheel well access panel and remove the access panel.
2. Remove the electrical connector from the fog lamp housing. 3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
Front Fog Lamp Electrical Connector
468 MAINTAINING YOUR VEHICLE

4. Install the replacement bulb and connector assemblystraight into the fog lamp until it locks into place.
5. Reinstall the front lower wheel well access panel and fasteners.
Rear Turn Signal And Backup Lamp
The tail lamps are a two-piece design. The tail/stop/rear
turn signal lamps are located in the rear corner body
panels. The tail and backup lamps are located in the
liftgate.
Changing The Rear Turn Signal Lamp
1. Open the liftgate.
2. Remove the two fasteners from the inboard side of thetail lamp housing. 3. Carefully insert a trim stick (plastic flat-blade tool)
between the body panel and the outboard side of the tail
lamp housing with one hand and grasp the flange on the
inboard side of the tail lamp housing with the other
hand. Use the trim stick and hand pressure together to
disengage the tail lamp housing from the vehicle.
4. Rotate the applicable bulb’s electrical connector ¼ turn counterclockwise and remove it from the tail lamp
housing.
5. Remove the bulb from the connector socket and install the replacement bulb.Inboard Tail Lamp Housing Fasteners
7
MAINTAINING YOUR VEHICLE 469

6. Install the bulb and connector assembly into the taillamp housing and rotate the connector ¼ turn clockwise
to lock it in place.
7. Reinstall the tail lamp housing and fasteners.
Changing The Backup Lamp
1. Open the liftgate.
2. Remove the two fasteners retaining the tail lamp hous- ing to the liftgate from the inboard face of the liftgate.
3. Carefully insert a trim stick (plastic flat-blade tool) between the tail lamp housing and the liftgate. Use the trim stick and hand pressure together to disengage the
tail lamp housing from the liftgate.
4. Rotate the applicable bulb’s electrical connector ¼ turn counterclockwise and remove it from the housing.
5. Remove the bulb from the connector socket and install the replacement bulb.
6. Install the bulb and connector assembly into the housing and rotate the connector ¼ turn clockwise to lock it in
place.
7. Reinstall the tail lamp housing and fasteners.
Tail Lamp Housing Retainers
Tail Gate Lamp
470 MAINTAINING YOUR VEHICLE

License Plate Lamp
1. Push the small locking tab sticking out of the end of thelens toward the side of the vehicle and hold it in that
position.
2. Insert a small flat-blade tool between the end of the lens with the locking tab and the surrounding housing and
then pivot the tool to separate the lens from the housing.
3. Hold the lens with one hand and rotate the bulb’s electrical connector ¼ turn counterclockwise with the
other hand and then separate the bulb and connector
assembly from the lens. 4. Remove the bulb from the connector socket and install
the replacement bulb.
5. Install the bulb and connector assembly into the lens and rotate the connector ¼ turn clockwise to lock it in
place.
6. Insert the end of the lens without the locking tab into the housing on the liftgate and then push the opposite end
of the lens into the housing, making sure it locks in the
housing.
License Lamp
7
