TPMS Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will illumi-
nate in the instrument cluster, and an audible chime will be
activated when one or more of the four active road tire
pressures are low. In addition, the instrument cluster will
display a “LOW TIRE” message and a graphic display of
the pressure value(s) with the low tire(s) flashing, high-
lighted or shown in a different color. AnInflate Tire to XX
message will also be displayed.
Should a low tire condition occur on any of the four active
road tire(s), you should stop as soon as possible, and inflate
the low tire(s) that is flashing, highlighted or shown in a
different color on the graphic display to the vehicle’s
recommended cold tire pressure value as shown in the
Inflate Tire to XX message.
NOTE: When filling warm tires, the tire pressure may
need to be increased up to an additional 4 psi (30 kPa)
above the recommended cold placard pressure in order to
turn the Tire Pressure Monitoring Telltale Light off.
The system will automatically update, the graphic display
of the pressure value(s) will stop flashing or return to their
original color and the “Tire Pressure Monitoring Telltale
Light” will extinguish once the updated tire pressure(s)
have been received. NOTE:
The vehicle may need to be driven for up to 20
minutes above 15 mph (24 km/h) to receive this informa-
tion.
SERVICE TPM SYSTEM Message
The “Tire Pressure Monitoring Telltale Light” will flash on
and off for 75 seconds, and remain on solid when a system
fault is detected. The system fault will also sound a chime.
The instrument cluster will display a “SERVICE TPM
SYSTEM” message for a minimum of five seconds. This
message is then followed by a graphic display, with --in
place of the pressure value(s) indicating which TPMS
Sensor(s) is not being received.
If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault no
longer exists, the “Tire Pressure Monitoring Telltale Light”
will no longer flash, the “SERVICE TPM SYSTEM” mes-
sage will not be present, and a pressure value will be
displayed instead of dashes. A system fault can occur by
any of the following scenarios:
• Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPMS sensors.
396 STARTING AND OPERATING

•Installing some form of aftermarket window tinting that
affects radio wave signals.
• Accumulation of excessive snow and/or ice around the
wheels or wheel housings.
• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPMS sensors.
Vehicles With Compact Spare
• The compact spare tire (if equipped) does not have a
TPMS. Therefore, the TPMS will not monitor the pres-
sure in the compact spare tire.
• If you install the compact spare tire in place of a road tire
that has a pressure below the low-pressure warning
limit, upon the next ignition switch cycle, the “Tire
Pressure Monitoring Telltale Light” will remain on, the
“LOW TIRE” message will be displayed, a chime will
sound, and the instrument cluster will still display a
flashing, highlighted or different color pressure value
and the Inflate Tire to XX message in the graphic
display.
• After driving the vehicle for up to 20 minutes above
15 mph (24 km/h), the “Tire Pressure Monitoring Tell-
tale Light” will flash on and off for 75 seconds and then remain on solid. In addition, the instrument cluster will
display a “SERVICE TPM SYSTEM” message for a
minimum of five seconds and then display dashes (- -) in
place of the pressure value.
• For each subsequent ignition switch cycle, a chime will
sound, the “Tire Pressure Monitoring Telltale Light” will
flash on and off for 75 seconds and then remain on solid,
and the instrument cluster will display a “SERVICE
TPM SYSTEM” message for a minimum of five seconds
and then display dashes (- -) in place of the pressure
value.
• Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
“Tire Pressure Monitoring Telltale Light” will turn off
and the graphic in the instrument cluster will display a
new pressure value instead of dashes (- -), as long no tire
pressure is below the low pressure warning limit in any
of the four active road tires.
NOTE: The vehicle may need to be driven for up to 20
minutes above 15 mph (24 km/h) in order for the TPMS to
receive this information.
5
STARTING AND OPERATING 397

TPMS Deactivation — If Equipped
The TPMS can be deactivated if replacing all four wheel
and tire assemblies (road tires) with wheel and tire assem-
blies that do not have TPMS Sensors, such as when
installing Winter wheel and tire assemblies on your ve-
hicle. To deactivate the TPMS, first, replace all four wheel
and tire assemblies (road tires) with tires not equipped
with Tire Pressure Monitoring (TPM) Sensors. Then, drive
the vehicle for 10 minutes above 15 mph (24 km/h). The
TPMS will chime, the “TPM Telltale Light” will flash on
and off for 75 seconds and then remain on and the
instrument cluster will display the “SERVICE TPM SYS-
TEM” message and then display dashes (--) in place of the
pressure values. Beginning with the next ignition switch
cycle, the TPMS will no longer chime or flash the TPM
telltale and display the “SERVICE TPM SYSTEM” message
in the instrument cluster display but dashes (--) will remain
in place of the pressure values.
To reactivate the TPMS, replace all four wheel and tire
assemblies (road tires) with tires equipped with TPM
sensors. Then, drive the vehicle for up to 10 minutes above
15 mph (24 km/h). The TPMS will chime, the “TPM Telltale
Light” will flash on and off for 75 seconds and then turn
off, and the instrument cluster will display the “SERVICE
TPM SYSTEM” message. The instrument cluster will alsodisplay pressure values in place of the dashes. On the next
ignition switch cycle the “SERVICE TPM SYSTEM” mes-
sage will no longer be displayed as long as no system fault
exists.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
NOTE:
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
398 STARTING AND OPERATING

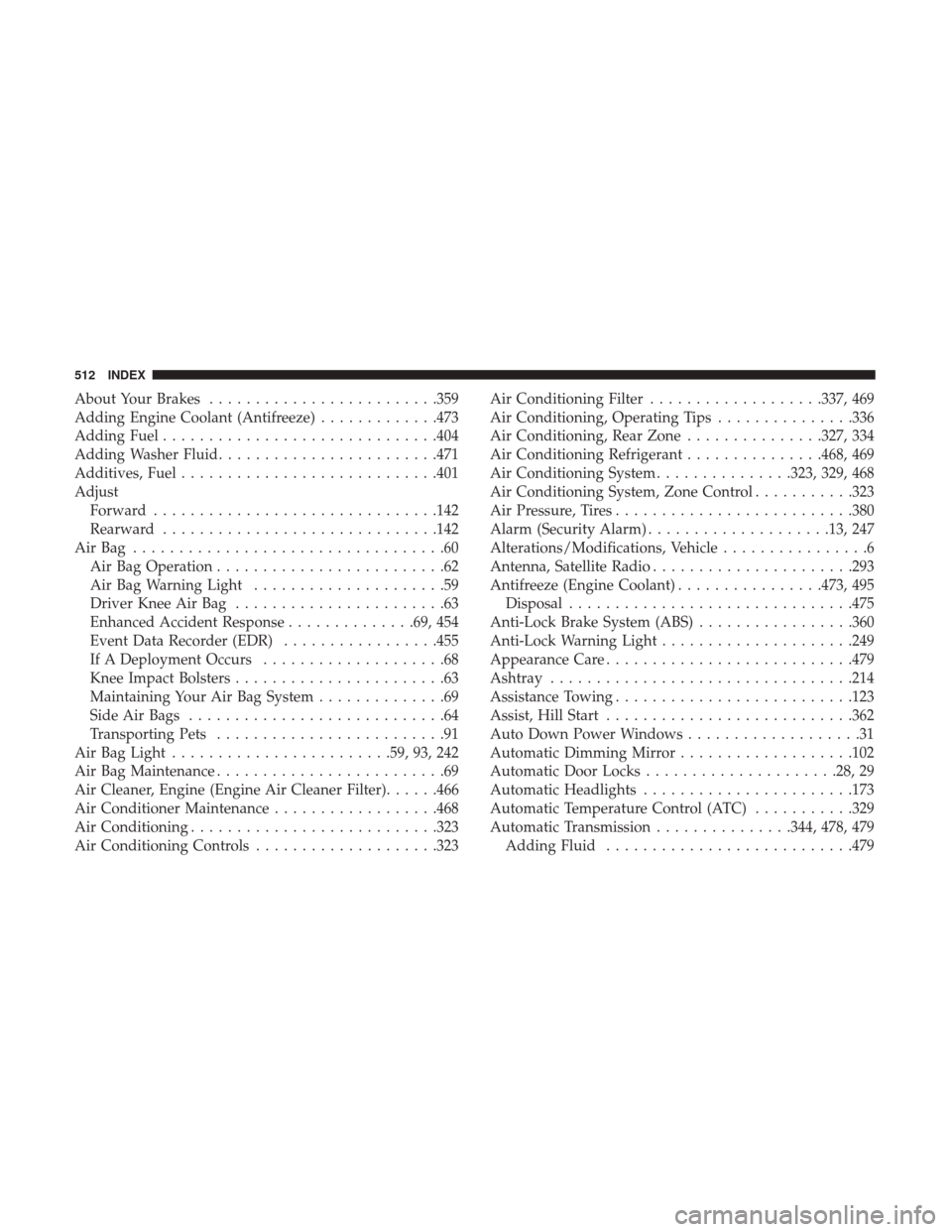

About Your Brakes........................ .359
Adding Engine Coolant (Antifreeze) .............473
Adding Fuel ............................. .404
Adding Washer Fluid ........................471
Additives, Fuel ............................401
Adjust Forward ...............................142
Rearward ............................. .142
AirBag ..................................60 Air Bag Operation .........................62
Air Bag Warning Light .....................59
Driver Knee Air Bag .......................63
Enhanced Accident Response ..............69, 454
Event Data Recorder (EDR) .................455
If A Deployment Occurs ....................68
Knee Impact Bolsters .......................63
Maintaining Your Air Bag System ..............69
Side Air Bags ............................64
Transporting Pets .........................91
Air Bag Light ........................59, 93, 242
Air Bag Maintenance .........................69
Air Cleaner, Engine (Engine Air Cleaner Filter) ......466
Air Conditioner Maintenance ..................468
Air Conditioning .......................... .323
Air Conditioning Controls ....................323 Air Conditioning Filter
...................337, 469
Air Conditioning, Operating Tips ...............336
Air Conditioning, Rear Zone ...............327, 334
Air Conditioning Refrigerant ...............468, 469
Air Conditioning System ...............323, 329, 468
Air Conditioning System, Zone Control ...........323
Air Pressure, Tires ..........................380
Alarm (Security Alarm) ....................13, 247
Alterations/Modifications, Vehicle ................6
Antenna, Satellite Radio ..................... .293
Antifreeze (Engine Coolant) ................473, 495
Disposal ...............................475
Anti-Lock Brake System (ABS) .................360
Anti-Lock Warning Light .....................249
Appearance Car

e .......................... .479
Ashtray .................................214
Assistance Towing ..........................123
Assist, Hill Start .......................... .362
Auto Down Power Windows ...................31
Automatic Dimming Mirror ...................102
Automatic Door Locks .....................28, 29
Automatic Headlights .......................173
Automatic Temperature Control (ATC) ...........329
Automatic Transmission ...............344, 478, 479
Adding Fluid .......................... .479
512 INDEX

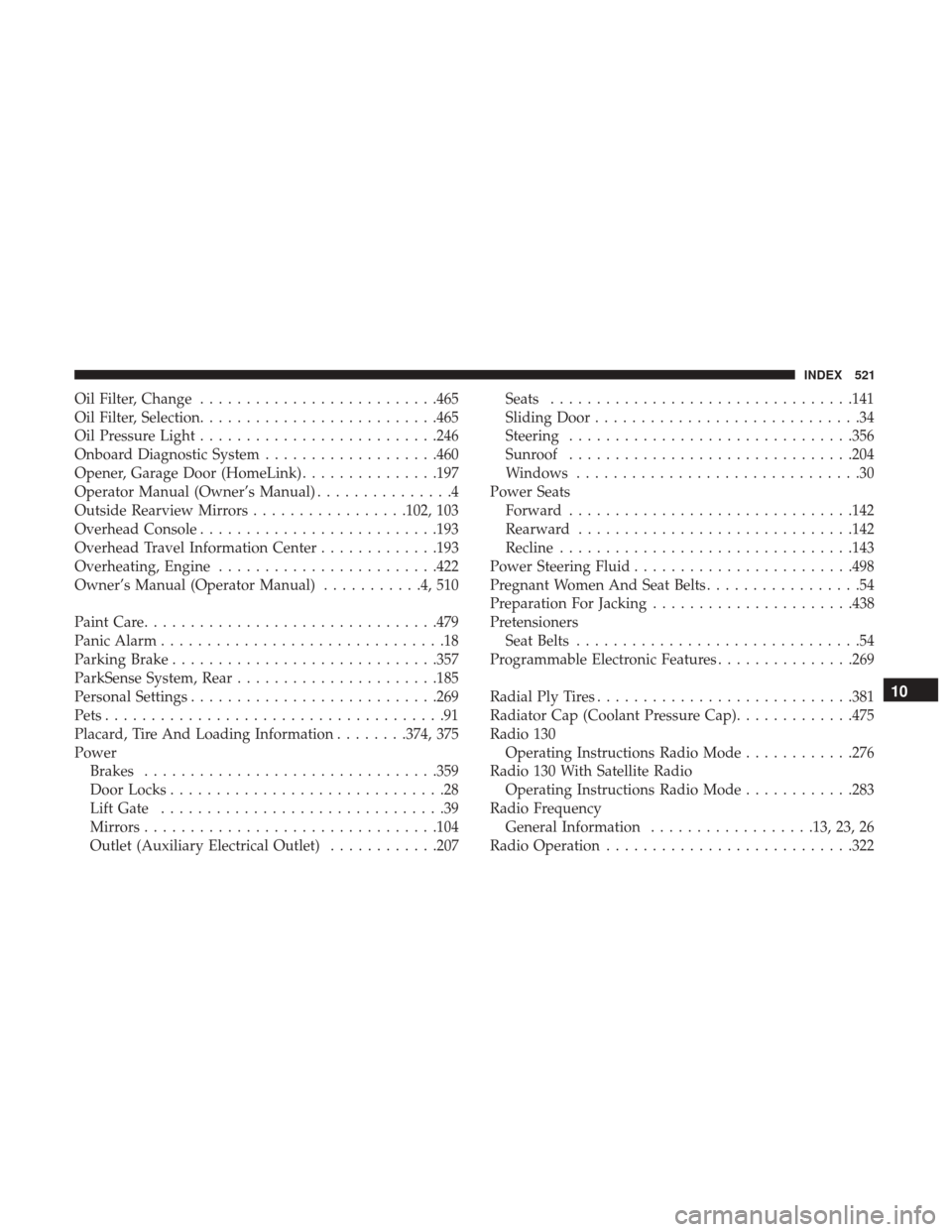

Oil Filter, Change..........................465
Oil Filter, Selection ..........................465
Oil Pressure Light ..........................246
Onboard Diagnostic System ...................460
Opener, Garage Door (HomeLink) ...............197
Operator Manual (Owner’s Manual) ...............4
Outside Rearview Mirrors .................102, 103
Overhead Console ..........................193
Overhead Travel Information Center .............193
Overheating, Engine ........................422
Owner’s Manual (Operator Manual) ...........4,510
Paint Care ............................... .479
Panic Alarm ...............................18
Parking Brake ............................ .357
ParkSense System, Rear ..................... .185
Personal Settings .......................... .269
Pets .....................................91
Placard, Tire And Loading Information ........374, 375
Power Brakes ............................... .359
Door Locks ..............................28
Lift Gate ...............................39
Mirrors ............................... .104
Outlet (Auxiliary Electrical Outlet) ............207Seats
.................................141
Sliding Door .............................34
Steering ...............................356
Sunroof ...............................204
Windows ...............................30
Power Seats Forward ...............................142
Rearward ............................. .142
Recline ............................... .143
Power Steering Fluid ........................498
Pregnant Women And Seat Belts .................54
Preparation For Jacking ..................... .438
Pretensioners Seat Belts ...............................54
Programmable Electronic Features ...............269
Radial Ply Tires ............................381
Radiator Cap

(Coolant Pressure Cap) .............475
Radio 130 Operating Instructions Radio Mode ............276
Radio 130 With Satellite Radio Operating Instructions Radio Mode ............283
Radio Frequency General Information ..................13, 23, 26
Radio Operation .......................... .32210
INDEX 521

Tire Safety Information.......................368
Tire Service Kit .....423, 424, 425, 427, 428, 429, 430, 431
Tongue Weight/Trailer Weight .................413
Torque Converter Clutch .....................353
Towing ................................. .408
24-Hour Towing Assistance .................123
Disabled Vehicle ........................ .453
Guide .................................412
Recreational ............................418
Weight ............................... .412
Towing Assistance ..........................123
Towing Vehicle Behind A Motorhome ............418
Traction ............................. .353, 354
Traction Control .......................... .364
Trailer Sway Control (TSC) ....................368
Trailer Towing ............................ .408
Cooling System Tips ..................... .418
Hitches ................................411
Minimum Requirements ....................413
Tips ................................. .417
Trailer And Tongue Weight ..................413
Wiring ............................... .416
Trailer Towing Guide ........................412
Trailer Weight ............................ .412
Transmission ............................. .478Automatic
..........................344, 478
Fluid ............................. .478, 498
Transmitter, Garage Door Opener (HomeLink) ......197
Transporting Pets ...........................91
Tread Wear Indicators .......................386
Turn Signals .......................... .256, 493
UCI Connector ............................295
Uconnect Advanced Phone Connectivity ...............126
Uconnect 130 Operating Instructions Auxiliary Mode .........282
Operating Instructions CD Mode .............278
Operating Instr

uctions Radio Mode ............276
Playing MP3 Files ........................280
Uconnect 130 With Satellite Radio Multimedia Satellite Radio ..................292
Uconnect Phone .......................... .122
Umbrella Holder .......................... .216
Uniform Tire Quality Grades ..................390
Universal Consumer Interface (UCI) Connector .....295
Universal Transmitter ........................197
Unleaded Gasoline ........................ .399
Untwisting Procedure, Seat Belt .................48
10
INDEX 525
