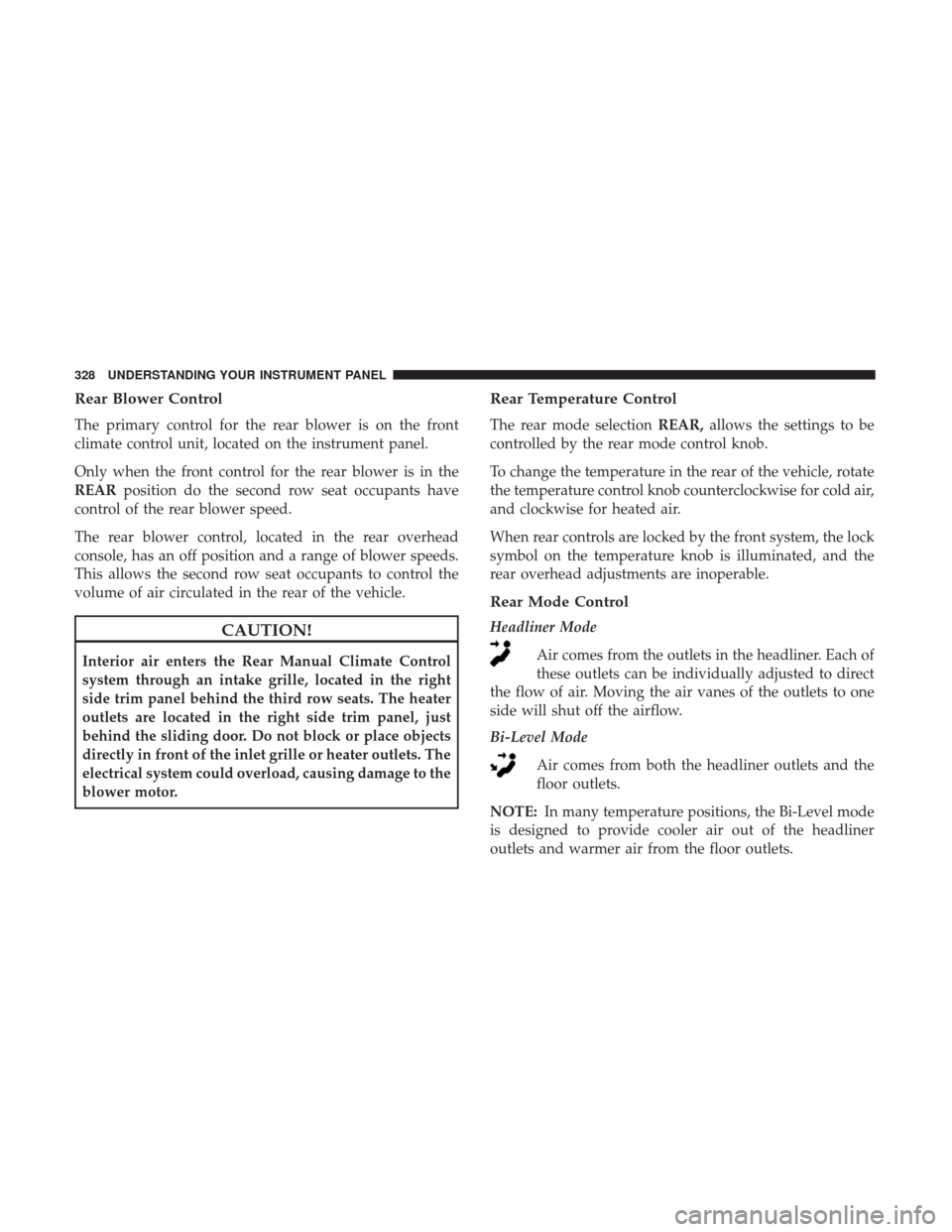

Rear Blower Control
The primary control for the rear blower is on the front
climate control unit, located on the instrument panel.
Only when the front control for the rear blower is in the
REARposition do the second row seat occupants have
control of the rear blower speed.
The rear blower control, located in the rear overhead
console, has an off position and a range of blower speeds.
This allows the second row seat occupants to control the
volume of air circulated in the rear of the vehicle.
CAUTION!
Interior air enters the Rear Manual Climate Control
system through an intake grille, located in the right
side trim panel behind the third row seats. The heater
outlets are located in the right side trim panel, just
behind the sliding door. Do not block or place objects
directly in front of the inlet grille or heater outlets. The
electrical system could overload, causing damage to the
blower motor.
Rear Temperature Control
The rear mode selection REAR,allows the settings to be
controlled by the rear mode control knob.
To change the temperature in the rear of the vehicle, rotate
the temperature control knob counterclockwise for cold air,
and clockwise for heated air.
When rear controls are locked by the front system, the lock
symbol on the temperature knob is illuminated, and the
rear overhead adjustments are inoperable.
Rear Mode Control
Headliner Mode
Air comes from the outlets in the headliner. Each of
these outlets can be individually adjusted to direct
the flow of air. Moving the air vanes of the outlets to one
side will shut off the airflow.
Bi-Level Mode
Air comes from both the headliner outlets and the
floor outlets.
NOTE: In many temperature positions, the Bi-Level mode
is designed to provide cooler air out of the headliner
outlets and warmer air from the floor outlets.
328 UNDERSTANDING YOUR INSTRUMENT PANEL

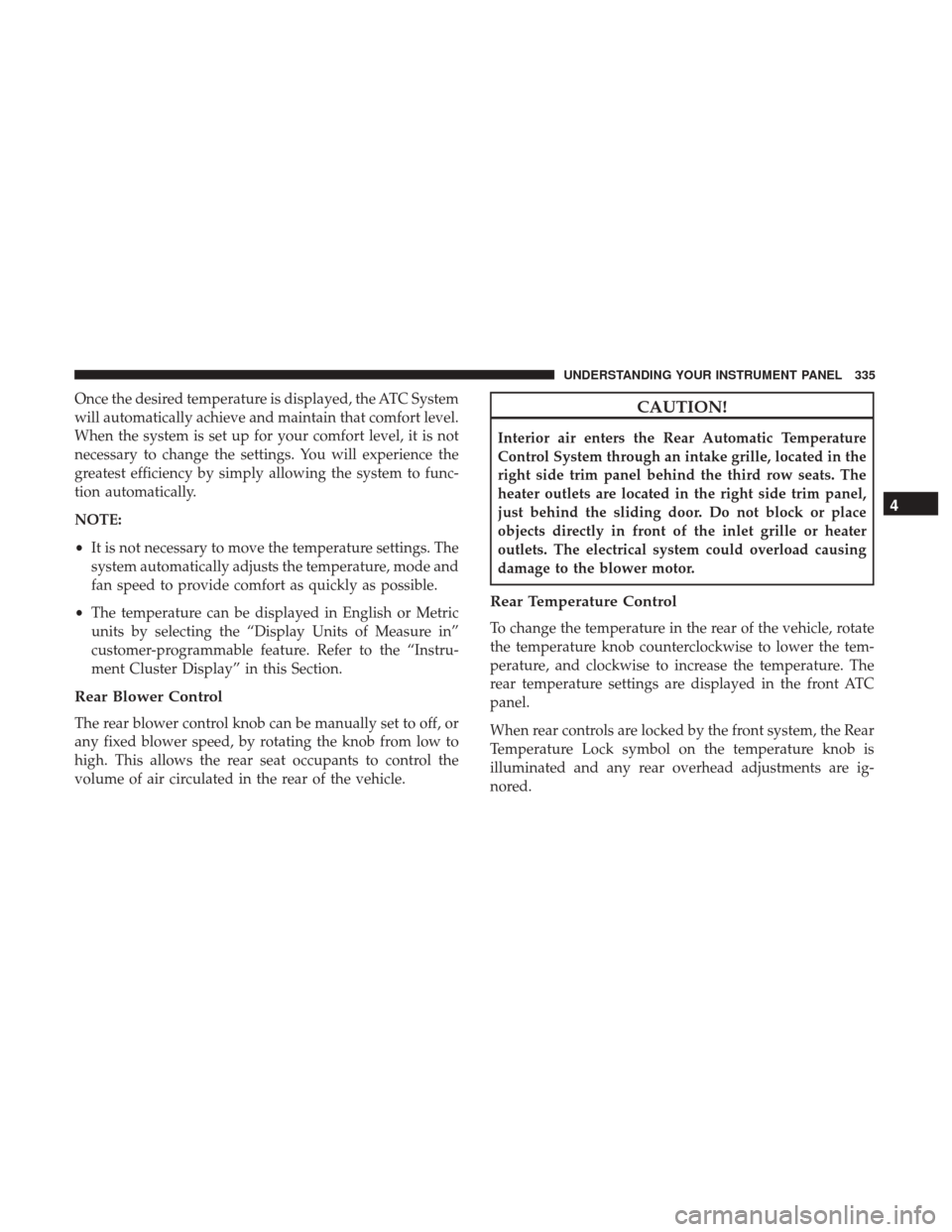

Once the desired temperature is displayed, the ATC System
will automatically achieve and maintain that comfort level.
When the system is set up for your comfort level, it is not
necessary to change the settings. You will experience the
greatest efficiency by simply allowing the system to func-
tion automatically.
NOTE:
•It is not necessary to move the temperature settings. The
system automatically adjusts the temperature, mode and
fan speed to provide comfort as quickly as possible.
• The temperature can be displayed in English or Metric
units by selecting the “Display Units of Measure in”
customer-programmable feature. Refer to the “Instru-
ment Cluster Display” in this Section.
Rear Blower Control
The rear blower control knob can be manually set to off, or
any fixed blower speed, by rotating the knob from low to
high. This allows the rear seat occupants to control the
volume of air circulated in the rear of the vehicle.
CAUTION!
Interior air enters the Rear Automatic Temperature
Control System through an intake grille, located in the
right side trim panel behind the third row seats. The
heater outlets are located in the right side trim panel,
just behind the sliding door. Do not block or place
objects directly in front of the inlet grille or heater
outlets. The electrical system could overload causing
damage to the blower motor.
Rear Temperature Control
To change the temperature in the rear of the vehicle, rotate
the temperature knob counterclockwise to lower the tem-
perature, and clockwise to increase the temperature. The
rear temperature settings are displayed in the front ATC
panel.
When rear controls are locked by the front system, the Rear
Temperature Lock symbol on the temperature knob is
illuminated and any rear overhead adjustments are ig-
nored.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 335

Seat Belts............................. .43, 93
Adjustable Shoulder Belt ....................48
Adjustable Upper Shoulder Anchorage ..........48
Child Restraint ...........................71
Extender ...............................53
Front Seat ........................ .43, 44, 46
Inspection ..............................93
Operating Instructions ......................46
Pregnant Women .........................54
Pretensioners ............................54
Rear Seat ...............................44
Reminder ............................. .242
Untwisting Procedure ......................48
Seats ............................... .141, 142
Adjustment ..................... .141, 142, 146
Fold in Floor (Stow nGo) ..................151
Memory ...............................167
Power ............................... .141
Reclining ............................. .147
Stow N Go (Fold in Floor) ..................151
Security Alarm ..........................13, 247
Selection Of Coolant (Antifreeze) ...............496
SENTRY KEY Key Programming .........................13
Sentry Key (Immobilizer) ......................11 Sentry Key Replacement
......................12
Service Assistance ..........................506
Service Contract .......................... .508
Service Manuals .......................... .510
Settings, Personal ..........................269
Setting The Clock .......................276, 284
Shift Lever Override ........................452
Shoulder Belts .............................44
Signals, Turn .....................95, 176, 256, 493
Sliding Door ...............................33
Snow Chains (Tire Chains) ....................388
Snow Tires ...............................382
Spare Tire ..................... .383, 384, 385, 434
Spark Plugs ............................. .496
Speed Contr

ol
Accel/Decel ............................184
Cancel ............................... .183
Resume ...............................183
Speed Control (Cruise Control) .................182
Starting .................................342
Automatic Transmission ....................342
Cold Weather .......................... .343
Engine Fails To Start ..................... .343
Remote ................................23
Starting And Operating ..................... .342
10
INDEX 523
