2017 DODGE GRAND CARAVAN rear view mirror

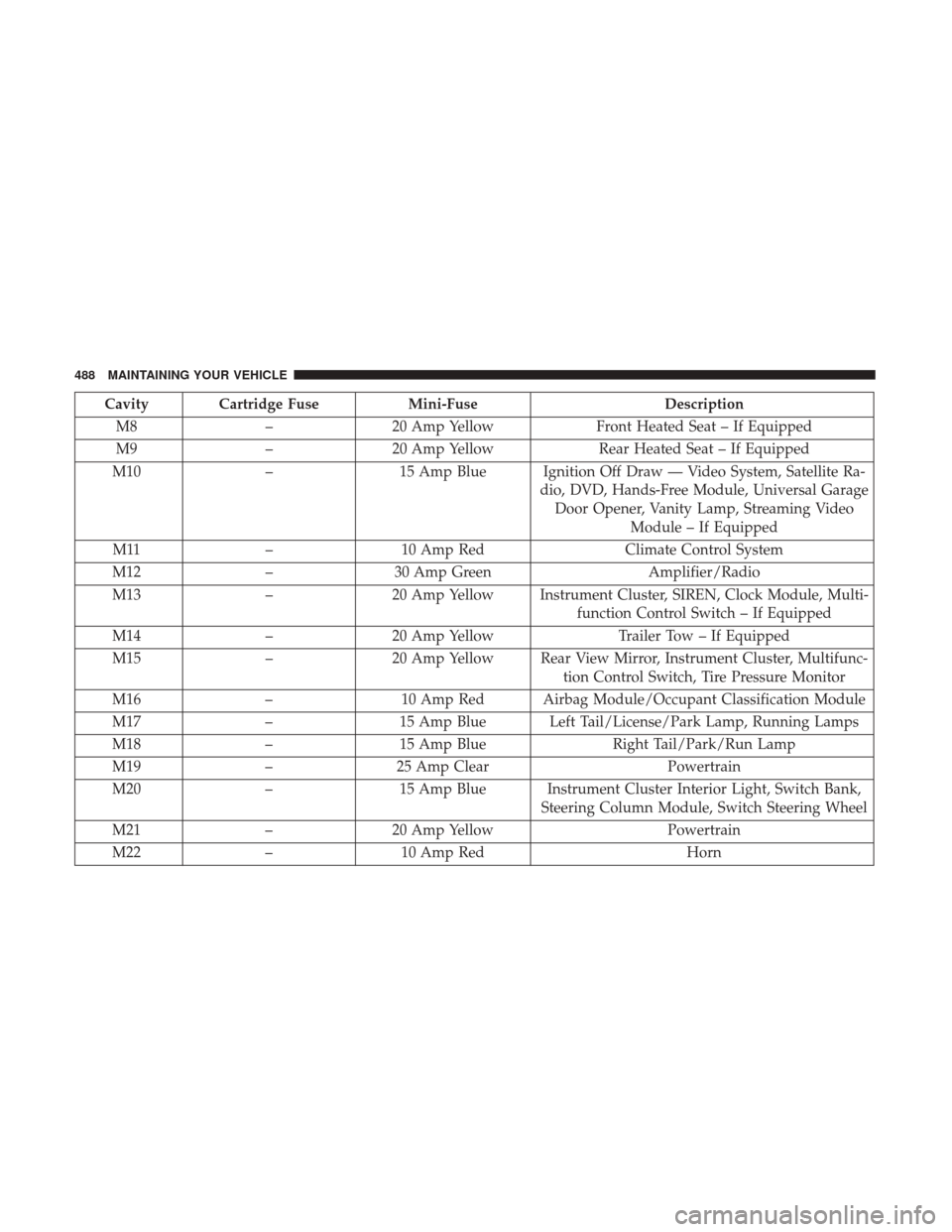

Cavity Cartridge FuseMini-FuseDescription
M8 –20 Amp Yellow Front Heated Seat – If Equipped
M9 –20 Amp Yellow Rear Heated Seat – If Equipped
M10 –15 Amp Blue Ignition Off Draw — Video System, Satellite Ra-
dio, DVD, Hands-Free Module, Universal GarageDoor Opener, Vanity Lamp, Streaming Video Module – If Equipped
M11 –10 Amp Red Climate Control System
M12 –30 Amp Green Amplifier/Radio
M13 –20 Amp Yellow Instrument Cluster, SIREN, Clock Module, Multi-
function Control Switch – If Equipped
M14 –20 Amp Yellow Trailer Tow – If Equipped
M15 –20 Amp Yellow Rear View Mirror, Instrument Cluster, Multifunc-
tion Control Switch, Tire Pressure Monitor
M16 –10 Amp Red Airbag Module/Occupant Classification Module
M17 –15 Amp Blue Left Tail/License/Park Lamp, Running Lamps
M18 –15 Amp Blue Right Tail/Park/Run Lamp
M19 –25 Amp Clear Powertrain
M20 –15 Amp Blue Instrument Cluster Interior Light, Switch Bank,
Steering Column Module, Switch Steering Wheel
M21 –20 Amp Yellow Powertrain
M22 –10 Amp Red Horn
488 MAINTAINING YOUR VEHICLE

Lights On Reminder..................... .174
Passing ............................... .177
Replacing ............................. .492
Time Delay ............................ .173
Washers ...............................173
Head Restraints ............................147
Heated Mirrors ............................104
Heater ................................. .323
Heater, Engine Block ........................344
High Beam/Low Beam Select (Dimmer) Switch .....176
Hill Start Assist ............................362
Hitches Trailer Towing ...........................411
HomeLink (Garage Door Opener) ...............197
Hood Release ............................ .170
Hook, Coat ...............................218
Ignition ..................................10
Key .................................9,10
Ignition Key Removal ........................10
Illuminated Entry ...........................15
Immobilizer (Sentry Key) ......................11
Information Center, Vehicle ...................259
Inside Rearview Mirror ..................... .102
Instrument Cluster ..................... .237, 256Instrument Panel And Controls
.................236
Instrument Panel Lens Cleaning ................483
Integrated Power Module (Fuses) ...............485
Interior Appearance Care .....................482
Interior Lights ............................ .174
Intermittent Wipers (Delay Wipers) ..............178
Introduction ................................4
iPod/USB/MP3 Control Bluetooth Streaming Audio ..............140, 300
Jack Location ............................ .433
Jack Operation ............................433
Jump Starting ............................ .448
Key Fob Programming Additional Key Fobs .............13
Key Fob Battery Service (Remote Keyless Entry) .....21
Key Fob, Remote Keyless Entry .................1
6
Key-In Reminder ............................11
Keyless Entry System ........................16
Key, Replacement ...........................12
Keys .....................................9
Key, Sentry (Immobilizer) ......................11
Lane Change Assist ........................ .176
518 INDEX

Door..................................26
Lubrication, Body ..........................470
Luggage Rack (Roof Rack) ....................225
Lug Nuts ............................... .431
Maintenance Free Battery .....................468
Maintenance Procedures ..................... .463
Maintenance Schedule .......................500
Malfunction Indicator Light (Check Engine) . . . .252, 461
Manual, Service ............................510
Map/Reading Lights ........................194
Memory Feature (Memory Seat) ................167
Memory Seat ..........................104, 167
Methanol ............................... .399
Mini-Trip Computer ........................ .265
Mirrors ................................. .102
Automatic Dimming ..................... .102
Electric Remote ..........................104
Exterior Folding ........................ .103
Heated ............................... .104
Memory ...............................167
Outside ...............................103
Rearview ............................. .102
Vanity ............................... .105Mode
Fuel Saver ............................ .264
Modifications/Alterations, Vehicle ................6
Monitor, Tire Pressure System ..................391
MOPAR Parts ..........................462, 509
MTBE/ETBE ............................. .399
Multi-Function Control Lever ..................176
New Vehicle Break-In Period ...................92
Occupant Restraints .........................41
Octane Rating, Gasoline (Fuel) .................399
Oil, Engine ............................463, 496
Capacity ...............................495
Change Interval ........................ .464
Checking ............................. .463
Disposal ...............................465
Filter ............................. .465,496
Filter

Disposal .......................... .465
Identification Logo .......................464
Materials Added To .......................465
Pressure Warning Light ....................246
Recommendation .....................464, 495
Synthetic ............................. .465
Viscosity .......................... .464, 495
520 INDEX

Oil Filter, Change..........................465
Oil Filter, Selection ..........................465
Oil Pressure Light ..........................246
Onboard Diagnostic System ...................460
Opener, Garage Door (HomeLink) ...............197
Operator Manual (Owner’s Manual) ...............4
Outside Rearview Mirrors .................102, 103
Overhead Console ..........................193
Overhead Travel Information Center .............193
Overheating, Engine ........................422
Owner’s Manual (Operator Manual) ...........4,510
Paint Care ............................... .479
Panic Alarm ...............................18
Parking Brake ............................ .357
ParkSense System, Rear ..................... .185
Personal Settings .......................... .269
Pets .....................................91
Placard, Tire And Loading Information ........374, 375
Power Brakes ............................... .359
Door Locks ..............................28
Lift Gate ...............................39
Mirrors ............................... .104
Outlet (Auxiliary Electrical Outlet) ............207Seats
.................................141
Sliding Door .............................34
Steering ...............................356
Sunroof ...............................204
Windows ...............................30
Power Seats Forward ...............................142
Rearward ............................. .142
Recline ............................... .143
Power Steering Fluid ........................498
Pregnant Women And Seat Belts .................54
Preparation For Jacking ..................... .438
Pretensioners Seat Belts ...............................54
Programmable Electronic Features ...............269
Radial Ply Tires ............................381
Radiator Cap

(Coolant Pressure Cap) .............475
Radio 130 Operating Instructions Radio Mode ............276
Radio 130 With Satellite Radio Operating Instructions Radio Mode ............283
Radio Frequency General Information ..................13, 23, 26
Radio Operation .......................... .32210
INDEX 521

Radio Remote Controls..................... .321
Rear Air Conditioning ....................327, 334
Rear Camera ............................. .192
Rear Cross Path ............................110
Rear Heater ............................. .327
Rear ParkSense System ..................... .185
Rearview Mirrors ..........................102
Rear Window Features .......................224
Reclining Front Seats ........................147
Recreational Towing ........................ .418
Reformulated Gasoline .......................399
Refrigerant ...............................469
Reminder, Seat Belt ..........................43
Remote Keyless Entry ........................16
Programming Additional Key Fobs .............13
Remote Sound System (Radio) Controls ...........321
Remote Starting System .......................23
Removable Floor Console .....................222
Replacement Bulbs ........................ .491
Replacement Keys ...........................12
Replacement Parts ..........................462
Replacement Tires ..........................387
Reporting Safety Defects .....................509
Restraint, Head ............................147
Restraints, Child ............................71 Rocking Vehicle When Stuck
...................451
Roof Rack (Luggage Rack) ....................225
Rotation, Tires ............................ .389
Safety Checks Inside Vehicle ...................93
Safety Checks Outside Vehicle ..................95
Safety Defects, Reporting .....................509
Safety, Exhaust Gas ..........................93
Safety Information, Tire ..................... .368
Safety Tips ................................92
Satellite Radio Antenna ..................... .293
Schedule, Maintenance .......................500
Seat Belt Adjustable Upper Shoulder Belt Anchorage .......48
Automatic Locking Retractor (ALR) ............55
Ener gy

Management Feature .................54
Lap/Shoulder Belt Operation .................46
Lap/Shoulder Belts ........................44
Lap/Shoulder Belt Untwisting ................48
Pregnant Women .........................54
Seat Belt Extender .........................53
Seat Belt Pretensioner ......................54
Seat Belt Reminder ........................43
Seat Belt Maintenance .......................483
Seat Belt Reminder ..........................43
