2017 Citroen GRAND C4 PICASSO RHD boot

118
Stowing behind the 3rd row seats
To fold the 3rd row seats with the roller
stowed at the rear, it is necessary to raise the
concertina boards in order to allow access to
the seat locking controls (red straps).
F
E
nsure that the 3rd row seats are folded.
F
F
old the first two concertina boards.
F

I

nstall the roller in the space above the arm
rest, one side after the other, inclining it
s li g ht l y.
F

S

lide the roller as far as it will go, up to the
cut-outs provided at the back of the boot,
with the two flaps directed downwards.
F

U

nfold the third row seats.
The folded concertina boards can be
positioned horizontally or vertically.
Ease of use and comfort

119

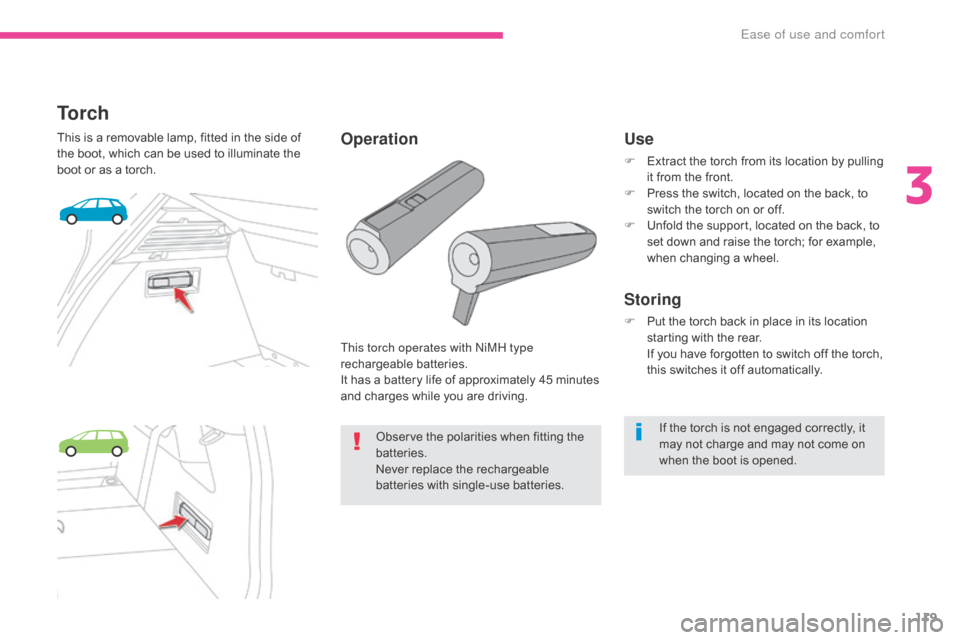

To r c h
This is a removable lamp, fitted in the side of
the boot, which can be used to illuminate the
boot or as a torch.This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.Use
F Extract the torch from its location by pulling it from the front.
F

P
ress the switch, located on the back, to
switch the torch on or off.
F

U
nfold the support, located on the back, to
set down and raise the torch; for example,
when changing a wheel.
Storing
F Put the torch back in place in its location starting with the rear.
I

f you have forgotten to switch off the torch,
this switches it off automatically.
If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Observe the polarities when fitting the
batteries.
Never replace the rechargeable
batteries with single-use batteries.
Operation
3
Ease of use and comfort

217
To avoid causing a nuisance to other road
users, the headlamps should be adjusted
according to the load in the vehicle.
0.
1 o
r 2 people in the front seats.
-.
I

ntermediate setting.
1.
5 p

eople + maximum authorised load.
-.
I

ntermediate setting.
2.
D

river + maximum authorised load.
-.
I

ntermediate setting.
3.
5 p

eople + maximum load in the boot.
Adjusting the headlamp
beam height
The initial setting is position "0" .
Programming
The activation, deactivation and choice of
welcome lighting duration are done via the
Driving menu of the touch screen.
On the " Vehicle settings " tab, select
" Welcome lighting ".
Use the arrows or the cursor to adjust the
duration of the lighting.
Direction indicators
F Left: lower the lighting control stalk passing the point of resistance.
F

R
ight: raise the lighting control stalk
passing the point of resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards, without going beyond the point of
resistance; the direction indicators will
flash 3 times.
5
Lighting and visibility

235
2nd row centre seat belt
The seat belt for the centre rear seat is built into the roof.
F
P
ull the strap and insert the tongue A into
the right-hand buckle.
F

I
nsert tongue B into the left-hand buckle.
F

C
heck that each buckle is correctly
fastened by pulling on the belt webbing.
Unfastening
F Press the red button in buckle B , then
buckle A.
F

G
uide the seat belt as it reels in and place
the tongue B and then A on the magnet in
the roof anchorage point.
Before any operation of the rear seats,
to avoid damage to the seat belts
check that there is no slack in the outer
belts and secure their tongues on the
anchorage points. The centre seat belt
must be fully reeled in.
3rd row seat belts
F Detach the seat belt strap from its retaining loop located on the side trim of the boot.
F

P
ull on the strap and insert the tongue into
the buckle.
F

C
heck that the buckle is correctly fastened
by pulling on the belt strap.
Unfastening and stowing
F Press the red button in buckle.
F G uide the seat belt strap as it reels in.
F

S
ecure the strap, flat in the retaining loop.
Ensure that the seat belts are secured
when not in use.
Fastening Fastening
6
Safety

281
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Other wise, by freezing, the AdBlue
® cannot
be poured into its tank. Park your vehicle in a
warmer area for a few hours to allow the top-up
to be carried out.
F

P

ress the START/STOP button to switch
off the engine. F
F or access to the AdBlue ® tank, raise the
boot floor, or on 7-seat versions, unfold the
right-hand seat in the third row.
Never store bottles of AdBlue
® in your
vehicle.
F

W
ithout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F

T
urn the blue cap a 6
th of a turn anti-
clockwise.
F

L

ift off the cap.
F

O

btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
7
Practical information

282
Important: if your vehicle's AdBlue®
tank is completely empty - which is
confirmed by the alert messages and
the impossibility of starting the engine,
you must add at least 3.8 litres of fluid. Important:
when topping-up after
running out of AdBlue®, signalled
by the message "Top-up AdBlue:
Starting prevented", you must wait
for approximately 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, placing the key of the
"Keyless Entr y and Star ting" system
inside the vehicle or inser ting the
electronic key in the reader.
Switch on the ignition, wait for
10

seconds, then start the engine.
If any fluid is spilt or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the fluid has crystallised, clean it off
using a sponge and hot water.
F

A

fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth. F

R

efit the blue cap to the tank and turn it a
6th of a turn clockwise, to its stop.
F
R
efit the black cap and turn it a quarter of
a turn clockwise without pressing. Ensure
that the indicator on the cap lines up with
the indicator on the support.
F

D

epending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F

R

efit the boot carpet and close the tailgate.
Do not dispose of AdBlue
® bottles or
containers in the household waste.
Place them in a container provided
for this purpose or take them to your
dealer.
Practical information

284
This kit is installed in the storage box, under the
boot floor.This kit consists of a compressor and a sealant cartridge.
It allows the temporary repair
of a tyre.
You are then able to go to the nearest garage.
It is designed to repair most punctures which could affect the tyre, located on the tyre tread or
shoulder.
Its compressor can be used to check and adjust the pressure of the tyre.
Temporary puncture repair kit
Access to the kit
Depending on version, the kit is stowed under
the front passenger's seat or in the storage box
under the second row footwell.
List of tools
* Depending on equipment. All of these tools are specific to your vehicle
and can vary depending on equipment. Do not
use them for other purposes.
1.
1

2 V compressor.
C

ontains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.
2.
C
hocks* to immobilise the wheels of the
vehicle.
3.
W
heel bolt cover remover*.
F

or removing the wheel bolt covers on alloy
wheels.
4.
R
emovable towing eye and front protective
cover opening tool.
For more information on To w i n g , refer to the
corresponding section.
In the event of a breakdown

291
Spare wheel
The tools are installed in the boot under the
f l o o r.
Remove the boot carpet for access to them.
Access to the tools
List of tools*
Procedure for changing a wheel with a punctured tyre for the spare wheel using the tools provided with the vehicle.All of these tools are specific to your
vehicle and can vary according to the level
of equipment. Do not use them for other
purposes.
1.
W

heelbrace.
F

or removing the wheel trim and removing
the wheel bolts.
2.
C

hock for immobilising the vehicle (except
versions with manual gearbox).
3.
J

ack with integral handle.
F

or raising the vehicle.
4.
W

heel bolt cover remover.
F

or removing the wheel bolt covers on alloy
wheels.
5.
S

ocket for the security bolts (located in the
glove box).
F

or adapting the wheelbrace to the special
"security" bolts.
6.
T

owing eye and front protective cover
opening tool.
For more information about To w i n g , refer to
the corresponding section.
* Depending on equipment.
8
In the event of a breakdown
