248
To check the level or top up the
fluid on vehicle fitted with headlamp
washers, immobilise the vehicle and
switch of the engine.
Screenwash / headlamp wash fluid level
F Open the bonnet and secure it with the st ay.Specification of the fluid
To ensure optimum cleaning and to avoid
freezing, the fluid should never be topped up or
replaced by plain water.
In wintry conditions, the use of a fluid
with an ethyl alcohol or methanol base is
recommended.
F

O

pen the screenwash reservoir filler cap.
F

T

ake and pinch the level gauge to block its
breather.
F

R

emove the gauge completely from
the reservoir to read the level in the
transparent section.
F

T

op up if necessary.
F

R

efit the filler cap to the reservoir and
close the bonnet.
07
Practical information

279
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Changing a bulb
The headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure
washer on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.Light-emitting diodes (LED)
For the replacement of this type of
lamp, go to a CITROËN dealer or a
qualified workshop.
LED (light-emitting diode) replacement
kits are available from CITROËN
dealers.
Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.
08
In the event of a breakdown

280
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.
1.
D

aytime running lamps / sidelamps
(LEDs).
2.
D

irectional main beam / dipped beam
headlamps (D1S).
3.
D

irection indicators (LEDs).
4.
D

irectional foglamps
(LEDs). 1.
D

irection indicators (H21 clear).
2.
D

ipped beam headlamps (H7).
3.
M

ain beam headlamps (H1).
4.
D

aytime running lamps / sidelamps
(P21/5W XL).
5.
D

irectional front foglamps (H11).
Front lamps
1. Direction indicators (LEDs).
2. D
aytime running lamps / sidelamps
(LEDs).
3.
D

ipped beam headlamps (H7).
4.
M

ain beam headlamps (H7).
5.
D

irectional front foglamps (H11).Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.
*
LED: light emitting diodes.
Model with directional xenon and
full-LED headlamps Model with halogen headlamps
(t y p e 1)Model with halogen headlamp and
LED light signature (type 2)*
08
In the event of a breakdown

281
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Changing direction indicator bulbs
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Model with halogen (type 2) and xenon
headlamps
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
F

T

urn the bulb holder a quarter of a turn and
extract it.
F

P

ull out the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Access to bulbs
Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.
F

R
emove the air deflector by unclipping
each of its three attachment points.
F

U
nclip the bonnet release cable at its
two
fixings.
F

M
ove the cable down.
After changing the failed bulb, remember to
put everything back in place (cable and air
deflector). Model with halogen headlamps
(t yp e 1)
08
In the event of a breakdown

282
DS4_en_Chap08_en-cas-de-panne_ed01-2016
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

S
pread the springs to release the bulb.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp. F
R emove the protective cover by pulling
the tab.
F

D
isconnect the connector.
F

S
queeze the springs to release the bulb.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order. F
R emove the protective cover by pulling
the tab.
F

D
isconnect the connector.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.

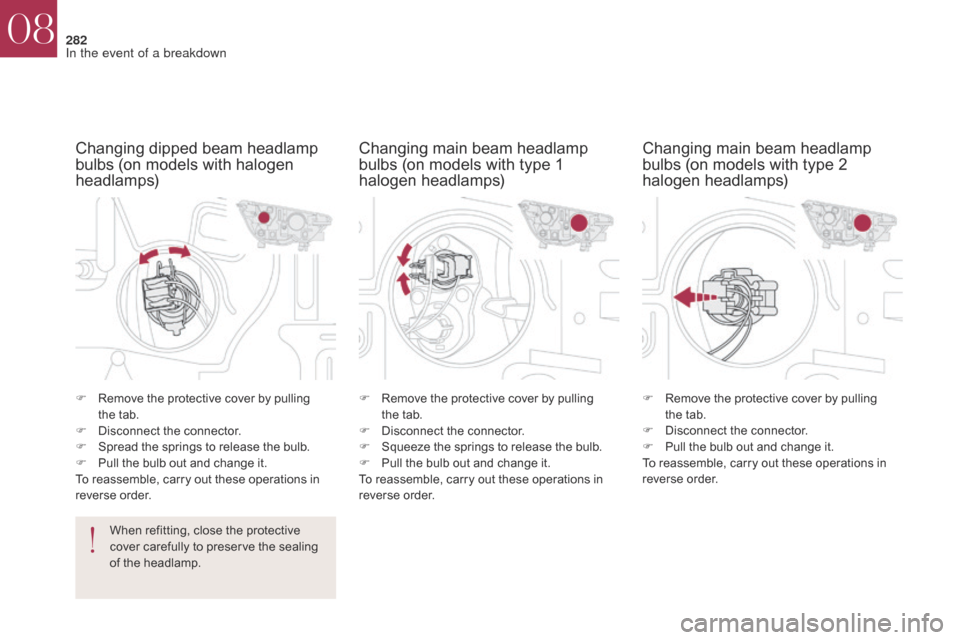

Changing dipped beam headlamp
bulbs (on models with halogen
headlamps) Changing main beam headlamp
bulbs (on models with type 1
halogen headlamps)Changing main beam headlamp
bulbs (on models with type 2
halogen headlamps)
08
In the event of a breakdown

283
DS4_en_Chap08_en-cas-de-panne_ed01-2016
F Remove the protective cover by pulling the tab.
F

D
isconnect the wiring connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it.
To reassemble, carry out these operations in
reverse order. F
I nsert a flat screwdriver towards the centre
of the repeater between the repeater and
the base of the mirror.
F

T
ilt the flat screwdriver to extract the
repeater and remove it.
F

D
isconnect the repeater connector.
To reassemble, carry out these operations in
reverse order.
Contact a CITROËN dealer or a qualified
workshop to obtain replacement repeaters.
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Changing daytime running lamp /
s idelamp bulbs (on models with
type
1 halogen headlamps) Changing daytime running lamp
/
sidelamp bulbs (on models with
type
2 halogen or xenon headlamps)Changing integrated direction
indicator side repeaters
08
In the event of a breakdown

284
DS4_en_Chap08_en-cas-de-panne_ed01-2016
Changing the side spotlamps
(LEDs)
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.F
I ntroduce a flat screwdriver in the hole in
the finisher.
F

P
ull and lever to unclip the bumper finisher.
F

R
emove the two module fixing screws and
remove it from its housing.
F

D
isconnect the bulb holder connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it.To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.
Changing foglamp bulbs (on models
with halogen headlamps)
08
In the event of a breakdown

291
DS4_en_Chap08_en-cas-de-panne_ed01-2016
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Engine compartment fuses
Fuse N°Rating Functions
F19 30 AWindscreen wipers slow / fast speed.
F20 15 AFront and rear screenwash pump.
F21 20 AHeadlamp wash pump.
F22 15 AHorn.
F23 15 ARight-hand main beam headlamp.
F24 15 ALeft-hand main beam headlamp.
F27 5 ALeft-hand dipped headlamp.
F28 5 ARight-hand dipped headlamp.
Fuse table
Access to the fuses
F Unclip the cover.
F
C hange the fuse.
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
08
In the event of a breakdown
