2017 CITROEN DISPATCH SPACETOURER Handbook (in English)

183

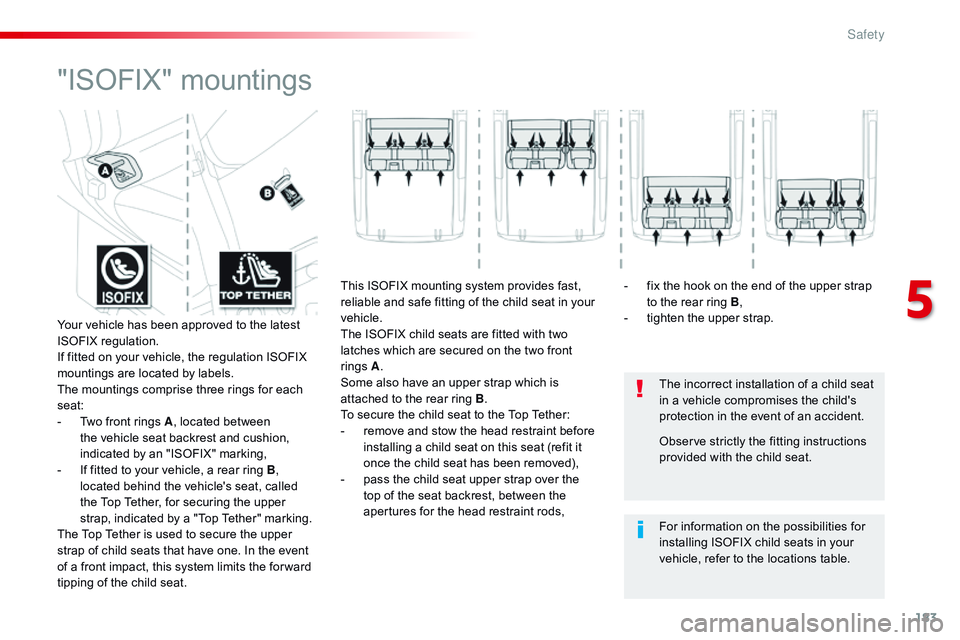

"ISOFIX" mountings
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the locations table. Observe strictly the fitting instructions
provided with the child seat.
Your vehicle has been approved to the latest
ISOFIX regulation.
If fitted on your vehicle, the regulation ISOFIX
mountings are located by labels.
The mountings comprise three rings for each
seat:
-

T

wo front rings A , located between
the vehicle seat backrest and cushion,
indicated by an "ISOFIX" marking,
-

I

f fitted to your vehicle, a rear ring B ,
located behind the vehicle's seat, called
the Top Tether, for securing the upper
strap, indicated by a "Top Tether" marking.
The Top Tether is used to secure the upper
strap of child seats that have one. In the event
of a front impact, this system limits the for ward
tipping of the child seat. This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with two
latches which are secured on the two front
rings
A.
Some also have an upper strap which is
attached to the rear ring B .
To secure the child seat to the Top Tether:
-

r

emove and stow the head restraint before
installing a child seat on this seat (refit it
once the child seat has been removed),
-

p

ass the child seat upper strap over the
top of the seat backrest, between the
apertures for the head restraint rods, -

f

ix the hook on the end of the upper strap
to the rear ring B ,
-

t

ighten the upper strap.
5
Safety

184

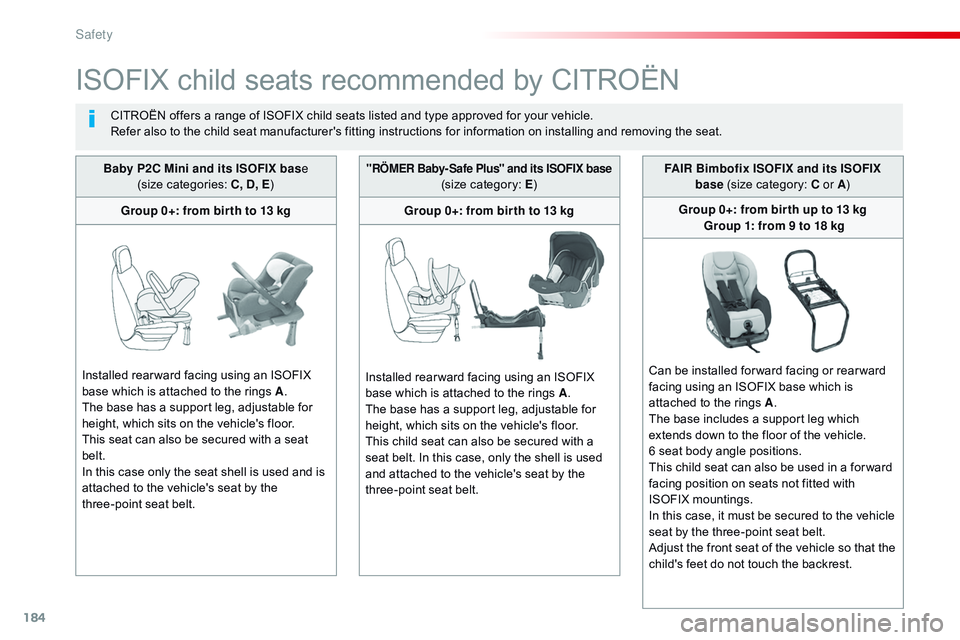

ISOFIX child seats recommended by CITROËN
CITROËN offers a range of ISOFIX child seats listed and type approved for your vehicle.
Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
Baby P2C Mini and its ISOFIX bas e
(size categories: C, D, E)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This seat can also be secured with a seat
belt.
In this case only the seat shell is used and is
attached to the vehicle's seat by the
three-point seat belt. FAIR Bimbofix ISOFIX and its ISOFIX
base (size category: C or A )
Group 0+: from bir th up to 13 kg Group 1: from 9 to 18 kg
Can be installed for ward facing or rear ward
facing using an ISOFIX base which is
attached to the rings A .
The base includes a support leg which
extends down to the floor of the vehicle.
6 seat body angle positions.
This child seat can also be used in a for ward
facing position on seats not fitted with
ISOFIX mountings.
In this case, it must be secured to the vehicle
seat by the three-point seat belt.
Adjust the front seat of the vehicle so that the
child's feet do not touch the backrest.
"RÖMER Baby- Safe Plus" and its ISOFIX base (size category: E)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt.
Safety

185
"Baby P2C Midi" and its ISOFIX base (size categories: D, C, A, B, B1)
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be used for ward
facing.
This seat can not be secured with a seat
belt.
We recommend that you use the seat in the
rear ward facing position up to the age of
3

years. "RÖMER Duo Plus ISOFIX"
(size category: B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing
position.
Is attached to the rings A and the upper
ring
B, referred to as the TOP TETHER,
using an upper strap.
Three seat body angles: sitting, reclining,
lying down.
This child seat can also be used on seats
not equipped with ISOFIX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
5
Safety

186
Locations for ISOFIX child seats
In line with European legislation, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1 with 2-seat bench
seat or individual seat Not ISOFIX
Row 2 with
2-seat bench
seat in row 1 Right outer seat
XIL- SU IL- SUI U F, I L - S U
Centre seat XXIL- SU X I U F, I L - S U
Left outer seat XXIL- SU X I U F, I L - S U
Safety

187
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 2 with individual
seats in row 1 Right outer seat
XIL- SU IL- SUI U F, I L - S U
Centre seat IL- SUIL- SUIL- SUI U F, I L - S U
Left outer seat XIL- SU IL- SU IL- SUI U F, I L - S U
Row 3 XXXI U F, I L - S U
5
Safety

188
IUF Seat suitable for the installation of an Isofix U niversal seat, F or ward facing
secured using the upper strap.
IL- SU



S
eat suitable for the installation of an
I sofix S emi-Universal seat either:
-

r
ear ward facing fitted with an upper
strap or a support leg,
-

f
or ward facing fitted with a support
leg,
-

a c
ot fitted with an upper strap or a
support leg.
X

S
eat not suitable for the installation of a
child seat of the weight group indicated. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed. For more information on the ISOFIX
mountings
and in particular the
upper strap, refer to the corresponding
section.
Safety

189
Child seatsInstalling a booster
cushion
Recommendations
The legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the passenger front airbag when
a rear ward facing child seat is installed on
the front passenger seat. Otherwise, the
child would risk being seriously injured or
killed if the airbag were deployed. For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, or in contact if possible.
The head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
Ensure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum
,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it for ward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Children at the front
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
5
Safety

190
Manual child lock
Locking
Unlocking
Mechanical system to prevent opening of the
sliding side door using its interior lever.
Electric child lock
Remote control system to prevent opening of the rear doors (sliding side door(s), side-hinged rear
doors or tailgate) using their interior controls.The indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside. The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
Switching on
F With the ignition on, press this
button. F

W
ith the ignition on, press this
button again.
Switching off
F Turn the control on the edge of the side door upwards.
F

T
urn the control on the edge of
the side door downwards.
