2017 CITROEN C3 PICASSO boot

66
C3Picasso_en_Chap04_ouverture_ed01-2015
Activation
F Press button A for more than two seconds.
A confirmation message appears on the
multifunction screen, accompanied by an
audible signal.
Deactivation
F Press button A again for more than two seconds.
A confirmation message appears on the
multifunction screen, accompanied by an
audible signal.
Emergency control
Locking the front and rear
passenger doors
F Insert the key in the lock, located on the edge of the door, then turn it one eighth of
a turn .
Locking the driver's door
F Insert the key in the lock, then turn it to the
right.
Unlocking the driver's door
F Insert the key in the lock, then turn it to the left.
Unlocking the front and rear
passenger doors
F Pull the interior door opening control.
In the event of a fault with the central
locking, you must disconnect the
battery to lock the boot and so ensure
the complete locking of the vehicle.
System which locks or unlocks the doors
mechanically in the event of a malfunction of
the battery or of the central locking.
Driving with the doors locked may make
access more difficult for the emergency
services in an emergency.
Access

67
C3Picasso_en_Chap04_ouverture_ed01-2015
F After unlocking the vehicle, pull on the grip and raise the tailgate.
Boot
- when the engine is running ,
this warning lamp comes on,
accompanied by a message on
the multifunction screen for a few
seconds,
Tailgate release
Unlocking
F Fold back the rear benchseat to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
Closing
If the tailgate is not closed correctly:
Opening
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message on the multifunction screen for
a few seconds.
F

L
ower the tailgate using the interior grab
handle. System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
4
Access

83
C3Picasso_en_Chap05_visibilite_ed01-2015
Courtesy lamp with mood
lighting LED
Present or not depending on equipment, a
mood lighting LED in the front courtesy lamp
improves visibility inside the vehicle when the
light is poor.
Switching on
The LED comes on with illumination - manual
or automatic - of the sidelamps or dipped or
main beam.
Switching off
The courtesy lamp LED goes off:
- w hen the sidelamps or dipped or main
beam are switched off manually (lighting
control stalk in position " 0"),
-

w
hen the level of ambient light is sufficient
(lighting control stalk in position " AUTO").
The LED comes on independently of
the front courtesy lamp or the map
reading lamps.
Illumination of the LED can not be
deactivated. This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
Boot lamp
The lighting time varies according to the
circumstances:
-
w

hen the ignition is off,
approximately ten minutes,
-
i

n energy economy mode,
approximately thirty
seconds,
-
w

hen the engine is running, no limit.
5
Visibility

90
C3Picasso_en_Chap06_amenagement_ed01-2015
Opening
F Lower the storage shelf.
F P ress the flap opening control.
F

L
ower the flap.
F

C
heck that the adjustable boot floor is in
the high position.
F

L
oad the objects from inside the boot.
Ski flap
Device for storing and transporting long
objects.
Fittings

91
C3Picasso_en_Chap06_amenagement_ed01-2015
Boot fittings
1. Open storage compartments.
2. Adjustable boot floor.
3.
Ca

rrier bag hook.
4.
S

ecuring rings.
5.
S

torage space under boot carpet
6.
R

ear parcel shelf.
6
Fittings

92
C3Picasso_en_Chap06_amenagement_ed01-2015
2-position adjustable boot
The two-position adjustable boot floor allows
you to:
-
m
aximise the volume of the boot,
-

p
artition the boot (stowing the rear shelf...),
-

o
btain a flat floor from the boot opening to
the front seats, when the rear bench seat is
in the folded and fully back position.Placing the adjustable boot floor
in the low position
F Lift the adjustable boot floor by pulling on the strap.
F

M
ove the adjustable boot floor rear wards
and then down, following the guides on the
sides.
Placing the adjustable boot floor
in the high position
F Lift the adjustable boot floor by pulling the strap.
F

M
ove the adjustable boot floor rear wards
then up to its high position.
In the high position, the adjustable boot floor
allows stowing of the rear parcel shelf and
fragile objects.
The adjustable boot floor is fitted with four
stowing rings to secure your loads using the net
available as an accessory.
Ensure that your boot is empty before
handling the adjustable boot floor.
Fittings

93
C3Picasso_en_Chap06_amenagement_ed01-2015
Hooks
The hooks can be used to hold shopping bags.
2-panel rear parcel shelf
The rear section is attached to the tailgate by
two cords.
Removing the shelf
From the boot:
F u nhook the two cords,
F

p
ull the shelf towards you to unclip it,
F

l
ift the shelf to remove it.
Refitting the shelf
From the boot:
F p osition the shelf so that the two notches
are directly above the fixing pins,
F

p
ush the shelf towards the inside of the
vehicle to clip it in place,
F

a
ttach the two cords.
It can be stored under the adjustable boot floor,
if this is in its high position.
6
Fittings

150

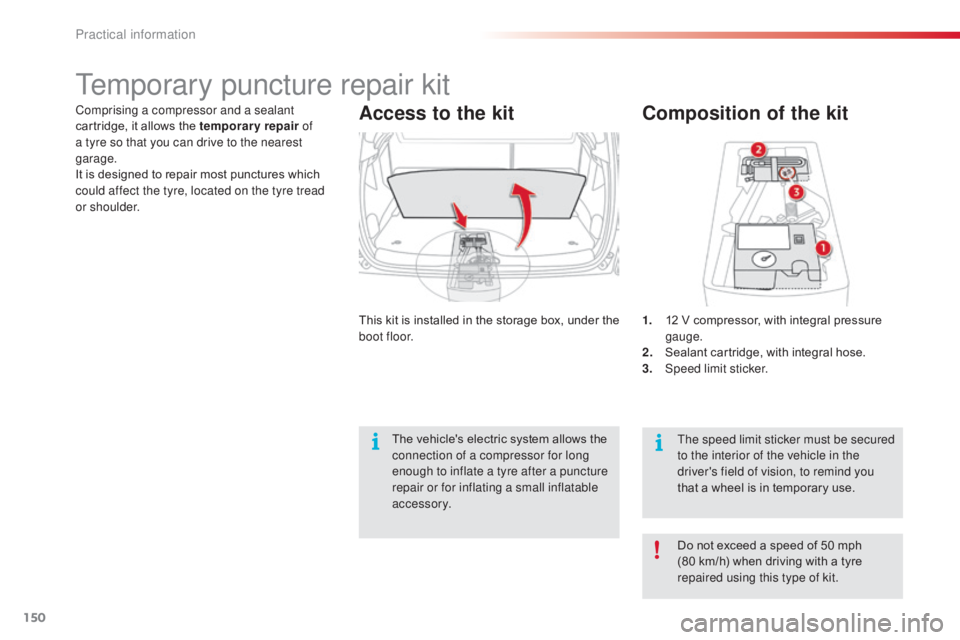

C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Composition of the kit
1. 12 V compressor, with integral pressure gauge.
2.
S

ealant cartridge, with integral hose.
3.
Spe

ed limit sticker.
Access to the kit
This kit is installed in the storage box, under the
boot floor.
The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
Comprising a compressor and a sealant
cartridge, it allows the temporary repair
of
a tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
The vehicle's electric system allows the
connection of a compressor for long
enough to inflate a tyre after a puncture
repair or for inflating a small inflatable
accessory.
Temporary puncture repair kit
Practical information
