Fatigue detection system
As soon as the speed of the vehicle
drops below 40 mph (65 km/h), the
system goes into standby.
The driving time is counted again once
the speed is above 40 mph (65 km/h).
It is recommended that you take a break as soon as you feel tired or at least every two hours.
The system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
Do not take the wheel if you are tired.
Driving time warning
The system triggers an alert once it detects that
the driver has not taken a break after two hours
of driving at a speed above 40 mph (65 km/h).
This alert takes the form of the display of a
message encouraging you to take a break,
accompanied by an audible signal.
If the driver does not follow this advice, the
alert is repeated hourly until the vehicle is
stopped. The system resets itself if one of the following
conditions is met:
-

e
ngine running, the vehicle has been
stationary for more than 15 minutes,
-

t
he ignition has been switched off for a
few
m

inutes,
-

t
he driver's seat belt is unfastened and
their door is open.
Activation / Deactivation
The system is activated or deactivated via the
vehicle configuration menu.
For more information on the menu, refer to the
part covering your screen in the "Dashboard
instruments" section.
The state of the system stays in memory when
the ignition is switched off.
Driving

186
B618_en_Chap06_conduite_ed01-2016
In the event of a fault, this warning
lamp flashes for a few moments in
the instrument panel, accompanied
by illumination of the Service warning
lamp and the display of a message.The system may suffer temporary
interference in certain weather
conditions (rain, hail, etc.).
In particular, driving on a wet sur face
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud,
ice
or snow.
Take care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system.
High pressure jet wash
When washing your vehicle, direct the
lance at least 30 cm away from the
sensors.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
Driving

187
B618_en_Chap06_conduite_ed01-2016
Parking sensors
This system indicates the proximity of an
obstacle (e.g. pedestrian, vehicle, tree, gate)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (e.g. stake,
roadworks cone) detected initially will no longer
be detected at the end of the manoeuvre, if
they are located in blind spots in the sensors'
field of detection.
This system cannot in any circumstances replace
the need for vigilance on the part of the driver.
Rear parking sensors
The system is switched on by engaging reverse
g e a r.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right-hand
or left-hand) indicates the side on which the
obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.
6
Driving

189
B618_en_Chap06_conduite_ed01-2016
Reversing camera
The reversing camera is activated automatically
when reverse gear is engaged.
The image is displayed in the touch screen.The reversing camera cannot, in any
circumstances, replace the need for
vigilance on the part of of the driver. Opening the tailgate causes the display
to disappear.
The reversing camera function may be
supplemented with parking sensors. High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens. Clean the reversing camera regularly
using a soft, dry cloth.
The blue lines represent the general direction
of the vehicle (the gap represents the width of
your vehicle except for the door mirrors).
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
b u m p e r.
The green lines represent distances of
about 1 and 2 metres beyond the edge of your
vehicle's rear bumper.
It is normal to see part of the number plate
displayed at the bottom of the screen.
6
Driving

191
B618_en_Chap06_conduite_ed01-2016

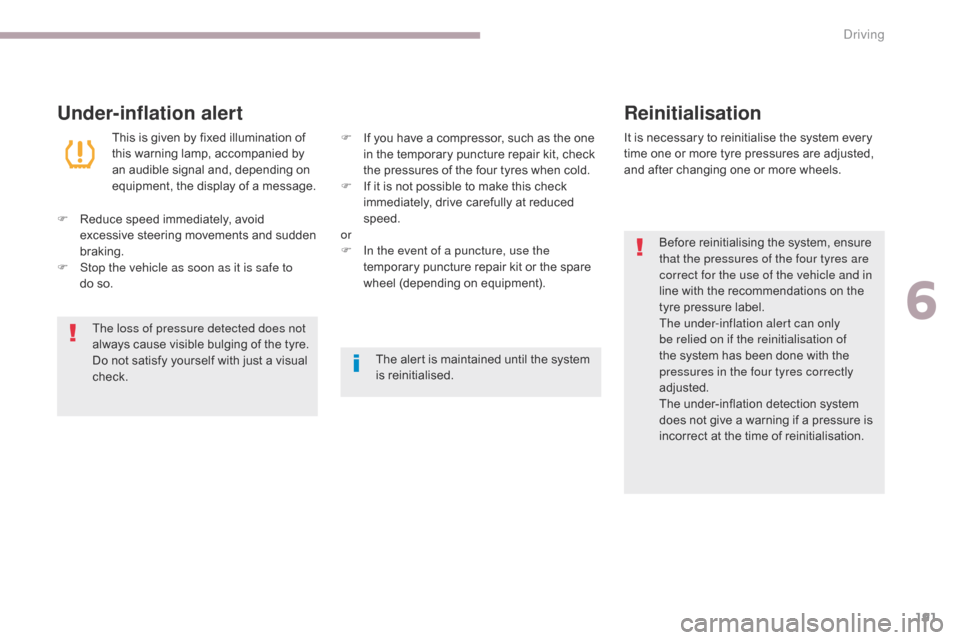

Under-inflation alertReinitialisation
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
The under-inflation alert can only
be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly
adjusted.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
This is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and, depending on
equipment, the display of a message.
It is necessary to reinitialise the system every
time one or more tyre pressures are adjusted,
and after changing one or more wheels.
F

R

educe speed immediately, avoid
excessive steering movements and sudden
braking.
F

S

top the vehicle as soon as it is safe to
do

so. F

I

f you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold.
F

I

f it is not possible to make this check
immediately, drive carefully at reduced
speed.
or
F
I
n the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment).
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check. The alert is maintained until the system
is reinitialised.
6
Driving

192
B618_en_Chap06_conduite_ed01-2016
Reinitialisation of the system must be done with
the ignition on and the vehicle stationary:
-

i
n the vehicle configuration menu, for
vehicles fitted with a display screen,
-

u
sing the instrument panel display or the
button on the dashboard, for vehicles
without a display screen.
Touch screen
Monochrome screen C
Operating fault
The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
A message appears, accompanied by an
audible signal.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
Instrument panel displayReinitialisation of the function is done
in the Driving menu.
F

I

n the Driving menu, select the " Driving
functions " tab.
F

I

n the page, select the " Under-inflation
initialisation " function.
F

Sel

ect " Ye s" to confirm.
The reinitialisation is confirmed by the display
of a message and an audible signal.
Reinitialisation of the function is
done in the " Personalisation-
configuration " menu of the screen.
F

Sel

ect the " Define the vehicle
parameters " menu. F

M
ake a short press on this button
to access the menu.
F

S
elect the corresponding item
then confirm.
A high tone audible signal confirms the
reinitialisation.
A low tone audible signal indicates that the
reinitialisation was not completed.
Dashboard button
F Make a long press on this button.
A high tone audible signal confirms the
reinitialisation.
A low tone audible signal indicates that the
reinitialisation was not completed. F

Sel

ect the "
Comfort " menu.
F

Sel

ect the "
Tyre inflation " menu.
F

Sel

ect the "
Reinitialisation " function.
F

Sel

ect "
Ye s" to confirm.
The reinitialisation is confirmed by an audible
signal.
Driving

244
B618_en_Chap08_En-cas-de-panne_ed01-2016
Lower fusebox
FuseN° Rating
(A) Functions
F1 10Electrochromatic interior mirror, heated rear screen,
particle
filter pump (Diesel), parking sensors, power steering,
LPG
system, clutch pedal switch, exterior mirror adjustment.
F10(+) -
F11 (Gnd) 30Locking / unlocking of the doors and fuel filler flap (depending
on engine).
F13 10Rain and sunshine sensor, air conditioning, front camera.
F14 5Alarm, telematic unit.
F16 3Automatic gearbox gear selector, brake pedal switch,
Stop & Start system.
F17 5Instrument panel, driving school module.
F18 5Air conditioning, gear selector position indicator (automatic
gearbox).
F19 3Steering mounted controls.
F21 3START/STOP switch or button.
F23 5Seat belts not fastened warning lamps display.
In the event of a breakdown

260
B618_en_Chap11_index-alpha_ed01-2016
Accessories ...........................................117, 157
AdBlue® ............................... ......26, 36, 215, 216
Adjusting headlamps .................................... 11
2
Adjusting head restraints

................................ 77
A

djusting seat
................................................. 76
A

djusting the air distribution
.....................8
5, 88
Adjusting the air flow

.................................8
5, 88
Adjusting the date

..................................... 4
1, 54
Adjusting the height and reach of the steering wheel

...............................
.........82
Adjusting the temperature

........................8
5, 88
Adjusting the time

............................... 4
1, 54, 55
Advice on driving

..............................
....151, 152
Airbags
...............

............................. 29, 129, 137
Airbags, curtain
..................................... 13

2, 13 3
Airbags, front......................................... 13 0, 13 3
Airbags, lateral
...................................... 13

1, 13 3
AIRBUMP
® .................................................... 2 19
Air conditioning ............................... ............ 9, 87
Air conditioning, automatic

.......................8

4, 88
Air conditioning, manual
........................... 8

4, 86
Air intake

...............
.................................... 86, 88
Air vents
..............................

............................ 83
Alarm
............................................................... 72
A

nti-lock braking system (ABS)
....................12

3
Anti-slip regulation (ASR)

............................. 12

3
Anti-theft
..............................

.........................153
Armrest, front

............................................9
6, 98
Assistance call
...............................

....... 119, 121
Assistance, emergency braking
................... 12

3
Audio system

...............................
....................41
Auxiliary socket

............................................... 98
ABChild seats, ISOFIX .......................14 3 -145, 147
C ITROËN C onnect Box ....................... 1 19, 121
C
ITROËN
L
ocalised Emergency Call... 119, 121
Closing the boot

...............................
......... 57, 69
Closing the doors

.......................... 5
7, 60, 61, 68
Coat hanger
..............................

......................99
Configuration, vehicle
......................... 4

1, 44, 46
ConnectedCAM C
ITROËN
™

.......................19

3
Control, electric windows
................................ 74
C

ontrol, emergency boot release
...................69
C

ontrol, emergency door
................................ 64
C

ontrol, heated seats
...................................... 78
C

ontrol stalk, lighting
.............. 1
6, 105, 106, 110
Control stalk, wipers

..............................11

3 -115
Courtesy lamp

...............................
..........94, 240
Cruise control
................................ 1

70, 173, 178
Cruise control by speed limit recognition

.....17

3
Cup holder

...............................
........................96
Capacity, fuel tank

..............................

.......... 19 6
Cap, fuel filler

................................................ 19

6
Central locking

.................................... 6

0, 61, 70
Changing a bulb
........................... 2

34, 238, 240
Changing a fuse
............................ 2

41, 243, 246
Changing a wheel

...............................

. 226, 227
Changing a wiper blade

........................ 11

6 , 2 0 4
Changing the remote control battery

.............. 66
C

hecking the engine oil level

.......................... 35
C

hecking the levels

............................... 2

0 9 -212
Checking tyre pressures (using the kit)

........ 2

21
Checks
...............

................... 207, 208, 213, 214
Child lock

...............................

........................ 150
Children
...............................

... 141, 143 -145, 147
Children (safety)
...............................

............. 150
Child seats

............ 1

28, 134-136, 140, 141, 149
Child seats, conventional
...................... 14

0, 141
Child seats, i-Size

...............................

.......... 147 Date (setting)

...............................
.............. 41, 54
Daytime running lamps

.........1
06, 110, 234, 235
Deactivating the passenger airbag
....... 13

0, 137
Deadlocking
...............................

............... 57, 62
Demisting - defrosting

...............................9
2, 93
Dimensions
..............................

.....................257
Dipstick
................

....................................35, 209
Direction indicators
...... 1

08, 110, 234, 235, 238
Display screen, instrument panel

.................16

5
Doors
..............................................................

.68
Driving economically ......................................... 9
Driving time warning

..................................... 18

2
Dynamic stability control (DSC)

...... 2
2, 123, 125
C
D
Battery ................................... 203, 213, 248 -251
Battery, charging ............................... ............250
Battery, remote control

.............................6
3, 66
Blanking screen (snow shield)

......................2

01
Blind, panoramic roof

...................................... 95
B

lind spot monitoring system
........................18

4
Blind spot sensors
.................................. 18

, 18 4
BlueHDi
...............................

......32, 36, 215, 220
Bonnet
...............

............................................ 206
Boot
........

.......................................... 69, 95, 100
Brake discs

.................................................... 2

14
Brake lamps

...............................
...................238
Brakes
..................................................... 2

2, 214
Bulbs (changing)
...............................

... 234, 238
Alphabetical index
