2017 CITROEN C3 AIRCROSS dashboard

104

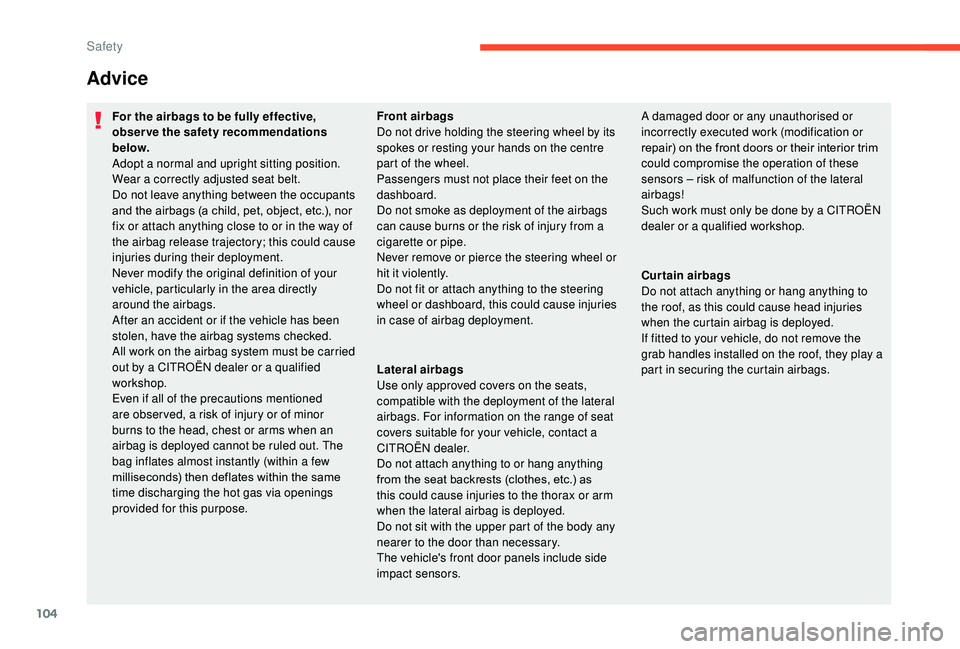

Advice
For the airbags to be fully effective,
observe the safety recommendations
below.
Adopt a normal and upright sitting position.
Wear a correctly adjusted seat belt.
Do not leave anything between the occupants
and the airbags (a child, pet, object, etc.), nor
fix or attach anything close to or in the way of
the airbag release trajectory; this could cause
injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen, have the airbag systems checked.
All work on the airbag system must be carried
out by a CITROËN dealer or a qualified
workshop.
Even if all of the precautions mentioned
are obser ved, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause injuries
in case of airbag deployment.
A damaged door or any unauthorised or
incorrectly executed work (modification or
repair) on the front doors or their interior trim
could compromise the operation of these
sensors – risk of malfunction of the lateral
airbags!
Such work must only be done by a CITROËN
dealer or a qualified workshop.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment of the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, contact a
CITROËN


dealer.
Do not attach anything to or hang anything
from the seat backrests (clothes, etc.) as
this could cause injuries to the thorax or arm
when the lateral airbag is deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
The vehicle's front door panels include side
impact sensors. Curtain airbags
Do not attach anything or hang anything to
the roof, as this could cause head injuries
when the curtain airbag is deployed.
If fitted to your vehicle, do not remove the
grab handles installed on the roof, they play a
part in securing the curtain airbags.
Safety

152
The sound emitted by the speaker (front or
rear) indicates whether the obstacle is in
front or behind.
Deactivation/Activation
The system is activated and deactivated from
the vehicle configuration menu or via the button
on the dashboard (depending on version).
With/without audio system
F Press this button; the button indicator lamp lights up to
confirm deactivation of the
function.
With touch screen
F In the Driving/Vehicle menu,
select the " Driving functions "
tab, then " Parking sensors ".The system will be deactivated
automatically if a trailer is being towed or a
bicycle carrier is fitted on a towbar (vehicle
fitted with a towbar installed in line with
the manufacturer's recommendations).
Malfunction
If a fault occurs when shifting
to reverse, this warning lamp
comes on in the instrument panel,
accompanied by a message and an
audible signal.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
In bad or wintry weather, ensure that the
sensors are not covered by mud, ice or
snow.
When reverse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking sensor
system. High pressure jet wash
When washing your vehicle, direct the
lance at least 30
cm away from the
sensors.
Top Rear Vision camera
With the engine running, and as soon as the
reverse gear is engaged, this system allows
two views of your vehicle’s close surroundings
to be displayed on the touch screen using a
rear camera.
Driving

162
Checking tyre pressures
This check should be done when the tyres
are "cold" (vehicle stopped for 1 hour or
after a journey of less than 6
miles (10 km)
at moderate speeds).
Other wise, add 0.3
bar to the pressures
shown on the label.
Snow chains
The system does not have to be
reinitialised after fitting or removing snow
chains.
Under-inflation alert
This warning is indicated by
continuous illumination of this
warning lamp, an audible signal
and, depending on equipment, a
message displayed on the screen.
F

R

educe speed immediately, avoid excessive
steering movements and sudden braking.
F

S

top the vehicle as soon as it is safe to do
so. The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
F
I
f you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold.
F
I
f it is not possible to make this check
immediately, drive carefully at reduced
speed.
or
F
I
n case of a puncture, use the temporary
tyre repair kit or the spare wheel (depending
on equipment).
The alert is kept active until the system is
reinitialised.
Reinitialisation
The system must be reinitialised after any
adjustment to the pressures of one or more
tyres, and after changing one or more wheels. Before reinitialising the system, ensure
that the pressures of the four tyres
are correct for the conditions of use
of the vehicle and conform to the
recommendations on the tyre pressure
label.
The under-inflation alert can only be relied
on if the reinitialisation of the system has
been done with the pressures in the four
tyres correctly adjusted.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
The system must be reinitialised with the
ignition on and the vehicle stationary:
-
i
n the vehicle configuration menu for
vehicles fitted with a touch screen.
-
v
ia the button on the dashboard for vehicles
without a touch screen.
With/Without audio system
F Hold this button down.
Driving

197
Changing a fuse
Access to the tools
The extraction tweezers are located behind the
dashboard fusebox cover.
F
U
nclip the cover by pulling at the top left,
then right.
F

D
isengage the cover completely and turn it
ove r,
F

T
ake the tweezers from the housing.
Changing a fuse
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must be switched
of f,
F

s
top the vehicle and switch off the ignition,
F

i
dentify the defective fuse using the existing
allocation tables and diagrams.
To replace a fuse, you must:
F

u
se the special tweezers to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the defective fuse with a
fuse of the same rating (same colour); using
a different rating could cause a malfunction
(risk of fire).
If the fault recurs after replacing a fuse, have
the electrical system checked by a CITROËN
dealer or a qualified workshop.
Good Faulty
Courtesy lamp with LEDs
For the replacement of LEDs, contact a
CITROËN dealer or a qualified workshop. F
P
ull the faulty bulb out and change it.
F
F
it the console back and clip it in place.
Boot (W5W)
F Unclip the cover using a small flat blade
screwdriver.
F

P
ull the bulb out and change it.
F

P
ut the unit back in place.
8
In the event of a breakdown

198
Tw e e z e r s
The replacement of a fuse not shown in
the allocation tables below may cause
a serious malfunction of your vehicle.
Contact a CITROËN dealer or a qualified
workshop.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your vehicle,
contact a CITROËN dealer or a qualified
workshop.
CITROËN will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended by
CITROËN and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10


milliamperes.
Fuses in the dashboard
Access to the fuses
The 2 fuseboxes are located in the lower part of
the dashboard, below the steering wheel.
F
U
nclip the cover by pulling at the top left,
then right.
The two fuseboxes are located in the lower part
of the dashboard, in the glove box. F

O
pen the glove box.
F
U
nclip the fusebox protection cover.
In the event of a breakdown

211
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30
mph (50 km/h), the tyres will be
warm; in this case 0.3
bar (30 kPa) should be
added to the pressures given on the label.
Never reduce the pressure of a warm tyre.
Low tyre pressures increase fuel
consumption.Identification markings
Different visible markings for the identification
of your vehicle.
A. Vehicle identification number (VIN) on
the front right seat floor
The number is engraved on the body structure.B. Vehicle identification number (VIN) on
the dashboard
The number is on a label, visible through the
windscreen.
C. Manufacturer's label
This tamperproof label is affixed to the driver’s
door aperture. D. Tyres label
This label is affixed to the driver's door
aperture.
It bears the following information about the
tyres:
-

t
he tyre pressures, unloaded and loaded,
-

t
he tyre specification, made up of the
dimensions and type as well as the load and
speed indices,
-

t
he spare tyre pressure.The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
It bears the following information:
-
t he name of the manufacturer,
- t he European Whole Vehicle Type Approval
number,
-

t
he vehicle identification number (VIN),
-

t
he gross vehicle weight (GV W),
-

t
he maximum authorised train weight
(GT W),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.
9
Technical data

214
Defrosting ........................................................ 70
Defrosting, front .............................................. 69
Demisting, front
............................................... 69
D

emisting, rear

................................................ 63
Demisting, rear screen


...................................63
Dimensions
..............................

.....................210
Dipstick
................

............................. 28, 176 -17 7
Direction indicators


..............22, 81- 82 , 193 -195
Display, head-up
...............................

............132
Display screen, instrument panel


.................128
Distance alert ~ Collision Risk Alert
.............143
Doors


............................................................... 48
Driver’s attention warning


......................14 6 -147
Driving time warning


..................................... 14 6
Dynamic stability control (DSC)
.....15 -16 , 93-96
EEarth point, remote ....................................... 17 5
Economy mode ............................................. 17
2
Electronic brake force distribution (EBFD)
.....93
Electronic stability control (ESC)

...................15
E

mergency braking assistance (EBA) ............93
Emergency call


......................................... 91-92
Emergency switching off


...............................123
Emissions control
...............................

.............14
Energy economy mode
................................. 17

2
Engine


............................................................. 14
Engine, Diesel


....................................... 165, 18 4
Engine, petrol
...............................

.........165, 175
Engine compartment
.................................... 17

5
Engine fault


..................................................... 14
Engines


.................................................. 207-209
Engine self-diagnosis
..................................... 14
E

nvironment

.................................................... 45
FFatigue detection ................................... 14 6 -147
Filling the fuel tank ................................. 165 -167
Filter, air


........................................................ 179
Filter, Diesel fuel


........................................... 176
Filter, oil
................

......................................... 179
Filter, particle


......................................... 178 -179
Filter, passenger compartment


.....................179
Fitting a wheel
....................................... 19 0 -192
Fitting roof bars


...................................... 173 -174
Fittings, boot


................................................... 76
Fittings, interior
......................................... 71,

75
Fittings, rear


.................................................... 75
Flap, fuel filler


......................................... 166 -167
Floor, boot, adjustable


....................................77
Foglamp, rear


............................................ 21, 81
Foglamps, front


.......23, 80 - 81 , 85-86 , 193, 195
Foglamps, rear
................................................ 80
F

olding the rear seats

...............................60-62
Frequency (radio)
....................................... 21-22
Fuel ................................................................ 165
Fuel tank ........................................................ 167
Fusebox, dashboard


..................................... 201
Fusebox, engine compartment


.....................201
Fuses
...................................................... 1

97-2 01
G
Gauge, fuel............................................. 166 -167
Gearbox, automatic .......................125 -131, 18 0
Gearbox, manual


......71, 124 -125 , 12 9 -131, 179
Gear lever, manual gearbox


..................124 -125
Gear shift indicator ~ Gear efficiency indicator


..................................... 128
Glove box
........................................................ 71
G . P. S .


.............................................................. 12
Grab handles


.................................................. 75
Grip control
............................................... 95-96
HHazard warning lamps ....................................91Hazard warning lamps, automatic operation .......91Headlamps, automatic dipping ...........23, 83-85
Headlamps, automatic illumination ..........82- 83
Headlamps, dipped beam


.........23, 80 , 193 -19 4
Headlamps, main beam


............23, 80 , 193 -19 4
Head restraints, front
...................................... 59
Head restraints, rear
.................................60-62
Head-up display
..................................... 13

2-13 3
Heating
...................................................... 6

6- 67
Hill Assist Descent Control
................22, 97- 9 8
Hill start assist
............................................... 12 9
Hooks


.............................................................. 77
Horn ................................................................. 91
IIgnition .......................................69, 121 , 123 , 28
Immobiliser, electronic ............................45, 11 9
Indicator, AdBlue
® range ........................... 28-29
Indicator, coolant temperature ........................ 25
Indicator, engine oil level
................................ 28
Indicator lamps, operation
.............................. 11
I

ndicators, direction

................................ 81, 19 4
Inflating tyres and accessories (using the kit)

.............................. 18 4 -185, 187
Instrument panel


.......................................... 8 -10
Instrument panel, matrix
................................... 9
Internet browser
.............................................. 16
I

SOFIX mountings ......................................... 112
JJack .............................................18 8 -19 0, 23, 9
Jump starting ................................................ 202
Alphabetical index
