2017 CITROEN C-ELYSÉE engine

26
The servicing interval has been exceededFor 5 seconds after the ignition is switched
on, the spanner flashes to indicate that
the service must be carried out as soon as
possible.
Example: the service is overdue by 186 miles
(3 0 0 k m).
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the total distance recorder resumes its normal
operation. The spanner remains on .
For BlueHDi Diesel versions, this alert
is also accompanied by the continuous
illumination of the Service warning light
when the ignition is switched on. The remaining mileage may be weighted
by time according to the driver’s driving
habits.
The spanner may therefore also come
on if you have exceeded the period
since the last service, as indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the spanner
may also come on early, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The degree of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.Resetting the service indicator
The service indicator must be reset after each
service.
The procedure for resetting to zero is as
follows:
F

S
witch off the ignition.
F

P
ress the trip distance recorder reset
button and keep it pressed.
F

S
witch the ignition on; the distance
recorder display starts a countdown.
F

R
elease the button when =0 is displayed;
the spanner disappears.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the zero
reset to be taken into account.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder reset
button. The service information is
displayed for a few seconds, then
disappears.
Instruments

27
AdBlue® liquid range indicators
Once the AdBlue® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed.
Range greater than 1,500 miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
In the event of the risk of non-starting related to a lack of
AdBlue®
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Range between 0 and 1,500 miles (0 and 2,400 km)
When switching on the ignition, the AdBlue
warning light comes on, accompanied by
an audible signal and the temporary display
of "NO START IN" and a distance on the
instrument panel, indicating the remaining
range expressed in miles or kilometres before
engine starting is prevented - (e.g. "NO START
IN 1500 km" means "Starting will be prevented
in 1,500 km (930 miles).
When driving, this message is displayed every
186 miles (300 km) until the AdBlue level has
been topped-up.
®
The reserve level has been reached: it is
recommended that you top-up as soon as
possible.
It is recommended that you not top up by more
than 10 litres of AdBlue.
For more information on AdBlue
®and the SCR
(BlueHDi Diesel) system , and in particular
topping it up, refer to the corresponding
section.
1
Instruments

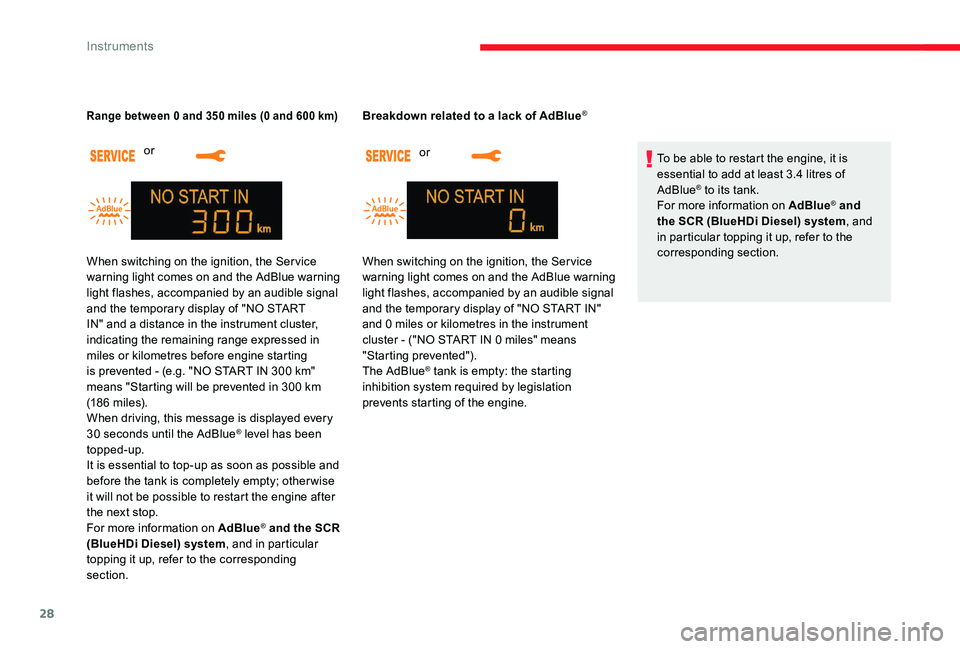

28
or
Range between 0 and 350 miles (0 and 600 km)
or
Breakdown related to a lack of AdBlue
®
To be able to restart the engine, it is
essential to add at least 3.4 litres of
AdBlue
® to its tank.
For more information on AdBlue® and
the SCR (BlueHDi Diesel) system , and
in particular topping it up, refer to the
corresponding section.
When switching on the ignition, the Service
warning light comes on and the AdBlue warning
light flashes, accompanied by an audible signal
and the temporary display of "NO START IN"
and 0 miles or kilometres in the instrument
cluster - ("NO START IN 0 miles" means
"Starting prevented").
The AdBlue
® tank is empty: the starting
inhibition system required by legislation
prevents starting of the engine.
When switching on the ignition, the Service
warning light comes on and the AdBlue warning
light flashes, accompanied by an audible signal
and the temporary display of "NO START
IN" and a distance in the instrument cluster,
indicating the remaining range expressed in
miles or kilometres before engine starting
is prevented - (e.g. "NO START IN 300 km"
means "Starting will be prevented in 300 km
(186 miles).
When driving, this message is displayed every
30 seconds until the AdBlue
® level has been
topped-up.
It is essential to top-up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
For more information on AdBlue
® and the SCR
(BlueHDi Diesel) system , and in particular
topping it up, refer to the corresponding
section.
Instruments

29
In the event of a fault with the emissions control system SCR
A device preventing the engine from
starting automatically activates after
685 miles (1,100 km) of driving following
confirmation of a fault in the SCR
emissions control system. Have the
system checked by a
CITROËN dealer or a
qualified workshop as soon as possible. In the event of the detection of a fault
If it is a temporary fault, the alert
disappears during the next journey, after
self-diagnosis of the emissions SCR
system. or
If a fault with the SCR system is confirmed (after 30
miles (50 km) covered with the permanent display
of the message signalling a fault), the Service and
engine diagnostic warning lights come on and
the AdBlue warning light flashes, accompanied
by an audible signal and the temporary display in
the instrument cluster of "NO START IN" and a
distance, indicating the remaining range expressed
in miles or kilometres before engine starting is
prevented - (e.g.: "NO START IN 600 km" means
"Starting will be prevented in 600 km (375 miles).
While driving, this display appears every
30
seconds while the fault with the SCR emissions
system persists.
The alert is repeated when switching on the
ignition.
You should go to a
CITROËN dealer or a qualified
workshop as soon as possible.
Other wise, you will not be able to restart the
vehicle.
During the permitted driving phase (between
685 and 0 miles) (1,100 km and 0 km)
or
The AdBlue, Service and engine diagnostic
warning lights come on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.
1
Instruments

30
Every time the ignition is switched on, the
Service and engine diagnostic warning
lights come on and the AdBlue warning light
flashes, accompanied by the temporary
display of "NO START IN" and 0 km or miles
- ("NO
START IN 0 km" means "Starting
prevented") in the instrument cluster. Starting prevented
You have exceeded the authorised driving
limit: the starting prevention system
inhibits engine starting.To be able to start
the engine, you must call on a
CITROËN
dealer or a qualified workshop.
Distance recorders
Total distance recorder
System which measures the total distance
travelled by the vehicle during its life.
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance travelled
during a day or other period since it was reset
to zero by the driver.
F

W
ith the ignition on, press the button until
zeroes appear.
or
Instruments

38
Lost keys
Go to a CITROËN dealer with the vehicle's
registration document, your personal
identification documents and if possible the
key code label.
The
CITROËN dealer will be able to look
up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a
sensitive system; do not operate it while it is
in your pocket as there is a possibility that
it may unlock the vehicle, without you being
aware of it.
Do not repeatedly press the buttons of
your remote control out of range and out
of sight of your vehicle. You risk making
it inoperative. It will then be necessary to
reinitialise it again.
No remote control can operate when the
key is in the ignition switch, even when
the ignition is switched off, except for
reinitialisation. Stopped vehicle
Driving with the doors locked may render
access by the emergency services to the
interior difficult in an emergency.
As a safety precaution, never leave children
alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key
from the ignition switch when leaving the
vehicle.
Anti-theft protection
Do not make any modifications to the
electronic engine immobiliser system; this
could cause malfunctions.
Second-hand vehicle
Have the pairing of all of the keys in your
possession checked by a
CITROËN dealer,
to ensure that only your keys can be used to
open and start the vehicle. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Access

41
Doors
Opening
From outsideFrom inside
Closing
F After unlocking the vehicle using the
remote control or the key, pull the door
handle. F
P ull the interior opening control for the
door. This action unlocks completely the
vehicle. When a door is not closed correctly:
-
w
hen the engine is running
,
this warning light comes on,
accompanied by a message in
the multifunction screen for a few
seconds,
-
w
hen the vehicle is moving
(speed higher than 6 mph
(10 km/h)), this warning light
comes on, accompanied by an
audible signal and a message in
the multifunction screen for a few
seconds.
2
Access

43
Boot
Opening
Unlocking and releasing the boot
using the remote control
F Hold the centre button on the remote control down for more
than one second.
Releasing the boot from
the inside Opening the boot
F Raise the boot lid to its fully open position.
Closing
F Lower the boot lid using one of the interior
grab handles.
F

T
hen press the boot to close it.
If the tailgate is not fully closed: -

w
hen the engine is running ,
this warning light comes on,
accompanied by a message in
the multifunction screen for a few
seconds,
-

w
hen the vehicle is moving
(speed higher than 6 mph
(10
km/h)), this warning light
comes on, accompanied by an
audible signal and a message in
the multifunction screen for a few
seconds.
The boot lid is released and opens slightly.
F

P

ress the boot opening button located on
the left of the dashboard.
The boot lid is released and opens slightly.
2
Access
