Vehicle Care 331
For vehicles being dinghy towed,
the vehicle should be run at the
beginning of each day and at each
RV fuel stop for about five minutes.
This will ensure proper lubrication of
transmission components. Reinstall
the fuse to start the vehicle.
To tow the vehicle from the front
with all four wheels on the ground:1. Position the vehicle to be towed, shift the transmission to
P (Park), and turn the ignition
to LOCK/OFF.
2. Secure the vehicle to the towing vehicle.
3. Set the parking brake.
4. Turn the ignition to ACC/ ACCESSORY.
5. Shift the transmission to N (Neutral).
6. To prevent the battery from draining while the vehicle is
being towed, remove the
15 amp ECM fuse and the
15 amp OnStar fuse. These
are in the battery compartment
behind the passenger seat on
the floor. Also, remove the 50 amp BATT1 fuse from the
engine compartment fuse block
and store all fuses in a safe
location. See
Engine
Compartment Fuse
Block 0291.
7. Release the parking brake.
Caution
If the vehicle is towed without
performing each of the steps
listed under “Dinghy Towing,” the
automatic transmission could be
damaged. Be sure to follow all
steps of the dinghy towing
procedure prior to and after
towing the vehicle.
Caution
If 105 km/h (65 mph) is exceeded
while towing the vehicle, it could
be damaged. Never exceed
105 km/h (65 mph) while towing
the vehicle. Once the destination is reached:
1. Set the parking brake.
2. Reinstall the fuses.
3. Shift the transmission to P (Park), turn the ignition to
LOCK/OFF, and remove the
key from the ignition.
4. Disconnect the vehicle from the towing vehicle.
Caution
Do not tow a vehicle with the front
drive wheels on the ground if one
of the front tires is a compact
spare tire. Towing with two
different tire sizes on the front of
the vehicle can cause severe
damage to the transmission.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
332 Vehicle Care

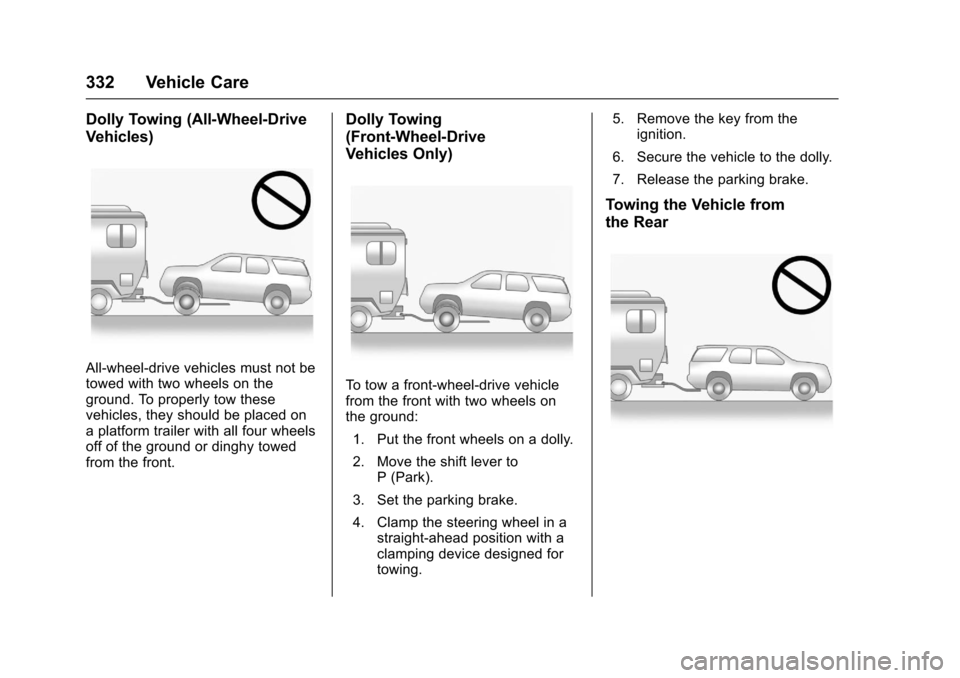

Dolly Towing (All-Wheel-Drive
Vehicles)
All-wheel-drive vehicles must not be
towed with two wheels on the
ground. To properly tow these
vehicles, they should be placed on
a platform trailer with all four wheels
off of the ground or dinghy towed
from the front.
Dolly Towing
(Front-Wheel-Drive
Vehicles Only)
To tow a front-wheel-drive vehicle
from the front with two wheels on
the ground:1. Put the front wheels on a dolly.
2. Move the shift lever to P (Park).
3. Set the parking brake.
4. Clamp the steering wheel in a straight-ahead position with a
clamping device designed for
towing. 5. Remove the key from the
ignition.
6. Secure the vehicle to the dolly.
7. Release the parking brake.
Towing the Vehicle from
the Rear

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
Vehicle Care 337
Caution (Continued)
brushes. Damage could occur
and the repairs would not be
covered by the vehicle warranty.
Brake System
Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors
for surface condition. Inspect drum
brake linings/shoes for wear or
cracks. Inspect all other brake parts.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear at
least once a year.
Inspect power steering for proper
attachment, connections, binding,
leaks, cracks, chafing, etc.
Visually check constant velocity joint
boots and axle seals for leaks.
Body Component Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges, and the
steel fuel door hinges, unless the
components are plastic. Applying
silicone grease on weatherstrips
with a clean cloth will make them
last longer, seal better, and not stick
or squeak.
Underbody Maintenance
At least twice a year, spring and fall,
use plain water to flush any
corrosive materials from the
underbody. Take care to thoroughly
clean any areas where mud and
other debris can collect.
Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water
can overcome the seals and
contaminate the fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the body
repair shop applies anti-corrosion
material to parts repaired or
replaced to restore corrosion
protection.
Original manufacturer replacement
parts will provide the corrosion
protection while maintaining the
vehicle warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up materials
available from your dealer to avoid
corrosion. Larger areas of finish
damage can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall upon
and attack painted vehicle surfaces
causing blotchy, ring-shaped
discolorations, and small, irregular
dark spots etched into the paint
surface. See“Finish Care”
previously in this section.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
Service and Maintenance 353
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity
grade. ACDelco dexos1 Synthetic Blend is recommended. See Engine
Oil 0270.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant 0276.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, in Canada 19299819).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Hydraulic Power Steering System DEXRON
®-VI Automatic Transmission Fluid.
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Carrier Assembly –Differential (Rear
Drive Module) and Transfer Case (Power Transfer Unit) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88900401, in
Canada 89021678).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
374 OnStar
.Obtain and customize the Wi-Fi®
hotspot name or SSID and
password, if equipped.
Press
Qto connect to an
Advisor to:
. Verify account information or
update contact information.
. Get driving directions.
. Receive a Diagnostic check of
the vehicle's key operating
systems.
. Receive Roadside Assistance.
. Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority connection
to an OnStar Advisor available 24/
7 to:
. Get help for an emergency.
. Be a Good Samaritan or
respond to an AMBER Alert.
. Get assistance in severe
weather or other crisis situations
and find evacuation routes.
OnStar Services
Emergency
Emergency Services require an
active, OnStar service plan
(excludes Basic Plan). With
Automatic Crash Response, built-in
sensors can automatically alert a
specially trained OnStar Advisor
who is immediately connected in to
the vehicle to help.
Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and
relay important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Assistance, Advisors
can locate a nearby service provider
to help with a flat tire, a battery
jump, or an empty gas tank.
Security
If equipped, OnStar provides these
services:
. With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block™,
if equipped, OnStar can block
the engine from being restarted.
. With Stolen Vehicle Slowdown
®,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked
and the vehicle alarm sounds, a
notification by text, e-mail, or phone
call will be sent. If the vehicle is
stolen, an OnStar Advisor can work
with authorities to recover the
vehicle.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
OnStar 377
OnStar AtYourService
OnStar Advisors can provide offers
from restaurants and retailers on
your route, help locate hotels,
or book a room. These services
vary by market.
OnStar Hands-Free Calling
Make and receive calls with the
built-in wireless calling service,
which requires available minutes.
Make a Call1. Press
=. System responds:
“OnStar ready.”
2. Say “Call.”System responds:
“Call. Please say the name or
number to call.”
3. Say the entire number without pausing, including a “1”and the
area code. System responds:
“OK, calling.”
Calling 911 Emergency
1. Press=. System responds:
“OnStar ready.” 2. Say
“Call.”System responds:
“Call. Please say the name or
number to call.”
3. Say “911”without pausing.
System responds: “911.”
4. Say “Call.”System responds:
“OK, dialing 911.”
Retrieve My Number
1. Press=. System responds:
“OnStar ready.”
2. Say “My number.” System
responds: “Your OnStar
Hands-Free Calling number is,”
then says the number.
End a Call
Press=. System responds: “Call
ended.”
Verify Minutes and Expiration
Press=and say “Minutes” then
“Verify” to check how many minutes
remain and their expiration date.
Diagnostics
Advanced Diagnostics provides a
status of the vehicle’ s key systems
with a monthly e-mail, or by
pressing
Q. If equipped, Diagnostic
Alerts can be received in real-time
via e-mail or text. The Proactive
Alerts feature (if available) can help
predict and alert of potential
upcoming maintenance issues with
select components on the vehicle,
before they become a problem.
OnStar can also monitor and report
tire pressure, if the vehicle is
equipped with a Tire Pressure
Monitoring System.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
388 Index
J
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . . . 326
K
Key and Lock Messages . . . . . . . . 141
Keyless EntryRemote (RKE) System . . . . . . . . . 33
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
L
Labeling, Tire Sidewall . . . . . . . . . . 299
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 160
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 160
Exterior Controls . . . . . . . . . . . . . . 157
License Plate . . . . . . . . . . . . . . . . . 289
Malfunction Indicator . . . . . . . . . 124
Messages . . . . . . . . . . . . . . . . . . . . 141
Reading . . . . . . . . . . . . . . . . . . . . . . 161
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . . 252
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Lap-Shoulder Belt . . . . . . . . . . . . . . . 66
LATCH System
Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 97 LATCH, Lower Anchors and
Tethers for Children . . . . . . . . . . . . 91
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Lighting Delayed Entry . . . . . . . . . . . . . . . . 162
Delayed Exit . . . . . . . . . . . . . . . . . . 162
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 161
Illumination Control . . . . . . . . . . . 160
Parade Dimming . . . . . . . . . . . . . . 162
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 Airbag Readiness . . . . . . . . . . . . . 122
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 126
Brake System Warning . . . . . . . 126
Charging System . . . . . . . . . . . . . 123
Cruise Control . . . . . . . . . . . . . . . . 130
Engine Coolant Temperature Warning . . . . . . . 128
Engine Oil Pressure . . . . . . . . . . 128
Flash-to-Pass . . . . . . . . . . . . . . . . . 158
High-Beam On . . . . . . . . . . . . . . . . 129
High/Low Beam Changer . . . . . 157
Lane Departure Warning . . . . . . 127
Safety Belt Reminders . . . . . . . . 121
Security . . . . . . . . . . . . . . . . . . . . . . 129
StabiliTrak
®Indicator . . . . . . . . . 127
Tire Pressure . . . . . . . . . . . . . . . . . 128
Tow/Haul Mode . . . . . . . . . . . . . . . 127 Locks
Automatic Door . . . . . . . . . . . . . . . . . 38
Delayed Locking . . . . . . . . . . . . . . . . 37
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Lockout Protection . . . . . . . . . . . . . . 38
Power Door . . . . . . . . . . . . . . . . . . . . . 37
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loss of Control . . . . . . . . . . . . . . . . . 219
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 91
Lumbar Adjustment . . . . . . . . . . . . . . 55 Front Seats . . . . . . . . . . . . . . . . . . . . . 55
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 355
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 350
Maintenance Schedule . . . . . . . . . 344 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 353
Malfunction Indicator Lamp . . . . . 124
Manual Mode . . . . . . . . . . . . . . . . . . . 236
Memory Features . . . . . . . . . . . . . . . . 11
Memory Seats . . . . . . . . . . . . . . . . . . . 57
Messages Airbag System . . . . . . . . . . . . . . . . 143

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9955676) - 2017 - crc - 3/29/16
Index 389
Messages (cont'd)Battery Voltage and
Charging . . . . . . . . . . . . . . . . . . . . 138
Brake System . . . . . . . . . . . . . . . . 138
Door Ajar . . . . . . . . . . . . . . . . . . . . . 138
Engine Cooling System . . . . . . . 139
Engine Oil . . . . . . . . . . . . . . . . . . . . 140
Engine Power . . . . . . . . . . . . . . . . 140
Fuel System . . . . . . . . . . . . . . . . . . 141
Key and Lock . . . . . . . . . . . . . . . . . 141
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 141
Object Detection System . . . . . 141
Ride Control System . . . . . . . . . . 143
Security . . . . . . . . . . . . . . . . . . . . . . 143
Service Vehicle . . . . . . . . . . . . . . . 144
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Transmission . . . . . . . . . . . . . . . . . 145
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 137
Vehicle Reminder . . . . . . . . . . . . . 146
Vehicle Speed . . . . . . . . . . . . . . . . 146
Washer Fluid . . . . . . . . . . . . . . . . . 146
Mirrors Automatic Dimming . . . . . . . . . . . . . 46
Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 47
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 45
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 46
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 46 Mirrors (cont'd)
Manual Rearview . . . . . . . . . . . . . . . 47
Park Tilt . . . . . . . . . . . . . . . . . . . . . . . . 46
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Mirrors, Interior Rearview . . . . . . . . 47
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 305
MP3 . . . . . . . . . . . . . . . . . . . . . . . 186, 191
Multi-band Antenna . . . . . . . . . . . . . 182
N
Navigation OnStar®. . . . . . . . . . . . . . . . . . . . . . 375
Net, Convenience . . . . . . . . . . . . . . 106
New Vehicle Break-In . . . . . . . . . . . 227
O
Object Detection System
Messages . . . . . . . . . . . . . . . . . . . . . 141
Odometer . . . . . . . . . . . . . . . . . . . . . . . 119
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . 219
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 270
Engine Oil Life System . . . . . . . 273
Messages . . . . . . . . . . . . . . . . . . . . 140
Pressure Light . . . . . . . . . . . . . . . . 128
Older Children, Restraints . . . . . . . 84
Online Owner Center . . . . . . . . . . . 362 OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 372
OnStar System . . . . . . . . . . . . . . . . . 194
OnStar
®Additional
Information . . . . . . . . . . . . . . . . . . . . 378
OnStar
®Connections . . . . . . . . . . . 375
OnStar®Diagnostics . . . . . . . . . . . . 377
OnStar®Emergency . . . . . . . . . . . . 374
OnStar®Navigation . . . . . . . . . . . . . 375
OnStar®Overview . . . . . . . . . . . . . . 373
OnStar®Security . . . . . . . . . . . . . . . 374
Operating Mode
Overheated EngineProtection . . . . . . . . . . . . . . . . . . . 281
Operation Fog Lamps . . . . . . . . . . . . . . . . . . . 159
Infotainment System . . . . . 168, 170
Ordering Service Publications . . . . . . . . . . 368
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . .115
Overheated Engine
Protection Operating Mode . . . . 281
Overheating, Engine . . . . . . . . . . . . 279
Overview . . . . . . . . . . . . . . . . . . 166, 168
