Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
Lighting 193
Lights On with Wipers
If the windshield wipers are
activated in daylight with the engine
on, and the exterior lamp control is
in AUTO, the headlamps, parking
lamps, and other exterior lamps
come on. The transition time for the
lamps coming on varies based on
wiper speed. When the wipers are
not operating, these lamps turn off.
Move the exterior lamp control to
O
or;to disable this feature.
Hazard Warning Flashers
|:Press this button to make the
front and rear turn signal lamps
flash on and off. Press again to turn
the flashers off.
When the hazard warning flashers
are on, the vehicle's turn signals will
not work.
Turn and Lane-Change
Signals
An arrow on the instrument cluster
flashes in the direction of the turn or
lane change.
Move the turn signal lever all the
way up or down to signal a turn.
Raise or lower the lever for less
than one second until the arrow
starts to flash to signal a lane change. This causes the turn
signals to automatically flash three
times. It will flash six times if Tow/
Haul Mode is active. Holding the
turn signal lever for more than
one second will cause the turn
signals to flash until the lever is
released.
The lever returns to its starting
position whenever it is released.
If after signaling a turn or a lane
change the arrows flash rapidly or
do not come on, a signal bulb could
be burned out.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. See
Fuses0351.
Turn Signal On Chime
If the turn signal is left on for more
than 1.2 km (0.75 mi), a chime
sounds at each flash of the turn
signal. The message TURN
SIGNAL ON will also appear in the
Driver Information Center (DIC). To
turn the chime and message off,
move the turn signal lever to the off
position.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
304 Driving and Operating
Warning (Continued)
For more information about
carbon monoxide, seeEngine
Exhaust 0261.
Towing a trailer requires a certain
amount of experience. The
combination you are driving is
longer and not as responsive as the
vehicle itself. Get acquainted with
the handling and braking of the rig
before setting out for the open road.
The structure, tires, and brakes of
the trailer must be rated to carry the
load. Inadequate trailer equipment
can cause the combination to
operate in an unexpected or unsafe
manner.
Before starting, check all trailer hitch
parts and attachments, safety
chains, electrical connectors, lamps,
tires, and mirrors. Get familiar with
the handling and braking of the rig.
If the trailer has electric brakes, start
the combination moving and then
apply the trailer brake controller by
hand to be sure the brakes work. During the trip, check occasionally
to be sure that the load is secure
and the lamps and any trailer
brakes still work.
Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving the vehicle without a trailer.
This can help to avoid heavy
braking and sudden turns.
Passing
More passing distance is needed
when towing a trailer. The
combination will not accelerate as
quickly and is longer so it is
necessary to go much farther
beyond the passed vehicle before
returning to the lane.
Backing Up
Hold the bottom of the steering
wheel with one hand. To move the
trailer to the left, move that hand to
the left. To move the trailer to the
right, move your hand to the right.
Always back up slowly and,
if possible, have someone
guide you.
Making Turns
Caution
Making very sharp turns while
trailering could cause the trailer to
come in contact with the vehicle.
The vehicle could be damaged.
Avoid making very sharp turns
while trailering.
When turning with a trailer, make
wider turns than normal. Do this so
the trailer will not strike soft
shoulders, curbs, road signs, trees,
or other objects. Avoid jerky or
sudden maneuvers. Signal well in
advance.
If the trailer turn signal bulbs burn
out, the arrows on the instrument
cluster will still flash for turns. It is
important to check occasionally to
be sure the trailer bulbs are still
working.
Driving on Grades
Reduce speed and shift to a lower
gear before starting down a long or
steep downgrade. If the

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
Vehicle Care 319
Vehicle Care
General Information
General Information . . . . . . . . . . 320
California Proposition65 Warning . . . . . . . . . . . . . . . . . 320
California Perchlorate Materials Requirements . . . . . 321
Accessories and Modifications . . . . . . . . . . . . . . . . 321
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 322
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 322
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 323
Engine Oil . . . . . . . . . . . . . . . . . . . . 325
Engine Oil Life System . . . . . . . 327
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 328
Engine Air Cleaner/Filter . . . . . . 331
Cooling System . . . . . . . . . . . . . . 332
Engine Coolant . . . . . . . . . . . . . . . 333
Engine Overheating . . . . . . . . . . 336
Engine Fan . . . . . . . . . . . . . . . . . . . 337
Power Steering Fluid . . . . . . . . . 338
Washer Fluid . . . . . . . . . . . . . . . . . 338
Brakes . . . . . . . . . . . . . . . . . . . . . . . 338
Brake Fluid . . . . . . . . . . . . . . . . . . . 339 Battery - North America . . . . . . 340
Four-Wheel Drive . . . . . . . . . . . . . 341
Front Axle . . . . . . . . . . . . . . . . . . . . 341
Rear Axle . . . . . . . . . . . . . . . . . . . . 342
Noise Control System . . . . . . . . 343
Starter Switch Check . . . . . . . . . 344
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 344
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 344
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 345
Wiper Blade Replacement . . . . 345
Glass Replacement . . . . . . . . . . 346
Windshield Replacement . . . . . 346
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 347
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 347
Halogen Bulbs . . . . . . . . . . . . . . . . 347
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 347
LED Lighting . . . . . . . . . . . . . . . . . 347
Headlamps . . . . . . . . . . . . . . . . . . . 348
Fog Lamps . . . . . . . . . . . . . . . . . . . 348
Front Turn Signal Lamps . . . . . 348 Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 349
License Plate Lamp . . . . . . . . . . 350
Replacement Bulbs . . . . . . . . . . . 351
Electrical System
Electrical System Overload . . . 351
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 351
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 352
Instrument Panel Fuse Block (Left) . . . . . . . . . . . . . . . . . 356
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 359
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 361
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 362
All-Season Tires . . . . . . . . . . . . . . 363
Winter Tires . . . . . . . . . . . . . . . . . . 363
Low-Profile Tires . . . . . . . . . . . . . 364
All-Terrain Tires . . . . . . . . . . . . . . . 364
Tire Sidewall Labeling . . . . . . . . 364
Tire Designations . . . . . . . . . . . . . 365
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 366
Tire Pressure . . . . . . . . . . . . . . . . . 369
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . 370

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
348 Vehicle Care
Headlamps
Driver Side
1. Low-Beam Headlamp
2. High-Beam Headlamp
3. Turn Signal Lamp
See your dealer for passenger side
replacement.
Headlamp
1. Open the hood. See Hood 0322
2. Remove the headlamp bulb assembly cover by turning it
counterclockwise. 3. Turn the bulb socket
counterclockwise to remove it
from the headlamp assembly
and pull it straight out.
4. Unplug the electrical connector from the old bulb by releasing
the clip on the bulb socket.
Fog Lamps
To replace the front fog lamp bulb:
1. Locate the fog lamp under the front bumper. 2. Disconnect the electrical
connector from the fog lamp
bulb assembly by pressing the
connector release.
3. Turn the bulb counterclockwise to remove it from the housing.
Front Turn Signal Lamps
1. Open the hood. See
Hood 0322
2. Reach in and access the bulb socket from inside the engine
compartment.
3. Turn the bulb socket counterclockwise to remove it
from the headlamp assembly
and pull it straight out.
4. Remove the bulb by pulling it straight out of the socket bulb
socket.
5. Replace it with a new bulb.
6. Reinstall the new bulb socket into the headlamp assembly
and turn it clockwise to secure.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
Vehicle Care 349
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Back-up Lamp
2. Stoplamp/Turn Signal Lamp
The taillamp on this vehicle is an
LED. For replacement, contact your
dealer.To replace one of these bulbs:
1. Open the liftgate. See Liftgate 047.
2. Remove the taillamp closeout
cover from the lamp assembly
by pulling rearward from the
top and bottom at the same
time to unfasten the snap tabs.
3. Remove the two screws fromthe taillamp assembly.
4. Pull the taillamp assembly straight back to remove.
5. Turn the bulb socket counterclockwise to remove it
from the taillamp assembly.
6. Pull the bulb straight out from the socket.
7. Put a new bulb into the socket, insert it into the taillamp
assembly, and turn the bulb
socket clockwise until it clicks.
8. Reinstall the taillamp assembly and tighten the screws.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16

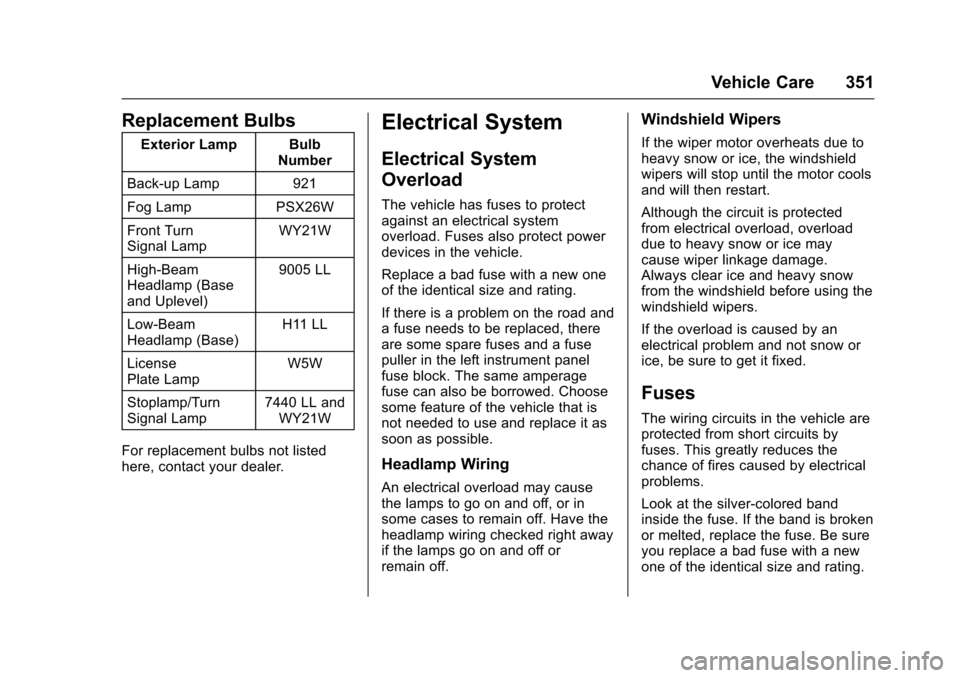

Vehicle Care 351
Replacement Bulbs
Exterior Lamp BulbNumber
Back-up Lamp 921
Fog Lamp PSX26W
Front Turn
Signal Lamp WY21W
High-Beam
Headlamp (Base
and Uplevel) 9005 LL
Low-Beam
Headlamp (Base) H11 LL
License
Plate Lamp W5W
Stoplamp/Turn
Signal Lamp 7440 LL and
WY21W
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the left instrument panel
fuse block. The same amperage
fuse can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses
The wiring circuits in the vehicle are
protected from short circuits by
fuses. This greatly reduces the
chance of fires caused by electrical
problems.
Look at the silver-colored band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure
you replace a bad fuse with a new
one of the identical size and rating.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
454 Index
Antilock Brake System(ABS) (cont'd)
Warning Light . . . . . . . . . . . . . . . . . 154
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 402
Interior . . . . . . . . . . . . . . . . . . . . . . . . 406
Armrest Storage . . . . . . . . . . . . . . . . 126
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 433
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 290
Assistance Systems for Parking and Backing . . . . . . . . . . 288
Audio Theft-Deterrent Feature . . . . . . . 199
Audio Players CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Automatic
Door Locks . . . . . . . . . . . . . . . . . . . . . 46
Forward Braking . . . . . . . . . . . . . . 293
Headlamp System . . . . . . . . . . . . 192
Level Control . . . . . . . . . . . . . . . . . 277
Transmission . . . . . . . . . . . . . . . . . 262
Transmission Fluid . . . . . . . . . . . 328
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 265
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 344 Auxiliary Jack . . . . . . . . . . . . . . . . . . . 213
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 341
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 342
B
Battery
Load Management . . . . . . . . . . . . 196
Power Protection . . . . . . . . . . . . . 197
Voltage and Charging
Messages . . . . . . . . . . . . . . . . . . . 166
Battery - North America . . . . 340, 393
Blade Replacement, Wiper . . . . . 345
Blind Spot Mirrors . . . . . . . . . . . . . . . 58
Bluetooth Overview . . . . . . . . . . . 214, 215, 219
Brake Pedal and Adjustable
Throttle . . . . . . . . . . . . . . . . . . . . . . 251
System Warning Light . . . . . . . . 153
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 338 Antilock . . . . . . . . . . . . . . . . . . . . . . . 272
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 273
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Parking . . . . . . . . . . . . . . . . . . . . . . . 273
System Messages . . . . . . . . . . . . 167
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 236
Automatic Forward . . . . . . . . . . . 293
Break-In, New Vehicle . . . . . . . . . . 251
Bulb Replacement . . . . . . . . . . . . . . 351 Bulb Replacement (cont'd)
Fog Lamps . . . . . . . . . . . . . . . . . . . 348
Front Turn Signal Lamps . . . . . 348
Halogen Bulbs . . . . . . . . . . . . . . . . 347
Headlamp Aiming . . . . . . . . . . . . . 347
Headlamps . . . . . . . . . . . . . . 347, 348
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 347
License Plate Lamps . . . . . . . . . 350
Taillamps, Turn Signal,
Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 349
Buying New Tires . . . . . . . . . . . . . . . 377
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 135
California Fuel Requirements . . . . . . . . . . . 299
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 321
California Proposition
65 Warning . . . . . . . . . .320, 340, 393
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 426
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 261
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 47

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955986) - 2017 - crc - 7/5/16
Index 457
FlexFuelE85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 409
Fluid Automatic Transmission . . . . . . 328
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 339
Four-Wheel DriveTransfer Case . . . . . . . . . . . . . . . 267
Power Steering . . . . . . . . . . . . . . . 338
Washer . . . . . . . . . . . . . . . . . . . . . . . 338
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 194
Bulb Replacement . . . . . . . . . . . . 348
Folding Mirrors . . . . . . . . . . . . . . . . . . 58
Forward Automatic Braking . . . . . 293
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 291
Four-Wheel Drive . . . . . . . . . . 267, 341
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 439
Front Axle . . . . . . . . . . . . . . . . . . . . . . 341
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 67
Heated and Ventilated . . . . . . . . . . 72
Front Turn Signal Lamps . . . . . . . 348
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298 Additives . . . . . . . . . . . . . . . . . . . . . 300 Fuel (cont'd)
Economy Driving . . . . . . . . . . . . . . . 30
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 302
Filling the Tank . . . . . . . . . . . . . . . 301
Foreign Countries . . . . . . . . . . . . 299
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 145
Low Fuel Warning Light . . . . . . . 156
Management, Active . . . . . . . . . . 261
Requirements, California . . . . . 299
System Messages . . . . . . . . . . . . 170
Full-Size Spare Tire . . . . . . . . . . . . 392
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 351 Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 352
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 356, 359
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 361
G
Garage Door Opener . . . . . . . . . . . 185Programming . . . . . . . . . . . . . . . . . 185
Gauges
Engine CoolantTemperature . . . . . . . . . . . . . . . . 147
Engine Oil Pressure . . . . . . . . . . 146
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Odometer . . . . . . . . . . . . . . . . . . . . . 145 Gauges (cont'd)
Speedometer . . . . . . . . . . . . . . . . . 145
Tachometer . . . . . . . . . . . . . . . . . . . 145
Trip Odometer . . . . . . . . . . . . . . . . 145
Voltmeter . . . . . . . . . . . . . . . . . . . . . 148
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 140
General Information Service and Maintenance . . . . . .411
Towing . . . . . . . . . . . . . . . . . . . . . . . . 303
Vehicle Care . . . . . . . . . . . . . . . . . . 320
Glass Replacement . . . . . . . . . . . . . 346
Glove Box . . . . . . . . . . . . . . . . . . . . . . 125
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 433
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 347
Hazard Warning Flashers . . . . . . . 193
Head Restraints . . . . . . . . . . . . . . . . . 66
Head-up Display . . . . . . . . . . . . . . . . 162
Headlamps . . . . . . . . . . . . . . . . . . . . . 348Aiming . . . . . . . . . . . . . . . . . . . . . . . . 347
Automatic . . . . . . . . . . . . . . . . . . . . . 192
Bulb Replacement . . . . . . . . . . . . 347
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 192
Flash-to-Pass . . . . . . . . . . . . . . . . . 191
