Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
258 Vehicle Care
of reasons, including the installationof replacement or alternate tires orwheels on the vehicle that preventthe TPMS from functioning properly.Always check the TPMS malfunctiontelltale after replacing one or moretires or wheels on your vehicle toensure that the replacement oralternate tires and wheels allow theTPMS to continue to functionproperly.
SeeTire Pressure MonitorOperation0258.
SeeRadio FrequencyStatement0317.
Tire Pressure Monitor
Operation
This vehicle may have a TirePressure Monitor System (TPMS).The TPMS is designed to warn thedriver when a low tire pressurecondition exists. TPMS sensors aremounted onto each tire and wheelassembly, excluding the spare tireand wheel assembly. The TPMSsensors monitor the air pressure in
the tires and transmit the tirepressure readings to a receiverlocated in the vehicle.
When a low tire pressure conditionis detected, the TPMS illuminatesthe low tire pressure warning lightlocated on the instrument cluster.If the warning light comes on, stopas soon as possible and inflate thetires to the recommended pressureshown on the Tire and LoadingInformation label. SeeVehicle LoadLimits0178.
The low tire pressure warning lightcomes on at each ignition cycle untilthe tires are inflated to the correctinflation pressure.
The low tire pressure warning lightmay come on in cool weather whenthe vehicle is first started, and thenturn off as the vehicle is driven. This
could be an early indicator that theair pressure is getting low and mustbe inflated to the proper pressure.
ATire and Loading Information labelshows the size of the originalequipment tires and the correctinflation pressure for the tires whenthey are cold. SeeVehicle LoadLimits0178,foranexampleoftheTire and Loading Information labeland its location. Also seeTirePressure0256.
The TPMS can warn about a lowtire pressure condition but it doesnot replace normal tiremaintenance. SeeTire Inspection0260,Tire Rotation0261andTires0248.
Caution
Tire sealant materials are not all
the same. A non-approved tire
sealant could damage the TPMS
sensors. TPMS sensor damage
caused by using an incorrect tire
sealant is not covered by the
vehicle warranty. Always use only
(Continued)
Page 260 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
Vehicle Care 259
Caution (Continued)
the GM approved tire sealant
available through your dealer or
included in the vehicle.
TPMS Malfunction Light
The TPMS will not function properlyif one or more of the TPMS sensorsare missing or inoperable. When thesystem detects a malfunction, thelow tire warning light flashes forabout one minute and then stays onfor the remainder of the ignitioncycle. The malfunction light comeson at each ignition cycle until theproblem is corrected. Some of theconditions that can cause this tocome on are:
.One of the road tires has beenreplaced with the spare tire. Thespare tire does not have aTPMS sensor. The malfunctionlight should go off after the roadtire is replaced and the sensormatching process is performed
successfully. See "TPMS SensorMatching Process" later in thissection.
.The TPMS sensor matchingprocess was not done or notcompleted successfully afterrotating the tires. Themalfunction light should go offafter successfully completing thesensor matching process. See"TPMS Sensor MatchingProcess" later in this section.
.One or more TPMS sensors aremissing or damaged. Themalfunction light should go offwhen the TPMS sensors areinstalled and the sensormatching process is performedsuccessfully. See your dealer forservice.
.Replacement tires or wheels donot match the original equipmenttires or wheels. Tires and wheelsother than those recommendedcould prevent the TPMS fromfunctioning properly. SeeBuyingNew Tires0263.
.Operating electronic devices orbeing near facilities using radiowave frequencies similar to theTPMS could cause the TPMSsensors to malfunction.
If the TPMS is not functioningproperly, it cannot detect or signal alow tire condition. See your dealerfor service if the TPMS malfunctionlight comes on and stays on.
TPMS Sensor Matching
Process
Each TPMS sensor has a uniqueidentification code. The identificationcode needs to be matched to a newtire/wheel position after rotating thetires or replacing one or more of theTPMS sensors. The TPMS sensormatching process should also beperformed after replacing a sparetire with a road tire containing theTPMS sensor. The malfunction lightshould go off at the next ignitioncycle. The sensors are matched tothe tire/wheel positions, using aTPMS relearn tool, in the followingorder: driver side front tire,passenger side front tire, passengerside rear tire, and driver side rear.
Page 261 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
260 Vehicle Care
See your dealer for service or topurchase a relearn tool. A TPMSrelearn tool can also be purchased.See Tire Pressure Monitor SensorActivation Tool atwww.gmtoolsandequipment.com orcall 1-800-GM TOOLS(1-800-468-6657).
There are two minutes to match thefirst tire/wheel position, andfive minutes overall to match all fourtire/wheel positions. If it takeslonger, the matching process stopsand must be restarted.
The TPMS sensor matchingprocess is:
1. Set the parking brake.
2. Turn the ignition to ON/RUNwith the engine off or place thevehicle power mode in ON/RUN/START. SeeIgnitionPositions (Key Access)0182orIgnition Positions (KeylessAccess)0183.
3. Press the MENU button todisplay the menu items in theDriver InformationCenter (DIC).
4. Use the thumbwheel to scroll tothe Tire Learn menu itemscreen.
5. Press and hold the SET/CLRbutton to begin the sensormatching process.
Amessagerequestingacceptance of the process maydisplay.
6. The horn sounds twice tosignal the receiver is in relearnmode and the TIRE LEARNmessage may display on theDIC screen.
7. Start with the driver sidefront tire.
8. Place the relearn tool againstthe tire sidewall, near the valvestem. Then press the button toactivate the TPMS sensor.Ahornchirpconfirmsthatthesensor identification code hasbeen matched to this tire andwheel position.
9. Proceed to the passenger sidefront tire, and repeat theprocedure in Step 8.
10. Proceed to the passenger siderear tire, and repeat theprocedure in Step 8.
11 . P r o c e e d t o t h e d r i v e r s i d e r e a rtire, and repeat the procedurein Step 8. The horn sounds twotimes to indicate the sensoridentification code has beenmatched to the driver side reartire, and the TPMS sensormatching process is no longeractive. The TIRE LEARNmessage on the DIC displayscreen goes off.
12. Turn the vehicle off.
13. Set all four tires to therecommended air pressurelevel as indicated on the Tireand Loading Information label.
Tire Inspection
We recommend that the tires,
including the spare tire, if the
vehicle has one, be inspected
for signs of wear or damage at
least once a month.

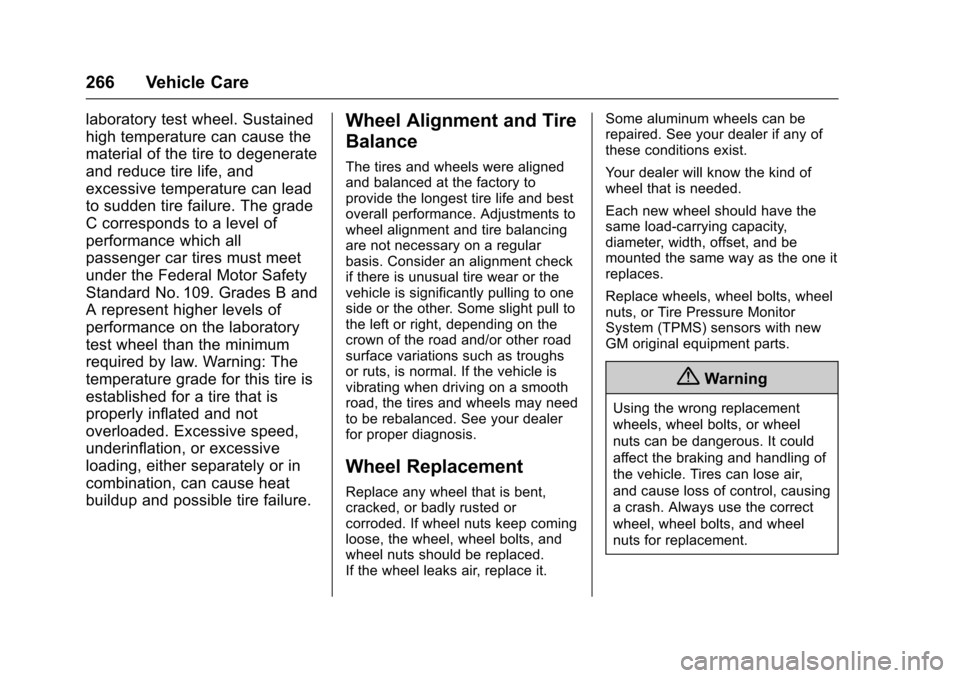

Page 267 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
266 Vehicle Care
laboratory test wheel. Sustained
high temperature can cause the
material of the tire to degenerate
and reduce tire life, and
excessive temperature can lead
to sudden tire failure. The grade
Ccorrespondstoalevelof
performance which all
passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and
Arepresenthigherlevelsof
performance on the laboratory
test wheel than the minimum
required by law. Warning: The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were alignedand balanced at the factory toprovide the longest tire life and bestoverall performance. Adjustments towheel alignment and tire balancingare not necessary on a regularbasis. Consider an alignment checkif there is unusual tire wear or thevehicle is significantly pulling to oneside or the other. Some slight pull tothe left or right, depending on thecrown of the road and/or other roadsurface variations such as troughsor ruts, is normal. If the vehicle isvibrating when driving on a smoothroad, the tires and wheels may needto be rebalanced. See your dealerfor proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,cracked, or badly rusted orcorroded. If wheel nuts keep comingloose, the wheel, wheel bolts, andwheel nuts should be replaced.If the wheel leaks air, replace it.
Some aluminum wheels can berepaired. See your dealer if any ofthese conditions exist.
Yo u r d e a l e r w i l l k n o w t h e k i n d o fwheel that is needed.
Each new wheel should have thesame load-carrying capacity,diameter, width, offset, and bemounted the same way as the one itreplaces.
Replace wheels, wheel bolts, wheelnuts, or Tire Pressure MonitorSystem (TPMS) sensors with newGM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
acrash.Alwaysusethecorrect
wheel, wheel bolts, and wheel
nuts for replacement.
Page 323 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
322 OnStar
.Obtain and customize the Wi-Fi®
hotspot name or SSID andpassword, if equipped.
PressQto connect to an
Advisor to:
.Verify account information orupdate contact information.
.Get driving directions.
.Receive a Diagnostic check ofthe vehicle's key operatingsystems.
.Receive Roadside Assistance.
.Manage Wi-Fi Settings,if equipped.
Press>to get a priority connection
to an OnStar Advisor available24/7 to:
.Get help for an emergency.
.Be a Good Samaritan orrespond to an AMBER Alert.
.Get assistance in severeweather or other crisis situationsand find evacuation routes.
OnStar Services
Emergency
Emergency Services require anactive, OnStar service plan(excludes Basic Plan). WithAutomatic Crash Response, built-insensors can automatically alert aspecially trained OnStar Advisorwho is immediately connected in tothe vehicle to help.
Press>for a priority connection to
an OnStar Advisor who can contactemergency service providers, directthem to your exact location, andrelay important information.
With OnStar Crisis Assist, speciallytrained Advisors are available24 hours a day, 7 days a week, toprovide a central point of contact,assistance, and information during acrisis.
With Roadside Assistance, Advisorscan locate a nearby service providerto help with a flat tire, a batteryjump, or an empty gas tank.
Security
If equipped, OnStar provides theseservices:
.With Stolen Vehicle Assistance,OnStar Advisors can use GPS topinpoint the vehicle and helpauthorities quickly recover it.
.With Remote Ignition Block™,if equipped, OnStar can blockthe engine from being restarted.
.With Stolen Vehicle Slowdown®,if equipped, OnStar can workwith law enforcement togradually slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are lockedand the vehicle alarm sounds, anotification by text, e-mail, or phonecall will be sent. If the vehicle isstolen, an OnStar Advisor can workwith authorities to recover thevehicle.
Page 337 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
336 Index
K
Keyless Entry
Remote (RKE) System . . . . . 29, 31
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
L
Labeling, Tire Sidewall . . . . . . . . . . 250
Lamps
Courtesy . . . . . . . . . . . . . . . . . . . . . . 138
Daytime Running (DRL) . . . . . . 135
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 138
Exterior Controls . . . . . . . . . . . . . . 134
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 139
License Plate . . . . . . . . . . . . . . . . . 241
Malfunction Indicator . . . . . . . . . .112
On Reminder . . . . . . . . . . . . . . . . . 120
Reading . . . . . . . . . . . . . . . . . . . . . . 138
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . . 206
Lane Departure Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Lap-Shoulder Belt . . . . . . . . . . . . . . . 61
LATCH System
Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . 91
LATCH, Lower Anchors and
Te t h e r s f o r C h i l d r e n . . . . . . . . . . . . 8 4
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 138
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Illumination Control . . . . . . . . . . . 137
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Airbag Readiness . . . . . . . . . . . . . .110
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . .115
Brake System Warning . . . . . . . .114
Charging System . . . . . . . . . . . . . .112
Cruise Control . . . . . . . . . . . . . . . . 120
Door Ajar . . . . . . . . . . . . . . . . . . . . . 121
Engine Coolant
Te m p e r a t u r e W a r n i n g . . . . . . . . 11 8
Engine Oil Pressure . . . . . . . . . . .118
Flash-to-Pass . . . . . . . . . . . . . . . . . 135
Front Fog Lamp . . . . . . . . . . . . . . 120
High-Beam On . . . . . . . . . . . . . . . . 120
High/Low Beam Changer . . . . . 134
Immobilizer . . . . . . . . . . . . . . . . . . . .119
Lane Departure Warning . . . . . . .116
Low Fuel Warning . . . . . . . . . . . . .119
Operate Pedal . . . . . . . . . . . . . . . . .115
Reduced Engine Power . . . . . . 120
Safety Belt Reminders . . . . . . . . .110
Service Vehicle Soon . . . . . . . . . .114
StabiliTrak®OFF . . . . . . . . . . . . . .117
Tire Pressure . . . . . . . . . . . . . . . . . . 118
Lights (cont'd)
Traction Control System
(TCS)/StabiliTrak®...........117
Traction Off . . . . . . . . . . . . . . . . . . . . 117
Trunk Ajar . . . . . . . . . . . . . . . . . . . . 121
Ultrasonic Parking Sensor . . . . .116
Up-Shift . . . . . . . . . . . . . . . . . . . . . . .115
Warning, Power Steering . . . . . . 115
Load Compartment . . . . . . . . . . . . . . 98
Locks
Automatic Door . . . . . . . . . . . . . . . . . 40
Delayed Locking . . . . . . . . . . . . . . . . 39
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lockout Protection . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Loss of Control . . . . . . . . . . . . . . . . . 174
Low Fuel Warning Light . . . . . . . . . 119
Lower Anchors and Tethers
for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 84
Lumbar Adjustment . . . . . . . . . . . . . . 54
Front Seats . . . . . . . . . . . . . . . . . . . . . 54
M
Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . 302
Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 297
Maintenance Schedule . . . . . . . . . 290
Page 338 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
Index 337
Maintenance Schedule (cont'd)
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 300
Malfunction Indicator Lamp . . . . . 112
Manual Mirrors . . . . . . . . . . . . . . . . . . 46
Manual Mode . . . . . . . . . . . . . . . . . . . 192
Manual Transmission . . . . . . . . . . . 193
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Manual Windows . . . . . . . . . . . . . . . . 48
Media
Avoiding Untrusted Devices . . 149
Messages
Engine Oil . . . . . . . . . . . . . . . . . . . . 127
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 126
Mirrors
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 46
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 47
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 47
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 46
Manual Rearview . . . . . . . . . . . . . . . 47
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Monitor System, Tire
Pressure . . . . . . . . . . . . . . . . . . . . . . 257
Multi-band Antenna . . . . . . . . . . . . . 148
N
Navigation
OnStar®...................... 323
New Vehicle Break-In . . . . . . . . . . . 181
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 109
Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . 174
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 220
Engine Oil Life System . . . . . . . 222
Messages . . . . . . . . . . . . . . . . . . . . 127
Pressure Light . . . . . . . . . . . . . . . . .118
Older Children, Restraints . . . . . . . 77
Online Owner Center . . . . . . . . . . . 310
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 320
OnStar®Additional
Information . . . . . . . . . . . . . . . . . . . . 326
OnStar®Connections . . . . . . . . . . . 323
OnStar®Diagnostics . . . . . . . . . . . . 325
OnStar®Emergency . . . . . . . . . . . . 322
OnStar®Navigation . . . . . . . . . . . . . 323
OnStar®Overview . . . . . . . . . . . . . . 321
OnStar®Security . . . . . . . . . . . . . . . 322
Operate Pedal Light . . . . . . . . . . . . 115
Operation
Fog Lamps . . . . . . . . . . . . . . . . . . . 137
Operation (cont'd)
Infotainment System . . . . . . . . . . 144
Ordering
Service Publications . . . . . . . . . . 316
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . 105
Overheating, Engine . . . . . . . . . . . . 230
Overview . . . . . . . . . . . . . . . . . . . . . . . 143
Owner Manual Indicator . . . . . . . . 114
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . 187
Shifting Out of . . . . . . . . . . . . . . . . 188
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 189
Brake . . . . . . . . . . . . . . . . . . . . . . . . . 196
Brake and P (Park)
Mechanism Check . . . . . . . . . . 236
Extended . . . . . . . . . . . . . . . . . . . . . 189
Over Things That Burn . . . . . . . 189
Ultrasonic Sensor Light . . . . . . . .116
Parking Assist . . . . . . . . . . . . . . . . . . 203
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . 111
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Passenger Sensing System . . . . . 71
Perchlorate Materials
Requirements, California . . . . . . 213
Page 341 of 342
Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
340 Index
System
Forward Collision
Alert (FCA) . . . . . . . . . . . . . . . . . . 204
Infotainment . . . . . . . . . . . . . . . . . . 141
T
Ta c h o m e t e r . . . . . . . . . . . . . . . . . . . . . 1 0 9
Ta i l l a m p s
Bulb Replacement . . . . . . . . . . . . 240
Te x t Te l e p h o n e ( T T Y ) U s e r s . . . . 3 1 0
Theft-Deterrent Systems . . . . . . . . . 45
Immobilizer . . . . . . . . . . . . . . . . . . . . . 45
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
All-Season . . . . . . . . . . . . . . . . . . . . 249
Buying New Tires . . . . . . . . . . . . . 263
Chains . . . . . . . . . . . . . . . . . . . . . . . . 267
Changing . . . . . . . . . . . . . . . . . . . . . 269
Compact Spare . . . . . . . . . . . . . . . 274
Designations . . . . . . . . . . . . . . . . . 252
Different Size . . . . . . . . . . . . . . . . . 264
If a Tire Goes Flat . . . . . . . . . . . . 267
Inspection . . . . . . . . . . . . . . . . . . . . 260
Messages . . . . . . . . . . . . . . . . . . . . 127
Pressure Light . . . . . . . . . . . . . . . . .118
Pressure Monitor Operation . . 258
Pressure Monitor System . . . . . 257
Rotation . . . . . . . . . . . . . . . . . . . . . . 261
Sidewall Labeling . . . . . . . . . . . . . 250
Tires (cont'd)
Te r m i n o l o g y a n d D e f i n i t i o n s . . 2 5 3
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 264
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 266
Wheel Replacement . . . . . . . . . . 266
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 262
Winter . . . . . . . . . . . . . . . . . . . . . . . . 249
To w i n g
General Information . . . . . . . . . . .211
Recreational Vehicle . . . . . . . . . . 277
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 277
Traction
Control System (TCS)/
StabiliTrak®Light . . . . . . . . . . . . .117
Off Light . . . . . . . . . . . . . . . . . . . . . . .117
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . 197
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . . 164
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . 191
Fluid, Automatic . . . . . . . . . . . . . . 223
Fluid, Manual . . . . . . . . . . . . . . . . . 224
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 313
Trip Odometer . . . . . . . . . . . . . . . . . . 109
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Trunk Ajar Light . . . . . . . . . . . . . . . . 121
Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 136
Turn Signal
Bulb Replacement . . . . . . . . . . . . 240
U
Ultrasonic Parking Sensor
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Uniform Tire Quality Grading . . . 264
Up-Shift Light . . . . . . . . . . . . . . . . . . . 115
USB Port . . . . . . . . . . . . . . . . . . . . . . . 149
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle
Alarm System . . . . . . . . . . . . . . . . . . 44
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 173
Identification Number (VIN) . . . 303
Load Limits . . . . . . . . . . . . . . . . . . . 178
Messages . . . . . . . . . . . . . . . . . . . . 126
Personalization . . . . . . . . . . . . . . . 127
Remote Start . . . . . . . . . . . . . . . . . . . 37
Security . . . . . . . . . . . . . . . . . . . . . . . . 44
Service Soon Light . . . . . . . . . . . .114
