Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-9921197) -
2017 - crc - 3/30/16

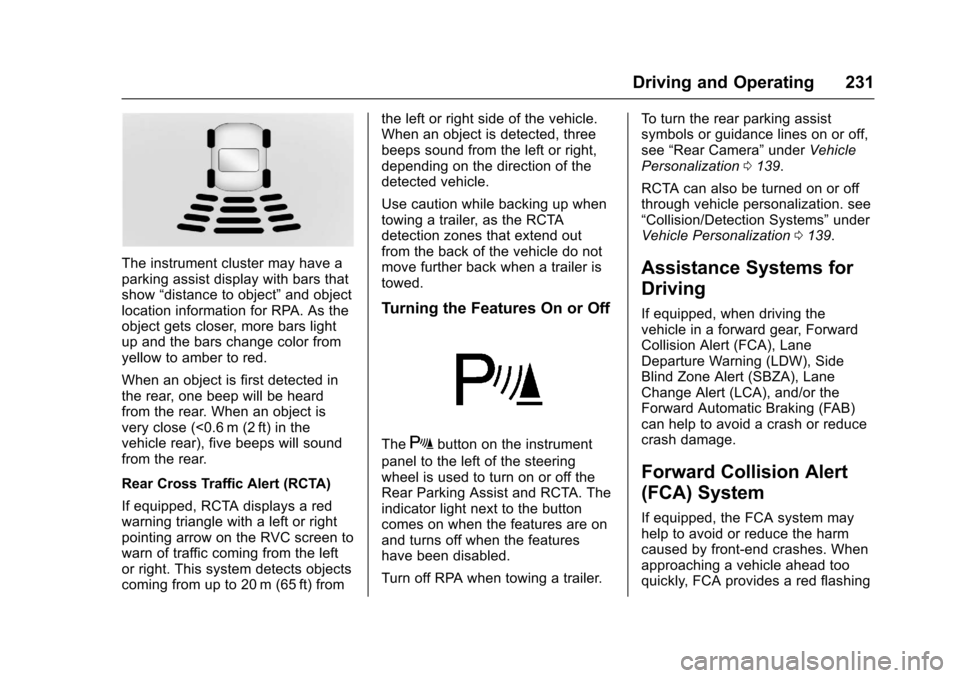

Driving and Operating 231
The instrument cluster may have a
parking assist display with bars that
show“distance to object” and object
location information for RPA. As the
object gets closer, more bars light
up and the bars change color from
yellow to amber to red.
When an object is first detected in
the rear, one beep will be heard
from the rear. When an object is
very close (<0.6 m (2 ft) in the
vehicle rear), five beeps will sound
from the rear.
Rear Cross Traffic Alert (RCTA)
If equipped, RCTA displays a red
warning triangle with a left or right
pointing arrow on the RVC screen to
warn of traffic coming from the left
or right. This system detects objects
coming from up to 20 m (65 ft) from the left or right side of the vehicle.
When an object is detected, three
beeps sound from the left or right,
depending on the direction of the
detected vehicle.
Use caution while backing up when
towing a trailer, as the RCTA
detection zones that extend out
from the back of the vehicle do not
move further back when a trailer is
towed.
Turning the Features On or Off
TheXbutton on the instrument
panel to the left of the steering
wheel is used to turn on or off the
Rear Parking Assist and RCTA. The
indicator light next to the button
comes on when the features are on
and turns off when the features
have been disabled.
Turn off RPA when towing a trailer. To turn the rear parking assist
symbols or guidance lines on or off,
see
“Rear Camera” underVehicle
Personalization 0139.
RCTA can also be turned on or off
through vehicle personalization. see
“Collision/Detection Systems” under
Vehicle Personalization 0139.
Assistance Systems for
Driving
If equipped, when driving the
vehicle in a forward gear, Forward
Collision Alert (FCA), Lane
Departure Warning (LDW), Side
Blind Zone Alert (SBZA), Lane
Change Alert (LCA), and/or the
Forward Automatic Braking (FAB)
can help to avoid a crash or reduce
crash damage.
Forward Collision Alert
(FCA) System
If equipped, the FCA system may
help to avoid or reduce the harm
caused by front-end crashes. When
approaching a vehicle ahead too
quickly, FCA provides a red flashing

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-9921197) -
2017 - crc - 3/30/16

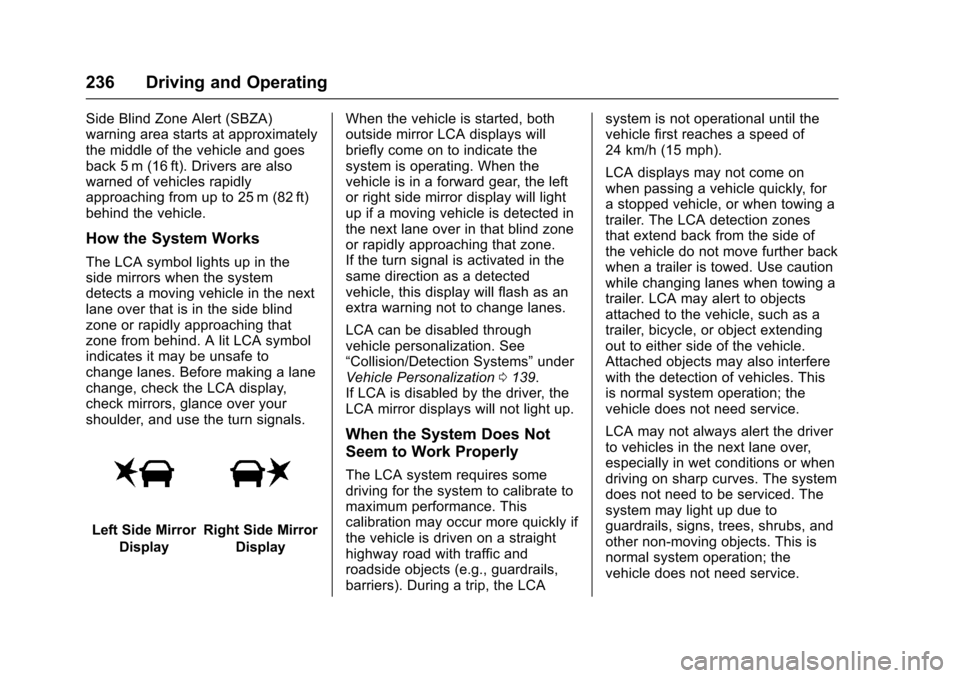

236 Driving and Operating
Side Blind Zone Alert (SBZA)
warning area starts at approximately
the middle of the vehicle and goes
back 5 m (16 ft). Drivers are also
warned of vehicles rapidly
approaching from up to 25 m (82 ft)
behind the vehicle.
How the System Works
The LCA symbol lights up in the
side mirrors when the system
detects a moving vehicle in the next
lane over that is in the side blind
zone or rapidly approaching that
zone from behind. A lit LCA symbol
indicates it may be unsafe to
change lanes. Before making a lane
change, check the LCA display,
check mirrors, glance over your
shoulder, and use the turn signals.
Left Side MirrorDisplayRight Side Mirror Display When the vehicle is started, both
outside mirror LCA displays will
briefly come on to indicate the
system is operating. When the
vehicle is in a forward gear, the left
or right side mirror display will light
up if a moving vehicle is detected in
the next lane over in that blind zone
or rapidly approaching that zone.
If the turn signal is activated in the
same direction as a detected
vehicle, this display will flash as an
extra warning not to change lanes.
LCA can be disabled through
vehicle personalization. See
“Collision/Detection Systems”
under
Vehicle Personalization 0139.
If LCA is disabled by the driver, the
LCA mirror displays will not light up.
When the System Does Not
Seem to Work Properly
The LCA system requires some
driving for the system to calibrate to
maximum performance. This
calibration may occur more quickly if
the vehicle is driven on a straight
highway road with traffic and
roadside objects (e.g., guardrails,
barriers). During a trip, the LCA system is not operational until the
vehicle first reaches a speed of
24 km/h (15 mph).
LCA displays may not come on
when passing a vehicle quickly, for
a stopped vehicle, or when towing a
trailer. The LCA detection zones
that extend back from the side of
the vehicle do not move further back
when a trailer is towed. Use caution
while changing lanes when towing a
trailer. LCA may alert to objects
attached to the vehicle, such as a
trailer, bicycle, or object extending
out to either side of the vehicle.
Attached objects may also interfere
with the detection of vehicles. This
is normal system operation; the
vehicle does not need service.
LCA may not always alert the driver
to vehicles in the next lane over,
especially in wet conditions or when
driving on sharp curves. The system
does not need to be serviced. The
system may light up due to
guardrails, signs, trees, shrubs, and
other non-moving objects. This is
normal system operation; the
vehicle does not need service.

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-9921197) -
2017 - crc - 3/30/16
374 Index
Proposition65 Warning,
California . . . . . . . . . . . . 250, 269, 311
R
Radio Frequency Statement . . . . 352
Radio Reception . . . . . . . . . . . . . . . . 164
Radios
AM-FM Radio . . . . . . . . . . . . . . . . . 162
Satellite . . . . . . . . . . . . . . . . . . . . . . . 163
Reading Lamps . . . . . . . . . . . . . . . . . 153
Rear Seat Armrest . . . . . . . . . . . . . . . 62
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 61
Rear Vision Camera (RVC) . . . . . 229
Rearview Mirrors . . . . . . . . . . . . . . . . 47 Automatic Dimming . . . . . . . . . . . . . 47
Reclining Seatbacks . . . . . . . . . . . . . 57
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 335
Records Maintenance . . . . . . . . . . . . . . . . . . 337
Recreational Vehicle Towing . . . . 314
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 346
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remote Vehicle Start . . . . . . . . . . . . 36
Replacement Bulbs . . . . . . . . . . . . . 277 Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 80
Maintenance . . . . . . . . . . . . . . . . . . 336
Replacing Airbag System . . . . . . . . 80
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . 94
Replacing Safety Belt System
Parts after a Crash . . . . . . . . . . . . . 68
Reporting Safety Defects Canadian Government . . . . . . . . 353
General Motors . . . . . . . . . . . . . . . 353
U.S. Government . . . . . . . . . . . . . 353
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 87
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 209
Reverse Tilt Mirrors . . . . . . . . . . . . . . 47
Ride Control Systems Messages . . . . . . . . . . . . . . . . . . . . 136
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 196
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 346
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 50
Rotation, Tires . . . . . . . . . . . . . . . . . . 297
Routing, Engine Drive Belt . . . . . . 341 Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . 212
S
Safety Belts . . . . . . . . . . . . . . . . . . . . . 63
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Extender . . . . . . . . . . . . . . . . . . . . . . . . 67
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 64
Lap-Shoulder Belt . . . . . . . . . . . . . . 65
Reminders . . . . . . . . . . . . . . . . . . . . .118
Replacing after a Crash . . . . . . . . 68
Use During Pregnancy . . . . . . . . . . 67
Safety Defects Reporting Canadian Government . . . . . . . . 353
General Motors . . . . . . . . . . . . . . . 353
U.S. Government . . . . . . . . . . . . . 353
Safety Locks . . . . . . . . . . . . . . . . . . . . . 41
Safety System Check . . . . . . . . . . . . 68
Satellite Radio . . . . . . . . . . . . . . . . . . 163
Scheduling Appointments . . . . . . . 348
SD Card Reader . . . . . . . . . . . . . . . . 168
Seats Adjustment, Front . . . . . . . . . . . . . . . 55
Head Restraints . . . . . . . . . . . . . . . . 53
Heated and Ventilated Front . . . . 60
Lumbar Adjustment, Front . . . . . . 56
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 58
Power Adjustment, Front . . . . . . . 56
