2017 CHEVROLET EQUINOX radio controls

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Instruments and Controls 131
the indicator light changes from
a slow to a rapid flash. Then
release both buttons.
Some garage door openers
may require substitution of
Step 2 with the procedure
under“Radio Signals for
Canada and Some Gate
Operators” later in this section.
3. Press and hold the newly programmed Universal Remote
system button for five seconds
while watching the indicator
light and garage door
activation.
.If the indicator light stays on
continuously or the garage
door moves when the
button is pressed, then
programming is complete.
There is no need to
complete Steps 4–6.
. If the indicator light does
not come on or the garage
door does not move, a
second button press may
be required. For a second
time, press and hold the
newly programmed button for five seconds. If the light
stays on or the garage door
moves, programming is
complete.
. If the indicator light blinks
rapidly for two seconds,
then changes to a solid light
and the garage door does
not move, continue with
programming Steps 4–6.

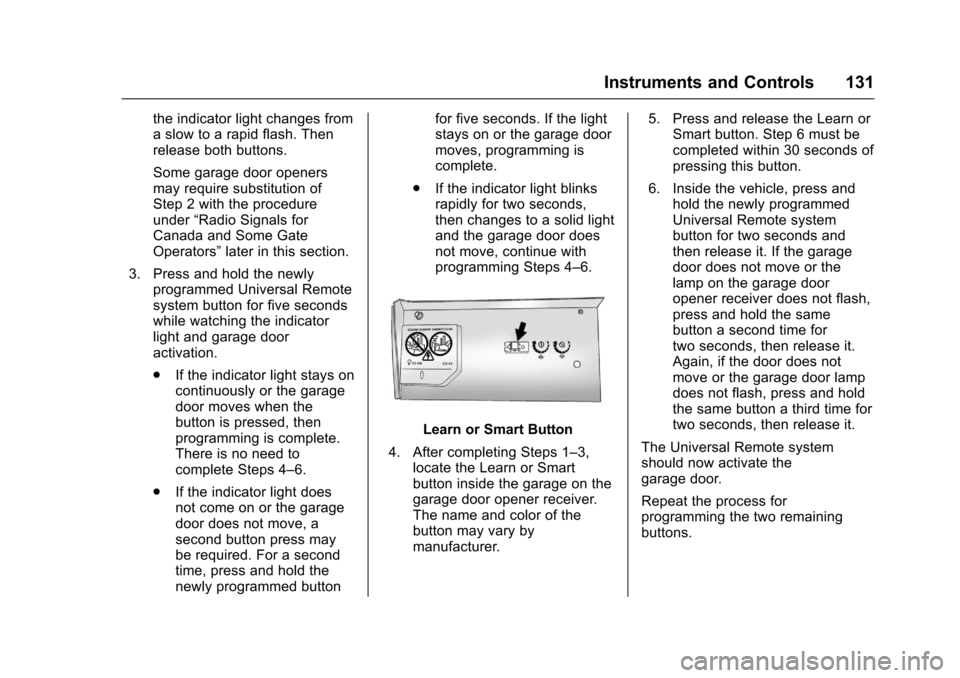

Learn or Smart Button
4. After completing Steps 1–3, locate the Learn or Smart
button inside the garage on the
garage door opener receiver.
The name and color of the
button may vary by
manufacturer. 5. Press and release the Learn or
Smart button. Step 6 must be
completed within 30 seconds of
pressing this button.
6. Inside the vehicle, press and hold the newly programmed
Universal Remote system
button for two seconds and
then release it. If the garage
door does not move or the
lamp on the garage door
opener receiver does not flash,
press and hold the same
button a second time for
two seconds, then release it.
Again, if the door does not
move or the garage door lamp
does not flash, press and hold
the same button a third time for
two seconds, then release it.
The Universal Remote system
should now activate the
garage door.
Repeat the process for
programming the two remaining
buttons.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
132 Instruments and Controls

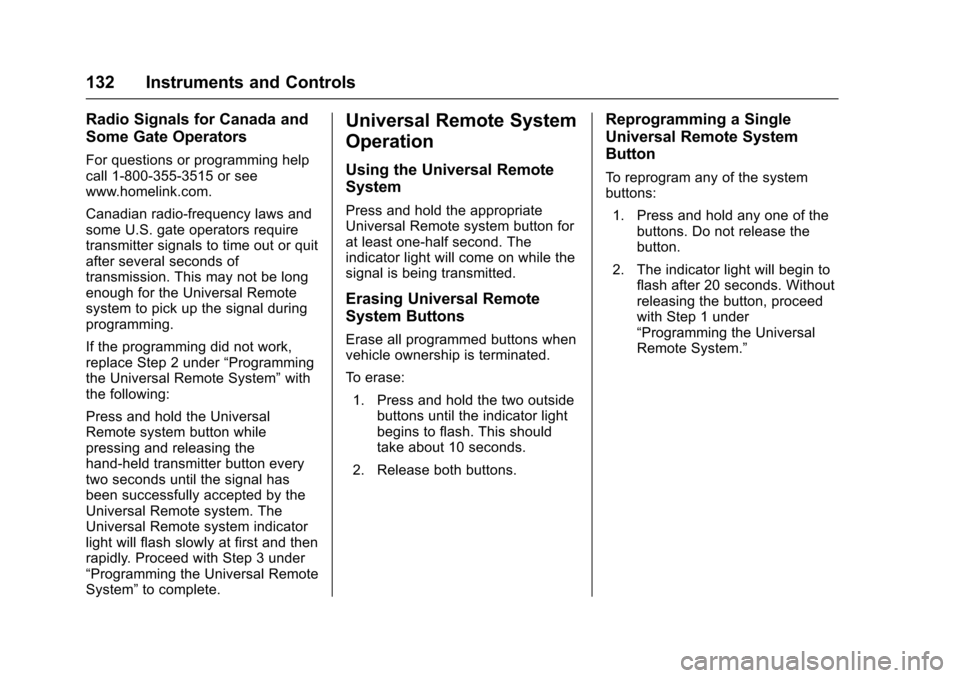

Radio Signals for Canada and
Some Gate Operators
For questions or programming help
call 1-800-355-3515 or see
www.homelink.com.
Canadian radio-frequency laws and
some U.S. gate operators require
transmitter signals to time out or quit
after several seconds of
transmission. This may not be long
enough for the Universal Remote
system to pick up the signal during
programming.
If the programming did not work,
replace Step 2 under“Programming
the Universal Remote System” with
the following:
Press and hold the Universal
Remote system button while
pressing and releasing the
hand-held transmitter button every
two seconds until the signal has
been successfully accepted by the
Universal Remote system. The
Universal Remote system indicator
light will flash slowly at first and then
rapidly. Proceed with Step 3 under
“Programming the Universal Remote
System” to complete.
Universal Remote System
Operation
Using the Universal Remote
System
Press and hold the appropriate
Universal Remote system button for
at least one-half second. The
indicator light will come on while the
signal is being transmitted.
Erasing Universal Remote
System Buttons
Erase all programmed buttons when
vehicle ownership is terminated.
To erase:
1. Press and hold the two outside buttons until the indicator light
begins to flash. This should
take about 10 seconds.
2. Release both buttons.
Reprogramming a Single
Universal Remote System
Button
To reprogram any of the system
buttons: 1. Press and hold any one of the buttons. Do not release the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the button, proceed
with Step 1 under
“Programming the Universal
Remote System.”

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Index 319
Electrical System (cont'd)Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 231
Emergency
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 307
Engine Air Cleaner/Filter . . . . . . . . . . . . . .211
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 106
Compartment Overview . . . . . . . 204
Coolant . . . . . . . . . . . . . . . . . . . . . . . 213
Coolant Heater . . . . . . . . . . . . . . . 166
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 103
Cooling System . . . . . . . . . . . . . . . 212
Cooling System Messages . . . .118
Cover . . . . . . . . . . . . . . . . . . . . . . . . . 207
Drive Belt Routing . . . . . . . . . . . . 291
Exhaust . . . . . . . . . . . . . . . . . . . . . . 169
Oil Life System . . . . . . . . . . . . . . . 210
Oil Messages . . . . . . . . . . . . . . . . . .118
Oil Pressure Light . . . . . . . . . . . . . 111
Overheating . . . . . . . . . . . . . . . . . . 217
Power Messages . . . . . . . . . . . . . .119
Running While Parked . . . . . . . . 170
Starting . . . . . . . . . . . . . . . . . . . . . . . 165
Entry Lighting . . . . . . . . . . . . . . . . . . . 137
Equipment, Towing . . . . . . . . . . . . . 198 Event Data Recorders . . . . . . . . . . 304
Exit Lighting . . . . . . . . . . . . . . . . . . . . 137
Extender, Safety Belt . . . . . . . . . . . . 59
Exterior Lamp Controls . . . . . . . . . 133
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 138
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . .211
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 133
Flashers, Hazard Warning . . . . . . 135
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 251 Changing . . . . . . . . . . . . . . . . . . . . . 253
FlexFuel
E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 274
Fluid Automatic Transmission . . . . . . .211
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 220
Power Steering . . . . . . . . . . . . . . . 218
Washer . . . . . . . . . . . . . . . . . . . . . . . 219
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 135 Bulb Replacement . . . . . . . . . . . . 225
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 183 Forward Collision Alert
(FCA) Warning Light . . . . . . . . . . 109
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 302
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 46
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 51
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Additives . . . . . . . . . . . . . . . . . . . . . 190
Economy Driving . . . . . . . . . . . . . . . 23
Economy Light . . . . . . . . . . . . . . . . 111
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 192
Filling the Tank . . . . . . . . . . . . . . . 191
Foreign Countries . . . . . . . . . . . . 190
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 102
Low Fuel Warning Light . . . . . . . .112
Requirements, California . . . . . 189
System Messages . . . . . . . . . . . . .119
Fuel Economy Mode . . . . . . . . . . . . 172
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 227 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 228
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 231
