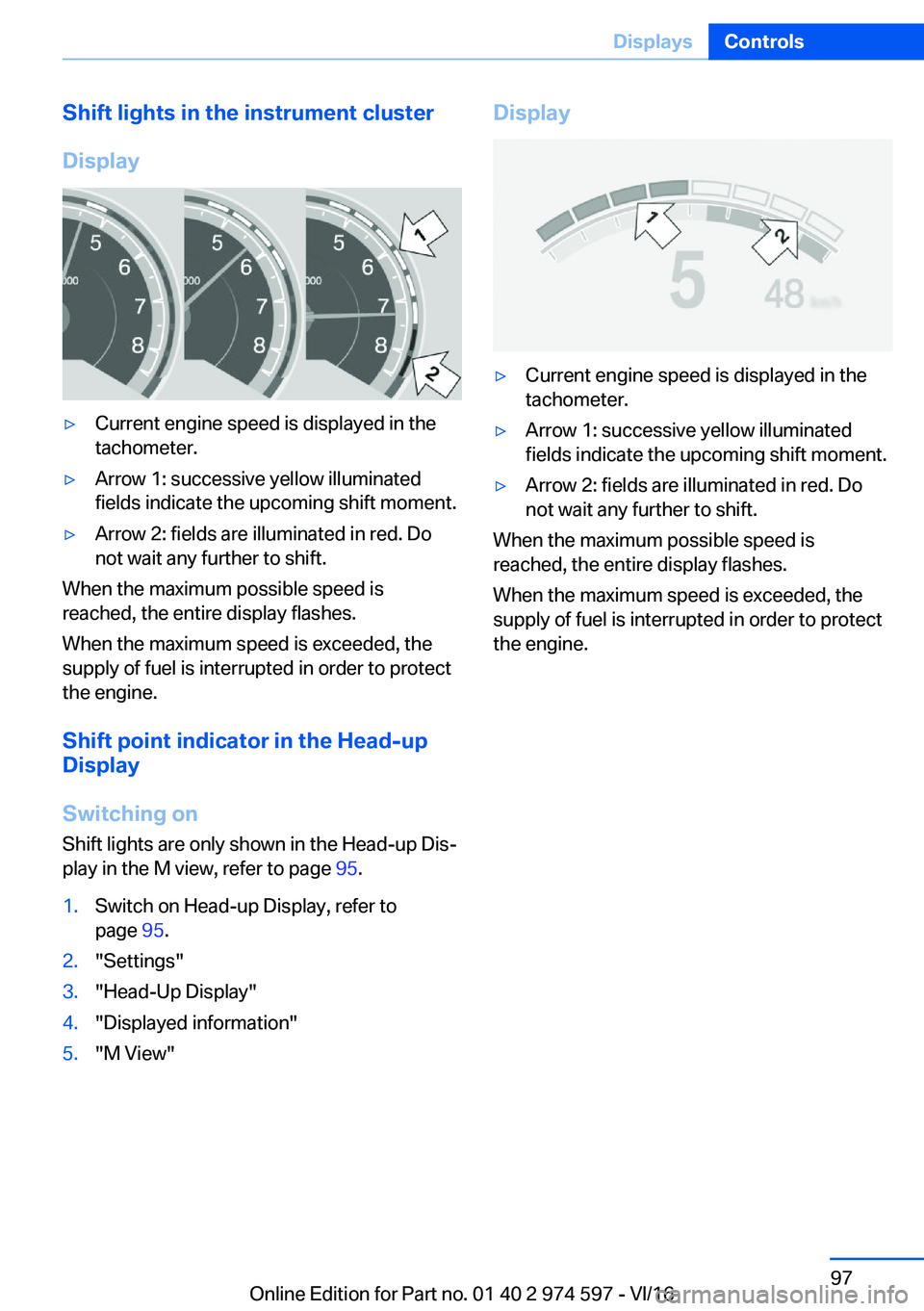

2017 BMW M4 Owners Manual

Shift
lights
in
the
instrument
cluster
Display'yCurrent engine speed is displayed in the
tachometer.'yArrow 1: successive yellow illuminated
fields indicate the upcoming shift moment.'yArrow 2: fields are illuminated in red. Do
not wait any further to shift.
When the maximum possible speed is
reached, the entire display flashes.
When the maximum speed is exceeded, the
supply of fuel is interrupted in order to protect
the engine.
Shift
point
indicator
in
the
Head-up
Display
Switching
on Shift lights are only shown in the Head-up Disjplay in the M view, refer to page 95.
1.Switch on Head-up Display, refer to
page 95.2."Settings"3."Head-Up Display"4."Displayed information"5."M View"Display'yCurrent engine speed is displayed in the
tachometer.'yArrow 1: successive yellow illuminated
fields indicate the upcoming shift moment.'yArrow 2: fields are illuminated in red. Do
not wait any further to shift.
When the maximum possible speed is
reached, the entire display flashes.
When the maximum speed is exceeded, the
supply of fuel is interrupted in order to protect
the engine.
Seite 97DisplaysControls97
Online Edition for Part no. 01 40 2 974 597 - VI/16

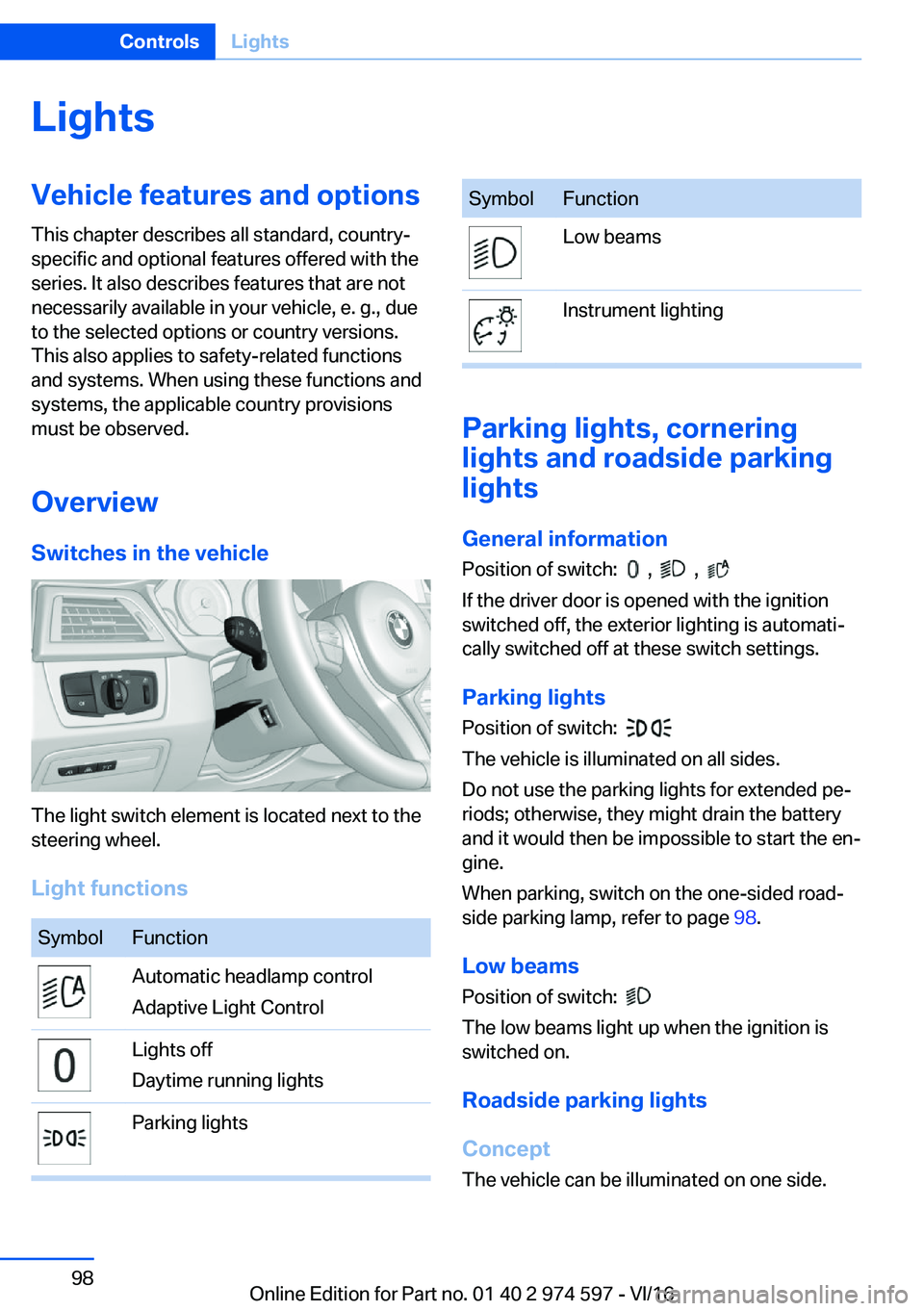

LightsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Overview Switches
in
the
vehicle
The light switch element is located next to the
steering wheel.
Light
functions
SymbolFunctionAutomatic headlamp control
Adaptive Light ControlLights off
Daytime running lightsParking lightsSymbolFunctionLow beamsInstrument lighting
Parking
lights,
cornering
lights
and
roadside
parking
lights
General
information Position of switch:
, ,
If the driver door is opened with the ignition switched off, the exterior lighting is automatij
cally switched off at these switch settings.
Parking
lights
Position of switch:

The vehicle is illuminated on all sides.
Do not use the parking lights for extended pej
riods; otherwise, they might drain the battery
and it would then be impossible to start the enj
gine.
When parking, switch on the one-sided roadj
side parking lamp, refer to page 98.
Low
beams Position of switch:

The low beams light up when the ignition is
switched on.
Roadside
parking
lights
Concept
The vehicle can be illuminated on one side.
Seite 98ControlsLights98
Online Edition for Part no. 01 40 2 974 597 - VI/16

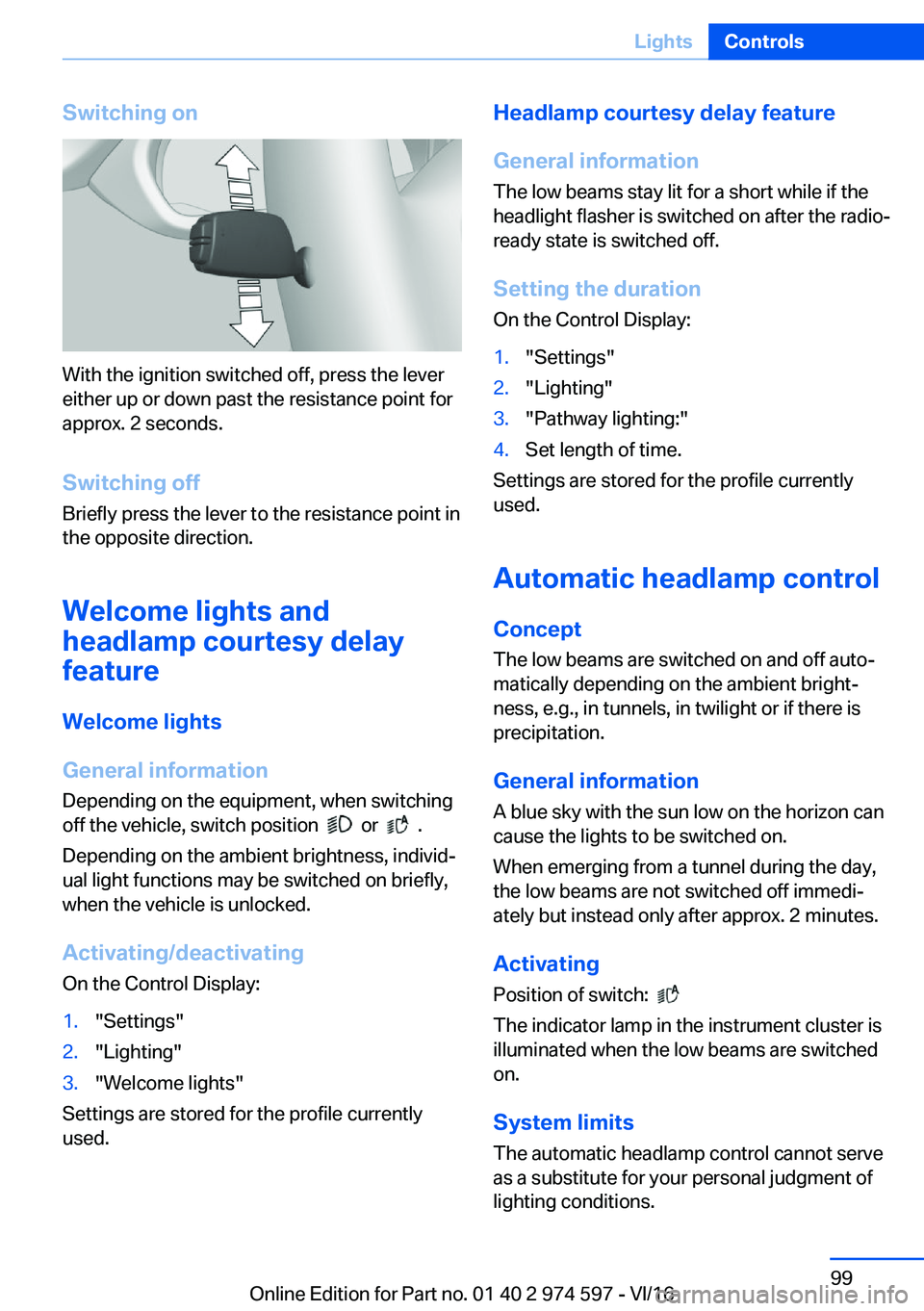

Switching
on
With the ignition switched off, press the lever
either up or down past the resistance point for approx. 2 seconds.
Switching
off Briefly press the lever to the resistance point in
the opposite direction.
Welcome
lights
and
headlamp
courtesy
delay
feature
Welcome
lights
General
information Depending on the equipment, when switching
off the vehicle, switch position
or .
Depending on the ambient brightness, individj
ual light functions may be switched on briefly, when the vehicle is unlocked.
Activating/deactivating
On the Control Display:
1."Settings"2."Lighting"3."Welcome lights"
Settings are stored for the profile currently used.
Headlamp
courtesy
delay
feature
General
information
The low beams stay lit for a short while if the
headlight flasher is switched on after the radio-
ready state is switched off.
Setting
the
duration On the Control Display:1."Settings"2."Lighting"3."Pathway lighting:"4.Set length of time.
Settings are stored for the profile currentlyused.
Automatic
headlamp
control
Concept
The low beams are switched on and off autoj matically depending on the ambient brightj
ness, e.g., in tunnels, in twilight or if there is
precipitation.
General
information
A blue sky with the sun low on the horizon can cause the lights to be switched on.
When emerging from a tunnel during the day,
the low beams are not switched off immedij ately but instead only after approx. 2 minutes.
Activating
Position of switch:

The indicator lamp in the instrument cluster is
illuminated when the low beams are switched
on.
System
limits
The automatic headlamp control cannot serve
as a substitute for your personal judgment of
lighting conditions.
Seite 99LightsControls99
Online Edition for Part no. 01 40 2 974 597 - VI/16

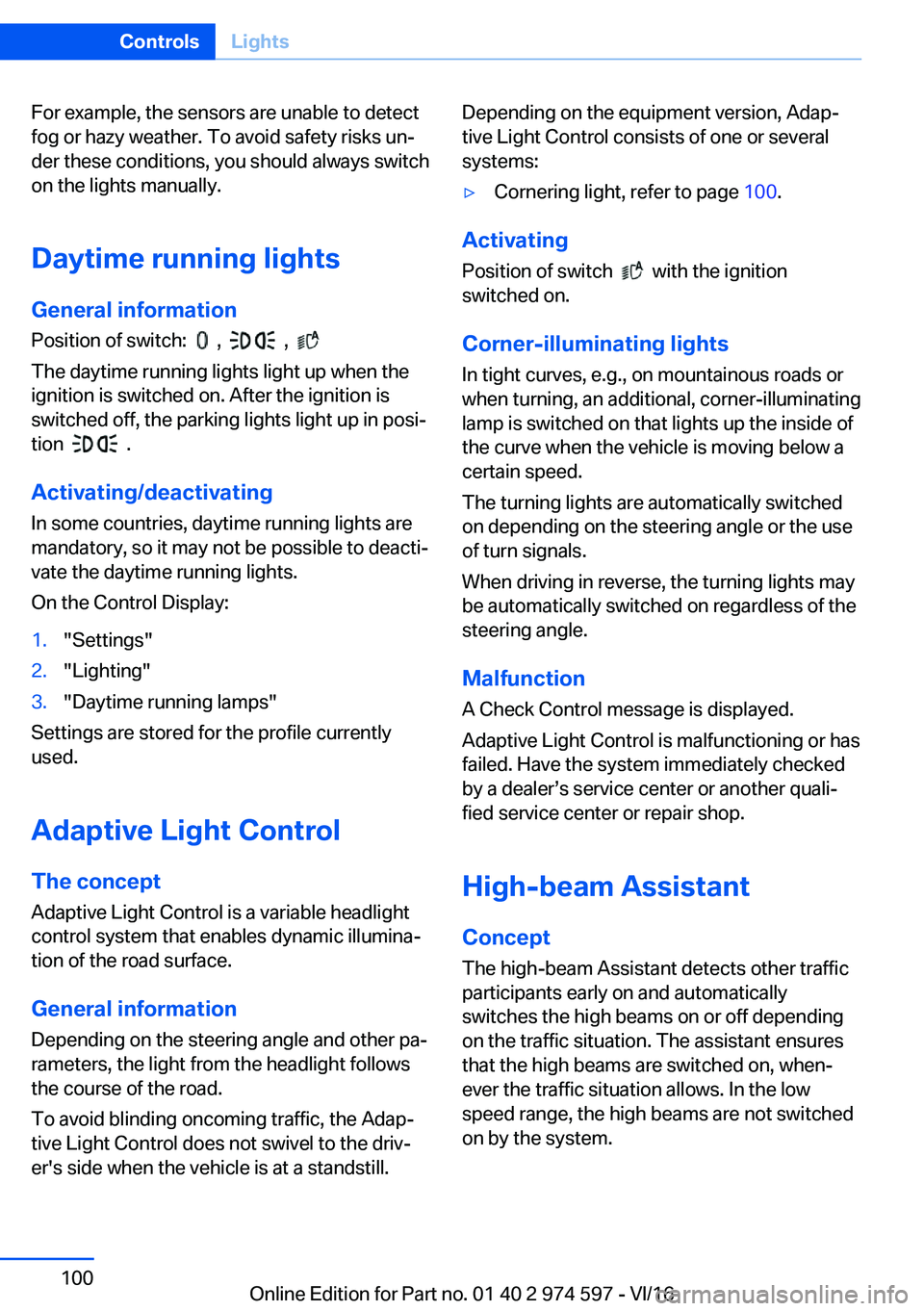

For example, the sensors are unable to detect
fog or hazy weather. To avoid safety risks unj der these conditions, you should always switch
on the lights manually.
Daytime
running
lights
General
information Position of switch:
, ,
The daytime running lights light up when the
ignition is switched on. After the ignition is
switched off, the parking lights light up in posij
tion
.
Activating/deactivating In some countries, daytime running lights are
mandatory, so it may not be possible to deactij
vate the daytime running lights.
On the Control Display:
1."Settings"2."Lighting"3."Daytime running lamps"
Settings are stored for the profile currently used.
Adaptive
Light
Control
The
concept Adaptive Light Control is a variable headlight
control system that enables dynamic illuminaj
tion of the road surface.
General
information
Depending on the steering angle and other paj
rameters, the light from the headlight follows the course of the road.
To avoid blinding oncoming traffic, the Adapj tive Light Control does not swivel to the drivjer's side when the vehicle is at a standstill.
Depending on the equipment version, Adapjtive Light Control consists of one or severalsystems:'yCornering light, refer to page 100.
Activating
Position of switch
with the ignition
switched on.
Corner-illuminating
lights
In tight curves, e.g., on mountainous roads or
when turning, an additional, corner-illuminating
lamp is switched on that lights up the inside of the curve when the vehicle is moving below acertain speed.
The turning lights are automatically switched
on depending on the steering angle or the use
of turn signals.
When driving in reverse, the turning lights may
be automatically switched on regardless of the
steering angle.
Malfunction
A Check Control message is displayed.
Adaptive Light Control is malfunctioning or has failed. Have the system immediately checked
by a dealerss service center or another qualij
fied service center or repair shop.
High-beam
Assistant
Concept
The high-beam Assistant detects other traffic participants early on and automatically
switches the high beams on or off depending
on the traffic situation. The assistant ensures
that the high beams are switched on, whenj
ever the traffic situation allows. In the low
speed range, the high beams are not switched
on by the system.
Seite 100ControlsLights100
Online Edition for Part no. 01 40 2 974 597 - VI/16

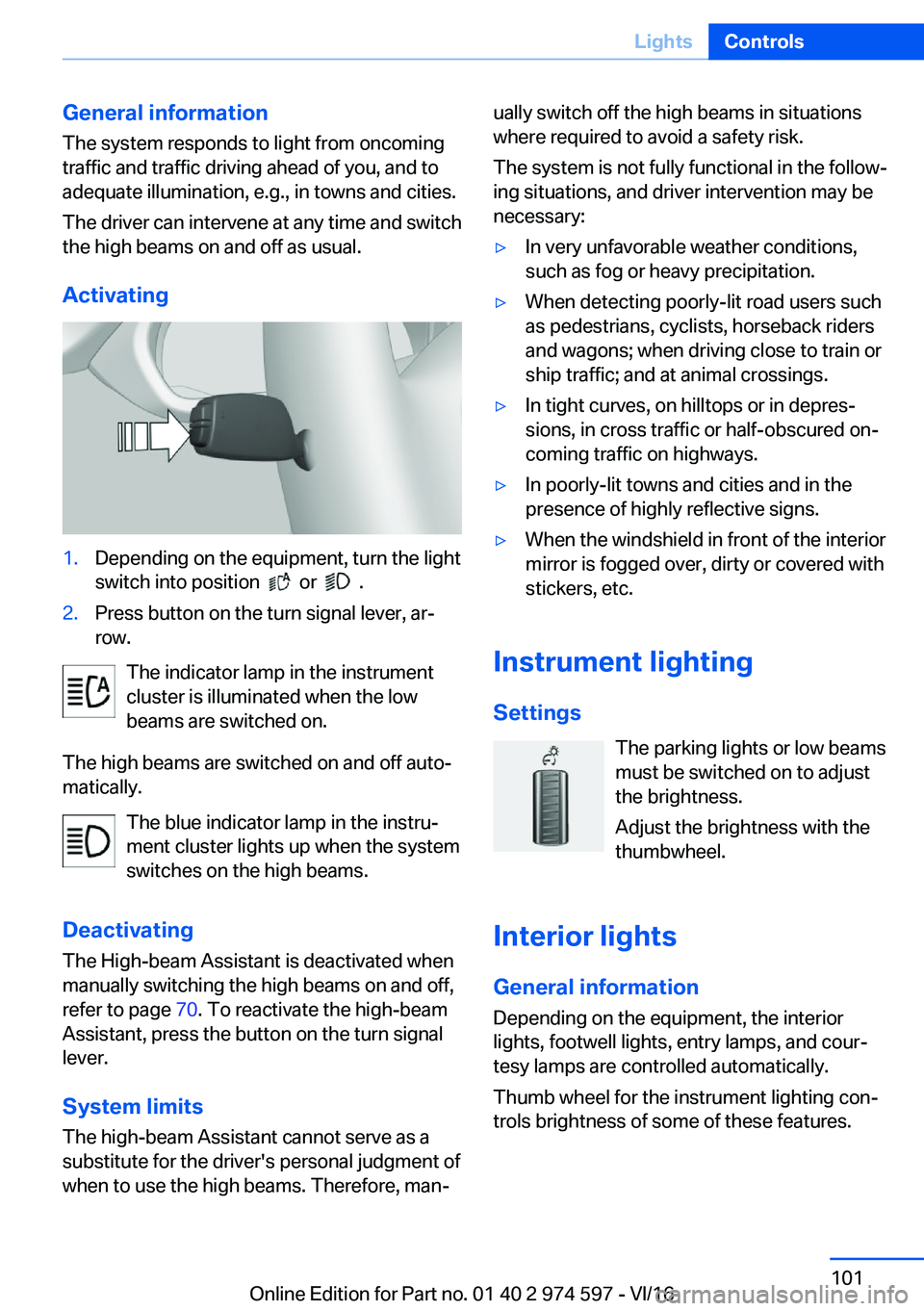

General
information
The system responds to light from oncoming
traffic and traffic driving ahead of you, and to
adequate illumination, e.g., in towns and cities.
The driver can intervene at any time and switch
the high beams on and off as usual.
Activating1.Depending on the equipment, turn the light switch into position
or .
2.Press button on the turn signal lever, arjrow.
The indicator lamp in the instrument
cluster is illuminated when the low
beams are switched on.
The high beams are switched on and off autoj
matically.
The blue indicator lamp in the instruj
ment cluster lights up when the system
switches on the high beams.
Deactivating The High-beam Assistant is deactivated when
manually switching the high beams on and off, refer to page 70. To reactivate the high-beam
Assistant, press the button on the turn signal lever.
System
limits
The high-beam Assistant cannot serve as a
substitute for the driver's personal judgment of when to use the high beams. Therefore, manj
ually switch off the high beams in situations
where required to avoid a safety risk.
The system is not fully functional in the followj ing situations, and driver intervention may be
necessary:'yIn very unfavorable weather conditions,
such as fog or heavy precipitation.'yWhen detecting poorly-lit road users such
as pedestrians, cyclists, horseback riders
and wagons; when driving close to train or ship traffic; and at animal crossings.'yIn tight curves, on hilltops or in depresj
sions, in cross traffic or half-obscured onj coming traffic on highways.'yIn poorly-lit towns and cities and in thepresence of highly reflective signs.'yWhen the windshield in front of the interior
mirror is fogged over, dirty or covered with stickers, etc.
Instrument
lighting
Settings The parking lights or low beams
must be switched on to adjust
the brightness.
Adjust the brightness with the
thumbwheel.
Interior
lights
General
information
Depending on the equipment, the interior
lights, footwell lights, entry lamps, and courj tesy lamps are controlled automatically.
Thumb wheel for the instrument lighting conjtrols brightness of some of these features.
Seite 101LightsControls101
Online Edition for Part no. 01 40 2 974 597 - VI/16

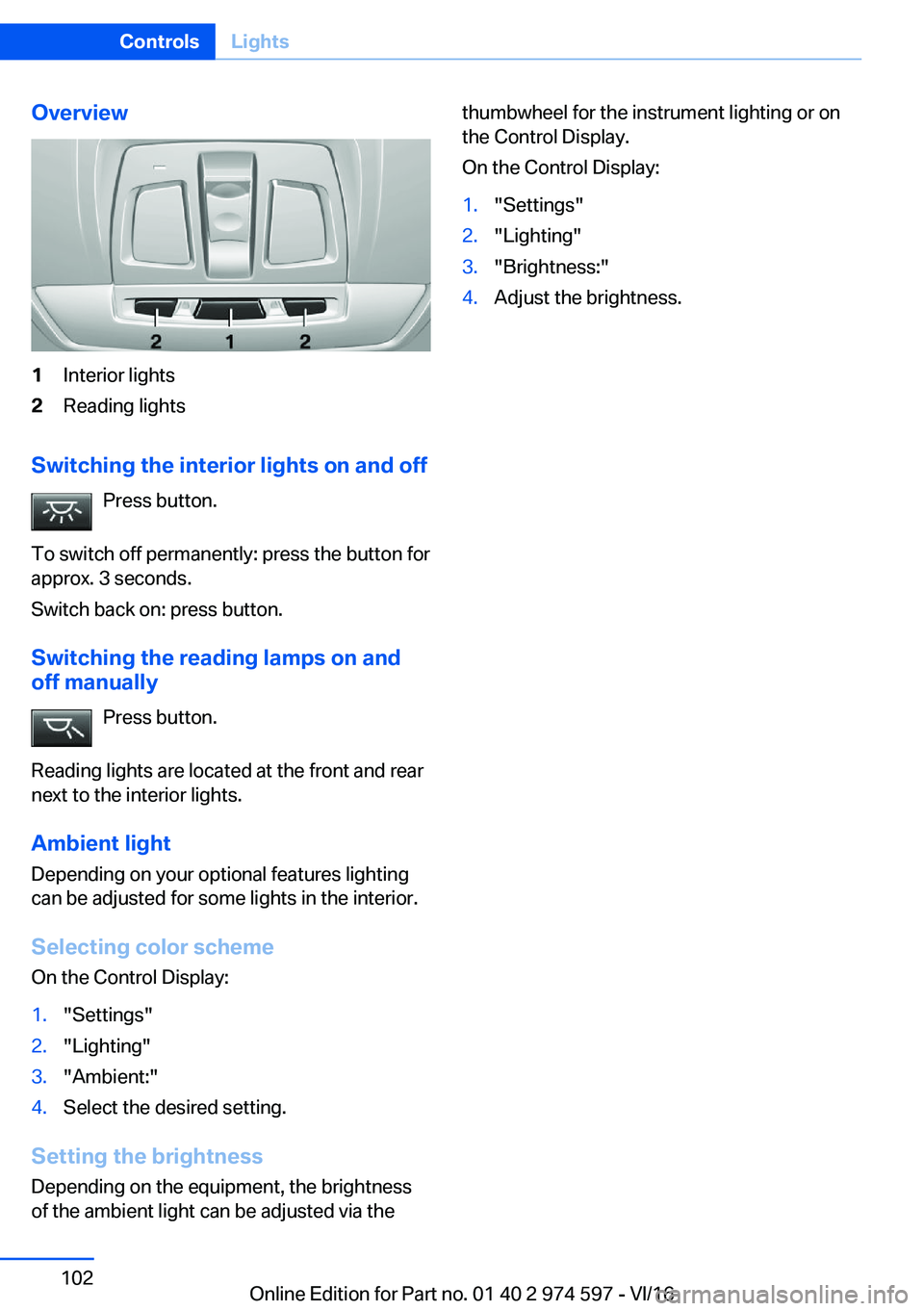

Overview1Interior lights2Reading lights
Switching
the
interior
lights
on
and
offPress button.
To switch off permanently: press the button for
approx. 3 seconds.
Switch back on: press button.
Switching
the
reading
lamps
on
and
off
manually
Press button.
Reading lights are located at the front and rear
next to the interior lights.
Ambient
light Depending on your optional features lighting
can be adjusted for some lights in the interior.
Selecting
color
scheme On the Control Display:
1."Settings"2."Lighting"3."Ambient:"4.Select the desired setting.
Setting
the
brightness
Depending on the equipment, the brightness
of the ambient light can be adjusted via the
thumbwheel for the instrument lighting or on the Control Display.
On the Control Display:1."Settings"2."Lighting"3."Brightness:"4.Adjust the brightness.Seite 102ControlsLights102
Online Edition for Part no. 01 40 2 974 597 - VI/16

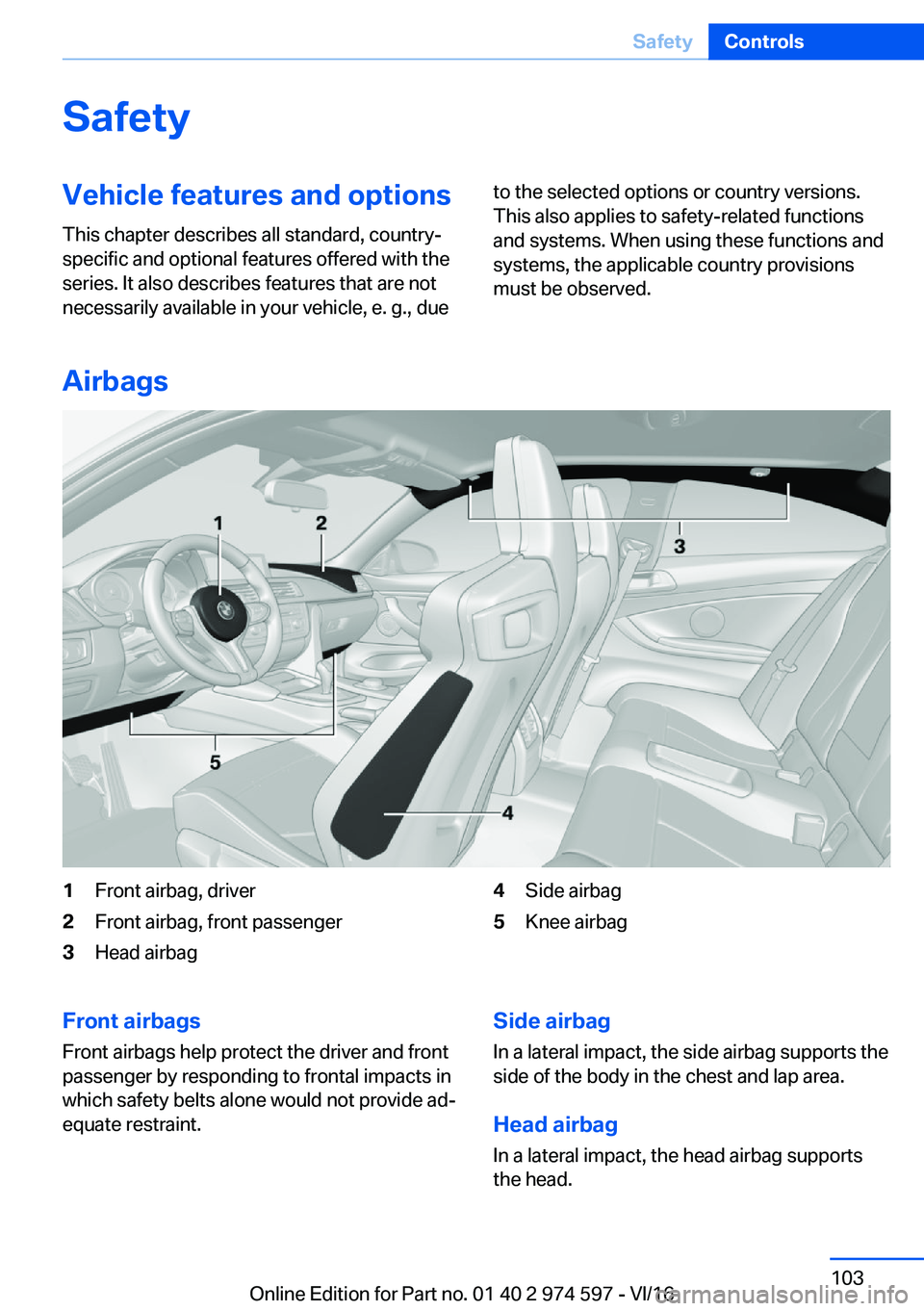

SafetyVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Airbags
1Front airbag, driver2Front airbag, front passenger3Head airbag4Side airbag5Knee airbagFront
airbags
Front airbags help protect the driver and front passenger by responding to frontal impacts in which safety belts alone would not provide adjequate restraint.Side
airbag
In a lateral impact, the side airbag supports the
side of the body in the chest and lap area.
Head
airbag In a lateral impact, the head airbag supportsthe head.Seite 103SafetyControls103
Online Edition for Part no. 01 40 2 974 597 - VI/16

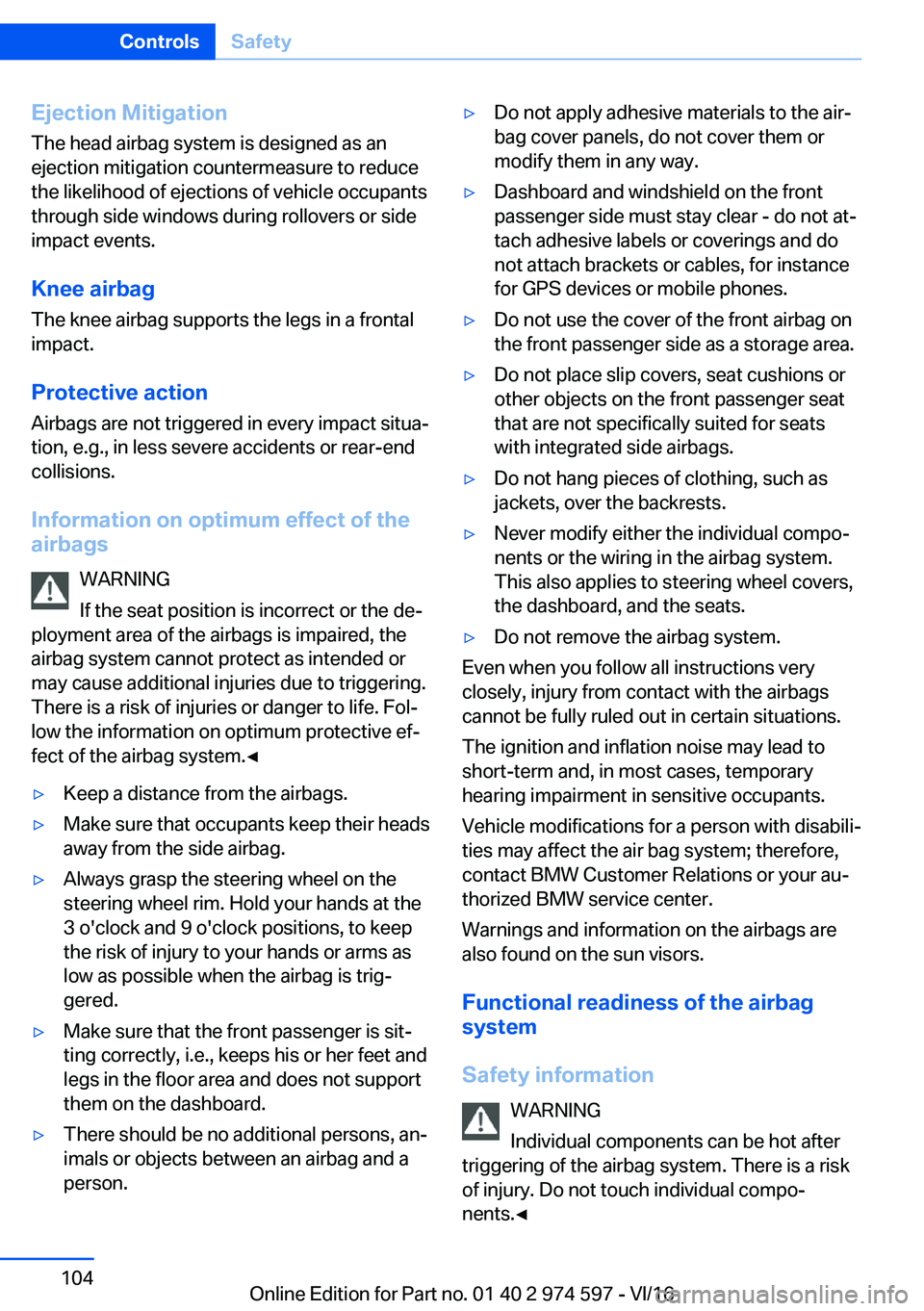

Ejection
MitigationThe head airbag system is designed as anejection mitigation countermeasure to reducethe likelihood of ejections of vehicle occupantsthrough side windows during rollovers or sideimpact events.
Knee
airbag The knee airbag supports the legs in a frontal
impact.
Protective
action
Airbags are not triggered in every impact situaj
tion, e.g., in less severe accidents or rear-end collisions.
Information
on
optimum
effect
of
theairbags
WARNING
If the seat position is incorrect or the dej
ployment area of the airbags is impaired, the airbag system cannot protect as intended ormay cause additional injuries due to triggering.
There is a risk of injuries or danger to life. Folj
low the information on optimum protective efj fect of the airbag system.'
