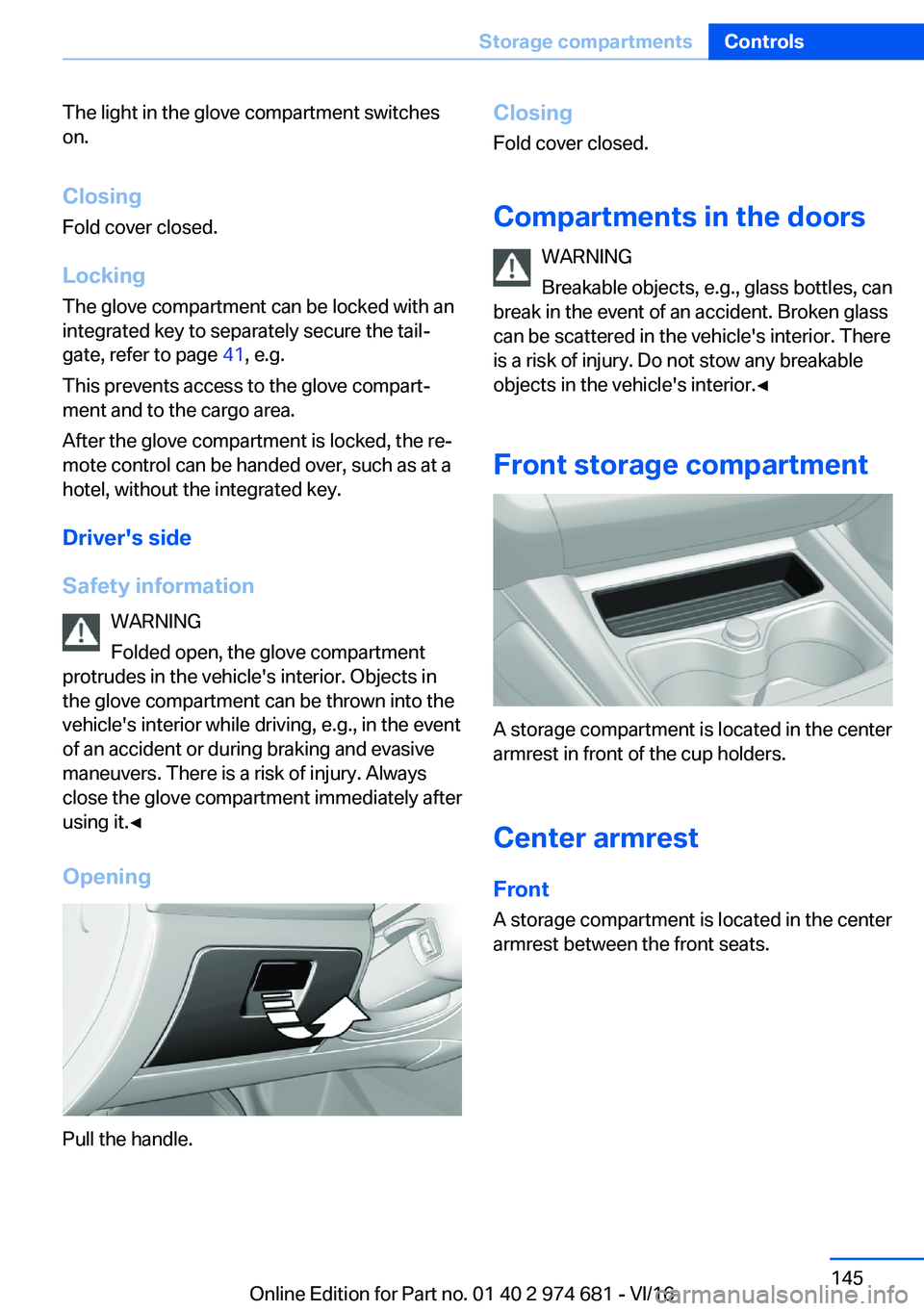

The light in the glove compartment switcheson.
ClosingFold cover closed.
Locking
The glove compartment can be locked with an
integrated key to separately secure the tailj gate, refer to page 41, e.g.
This prevents access to the glove compartj ment and to the cargo area.
After the glove compartment is locked, the rej
mote control can be handed over, such as at a
hotel, without the integrated key.
Driver's
side
Safety
information WARNING
Folded open, the glove compartment
protrudes in the vehicle's interior. Objects in the glove compartment can be thrown into thevehicle's interior while driving, e.g., in the eventof an accident or during braking and evasive
maneuvers. There is a risk of injury. Always
close the glove compartment immediately after
using it.'

Opening
Fold the center armrest up.
Repositioning
Center armrest can be pushed forwards or backwards. It engages in the end positions.
Connection
for
an
external
audio
device
An external audio device, e.g.,
an MP3 player, can be conj
nected via the AUX-IN port or
the USB audio interface in thecenter armrest.
Storage
compartment
in
the
rear
A storage compartment is located in the center
armrest.
Storage
compartment
between
the
rear
seats
There is a storage compartment between the
rear seats.
Cup
holders
Safety
information WARNING
Unsuitable containers in the cup holder
and hot beverages can damage the cup holder and increase the risk of injury in the event of anaccident. There is a risk of injury or risk ofproperty damage. Use light-weight, unbreakajble, and sealable containers. Do not transporthot beverages. Do not force objects into thecup holder.'

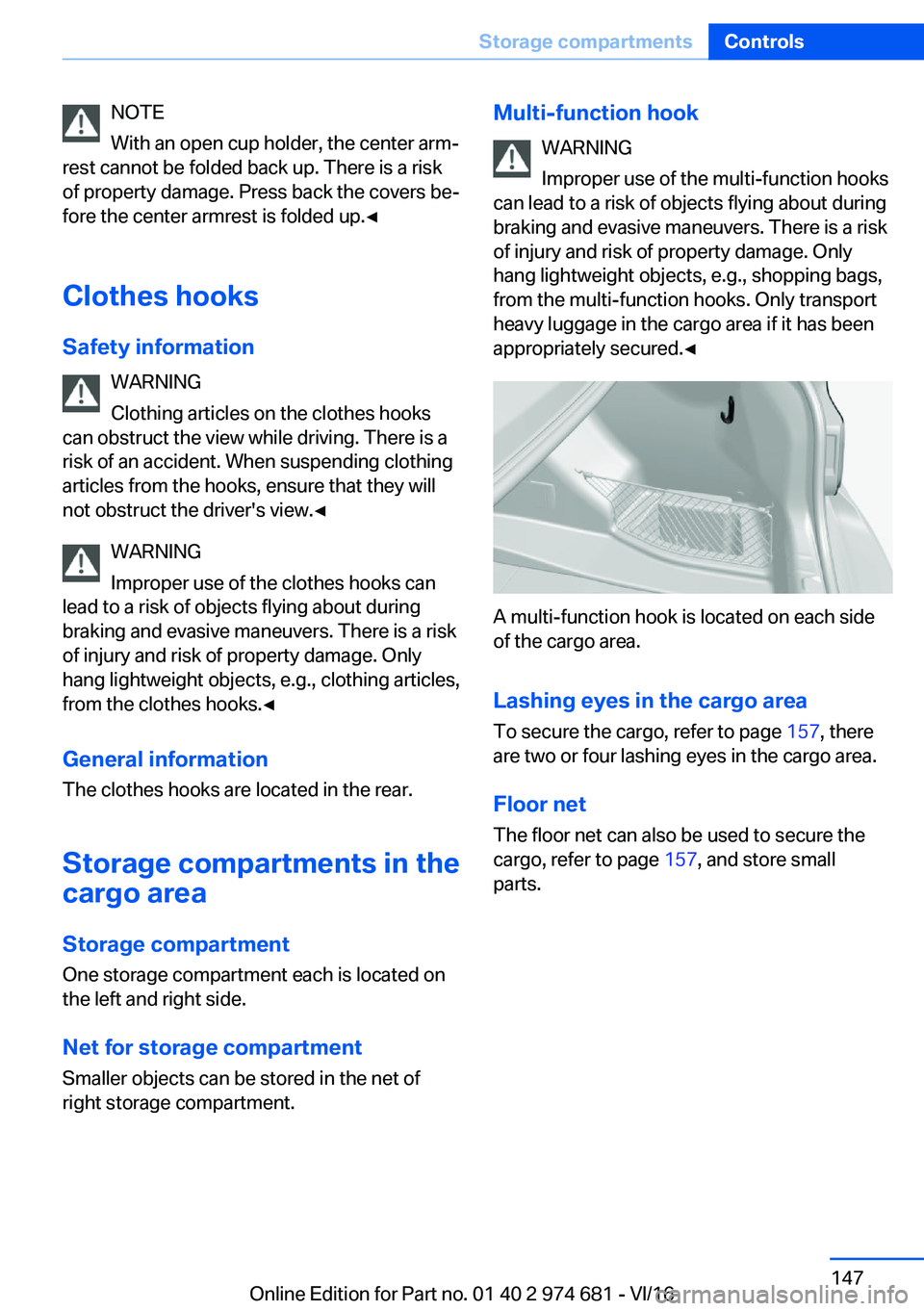

NOTE
With an open cup holder, the center armj
rest cannot be folded back up. There is a risk
of property damage. Press back the covers bej
fore the center armrest is folded up.'

Online Edition for Part no. 01 40 2 974 681 - VI/16

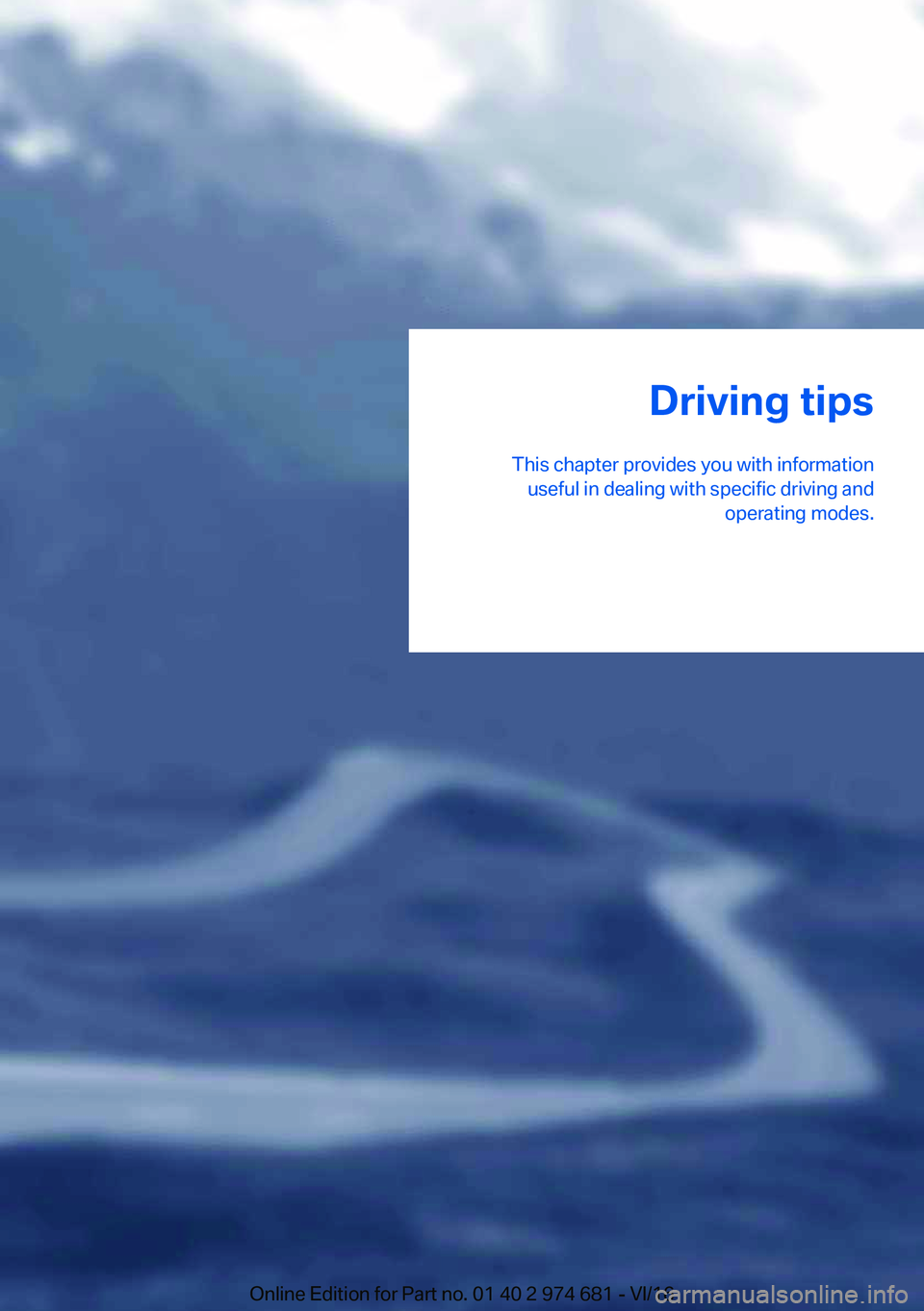

Driving
tips
This chapter provides you with information useful in dealing with specific driving and operating modes.Online Edition for Part no. 01 40 2 974 681 - VI/16

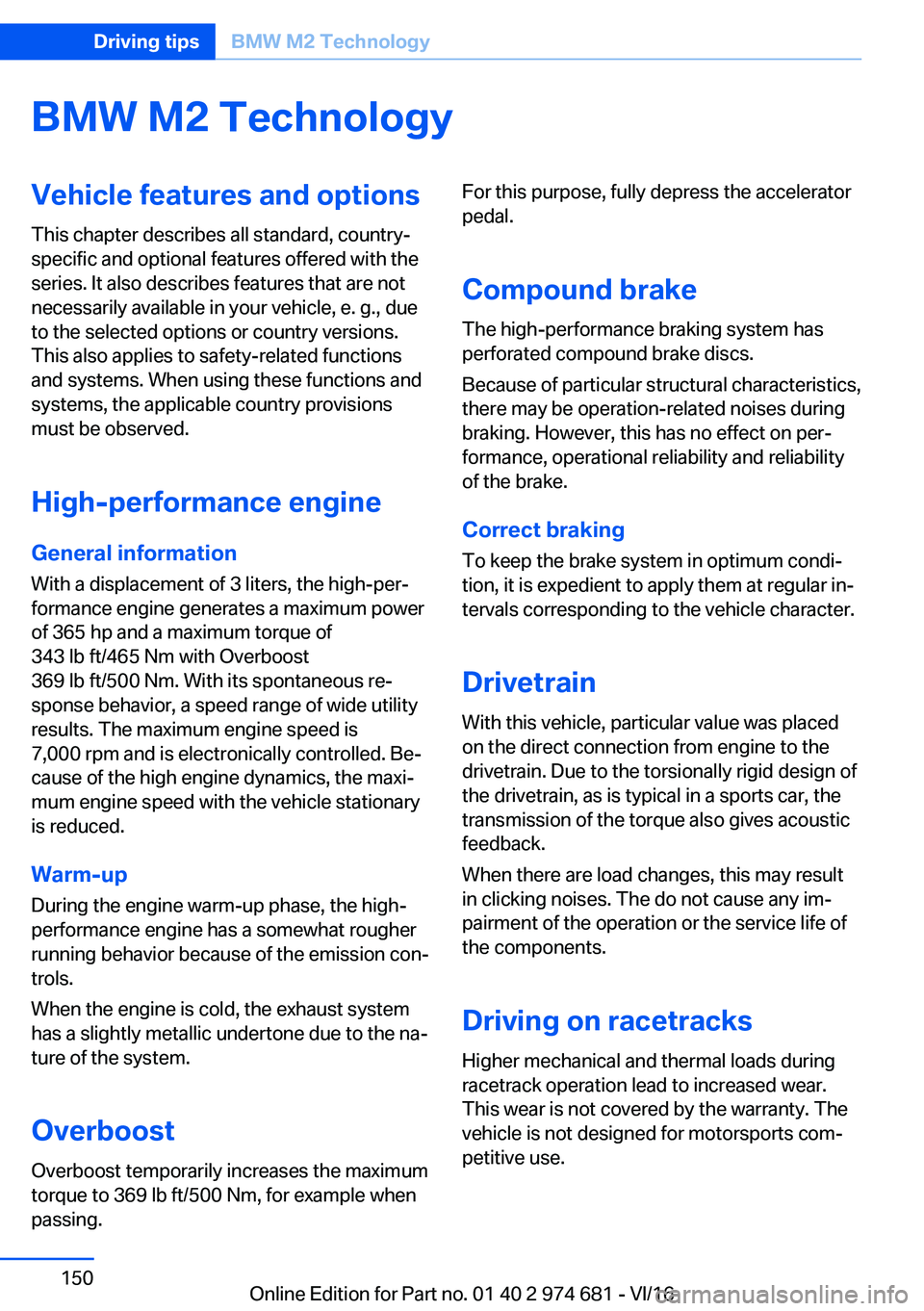

BMW
M2
TechnologyVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
High-performance
engine
General
information
With a displacement of 3 liters, the high-perj formance engine generates a maximum power
of 365 hp and a maximum torque of
343 lb ft/465 Nm with Overboost
369 lb ft/500 Nm. With its spontaneous rej
sponse behavior, a speed range of wide utility results. The maximum engine speed is7,000 rpm and is electronically controlled. Bej
cause of the high engine dynamics, the maxij
mum engine speed with the vehicle stationary
is reduced.
Warm-up During the engine warm-up phase, the high-
performance engine has a somewhat rougher
running behavior because of the emission conj
trols.
When the engine is cold, the exhaust system
has a slightly metallic undertone due to the naj
ture of the system.
Overboost
Overboost temporarily increases the maximum torque to 369 lb ft/500 Nm, for example when
passing.For this purpose, fully depress the accelerator
pedal.
Compound
brake The high-performance braking system has
perforated compound brake discs.
Because of particular structural characteristics,
there may be operation-related noises during braking. However, this has no effect on perjformance, operational reliability and reliability
of the brake.
Correct
braking
To keep the brake system in optimum condij tion, it is expedient to apply them at regular inj
tervals corresponding to the vehicle character.
Drivetrain
With this vehicle, particular value was placed
on the direct connection from engine to the
drivetrain. Due to the torsionally rigid design of the drivetrain, as is typical in a sports car, the
transmission of the torque also gives acoustic
feedback.
When there are load changes, this may result
in clicking noises. The do not cause any imj
pairment of the operation or the service life of
the components.
Driving
on
racetracks Higher mechanical and thermal loads during
racetrack operation lead to increased wear.
This wear is not covered by the warranty. The
vehicle is not designed for motorsports comj
petitive use.Seite 150Driving
tipsBMW
M2
Technology150
Online Edition for Part no. 01 40 2 974 681 - VI/16

The standard brake linings and the wear indij
cators are not designed for racetrack operaj tion.Seite 151BMW
M2
TechnologyDriving
tips151
Online Edition for Part no. 01 40 2 974 681 - VI/16

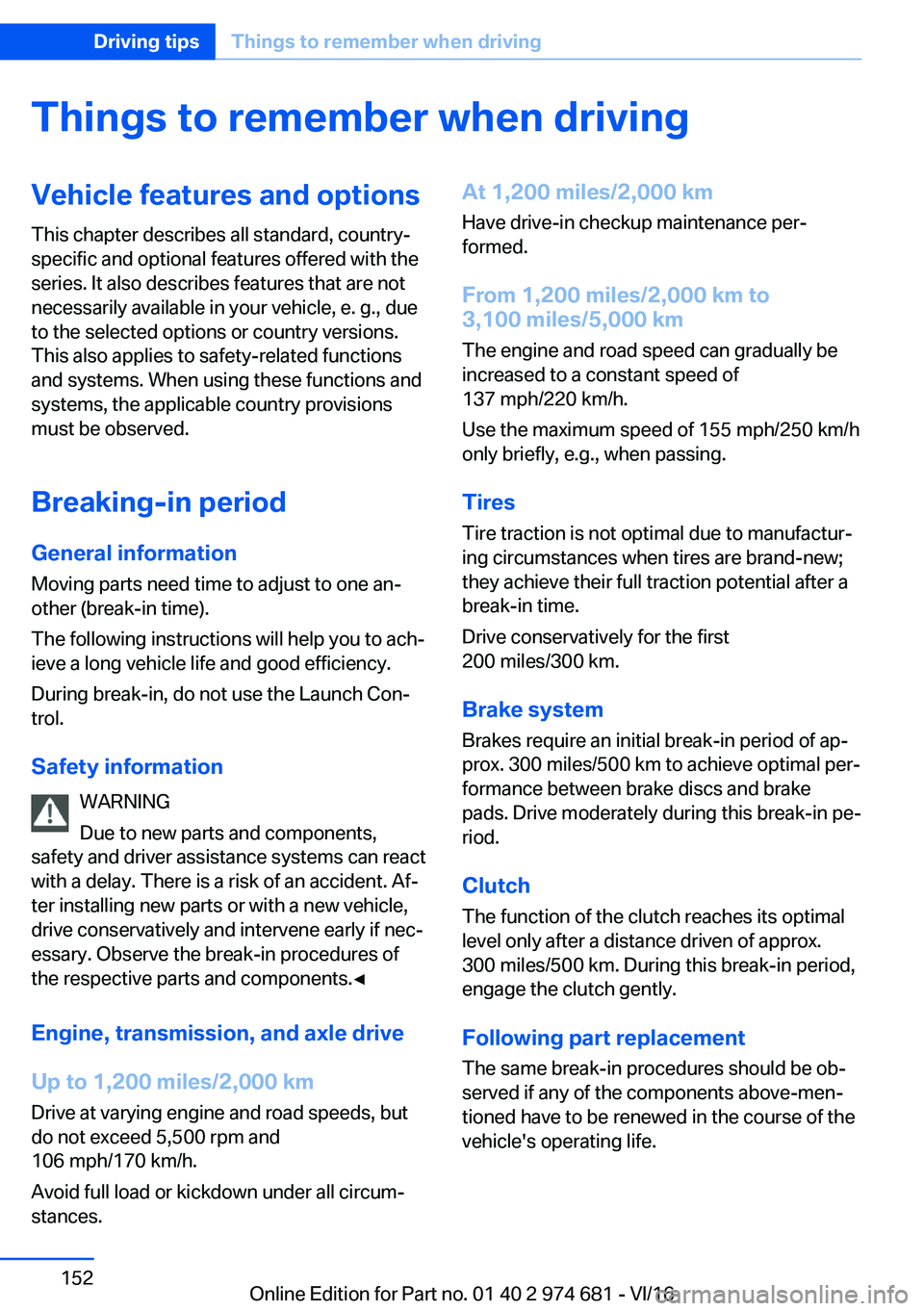

Things
to
remember
when
drivingVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Breaking-in
period
General
information Moving parts need time to adjust to one anj
other (break-in time).
The following instructions will help you to achj
ieve a long vehicle life and good efficiency.
During break-in, do not use the Launch Conj trol.
Safety
information WARNING
Due to new parts and components,
safety and driver assistance systems can react
with a delay. There is a risk of an accident. Afj
ter installing new parts or with a new vehicle,
drive conservatively and intervene early if necj
essary. Observe the break-in procedures of
the respective parts and components.'
