3.Place the fuel cap in the bracket attached
to the fuel filler flap.
Closing
WARNING
The retaining strap of the fuel cap can be
jammed and crushed during closing. The cap cannot be correctly closed. Fuel or fuel vapors
can escape. There is a risk of injury or risk of property damage. Pay attention that the retainjing strap is not jammed or crushed when closjing the lid.'

FuelVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Fuel
recommendation
General
information Depending on the region, many gas stations
sell fuel that has been customized to winter or
summer conditions. Fuel that is available in
winter, e.g., helps make a cold start easier.
Gasoline
General
information For the best fuel efficiency, the gasolineshould be sulfur-free or very low in sulfur conjtent.
Fuels that are marked on the gas pump as conj taining metal must not be used.
Fuels with a maximum ethanol content of
10 %, i. e., E10, may be used for refueling.
Ethanol should meet the following quality stanj dards:
US: ASTM 4806mxx
CAN: CGSB-3.511mxx
xx: comply with the current standard in each
case.Safety
information
NOTE
Do not press the Start/Stop button after
refueling with the wrong fuel. Furthermore, the
catalytic converter is permanently damaged.
There is a risk of property damage. Do not rej fuel or add the following in the case of gasoline
engines:'yLeaded gasoline.'yMetallic additives, e.g., manganese or iron.
Do not press the Start/Stop button after refuelj ing with the wrong fuel. Contact a dealerss
service center or another qualified service cenj
ter or repair shop.'

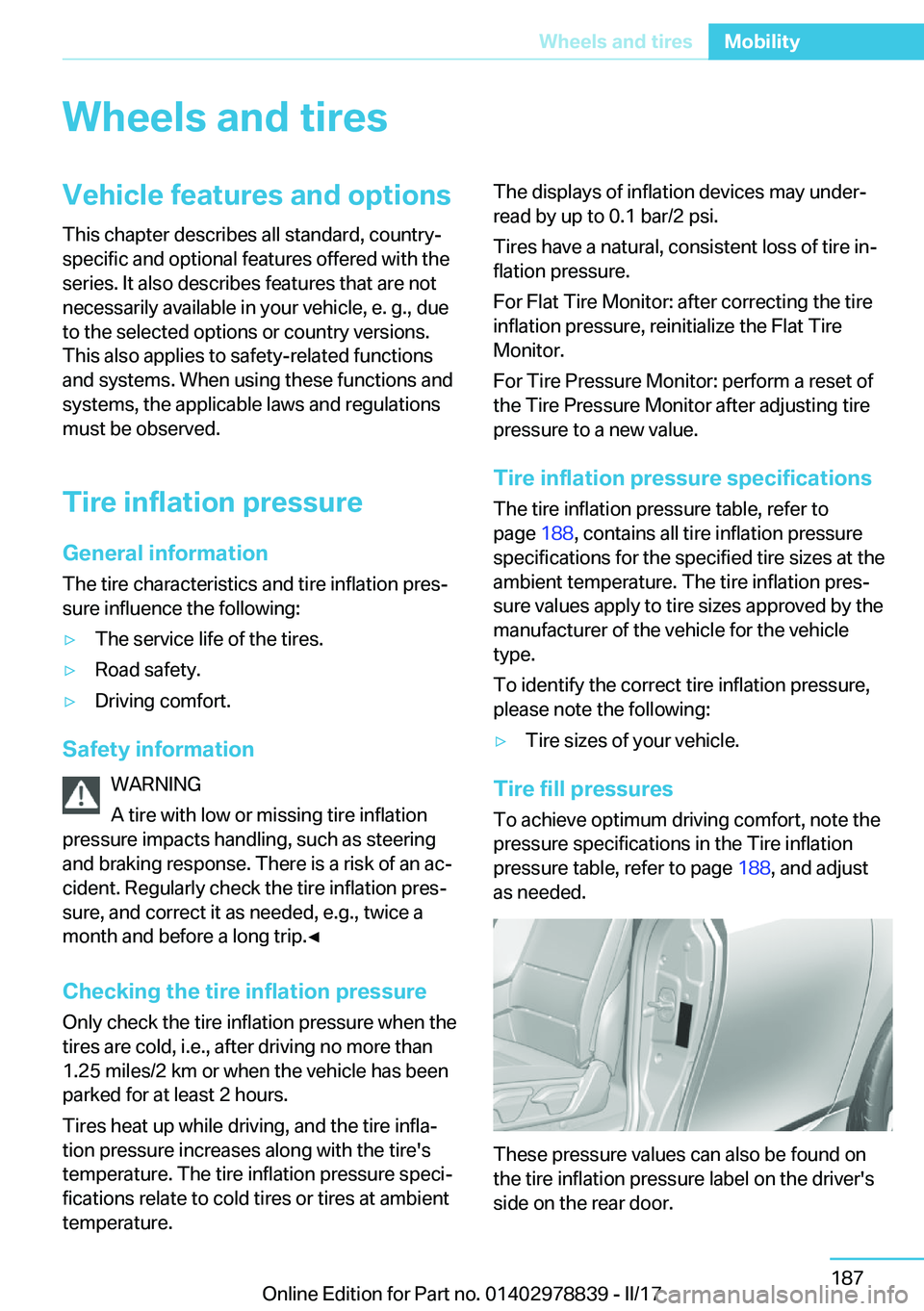

Wheels
and
tiresVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Tire
inflation
pressure
General
information
The tire characteristics and tire inflation presj
sure influence the following:'yThe service life of the tires.'yRoad safety.'yDriving comfort.
Safety
information
WARNING
A tire with low or missing tire inflation
pressure impacts handling, such as steering
and braking response. There is a risk of an acj
cident. Regularly check the tire inflation presj sure, and correct it as needed, e.g., twice amonth and before a long trip.'

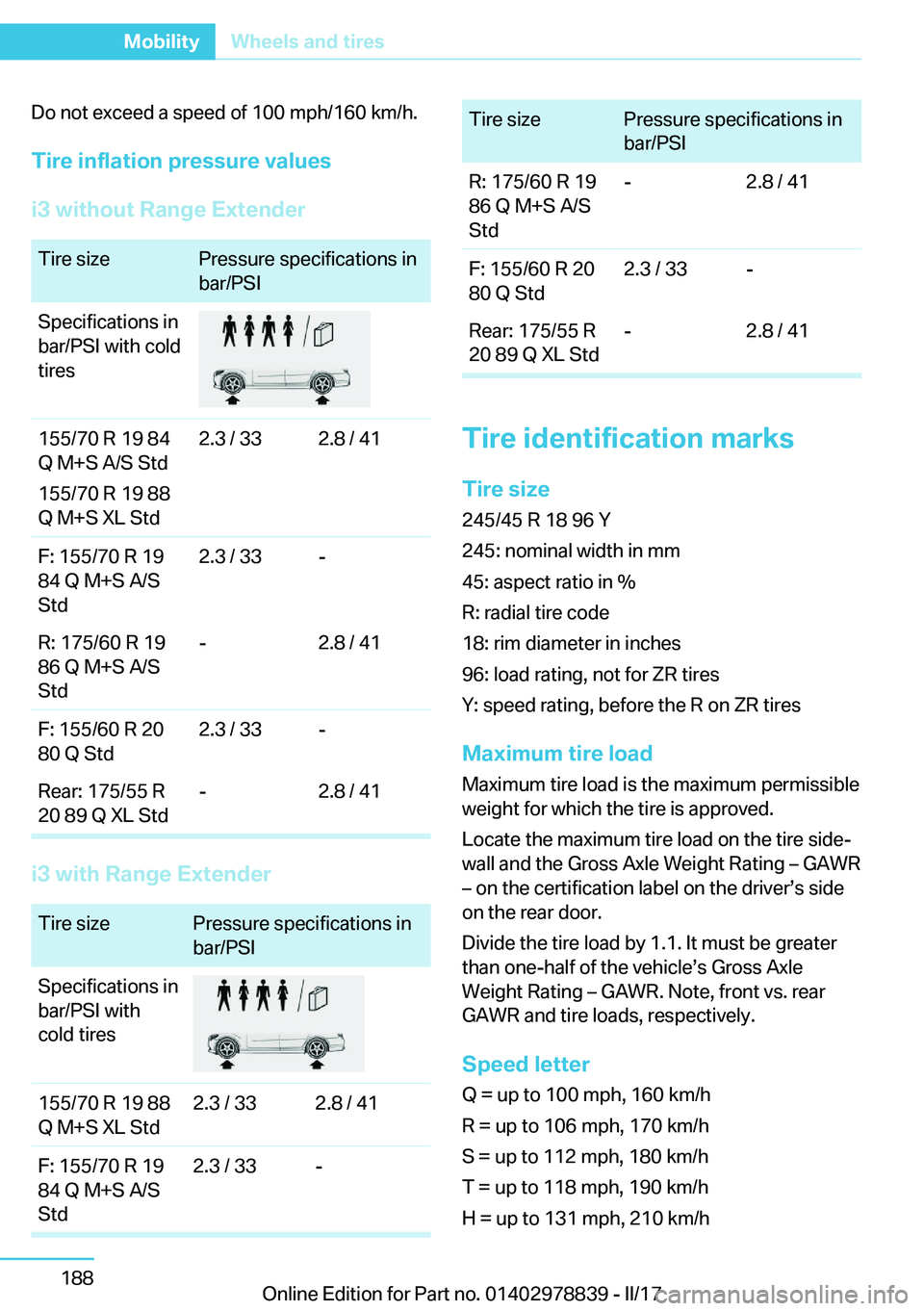

Do not exceed a speed of 100 mph/160 km/h.Tire
inflation
pressure
values
i3
without
Range
ExtenderTire sizePressure specifications in
bar/PSISpecifications in
bar/PSI with cold
tires155/70 R 19 84
Q M+S A/S Std
155/70 R 19 88
Q M+S XL Std2.3 / 332.8 / 41F: 155/70 R 19
84 Q M+S A/S
Std2.3 / 33-R: 175/60 R 19
86 Q M+S A/S
Std-2.8 / 41F: 155/60 R 20
80 Q Std2.3 / 33-Rear: 175/55 R
20 89 Q XL Std-2.8 / 41
i3
with
Range
Extender
Tire sizePressure specifications in
bar/PSISpecifications in
bar/PSI with
cold tires155/70 R 19 88
Q M+S XL Std2.3 / 332.8 / 41F: 155/70 R 19
84 Q M+S A/S
Std2.3 / 33-Tire sizePressure specifications in
bar/PSIR: 175/60 R 19
86 Q M+S A/S
Std-2.8 / 41F: 155/60 R 20
80 Q Std2.3 / 33-Rear: 175/55 R
20 89 Q XL Std-2.8 / 41
Tire
identification
marks
Tire
size 245/45 R 18 96 Y
245: nominal width in mm
45: aspect ratio in %
R: radial tire code
18: rim diameter in inches 96: load rating, not for ZR tires
Y: speed rating, before the R on ZR tires
Maximum
tire
load
Maximum tire load is the maximum permissible
weight for which the tire is approved.
Locate the maximum tire load on the tire sidejwall and the Gross Axle Weight Rating m GAWR
m on the certification label on the driverss side
on the rear door.
Divide the tire load by 1.1. It must be greater than one-half of the vehicless Gross Axle
Weight Rating m GAWR. Note, front vs. rear GAWR and tire loads, respectively.
Speed
letter Q  up to 100 mph, 160 km/h
R  up to 106 mph, 170 km/h
S  up to 112 mph, 180 km/h
T  up to 118 mph, 190 km/h
H  up to 131 mph, 210 km/h
Seite 188MobilityWheels
and
tires188
Online Edition for Part no. 01402978839 - II/17

V  up to 150 mph, 240 km/h
W  up to 167 mph, 270 km/h
Y  up to 186 mph, 300 km/h
Tire
Identification
NumberDOT code: DOT xxxx xxx 0117
xxxx: manufacturer code for the tire brand
xxx: tire size and tire design
0117: tire age
Tires with DOT codes meet the guidelines of
the U.S. Department of Transportation.
Tire
age DOT

M+S
Winter and all-season tires with better cold
weather performance than summer tires.
Tire
tread Summer
tires
Do not drive with a tire tread depth of less than
0.12 inches/3 mm.
There is an increased risk of hydroplaning if the tire tread depth is less than 0.12 injches/3 mm.
Winter
tires
Do not drive with a tire tread depth of less than
0.16 inches/4 mm.
Below a tread depth of 0.16 inches/4 mm, tires are less suitable for winter operation.
Minimum
tread
depth
Wear indicators are distributed around thetire's circumference and have the legally rejquired minimum height of 0.063 inj
ches/1.6 mm.
The wear indicators are marked on the tire
sidewall with TWI, Tread Wear Indicator.
Tire
damage
General
information
Inspect your tires regularly for damage, foreign
objects lodged in the tread, and tread wear.
Driving over rough or damaged road surfaces,
as well as debris, curbs and other obstacles can cause serious damage to wheels, tires and
suspension parts. This is more likely to occur
with low-profile tires, which provide less cushj
ioning between the wheel and the road. Be
careful to avoid road hazards and reduce your
speed, especially if your vehicle is equipped
with low-profile tires.
Indications of tire damage or other vehicle malj functions:'yUnusual vibrations while driving.'yUnusual handling such as a strong tenjdency to pull to the left or right.
Damage can, e.g., be caused by driving over
curbs, road damage, or similar things.
Safety
information WARNING
Damaged tires can lose tire inflation
pressure, which can lead to loss of vehicle control. There is a risk of an accident. If tiredamage is suspected while driving, immedijately reduce speed and stop. Have wheels andtires checked. For this purpose, drive carefully
to the nearest dealerss service center or anj
other qualified service center or repair shop.
Have vehicle towed or transported as needed.'

If possible, drive around obstacles, or driveover them slowly and carefully.'

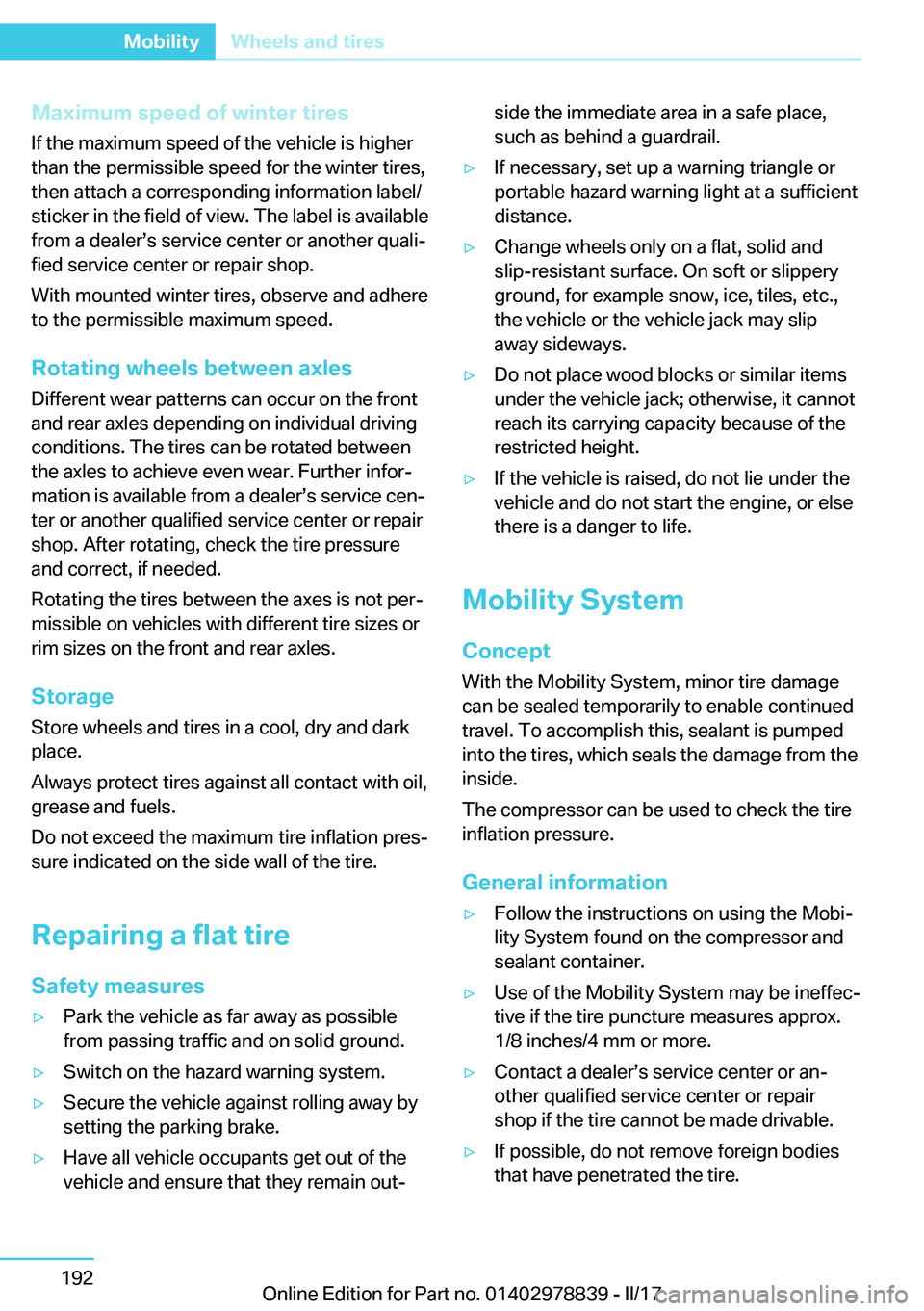

Maximum
speed
of
winter
tiresIf the maximum speed of the vehicle is higher
than the permissible speed for the winter tires, then attach a corresponding information label/
sticker in the field of view. The label is available from a dealerss service center or another qualij
fied service center or repair shop.
With mounted winter tires, observe and adhere
to the permissible maximum speed.
Rotating
wheels
between
axles Different wear patterns can occur on the frontand rear axles depending on individual driving
conditions. The tires can be rotated between
the axles to achieve even wear. Further inforj
mation is available from a dealerss service cenj
ter or another qualified service center or repair
shop. After rotating, check the tire pressure
and correct, if needed.
Rotating the tires between the axes is not perj
missible on vehicles with different tire sizes or
rim sizes on the front and rear axles.
Storage
Store wheels and tires in a cool, dry and dark place.
Always protect tires against all contact with oil,
grease and fuels.
Do not exceed the maximum tire inflation presj
sure indicated on the side wall of the tire.
Repairing
a
flat
tire
Safety
measures'yPark the vehicle as far away as possible
from passing traffic and on solid ground.'ySwitch on the hazard warning system.'ySecure the vehicle against rolling away by setting the parking brake.'yHave all vehicle occupants get out of thevehicle and ensure that they remain outjside the immediate area in a safe place,
such as behind a guardrail.'yIf necessary, set up a warning triangle or
portable hazard warning light at a sufficient
distance.'yChange wheels only on a flat, solid and slip-resistant surface. On soft or slippery
ground, for example snow, ice, tiles, etc.,
the vehicle or the vehicle jack may slip
away sideways.'yDo not place wood blocks or similar items under the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'yIf the vehicle is raised, do not lie under the vehicle and do not start the engine, or else
there is a danger to life.
Mobility
System
Concept
With the Mobility System, minor tire damage can be sealed temporarily to enable continued
travel. To accomplish this, sealant is pumped
into the tires, which seals the damage from the inside.
The compressor can be used to check the tire inflation pressure.
General
information
'yFollow the instructions on using the Mobij lity System found on the compressor and
sealant container.'yUse of the Mobility System may be ineffecj
tive if the tire puncture measures approx.
1/8 inches/4 mm or more.'yContact a dealerss service center or anj other qualified service center or repair
shop if the tire cannot be made drivable.'yIf possible, do not remove foreign bodies that have penetrated the tire.Seite 192MobilityWheels
