2017 AUDI A8 relay

C) C0 ....
"' " "' .... 0 0 :r Trailer mode Driving with a trailer
Gen eral information
Your Audi was designed primarily for passenger
transportation .
If you plan to tow a trailer, please remember that
the additional load will affect durability, econo­
my and performance .
T ra iler towing not only p laces more stress on the
vehicle, it a lso calls for more concentration from
the driver.
For this reason, always follow the operating and
driving instr uctions provided and use common
sense.
(D Note
If you are going to tow a trailer, you must ac­
tivate the tra iler operation mode
<=> page 89, Operating instructions.
Technical requirements
Tr ailer hitch
Use a weight-carrying hitch conforming to the
gross tra iler weight. The h itch must be suitab le
for your vehicle and tra iler and must be mounted
securely on the vehicle's chassis at a
technically
sound
location . Use on ly a trailer hitch with a re­
movable ba ll mount . Always chec k w ith the t rail­
er hitch manufac turer to make sure that you are
using the correct hitch .
Do not u se a bumper hitch .
The hitch must be installed in such a way that it
does not interfere with the impact -absorbing
bumper system . No mod ifications should be
made to the vehicle exhaust and b rake systems .
Fr om t ime to t ime, check that al l hitch mo un ting
bol ts rem ain securely fastened.
When you are not towing a trailer, remove the tra iler hi tch ba ll mount . This preven ts the hitch
from causing damage shou ld your vehicle be
struck from beh ind
C? _&. .
Tr ailer mod e
Trailer brakes
If your trai ler is equ ipped with a b raking system,
check to be sure that it conforms to a ll regu la ­
tions.
T he trai ler hydra ulic bra ke sys tem must not be
directly connected to the vehicle's hydra ulic
brake system.
Safety chains
Always use safety chains between your vehicle and the tra iler .
Tra iler lights
Trailer lights must meet all regulations. Be sure
to check w ith your Audi dealer for correct wir ing,
switches and relays .
Mirror s
If you are unable to see the traffic behind you us­
ing the regular outside mirrors, then you
must in­
stall extended mirrors . It is important that you
always have clear vision to the rear .
A WARNING ,~ -Afte r remov ing the tra ile r hitch, do not sto re
i t in you r vehicle. In case of sudden brak ing,
t he hitch could fly fo rward and inju re you or
your passengers.
Operating instruction s
Fig. 10 1 M MI displ ay: towing mode o n
Maximum tra iler weight
A trailer for your vehicle is lim ited to a typical
class 1 or class 2 trailer.
89

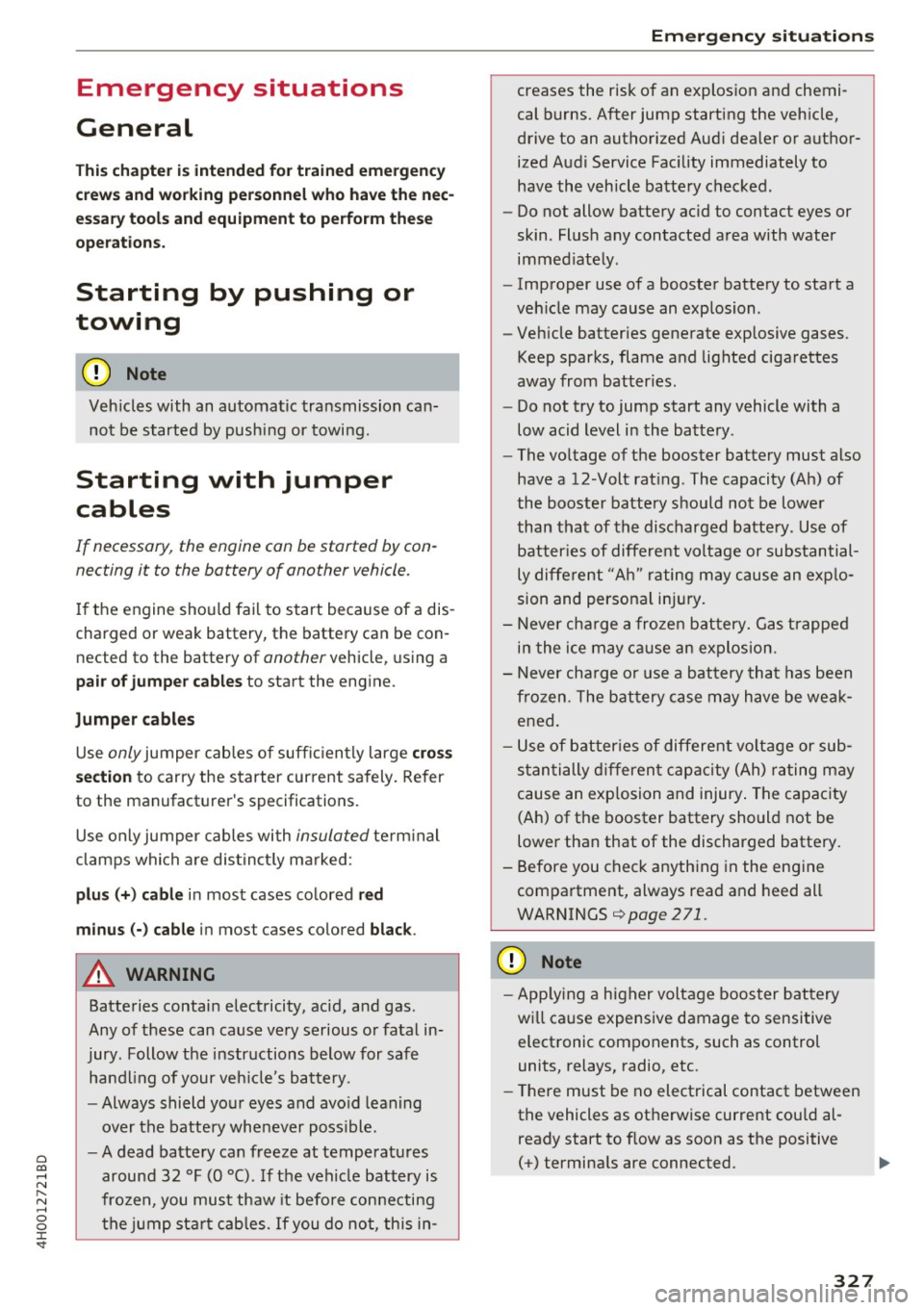

0 co .... N ,..... N .... 0 0 :c ' Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
ope rations.
Starting by pushing or
towing
CD Note
Veh icles with an automatic transmission can­
not be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
If the engine shou ld fail to start because of a dis ­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumpe r cables to start the engine.
Jumper cables
Use only jumper cables of suffic iently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated term inal
clamps which are dis tinct ly marked:
plus (+) cable in most cases colored re d
minus( -) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury. Follow the instructions below for safe
handling of your vehicle's battery.
- Always shield your eyes and avo id leaning
over the battery whenever poss ible.
- A dead battery can freeze at temperatures
around 32 °F (0 °C). If the vehicle battery is
frozen, you must thaw it before connecting
the jump start cab les. If you do not, this in-
Emergency situations
creases the risk of an explosion and chemi­
cal burns. After jump starting the vehicle,
drive to an authorized Aud i dealer or author­
ized Audi Service Facility immediately to
have the vehicle battery checked.
- Do not allow battery ac id to contact eyes or
skin . Flush any contacted area with water
immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion .
- Veh icle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batter ies.
- Do not try to jump start any vehicle with a
low acid level in the battery .
- The voltage of the booster battery must also
have a 12-Volt rat ing. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batter ies of different voltage or substantial­
ly different "Ah" rating may cause an exp lo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen . T he battery case may have be weak­
ened.
- Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an exp losion and injury . The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
qpage 271.
CD Note
-App lying a higher voltage booster battery
wi ll ca use expensive damage to sensitive
electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.
327
