2017 AUDI A6 check engine

co
co
.... N
" N .... 0 0 <.,;) 'SI"
@
Fire, sparks, open flame and smoking are
forb idden.
~
A highly explosive mixture of gases can
form when charging batteries.
®
Keep children away from battery acid and
batteries.
A WARNING
All work on the battery or electrical system in
your vehicle can result in injuries, chemical
burns, accidents or burns. Because of this, all
work must be performed
only by an author­
ized Aud i dealer or authorized Aud i Service
Facility.
A WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related acces­
sories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproduct ive problems.
Wash hands after handling.
(D Note
Protect the vehicle battery against freezing if
the vehicle will be parked for long periods of
time so that it is not destroyed by "freezing"
c:>page207.
@ For the sake of the environment
~ Batteries contain poll uting substances such
as sulfuric acid and lead. Contact an author­
ized Audi dealer or authorized Audi Service
Facility for more information.
Vehicle battery
The term "vehicle battery" refers to the 12 Volt
battery in your vehicle.
Not running the vehicle for long periods of
time
If you do not drive your vehicle for several days or
weeks, e lectrical equipment is gradually scaled
back or switched off. This reduces energy use and
ensures the veh icle will be able to start after long
periods of time
c:> page 124. Some convenience
Checking and Filling
functions, such as interior lighting or power seat
adjustment, may not be available under certa in
c ir cumstances. These convenience functions will
be available again once you switch the ignition on
and start the engine .
Even when electrical equipment is switched off,
the equipment can still dra in the vehicle battery
if the vehicle is not driven for long periods of
time . Deep draining results in a chemical reaction
that destroys the inside of the vehicle battery .
T he veh icle battery must be charged every month
to reduce the risk of this happening
c:> page 207 .
Contact an authorized Aud i dea ler or authorized
A udi Service Facility for more information .
Winter operation
Cold weather places higher demands on the vehi ­
cle battery . This results in reduced starting abili­
ty. Have the veh icle battery checked by an au­
thorized Audi dea ler or authorized Audi Service
Facility before the cold time of year.
Charging the vehicle battery
Fig. 186 En g in e compa rtment: co nnectors for a cha rge r
and ju mp start cables
Requirement: only use chargers with a maximum
charging voltage of 30 amps/14.8 Volts.
The
vehicle battery cables remain connected .
.,. Read the warnings
c:> &. in General warnings
about batteries on page 207
and ¢ &_ .
.,. Switch off the ignit ion and all electrical equ ip­
ment.
.,. Open the hood
c:> page 200.
"'Open the red cover on the pos itive terminal
c:> fig. 186 .
207

co
co
.... N
" N .... 0 0 <..:l ' inst rument cl uste r display eac h time t he ig ni­
t io n is switc hed on or
off . The rema ining dis­
tance or time is displayed br ie fly .
- Inspection or oil change due: if your vehicle
has reac hed an inspection o r oi l change interval
o r both intervals at the same time, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af ­
te r swi tching t he igni tion on/off .
Checking service intervals
You can check t he rema ining distance o r time un­
til the ne xt oil change o r next inspection i n the
Ca r menu. To do this, select: t he
IC A RI fu nction
b utton
> (Car) * Systems cont rol b utton > Service
& checks > Service intervals.
Resetting the indicator
Your author ized Audi dealer or author ized A udi
Service Faci lity will reset the service interval dis­
p lay after pe rforming service.
I f yo u h ave cha nged t he oi l you rsel f, you must re­
set t he oil change in terva l.
To reset the indic ator, se le ct : th e
ICAR I fu nct ion
bu tton
> (Car) * Systems con trol button > Service
& checks > Service intervals. Tur n t he control
k nob downward to
Reset oil change interval and
p ress the cont rol knob.
- Only reset the oil ch ange in dicato r if the oil
was c hanged .
- Fo llow in g th e service i nte rv a ls is critical to
mai ntai ning th e service life a nd value o f
you r vehicle, especia lly t he engine. Even i f
t h e m ileage on the vehicle is low, do not ex ­
c e ed th e tim e for the n ext serv ic e .
- Calcu latin g the t ime to the next o il chan ge
i s interrupted w hen the ve hicle battery is
discon nect ed
c:> page 235.
Checking and Filling
209

co
co
.... N
" N .... 0 0 <..:l ' @ Tips
The vehicle jack* in your vehicle is mainte­
nance-free.
Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a
wheel .
.,. After you experience a tire failure, pull the car
well away from moving traffic and try to reach
level ground before you stop¢,&. .
.,. All passengers should
leave the car and move
to a safe location (for instance, beh ind the
guardrail)¢ ,&..
.. Engage the
parking brake to prevent your vehi­
cle from rolling unintentionally ¢,&. .
.. Move
selector lever to position P ¢ ,&. .
.,. If you are towing a trailer, unhitch the trailer
from your vehicle.
.,. Take the
jack and the spare tire* out of the lug­
gage compartment c:> page 236.
A WARNING
You or your passengers could be inju red wh ile
changing a wheel if you do not follow these
safety precautions:
- If you have a flat tire, move a safe distance
off the road. Turn off the engine, turn the
emergency flashers on and use other warn ­
ing devices to alert other motorists .
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- T o help prevent the vehicle from moving
sudden ly and possibly slipping off the jack,
always fully set the parking brake and block
the wheel diagonally opposite the wheel be­ ing changed. When one front wheel is lifted
off the ground, plac ing the Automatic
Transmission in P (Park) will
not prevent the
vehicle from mov ing.
- Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack .
Emergency assistance
-Always store the vehicle too l kit, the jack
and the replaced tire in the luggage com­
partment
¢page 134.
@ Tips
Before changing the wheel, you must activate
the jacking mode, so that the automatic con ­
tro ls for the Adaptive Air Suspension* do not
make it more difficult to lift the vehicle with
the jack
c> page 239.
Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order .
l. Activate the vehicle jack mode* ¢ page 239 .
2. Remove the decorative wheel cover* or the
wheel bolt caps* . For more details see also
¢ page 238, Decorative wheel covers or
¢ page 238, Wheels with wheel bolt caps .
3. Loosen the wheel bolts¢ page 238 .
4. Locate the proper mounting point for the
jack and align the jack below that point
¢page 239.
5. Raise the car with the jack c> page 239 .
6. Remove the wheel with the flat tire and then
install
the spare ¢ page 241.
7. Tighten all wheel bolts lightly.
8.
Lower the vehicle with the jack .
9 . Use the wheel bolt wrench and
firmly tighten
all wheel bolts
c> page 238.
10. Replace the decorative wheel cover* or the
wheel bolt caps*.
11. Deactivate the vehicle jack mode* in the
MMI:
I CARI function button > ( Car)* systems
control button > Servicing & checks > Air
susp.: jack mode > Off.
The vehicle jack mode* switches off automatica l­
ly at speeds above 6 mph (10 km/h).
A WARNING
--
Always read and follow all WARNINGS and in­
formation
¢ .&. in Raising the vehicle on
page 240
and c> page 242 .
237

co
co
.... N

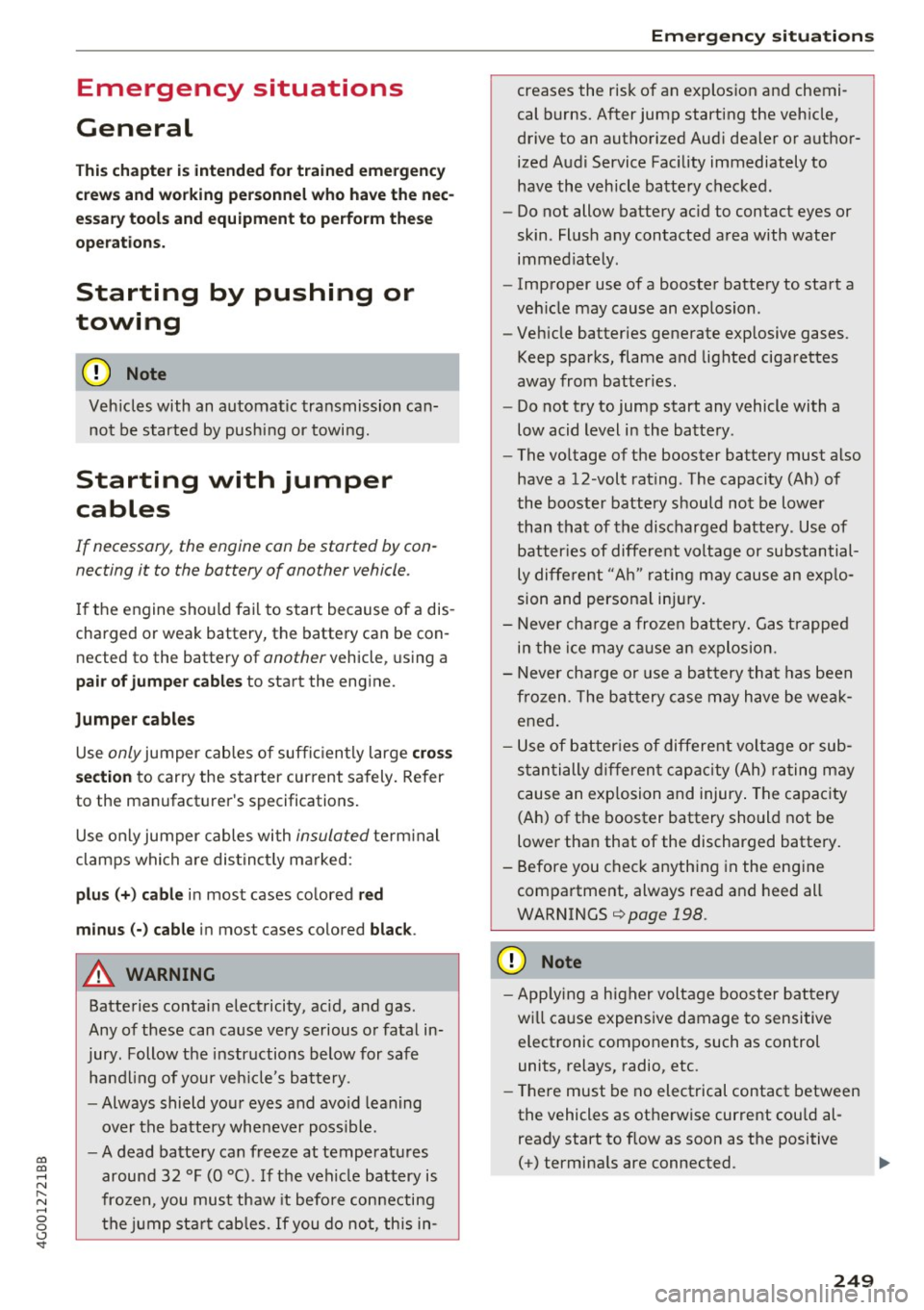

" N .... 0 0 <..:l ' Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
ope rations.
Starting by pushing or
towing
CD Note
Veh icles with an automatic transmission can­
not be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
If the engine shou ld fail to start because of a dis ­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumpe r cables to start the engine.
Jumper cables
Use only jumper cables of suffic iently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated term inal
clamps which are dis tinct ly marked:
plus (+) cable in most cases colored re d
minus( -) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury. Follow the instructions below for safe
handling of your vehicle's battery.
- Always shield your eyes and avo id leaning
over the battery whenever poss ible.
- A dead battery can freeze at temperatures
around 32 °F (0 °C). If the vehicle battery is
frozen, you must thaw it before connecting
the jump start cab les. If you do not, this in-
Emergency situations
creases the risk of an explosion and chemi­
cal burns. After jump starting the vehicle,
drive to an authorized Aud i dealer or author­
ized Audi Service Facility immediately to
have the vehicle battery checked.
- Do not allow battery ac id to contact eyes or
skin . Flush any contacted area with water
immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion .
- Veh icle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batter ies.
- Do not try to jump start any vehicle with a
low acid level in the battery .
- The voltage of the booster battery must also
have a 12-volt rat ing . The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batter ies of different voltage or substantial­
ly different "Ah" rating may cause an exp lo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen . T he battery case may have be weak­
ened.
- Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an exp losion and injury . The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
qpage 198.
CD Note
-App lying a higher voltage booster battery
wi ll ca use expensive damage to sensitive
electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.
249

-Before you check anything in the engine
compartment, always read and heed all
WARNINGS
o page 198.
(D Note
Improper hook-up of jumper cables can ruin
the generator.
-Always connect POSITIVE( +) to POSITIVE
(+), and NEGATIVE(-) to NEGATIVE(-)
ground post of the battery manager control
unit.
- Check that all screw plugs on the battery
cells are screwed in firmly. If not, t ighten
plugs prior to connecting clamp on negative
battery terminal.
- Please note that the procedure for connect­
ing a jumper cable as described above ap­
plies specifically to the case of your vehicle
being jump started. When you are giv ing a
ju mp start to another vehicle, do
not con­
ne ct the negative( -) cab le to the negative
(-) terminal on the discharged ba ttery @
o fig. 209. Instead, securely connec t the
negative (-) cable to either a solid metal
component that is firm ly bolted to the en­
gine block or to the engine block itself. If
the battery that is be ing charged does not
vent to the outs ide, escaping battery gas
could ignite and explode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The following information is to be used by com­
mercial tow truck operators who know how to op­
erate the ir equipment safely.
-Never tow your Audi. Towing will cause dam­
age to the engine and transmission .
- Never wrap the safety chains or winch cables
around the brake lines.
- To prevent unnecessary damage, your Audi
must be transported with a flat bed truck .
co
co -To load the vehicle on to the flat bed, use the ....
~ towing loop found in the vehicle tools and at-N .... 0 0 <.,;) 'SI"
Emergency situations
tach to the front or rear anchorage
opage251 and opage252.
.&_ WARNING
-
A vehicle being towed is not safe for passen-
gers. Never allow anyone to ride in a vehicle
being towed, for any reason.
Front towing loop
Fig. 210 Front bumper: cover
Fig. 211 Front bu mper: insta lling t he towing loop
The threaded open ing for the towing loop is lo­
cated behind a cover on the right side of the front
bumper .
.,. Remove the towing loop from the vehicle too l
kit
c:::, page 236.
.,. Press the cap inward with brief, forceful pres ­
sure
o fig. 210 . The cap will loosen from the
bumper.
., Tighten the towing loop in the threaded open­
ing until it stops
r:';> fig. 211 and then tighten it
w ith a wheel wrench .
.,. After usi ng, p lace the towing loop back in the
veh icle tool kit . "'
251

co
co
.... N
" N .... 0 0 <.,;) 'SI"
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only b e li~ ed at the lifting
points illustra ted.
F ig. 215 Front lift ing po int
F ig. 216 Rea r lift ing po int
.,. Read and heed WARNING c:> &_ .
.. Activate the vehicle jack mode* in the MMI:
I CAR I funct ion button> (Car) * systems contro l
button >
Servicing & checks > Air susp.: jack
mode > On .
.. Loca te lift ing po ints c:> fig . 215 and c:> fig . 216 .
.. Adju st lifting arms of wo rkshop ho ist o r floo r
j ac k t o ma tch vehicl e lifting poin ts.
.. In se rt a rub ber pa d between the f loor jack/
wor kshop hoist a nd the lifting points .
T he vehicle ja ck mode* mus t be activa ted so th at
the au tomatic a djustment of the Adaptive Air
Suspension * does not make it more d ifficult to
raise the ve hicle w it h the floo r jack.
If you must lift your vehicle with a floor jack to
work underneath , be sure the vehicle is safely
supported on stands intended for this purpose .
Emergency situations
Front lifting point
The li fting poin t is lo cate d on the floor p an rein ­
f orceme nt ab out at the same level as the ja ck
mounting point
c:> fig . 215 . Do not lift the vehi­
cle at the vertical sill reinforcement.
Rear lifting point
T he lifting point is lo cated on the ver tic al rein ­
f orcement o f the lower s ill for the on- bo ar d jac k
<=>fig. 216.
Lifting with vehicle jack
Refer to c:> pag e 239 .
A WARNING
- To reduce the r is k of se rious inju ry and vehi ­
cle damag e.
- Always lift the vehicle on ly at the special
workshop h oist a nd floor jack lift points
il ­
lustrated c:>fig. 215 and c:>fig. 216.
-Failure to lift t he veh icle at these points
could cause t he veh icle to tilt o r fall from
a lift i f th ere is a change in vehicle weight
dist ribution and balance . This might hap­
pen, fo r example, when heavy compo­
n en ts such as the eng ine block o r tran s­
mis sio n a re re moved .
- Whe n re mov ing heavy co m ponents like
these, an ch or vehicle t o hois t or ad d co rre­
spon ding weig hts t o m aintai n the cen ter of
g ravi ty . Ot herw ise, the vehicle mig ht tilt or
slip off t he hoist, caus ing se rious pe rsonal
i njur y .
(D Note
-Be aw are of the fo llow ing points b efor e lift­
ing the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points . .,.
253

co
co
.... N
" N .... 0 0 <.,;) 'SI'
Technical data
Vehicle specifications
F ig. 2 17 W indshield (front left) : Ve hicl e Iden tificat ion
N umber ( VIN)
XXXXX XX -X -XXXX XXX XX
CD+ ~t :1:: xxxxxxxx xx x xxxxxxxx
TVP/fffl XXX XXX
XX XXXXXXX XX X X XX
XXX
KW XXX
®i ~:J ·f lfils~~ XXXX XXX XXX
®-+ ~N:a=i~ l xxxx ; xxxx xxx ; xx
11. • AUSS, I OPTIONS
E0A
7D5 4UB 6XM 5SG 5RW
2EH J0Z lLB l
A S lB A
3FC SMU 7Xl
F0A 9G3 0G7 0YH 0JF
TL6 3KA 8EH Ul A X98 QZ7
lX W 803 908 824 020
7T6 CV7 7K0 4X3 2K2
3L4
4KC 3 Y0 413
502
lSA 7GB 01A 4G0
XX. X XX X XX X xxxx
Fig. 218 Vehi cle identifica tion la b el
Vehicle Identification Number (VIN)
The VIN number is located in the following pla­
ces :
- In the Infotainment system : select: the
!CARI
function button > (Car) * systems control but­
ton
> Serve & checks> VIN number .
-on the vehicle identification label
- under the windshield on the driver's side*
Technical data
Vehicle identification label
The vehicle identification label ¢ fig. 218 is locat ­
ed in the luggage compartment under the cargo
floor cover .
T he information of the vehicle identification label
can also be found in your Warranty
& Mainte­
nance booklet.
The sticker contains the follow ing vehicle data:
(D Vehicle Iden tification Number (V IN)
@ Vehicle type, eng ine output , transm ission
@ Eng ine and transmission codes
@ Paint and interior codes
® Optional equipment numbers
Safety compliance sticker
The safety compliance sticker is your assurance
that your new vehicle complies w ith all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu­
factured. You can find this sticker on the door
jamb on the driver 's side. It shows the month and
year of production and the vehicle identification number of your vehicle (perforation) as well as
the G ross Vehicle Weight Rating (GVWR) and the
Gross Axle Weight Rating (GAWR).
High voltage warning label
The high voltage warn ing label is located in the
engine compartment next to the engine hood re­
lease. The spark ignition system complies with
the Canadian standard ICES-002.
Notes about technical
data
The values may differ for some markets depend­
ing on eq uipment installed in certain markets
and the measur ing methods.
Please note that the specifications listed in the
vehicle documentation always take precedence .
@ Tips
Missing technical data was not available at
the time of printing .
255

Consumer information
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can
perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems .
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty.
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for
upholding a possible warranty claim made within
the warranty period.
Above all, operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly
equ ipped and qualified workshop. We strongly
urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­
nance and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly.
Performing limited maintenance yourself
The following pages describe a limited number of procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­
ly follow the instructions given. Always rigorously
observe the
WARNINGS provided.
Before you check anything in the engine com­
partment, always read and heed all WARNINGS
c> & and c> & in Working in the engine compart­
ment on page 198.
260
A WARNING
-
-Serious personal injury may occur as a result
of improperly performed maintenance, ad­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­
cle is a potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off. The radiator fan switches on au­
tomatically when the coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle.
- Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
Jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the park brake is applied. ..,
