2017 AUDI A3 SEDAN oil level

Cockpit overv iew
driving conditions. The engine oil temperature
may be higher if there is heavy engine load and
h igh temperatures outside . Th is is not a ca use for
concern as long as
the .¢ page 29 or El
¢ page 32 indicator lights do not turn on.
Boost ind icator
Ap plies to: ve hicles w ith Audi virtual cockpit
The boost indicator is only shown in the expand­
ed view or in the sport view*
c:::> page 15 .
The current engine load (meaning the current
boost pressure) is indicated by a bar .
Tachometer
The tachometer displays the engine speed in rev­
olutions per minute (RPM) .
The beginning of the red zone in the tachometer
indicates the maximum pe rm iss ible engine speed
for all gears once the engine has been broken in and when it is wa rmed up to ope rating tempera­
ture. Before reaching the red zone, yo u should
shift in to the next higher gear, choose the Do r S
selector leve r posit ion, or remove your foot from
the accelerator peda l.
Applies to: vehicles with plug- in hybrid drive
D epending on t he vehi cle eq uipment, there are
d ifferent disp lay formats
a vai lable¢ page 97.
CD Note
The needle in the tachometer @
¢ page 10,
fig. 4
o r c:::> page 10, fig. 3 may only be in the
red area of the ga uge fo r a short time o r there
is a risk of engi ne damage . The location where
the red zone beg ins varies depending on the
eng ine.
@ For the sake of the environment
Upshifting early helps you to save fuel and re ­
duces operating noise.
Fuel level
The
display ®¢ page 10, fig. 4 or¢ page 10,
fig. 3
only functions when the ign ition is switch­
ed on . When the display has reached the reserve
12
mark, a red LED appears and the t'D ind icator
li ght turns on
c:::> page 32. The LED blinks red
when the fuel level is very low.
Fo r the tank capacity i n your veh icle, refer to the
Technical Data
c:::> page 375.
CD Note
Neve r drive until the tank is comp letely emp­
ty. The irreg ular supply of fuel t hat res ults
from that can cause engine misfires . Un com ­
b usted fue l wi ll then enter the exhaust sys­
tem . This can cause overheating and damage
to the catalyt ic converter.
Odometer
F ig . 5 Instrument cluster: odometer
Trip odometer and odometer
The trip odometer shows the dis tance driven
since it was last reset. It can be used to measure
sho rt d ista nces.
The trip odometer ca n be reset to zero by p ress­
ing the reset b utton ©
c:::> page 10, fig . 4 or
c:::> page 10, fig. 3.
The odometer shows the total distance that the
vehicle has been driven.
Malfunction indicator
If there is a malfunction in the instrument clus­
ter,
DEF will appear in the trip odome ter disp lay.
Have the malfu nction corrected as soon as possi­
ble.
Outside temperature display
If your vehicle is stationary or if you are driv ing at
very low speeds, t he temperature d isplayed may
.,.

A WARNING 1=
- Never open the hood if you can see or hear
steam or coolant escap ing from the engine
compartment. This increases the risk of
burns . Wa it until you no longer see or hea r
steam o r coolant escap ing .
- The e ngine compartment in any veh icle can
be a dangerous area. Stop the eng ine and
allow it to cool before wo rking in the engine
c ompar tment. A lways fo llow the informa­
t ion found in
r=:> page 316, Working in the
engine comportment .
(D Note
Do not co nti nu e d riving if t he . ind icator
light t urns o n as this increases the risk of en­
gine damage .
~ Engine oil pressure
• Switch off engine! Oil pre ssure too low
Stop the eng ine and do not continue driving.
Check the engine oil leve l r=:> page 321.
-If the engine oil level is too low, add engine o il
r=:> page 319. Only cont inue dr iv ing o nce the in­
dicato r light turn s off.
- If the engine oil level is correct and the indica­
tor light st ill tur ns on, turn the eng ine off and
do not con tinue driving. See an a utho rized Aud i
dealer or author ized A udi Service Facility for as ­
sistance .
(D Tips
The oil pressure w arning is not an o il level in­
dicator. Always check the oil level regu la rly.
0 Generator/Vehicle battery
• Ele ctrical system: malfunction! B atter y is
not being charged
There is a malfunction in the alternator or the ve­
h icle electrical system .
cc Drive to an authorized Aud i dea le r or a uthorized CXl
~ Aud i Service Fac ility immediately . Tur n off all u n-
~ necessary electr ica l equipment because it w ill 0
~ drain the battery. See an authorized Audi dealer 00
Cockpit o ve rv iew
or authorized Audi Service Facility if the battery
charge level is too low.
(•] Electri cal sy stem: malfun ction! Re start not
po ssible. Plea se cont act Servi ce
T he vehicle battery was disconnected from the
vehicle e lectr ica l system and will no longer
c h arge. Dr ive to an a uthorized Aud i dea ler or au­
thorized Audi Serv ice Facili ty immedia tely.
Do not stop t he eng ine, o r you w ill not be ab le to
sta rt it again.
If you can no longer start the en­
gine, see an a uth o rized Aud i dea ler or authori zed
A udi Service Facility for assis tance .
(•j Electrical system: malfunction! Plea se con­
tac t Service
Drive to an authorized Audi dealer or authorized
Audi Se rvice Facility immed iately. Because the ve­
hicle battery is discharging, tu rn off a ll unneces­
sa ry elect rical eq uipment such as the rad io. See
an a uth orized Aud i dea le r or a uth orized Aud i
Service Facility if the batte ry charge leve l is too
l ow .
(•] Electrical system: low battery charge . Bat­
tery will be charged while driving
T he starting ab ility may be impa ired .
If this message t urns off after a little whi le, the
vehicle battery charged enough while driving.
If the message does not turn off, have an author ­
ized Audi dea ler or authorized Audi Service Facili ­
ty repair the malfunction .
!f Safety systems
The fll indicator light monitors the safety sys­
tems .
If the
fll ind icator light turns on or blinks, there
is a ma lfunction in a safety system .
Drive to an authorized A udi dealer or authorized
Audi Se rvice Facility immediate ly to have the
malfunction corrected.
.,,.
29

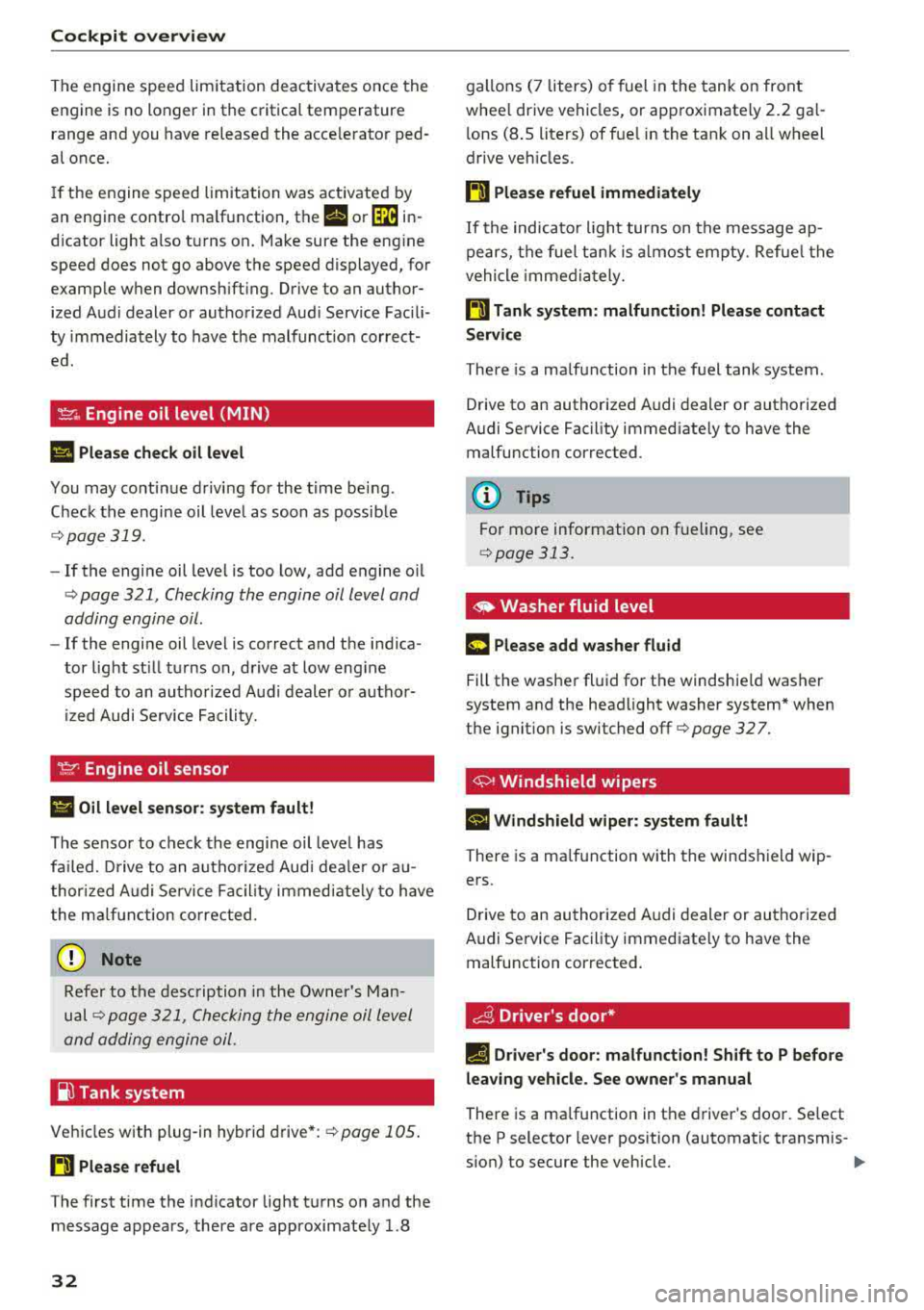

Cockpit over view
The engine speed limitation deactivates once the
engine is no longer in the critica l temperature
range and you have released the acce lerator ped ­
al once.
If the engine speed limitation was activated by
an engine contro l ma lfunction, the
II or Im in­
d icator light a lso t urns on . Make sure the eng ine
speed does not go above the speed displayed, for
examp le when downsh ift ing. Drive to an author­
ized A udi dealer or authorized Aud i Service Facili ­
ty immediately to have the malfunct ion correct­
ed.
'l::cr., Engine oil level (MIN)
II Plea se che ck oil level
You may continue driving for the t ime being .
Check the engine oil leve l as soon as possib le
¢ page 319.
- If the engine oil level is too low, add engine o il
¢ page 321 , Checking the engine oil level and
adding engine
oil.
- If the engine oil level is correct and the indica ­
tor light st ill turns on , drive at low eng ine
speed to an autho rized Aud i dealer o r autho r­
ized Audi Service Facility.
~ Engine oil sensor
II Oil l evel sen sor : system fault!
The sensor to check the engine oil leve l has
fa iled. Drive to an autho rized Aud i dea le r o r a u­
thor ized Audi Se rvice Fac il ity immediate ly to have
the m alfu nction co rrected.
(D Note
Refer to the desc ription in the Owner 's Man­
ual ¢ page 3 21, Checking the engine oil level
and adding engine
oil.
io Tank system
Ve hicles with plug -in hybrid drive* : ¢page 105 .
H Please r efuel
The first time the indicator light turns on and the
message appears, there a re approximately 1.8
32
gallons (7 liters) o f fuel in the tank on front
whee l drive vehicl es, or approximate ly
2.2 ga l­
l ons
(8 .5 liters) of fue l in the tank on a ll w heel
drive veh icles.
H Please refuel immediately
If the indicato r light turns on the message ap­
pe ars, the fuel tan k is a lmost empty. Refue l the
vehicle immed ia tely.
H Tank system: malfunction! Plea se contact
Servi ce
T here is a ma lfunction in the f uel tank system .
Drive to an authorized A udi deal er or authorized
Audi Se rvice Facility immed iate ly to have the
malfunction corrected .
(D Tips
For more information on fue ling, see
¢ page 313.
~ Washer fluid level
m Please add washer fluid
Fill the washe r fl uid fo r the windshie ld washer
system and the head light washer system* when
the ignit ion is switched off
¢ page 327.
'+>' Windshield wipers
a 111/indshield wiper: system fault!
Ther e is a ma lf u nction with the winds hield wip­
ers.
Drive to an authorized A udi dealer or authorized
Audi Service Facility immediate ly to have the
malfunction corrected.
~ Driver's door*
fl Driver 's door: malfunction ! Sh ift to P before
leav ing veh icle. See owner's manual
There is a ma lfunction in the driver's door. Se lect
the P selector lever position (automatic transmis-
s ion) to secure the vehicle.
..,.

Child safety lock
App lies to: ve hicles wit h m echan ica l ch ild sa fety locks
The child safety lock prevents the rear doors
from being opened from the inside and the rear
power windows from be operated.
F ig. 31 Section of d river's door: co ntro ls
Fi g. 32 Rear door: c hild safety lock
Vehicles with button I@
0 N M 0 ::, a, !D
~ To deact ivate/ac tivate the powe r wi ndow
switch in the rea r doo rs, p ress
t h e~ bu tton in
the d rive r's
doo r¢ fig. 31. The in dica to r li ght in
the button turns on/blinks.
~ To a lso deactivate/activate the i nner door han ­
dle, open the respective rear door and t urn the
key switch w ith the vehicle key in the direction
of the arrow or the opposite direction of the ar­
row¢
fig. 32 .
Message in the instrument cluster di splay
181 Childproof catch: malfunction! Please con­
tact Se rvice
There is a malfunction in the child safety lock .
Press
the@ but ton again.
gi If the message stays on, d rive immed ia te ly to an
;::: a uthor ized Audi de aler or author ized A udi Se rvice
" ~ F aci lity to have the malfunc tion repa ired. 0 N > 00
Open ing and closing
A WARNING
--
- Always take the ve hicle key with yo u when
leav ing the veh icle, even for a sho rt period
of t ime. This applies part icularly when chil­
d ren remain in the vehi cle. Otherw is e chil­
d re n co uld s tar t th e eng ine o r opera te ele c­
t ric al equipment (such as power windows),
whi ch in cr ease s the risk of an a ccident .
- A m alfu nction in the ch ild saf ety lock cou ld
al low t he re a r doors to be ope ned fr om the
i n si de, which incre ases the risk of an acci­
dent .
Power windows
Controls
The driver con control oil power windows .
Fig. 3 3 Dr ive r's door: power w indow contro ls
All powe r win dow swi tc h es a re equipped with a
two-stage fu nction:
Opening and closing the w indows
It> N
8 ::, a, !D
~ To open o r close the window comp letely, press
the switch down or pull the switch up briefly to
the second level. The operat ion will s top if the
sw itch is p ressed/pulled again.
~ To sele ct a pos it io n in between opened and
close d, press/p ull the swi tch t o the first level
until t he des ired w indow pos ition is reache d.
Power window switches
CD Left front
@ Right front
® Left rear*
© Right re ar *
41

Checking and Filling
front of the engine compartment¢ page 319,
fig.271.
Audi recommends
~ castroL //g/:fl;[ff}g f'rf!J7.f'"«JD,'1A1.
Audi recommends Longlife high performance
engine oil from Audi Genuine Parts
Using the proper engine oil is important for the
functionality and s ervice life of the engine. Your
engine was factory-filled with a high -quality oil
which can usually be used throughout the entire
year .
(D Note
Your Limited New Vehicle Warranty does not
cover damage or malfunctions due to failure
to follow recommended maintenance and use
requirements as set forth in the Audi Owner's
Manual and Warranty
& Maintenance booklet .
-Use only a high quality engine oil that ex-
pressly complies with the Audi oil quality
standard specified for your vehicle's engine .
Using any other oil can cause serious engine
damage.
-Do not mix any lubricants or other additives
into the engine oil. Doing so can cause en­
gine damage.
(D Tips
If you need to add oil and there is none availa­
ble that meets the Audi oil quality standard
your engine requires, you may add a total of
no more than 0.5 qt (0.5 l) of a high-quality
"synthetic"oil that meets the following speci­
fications.
-ACEA A3 or API SM with a viscosity grade of
SAE 0W-30, SAE 5W-30 or SAE 5W-40.
-For more information about engine oil that
has been approved for your vehicle, please
contact either your authorized Audi dealer
or Audi Customer Relations at 1 (800) 822-2834 or visit our web site at
www .audiusa.com or www .audicanada.ca .
320
· Engine oil consumption
T he engine in your vehicle depends on on ade­
quate amount of oil to lubricate and cool oil of
its moving ports .
In order to provide effective lubrication and cool­
ing of internal engine components, all internal
combustion engines consume a certain amount
of oil. Oil consumption varies from engine to en­ gine and may change significantly over the life of
the engine . Typically, engines with a specified
break-in period
(see ¢ page 74) consume more
oil during the break-in period than they consume
after oil consumption has stabilized.
Under normal conditions, the rate of oil con­
sumption depends on the quality and viscosity of
the oil , the RPM (revolutions per minute) at
which the engine is operated, the ambient tem­ perature and road conditions. Further factors are
the amount of oil dilution from water condensa­
tion or fuel residue and the oxidation level of the
oil. As any engine is subject to wear as mileage
builds up, the oil consumption may increase over
ti me until replacement of worn components may
become necessary.
With all these variables coming into play, no standard rate of oil consumption can be estab­
lished or specified . There is no alternative to reg­
ular and frequent checking of the oil level , see
Note.
If the yellow engine oil level warning symbol II
in the instrument cluster lights up, you should
check the oil level as soon as possible
¢ page 321. Top off the oil at your earliest con­
venience
¢ page 321.
A WARNING
Before you check anything in the engine com­
partment, always read and heed all WARN­
INGS
¢ page 316.
(D Note
Driving with an insufficient oil level is likely to
cause severe damage to the engine.
IJII,

a, a, ..... N
" N ..... 0 N > 00
@ Tips
- The oil pre ssure w arning display. i s not
an indicator of the oil level. Do not rel y on
it. Instead , check the oil level in your en­
gine at regular inte rval s, preferably each
t ime you refuel , and alway s befo re going
on a long trip.
- If you have the impression your engine con­
sumes excessive amounts of oil, we recom­
mend that you cons ult an autho rized Aud i
dealer to have the cause of your concern
properly d iagnosed . Keep in mind that the
accurate measurement of oil consump tion
requi res great care and may take some
time. An a uthorized Audi dea ler has instruc ­
tions about how to measure oil consump ­
tion accurately .
Checking the engine oil level and adding
engine oil
The engine oil dips tick varies depending on the
engine type .
Fig. 272 Oil dipst ic k: checking t he e ngin e oi l leve l (exa m­
p le)
F ig. 273 Engine co mpartment : engin e o il fil ling opening
cover (examp le )
I
>
"' IX)
Checking and Filling
Observe the safety precautions ¢ page 316,
Working in the engine compartment.
C hecking the engine oil level
- Park the vehicle o n a level su rface .
- Shut the eng ine off when it is warm . Wait ap-
proximate ly two minutes so tha t the eng ine oil
can flow back into the oil pan .
- Open the hood
¢ page 318 .
-Remove the oil d ipst ick ¢ page 319, fig . 271,
w ipe it off w ith a clean cloth and insert it all the
way in aga in .
- Remove the oil d ipst ick again and then read the
oil leve l ¢
table on page 321 .
- Add engine oil if necessary .
Areas o n the o il
d ipstick ¢ fig. 272.
CD If the engine oil level is just before the
marking
(D , then eng ine oil must be added .
See
¢ (I).
@ Do not add engine oil.
Adding engine oil
-Unscrew the cap "I=:?: ¢ fig . 2 7 3 for the eng ine
oil fill ing opening
¢ page 319, fig. 271.
-Carefully add 0 .5 quart (0.5 lite r) of the co rrect
oil
¢ pag e 319.
-Check the oil level aga in after two minutes .
- Add a smaller amo unt of engine oil if necessa-
ry. The
mar king@ ¢fig. 272 mus t not be ex­
ceeded
¢ (I).
-Screw the eng ine oi l filler cap 'l=:71 and s lide the
d ipstick a ll the way in .
_& WARNING
-When adding eng ine oi l, do not let oil d rip
onto hot engine components. This increases
the risk of a fire.
-You must sea l the cap on the oil filler open­
ing correct ly so that oi l does not leak out
onto the hot engine and exhaust system
when the engine is running, beca use this is
a fire hazard.
- Always clean skin thoroughly if it comes into
contact with eng ine oil.
,..
321

Checking and Filling
CJ) Note
-The engine oil level must not be under the
marking
(D r=> fig. 272, because this increas­
es the risk of engine damage.
- After adding engine oil, the oil level must
not be above the marking
@ c:> fig . 2 72, be­
cause this increases the risk of catalytic con­
verter and/or engine damage. Do not start
the engine. Contact an authorized Audi
dealer or authorized Audi Service Facility to
have excess engine oil extracted if necessa­
ry .
- Do not mix any additional lubricants into
the engine oil. Damage caused by such addi­
tives is not covered by the warranty .
@ For the sake of the environment
-Engine oil should never enter the sewer sys­
tem or come into contact with the ground under any circumstances.
- Pay attention to legal requirements when
disposing of empty oil containers.
@ Tips
The engine oil consumption may be up to
0 .S quart/600 miles (0.5 liter/1,000 km), de­
pending on driving style and operating condi­
tions. Consumption may be higher during the
first 3,000 miles (5,000 km). The engine oil
level must be checked regularly. It would be
best to check each time you refuel your vehi­
cle and before long drives.
Changing the engine oil
We recommend that hove your oil changed by on
authorized Audi d eal er or o qualified s ervice sta­
tion.
Before you check anything in the engine compart­
m ent,
always read and heed all WARNINGS
r=> page 316.
The engine oil must be changed according to the
intervals specified in your Warranty
& Mainte­
nance bookl et. This is very important b ecause the
lubric ating properties of oil diminish gradually
during normal vehicle use.
322
Under some circumstances the engine oil should
be changed more frequently. Chang e oil more of­
ten if you drive mostly short distances, operate
the vehicle in dusty areas or under predominantly
stop-and-go traffic conditions, or have your vehi­
cle where temperatures remain below freezing
for extended periods .
Detergent additives in the oil will make fresh oil
look dark after the engine has been running for a
short time . This is normal and is not a reason to
change the oil more often than recommended.
Because of the problem of proper disposal, along
with the special tools and necessary expertise re­
quired, we strongly recommend that you have
your oil changed by an authorized
Audi dealer or
a qualified service station .
If you choose to change your oil yourself, please
note the following important information :
,&. WARNING
To reduce the risk of personal injury if you
must change the engine oil in your vehicle
yourself:
- Wear eye protection.
- To reduce the risk of burns from hot engine
oil , let the engine cool down to the touch.
- When removing the oil drain plug with your
fingers, stay as far away as possible . Always
keep your forearm parallel to the ground to
help prevent hot oil from running down your
arm.
- Drain the oil into a container designed for
this purpose, one large enough to hold at
least the total amount of oil in your engine.
- Engine oil is poisonous . Keep it well out of
the reach of children.
- Continuous contact with used engine oil is
harmful to your skin . Always protect your
skin by washing oil off thoroughly with soap
and water .
0 Note
Never mix oil additives with your engine oil.
These additives can damage your engine and
adversely affect your Audi Limited New Vehi­
cle Warranty .

a, a, ..... N
" N ..... 0 N > 00
@ For the sake of the environment
-Before changing your oil, first make sure
you know where yo u can properly dispose of
the used oil.
- Always dispose of used engine oil prope rly .
Do not dump it on garden soil, wooded
areas, into open streams or down sewage
drains.
- Recycle used engine oil by taking it to a used engine oil collection facility in your area, or
contact a serv ice stat ion.
Cooling system
Coolant
The engine coo ling system is filled with a mixture
of purified water and coolant additive at the fac­
tory. This coo lant must not be not changed.
The coolant leve l is monitored through
the . in­
d icator
light ¢ page 28. However, we do recom­
mend occasionally checking the coo lant level
manually.
I f you m ust add coolant, use a m ixture of water
and coolant addit ive. Mixing the coolant additive
with distilled water is recommended.
Coolant additive
The coolant addi tive is made of anti-freezing and
cor ros ion pro tection agents. Only use the follow­
ing coolant additives . These additives may be
mixed with each other.
Coolant additive Specification
G13 TL 774 J
G12++ TL 774 G
The amount of coo lant additive that needs to be
mixed with water depends on the climate where
the vehicle will be operated .
If the coolant addi­
tive percentage is too low, the coolan t can freeze
and damage the engine.
Checking and Filling
Coolant Freeze protec-
additive tion
Warm regions min.40% min. -13 °F
max. 45% (-25 °()
Cold reg
ions min. 50% max. -40 °F
max . 55 % (-40
°()
(D Note
-
Before the start of winter, have an a uthor ­
ized Aud i dea ler o r authorized Audi Serv ice
Facility check if the coo lant additive in your
vehicle matches the percentage appropriate
for the climate. This is especially important
when driving in colder climates.
- If the appropriate coo lant additive is not
available in an emergency, do not add any
other additive. You could damage the en­
gine . If this happens, on ly use water and re­
store the correct mix tu re ratio with the
specified coolant add it ive as soon as poss i­
ble.
- Only refill w ith new coolant.
- Radiator sealant must not be mixed with
the coolant .
Adding coolant
Fig. 27 4 En g in e compa rtment: ma rkings on the coolant
expansion tank
Observe the safety precautions ¢ page 316,
Working in the engine compartment.
Checking the engin e coolant level
.. Park the vehicle on a level su rface .
.. Switch t he ignit ion off.
.. Read the coolant level on the coolant expans ion
tank ¢ fig. 2 74. The coolant leve l must be be -
tween the ma rkings when the engine in cold .
..,
323
