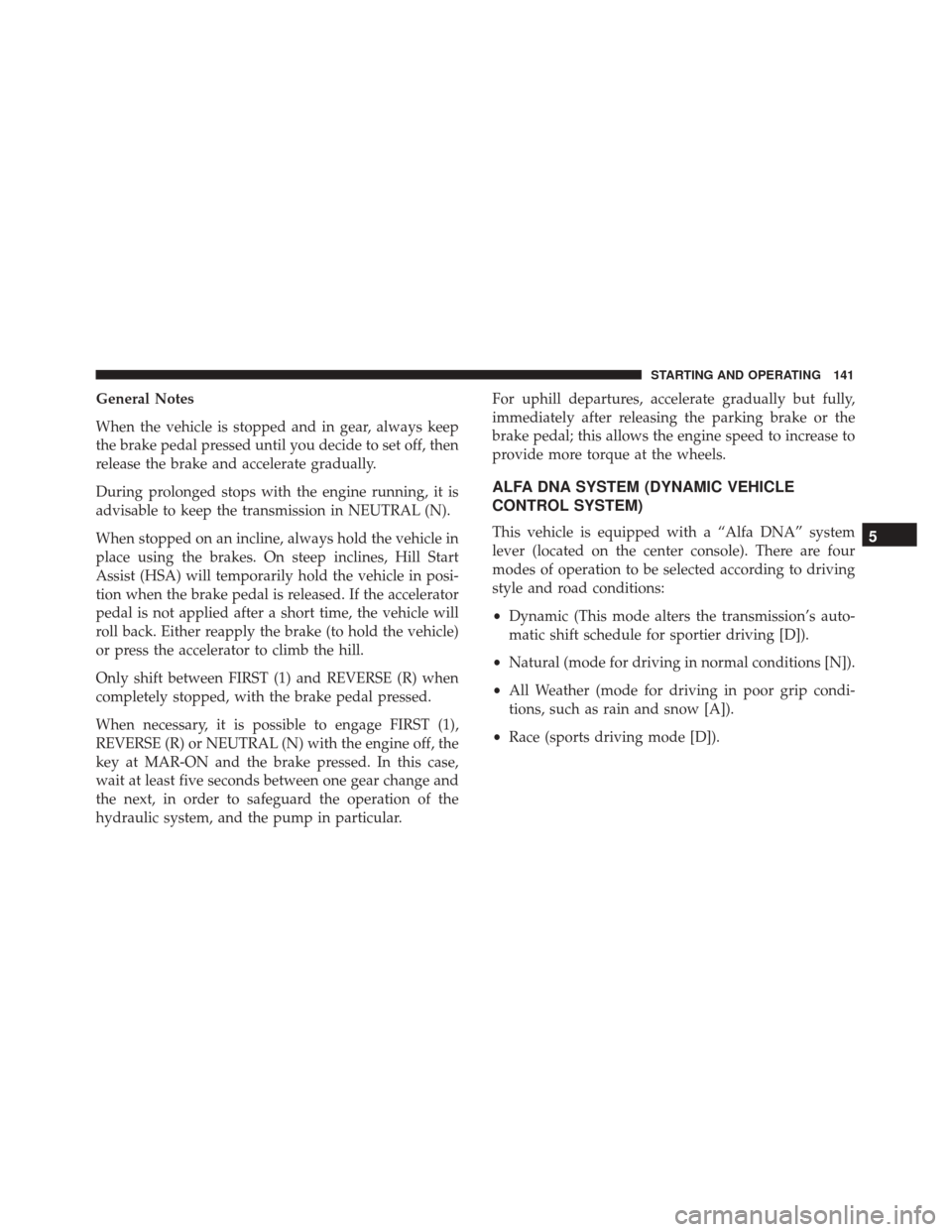

General Notes
When the vehicle is stopped and in gear, always keep
the brake pedal pressed until you decide to set off, then
release the brake and accelerate gradually.
During prolonged stops with the engine running, it is
advisable to keep the transmission in NEUTRAL (N).
When stopped on an incline, always hold the vehicle in
place using the brakes. On steep inclines, Hill Start
Assist (HSA) will temporarily hold the vehicle in posi-
tion when the brake pedal is released. If the accelerator
pedal is not applied after a short time, the vehicle will
roll back. Either reapply the brake (to hold the vehicle)
or press the accelerator to climb the hill.
Only shift between FIRST (1) and REVERSE (R) when
completely stopped, with the brake pedal pressed.
When necessary, it is possible to engage FIRST (1),
REVERSE (R) or NEUTRAL (N) with the engine off, the
key at MAR-ON and the brake pressed. In this case,
wait at least five seconds between one gear change and
the next, in order to safeguard the operation of the
hydraulic system, and the pump in particular.For uphill departures, accelerate gradually but fully,
immediately after releasing the parking brake or the
brake pedal; this allows the engine speed to increase to
provide more torque at the wheels.
ALFA DNA SYSTEM (DYNAMIC VEHICLE
CONTROL SYSTEM)
This vehicle is equipped with a “Alfa DNA” system
lever (located on the center console). There are four
modes of operation to be selected according to driving
style and road conditions:
•
Dynamic (This mode alters the transmission’s auto-
matic shift schedule for sportier driving [D]).
• Natural (mode for driving in normal conditions [N]).
• All Weather (mode for driving in poor grip condi-
tions, such as rain and snow [A]).
• Race (sports driving mode [D]).5
STARTING AND OPERATING 141

When the parking brake is applied with the ignition
switch in the MAR (ACC/ON/RUN) position, the
Brake Warning Light in the instrument cluster will
illuminate.
When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. The parking brake
should always be applied whenever the driver is not in
the vehicle.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the key fob in or near the vehicle or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and a collision.
• Always fully apply the parking brake when leav-
ing your vehicle, or it may roll and cause damage
or injury. Also be certain to leave a manual
transmission in REVERSE or FIRST gear. Failure
to do so may allow the vehicle to roll and cause
damage or injury.
Parking Brake Lever
5
STARTING AND OPERATING 149

NOTE:It is particularly important for you to check the
tire pressure in all of the tires on your vehicle regularly
and to maintain the proper pressure.
The TPMS consists of the following components:
• Receiver Module.
• Four Tire Pressure Monitoring Sensors.
• Tire Pressure Monitoring Telltale Light.
Tire Pressure Monitoring Low Pressure Warnings
The Tire Pressure Monitoring Telltale Light will illumi-
nate in the instrument cluster, an acoustic signal will be
activated, and the “Check left or right front/rear tire”
text message will display when one or more of the four
active road tire pressures are low. Should this occur, you
should stop as soon as possible, check the inflation
pressure of each tire on your vehicle, and inflate each
tire to the vehicle’s recommended cold placard pressure
value. The system will automatically update and the
Tire Pressure Monitoring Light will extinguish once the
updated tire pressures have been received. The vehicle
may need to be driven for up to 20 minutes above
15 mph (24 km/h) to receive this information.
Check TPMS Warnings
The Tire Pressure Monitoring Telltale Light will flash on
and off for 75 seconds and remain on solid when a
system fault is detected, the “TIRE PRESSURE MONI-
TORING UNAVAILABLE” text message will display. If
the ignition key is cycled, this sequence will repeat
providing the system fault still exists. The Tire Pressure
Monitoring Telltale Light will turn off when the fault
condition no longer exists. A system fault can occur
with any of the following scenarios:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPM sensors.
2. Installing some form of aftermarket window tinting that affects radio wave signals.
3. Snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
NOTE: Your vehicle may be equipped with a compact
spare wheel and tire assembly.
182 STARTING AND OPERATING

1. The compact spare tire does not have a tire pressuremonitoring sensor. Therefore, the TPMS will not
monitor the tire pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road tire that has a pressure below the low-pressure
warning limit, upon the next ignition key cycle, a
chime will sound and the Tire Pressure Monitoring
Telltale Light will still turn ON due to the low tire.
3. However, after driving the vehicle for up to 20 minutes above 15 mph (24 km/h), the Tire Pressure
Monitoring Telltale Light will flash on and off for 75
seconds and then remain on solid.
4. This occurs for each subsequent ignition key cycle, a chime will sound and the Tire Pressure Monitoring
Telltale Light will flash on and off for 75 seconds and
then remain on solid.
5. Once you repair or replace the original road tire and reinstall it on the vehicle in place of the compact
spare tire, the TPMS will update automatically and
the Tire Pressure Monitoring Telltale Light will turn
OFF, as long as no tire pressure is below the low-
pressure warning limit in any of the four active road tires. The vehicle may need to be driven for up to
20 minutes above 15 mph (24 km/h) in order for the
TPMS to receive this information.
General Information
This device complies with Part 15 of the FCC rules and
RSS-210 of Industry Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired opera-
tion.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
FUEL REQUIREMENTS — 1750 TURBO
The 1750 turbo engine is designed to
meet all emissions regulations and pro-
vide excellent fuel economy and perfor-
mance when using high-quality premium
unleaded gasoline with an octane rating
of Only 91 or higher.
5
STARTING AND OPERATING 183

Adding Engine Coolant (Antifreeze)...........227
Adding Fuel ........................... .187
Adding Washer Fluid .....................221
Additives, Fuel ......................... .185
AirBag................................36 Air Bag Operation ......................38
Driver Knee Air Bag .....................39
Enhanced Accident Response ..............206
Event Data Recorder (EDR) ...............206
If A Deployment Occurs ..................41
Knee Impact Bolsters ....................38
Maintaining Your Air Bag System ...........44
Air Bag Light ........................ .57, 97
Air Bag Maintenance ......................44
Air Cleaner, Engine (Engine Air Cleaner Filter). . . .215
Air Conditioner Maintenance ................217
Air Conditioning Refrigerant .............217, 218
Air Conditioning System ...................217
Air Pressure, Tires ....................... .168
Alarm System (Security Alarm) ...............12
Alfa DNA System (Dynamic Car Control System) ....................... .141
Alfa Twin Clutch Transmission ...........136, 210
Fluid Type ....................... .234, 258
Alterations/Modifications, Vehicle ..............6Antifreeze (Engine Coolant)
..............226, 256
Capacities .......................... .256
Disposal ............................ .228
Anti-Lock Brake System (ABS) ...............152
Appearance Care ....................... .234
Automatic Door Locks .....................19
Automatic Transaxle ........................9
Automatic Transmission ...................136
Fluid Type .......................... .258
Auto Unlock, Doors .......................19
Auxiliary Electrical Outlet (Power Outlet) ........83
Battery ............................ .99, 216
Charging System Light ...................99
Keyless Key Fob Replacement ..............16
Belts, Seat ..............................57
Body Mechanism Lubrication ................218
B-Pillar Location ........................ .162
Brake Fluid ........................... .258
Brake, Parking ......................... .148
Brakes ............................... .230
Brake System ....................... .150, 230
Anti-Lock (ABS) ...................... .152
Master Cylinder ...................... .230
Parking ............................ .148
276 INDEX

Heated Mirrors...........................65
Heater ............................ .126, 128
Holder, Cup .............................85
Ignition .................................9
Key .................................9
Ignition Key Removal .......................9
Illuminated Entry .........................14
Immobilizer (Sentry Key) ....................11
Inside Rearview Mirror .....................63
Instrument Cluster .....................99, 107
Instrument Cluster ......................91
Instrument Panel And Controls ...............90
Instrument Panel Cover ....................239
Instrument Panel Lens Cleaning ..............240
Interior Appearance Care ...................238
Interior Lights ...........................73
Intermittent Wipers (Delay Wipers) ............75
Introduction .............................4
Jump Starting .......................... .200
Key Fob Lock The Doors ........................15
Unlock The Doors ......................15 Key Fob Battery Service (Remote Keyless Entry) . . .16
Key-In Reminder
.........................11
Key, Replacement .........................12
Keys ...................................9
Key, Sentry (Immobilizer) ...................11
Lane Change Assist .......................72
Lap/Shoulder Belts ........................27
Latches ................................59
Lead Free Gasoline ...................... .183
Leaks, Fluid .............................59
Life Of Tires ........................... .175
Light Bulbs ......................... .59, 245
Lights .............................. .59, 71
AirBag ...........................57, 97
Brake Warning .........................94
Bulb Replacement ..................... .246
Cruise .......................... .108, 109
Engine Temperature Warning ..............99
Exterior ..............................59
Hazard Warning Flasher .................192
Illuminated Entry .......................14
Interior ..............................73
Malfunction Indicator (Check Engine) ........105
Park ............................ .72,
108
280 INDEX

Recommendation...................214, 256
Viscosity ........................... .215
Oil Filter, Change ....................... .215
Oil Filter, Selection ...................... .215
Oil Pressure Light .........................96
Onboard Diagnostic System .................210
Operating Precautions .....................210
Operator Manual (Owner’s Manual) ............4
Outside Rearview Mirrors ...................64
Overheating, Engine ..................... .192
Owner’s Manual (Operator Manual) .........4,273
Paint Care ............................ .234
Parking Brake .......................... .148
Passing Light ............................72
Placard, Tire And Loading Information ......162, 163
Power Door Locks ...........................18
Mirrors ..............................64
Windows .............................20
Pregnant Women And Seat Belts ..............31
Pretensioners Seat Belts .............................32
Radial Ply Tires ........................ .169Radio Frequency
General Information ..................12, 17
Radio Operation ........................ .125
Reclining Front Seats ......................66
Recreational Towing ..................... .189
Reformulated Gasoline ....................184
Refrigerant ............................ .218
Reminder, Seat Belt ........................25
Remote Keyless Entry Remote Keyless Entry ....................14
Unlock The Doors ......................15
Replacement Bulbs ...................... .245
Replacement Keys ........................12
Replacement Parts ....................... .212
Replacement Tires ....................... .176
Reporting Safety Defects ...................272
Restraint, Head ..........................67
Restraints, Child ..........................46
Rotation, Tires ......................... .178
Safety Checks Inside Vehicle .................
57
Safety Checks Outside Vehicle ................59
Safety Defects, Reporting ...................272
Safety, Exhaust Gas ........................56
Safety Information, Tire ....................157
282 INDEX

Safety Tips..............................56
Schedule, Maintenance ....................260
Seat Belt Automatic Locking Retractor (ALR) ..........32
Energy Management Feature ...............32
Lap/Shoulder Belt Operation ..............29
Lap/Shoulder Belts .....................27
Lap/Shoulder Belt Untwisting ..............31
Pregnant Women .......................31
Seat Belt Pretensioner ....................32
Seat Belt Reminder ......................25
Seat Belt Maintenance .....................240
Seat Belt Reminder ........................25
Seat Belts ........................... .25, 57
Child Restraint .........................46
Front Seat ...................... .25, 27, 29
Inspection ............................57
Operating Instructions ...................29
Pregnant Women .......................31
Pretensioners ..........................32
Rear Seat .............................27
Reminder ............................97
Untwisting Procedure ....................31
Seats ..................................65
Adjustment ........................ .65, 66Reclining
.............................66
Security Alarm ...........................12
Sentry Key (Immobilizer) ....................11
Service Assistance ....................... .270
Service Contract ........................ .271
Service Manuals ........................ .273
Shoulder Belts ...........................27
Signals, Turn ........................ .59, 107
Snow Chains (Tire Chains) ..................177
Snow Tires ............................ .171
Spare Tire ....................171, 172, 173, 174
Spark Plugs ........................... .257
Speed Control Accel/Decel ...........................79
Speed Control (Cruise Control) ...............77
Starting .............................. .134
Automatic Transmission .................134
Cold Weather ........................ .135
Engine Fails To Start ....................135
Steering Column

Lock ..........................76
Tilt Column ...........................76
Wheel, Tilt ............................76
Storage .............................. .244
Storage, Vehicle ........................ .244
10
INDEX 283
