438
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Main Item
Sub Items
Main ItemSub Items*1 *2
*1: Models with full color display
*2: Models without full color display
*1: If a message Maintenance Due Now/SERVICE DUE NOW does not appear more than 12
months after the display is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect tie rod ends, steering gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Check expiration informat ion for Temporary Tire
Repair Kit bottle*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 40,000 miles (64,000 km), then every 30,000 miles (48,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles/100,000 km.
*6: 6-cylinder models
*7: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (shear) stress to fluid. This requires differential fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the differential
fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission and transfer* fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5, *6
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *7
* Not available on all models
17 ACURA TLX-31TZ36200.book 438 ページ ２０１６年６月１０日 金曜日 午後６時３９分

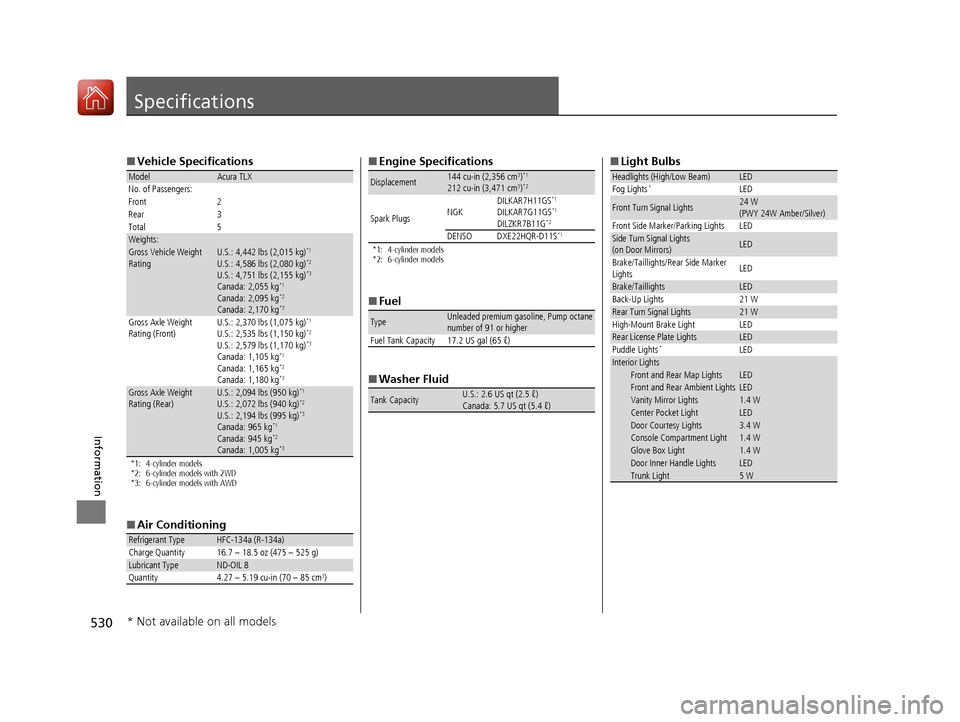

Page 531 of 553
530
Information
Specifications
■Vehicle Specifications
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
■Air Conditioning
ModelAcura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,442 lbs (2,015 kg)*1
U.S.: 4,586 lbs (2,080 kg)*2
U.S.: 4,751 lbs (2,155 kg)*3
Canada: 2,055 kg*1
Canada: 2,095 kg*2
Canada: 2,170 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,370 lbs (1,075 kg)*1
U.S.: 2,535 lbs (1,150 kg)*2
U.S.: 2,579 lbs (1,170 kg)*3
Canada: 1,105 kg*1
Canada: 1,165 kg*2
Canada: 1,180 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,094 lbs (950 kg)*1
U.S.: 2,072 lbs (940 kg)*2
U.S.: 2,194 lbs (995 kg)*3
Canada: 965 kg*1
Canada: 945 kg*2
Canada: 1,005 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.7 US qt (5.4 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LED
Front Turn Signal Lights24 W
(PWY 24W Amber/Silver)
Front Side Marker/Parking Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Pocket LightLEDDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
17 ACURA TLX-31TZ36200.book 530 ページ ２０１６年６月１０日 金曜日 午後６時３９分
Page 550 of 553
549
Index
Shoulder Anchor........................................ 36
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
SiriusXM ® Radio ....................................... 229
Snow Tires ................................................ 470
Spare Tire (Optional) ....................... 497, 531
Spark Plugs ............................................... 530
Specifications ........................................... 530
Specified Fuel ................................... 427, 530
SPORT (Sport mode) Indicator .................. 88
Sport Mode .............................................. 346
Sport+ Mode ............................................ 346
SRS Airbags (Airbags) ................................ 42
Starting Assist Brake Function ................ 345
Starting the Engine .................................. 322
Does Not Start ........................................ 504
Engine Switch Buzzer .............................. 163
Jump Starting ......................................... 507
Remote Engine Start ............................... 325
Steering Wheel ........................................ 176
Adjusting ................................................ 176
Stopping ................................................... 417
Summer Tires ............................................ 470
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 395
Indicator ................................................... 91
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering
Wheel) ............................................ 4, 5, 161
System Message Indicator ......................... 82
T
Temperature Gauge................................. 117
Temperature Sensor ................................. 206
Temporary Tire Repair Kit ........................ 486
Text Message .................................... 306, 308
Time (Setting) ........................................... 138
Tire Fill Assist .................................... 396, 518
Tire Pressure Monitoring System
(TPMS) ..................................................... 396
Indicator ............................................ 82, 518
Tire Fill Assist ................................... 396, 518
Tires ........................................................... 462
Air Pressure ..................................... 463, 531
Chains ..................................................... 470
Checking and Maintaining ....................... 462
Flat Tire (Puncture) ................................... 485
Inspection ................................................ 462
Labeling .................................................. 463
Puncture (Flat Tire) ........................... 485, 497
Regulations ............................................. 465
Rotation .................................................. 469
Spare (Optional) .............................. 497, 531
Summer .................................................. 470
Temporary Tire Repair Kit ........................ 486
Wear Indicators ....................................... 467
Winter ..................................................... 470
Tools .......................................................... 484
Towing a Trailer ....................................... 321
Towing Your Vehicle ................................ 321
Emergency .............................................. 525 TPMS (Tire Pressure Monitoring
System) .................................................... 396
Transmission ......................... 18, 20, 331, 338
Automatic ................................. 18, 330, 331
Dual Clutch ............................... 20, 330, 338
Fluid ........................................................ 451
Gear Position Indicator ...................... 75, 332
Number................................................... 532
Sequential Mode ..................................... 336
Sequential Shift Mode ............................. 340
Shift Lever Position Indicator.................... 339
TRIP Button ....................................... 121, 122
Trip Meter ................................................. 123
Troubleshooting ....................................... 483
Blown Fuse...................... 520, 521, 522, 523
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door.......... 25
Emergency Towing .................................. 525
Engine Won’t Start .................................. 504
Flat Tire/Puncture .................................... 485
Noise When Braking .................................. 26
Overheating ............................................ 512
Premium Gasoline ........................... 427, 530
Puncture/Flat Tire ............................ 485, 497
Rear Door Won’t Open...................... 24, 150
Select Lever Won’t Move ......................... 511
Warning Indicators .................................... 70
