2017 Acura RLX Owner's Manual

64
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
17 ACURA RLX-31TY26300.book 64 ページ ２０１６年６月１７日　金曜日　午前８時１２分

65
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap Dashboard
Sun Visors
U.S. models Canadian models
U.S. models only
17 ACURA RLX-31TY26300.book 65 ページ ２０１６年６月１７日　金曜日　午前８時１２分

66
17 ACURA RLX-31TY26300.book 66 ページ ２０１６年６月１７日　金曜日　午前８時１２分

67
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Multi-Information Display Warning and Information Messages ...................... 86
Gauges and Multi-Information Display ... 97
Gauges .............................................. 97
Multi-Information Display .................. 98
17 ACURA RLX-31TY26300.book 67 ページ ２０１６年６月１７日　金曜日　午前８時１２分

68
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the brake fluid level
is low.
●Comes on if there is a problem with
the brake system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 519
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2If the Brake System Indicator (Red)
Comes On P. 519
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 518
U.S.
Canada
(Red)
17 ACURA RLX-31TY26300.book 68 ページ ２０１６年６月１７日　金曜日　午前８時１２分

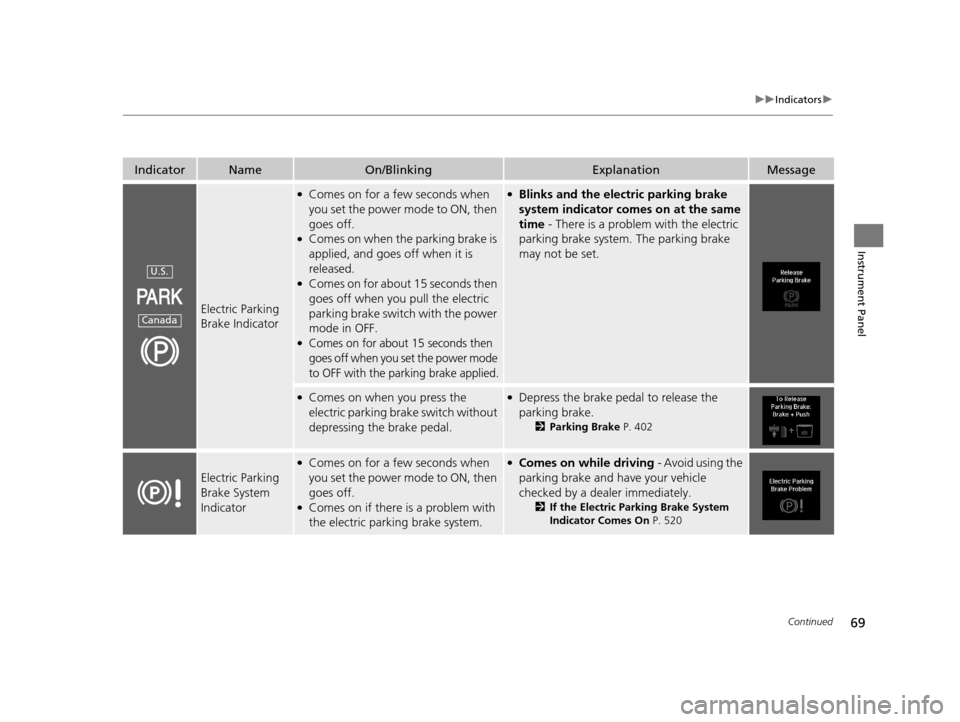

69
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Parking
Brake Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the parking brake is
applied, and goes off when it is
released.
●Comes on for about 15 seconds then
goes off when yo u pull the electric
parking brake switch with the power
mode in OFF.
●Comes on for about 15 seconds then
goes off when you set the power mode
to OFF with the parking brake applied.
●Blinks and the electric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake
may not be set.
●Comes on when you press the
electric parking brake switch without
depressing the brake pedal.●Depress the brake pedal to release the
parking brake.
2 Parking Brake P. 402
Electric Parking
Brake System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the electric parking brake system.
●Comes on while driving - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 520
U.S.
Canada
17 ACURA RLX-31TY26300.book 69 ページ ２０１６年６月１７日　金曜日　午前８時１２分

70
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold system is on.
2Automatic Brake Hold P. 405
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold is activated.2Automatic Brake Hold P. 405—
U.S.
Canada
17 ACURA RLX-31TY26300.book 70 ページ ２０１６年６月１７日　金曜日　午前８時１２分

71
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
a system related to braking other
than the conventi onal brake system.
●Comes on if there is a problem with
hydraulic brake boost system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●With this indicator on, your vehicle still has
normal braking ability.
U.S.
Canada
(Amber)
U.S.
Canada
