2017 Acura RLX start stop button

Continued405
uuBraking uBrake System
Driving

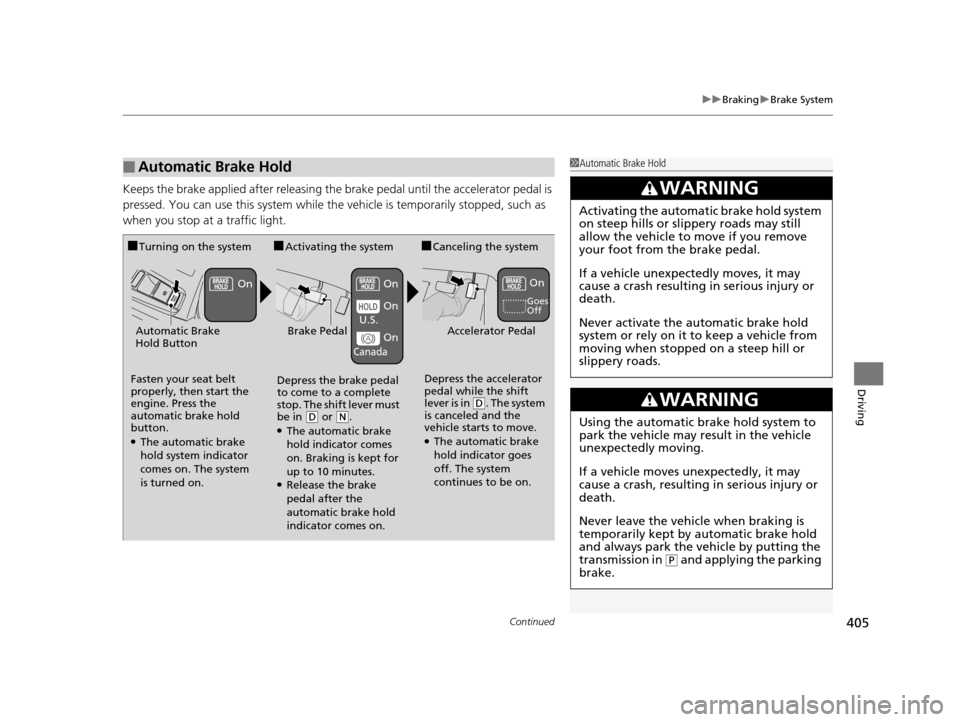

Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while the vehicle is temporarily stopped, such as
when you stop at a traffic light.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
engine. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The shift lever must
be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake
pedal after the
automatic brake hold
indicator comes on.
■Canceling the system
Depress the accelerator
pedal while the shift
lever is in
( D. The system
is canceled and the
vehicle starts to move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On On On
On
On
U.S.
Canada
17 ACURA RLX-31TY26300.book 405 ページ ２０１６年６月１７日　金曜日　午前８時１２分

uuSurround View Camera System*uWhen Parking Your Vehicle
432
Driving1. With your vehicle at a complete stop, press the CAMERA button, then press the
MENU button. Rotate to select Back- in left park guidance or Back-in right
park guidance . Press .
2. Move the vehicle forward perpendicular to the parking space and stop where the
initial positioning guide in the display is at the center of the parking space.
3. Turn the steering wheel fully to the left (if the parking space is on the passenger
side) at a stop.
u The steering position alignment guide is displayed.
4. Slowly move the vehicle forward.
u
Stop the vehicle when the steering position alignment guide enters the parking space.
5. Turn the steering wheel fully to the right (if the parking space is on the passenger
side) at a stop. Start reve rsing the vehicle slowly.
6. Stop the vehicle when it is parallel to the parking lines.
7. Return the steering wheel to its center po sition, then reverse the vehicle slowly
until it is parked within the space.
■Reversing into a Parking Space Marked with Parking Lines1 Reversing into a Parking Space Marked with Parking Lines
If the steering position ali gnment guide does not fit in
the parking lines, the parking space is too small for
the vehicle.
Reference lines can be usef ul only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.
Must be wider than approx. 8 feet (2.5 m)
The initial positioning
guide must come here.
Must be wider than approx. 20 feet (6 m) Make sure the guides
are within the parking
space when reversing.Initial
Positioning
Guide
Steering Position
Alignment Guide
A
B
C
Steering position alignment
guide enters the parking
space. (Step 4)
17 ACURA RLX-31TY26300.book 432 ページ ２０１６年６月１７日　金曜日　午前８時１２分

509
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 510
uMake sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 137
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 480●If the interior lights come on normally 2 Fuses P. 522
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 344
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 131
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 97
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 526
If the problem continues:
2Emergency Towing P. 527
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 512
17 ACURA RLX-31TY26300.book 509 ページ ２０１６年６月１７日　金曜日　午前８時１２分

510
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the indicator on the ENGINE START/
STOP button flashes, and the engine won’ t start. Start the engine as follows.
1. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the keyle ss access remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds while the
indicator stays on.
u If you do not depress the pedal, the
mode will change to ACCESSORY.
17 ACURA RLX-31TY26300.book 510 ページ ２０１６年６月１７日　金曜日　午前８時１２分

511
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button twice.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to
(P after the vehicle
comes to a complete stop.
1 Emergency Engine Stop
Do not press the button while driving unless it is
absolutely necessary for th e engine to be switched
off.
17 ACURA RLX-31TY26300.book 511 ページ ２０１６年６月１７日　金曜日　午前８時１２分

548
Index
Dead Battery............................................. 512
Defrosting the Windshield and
Windows .................................................. 188
Devices that Emit Radio Waves ................ 535
Dimming
Headlights ............................................... 141
Rearview Mirror ....................................... 153
Dipstick (Engine Oil) ................................. 454
Directional Signals (Turn Signal) .............. 140
Door Mirrors ............................................. 154
Doors ......................................................... 115
Auto Door Locking .................................. 127
Auto Door Unlocking ............................... 127
Door Open Message .................................. 29
Keys ........................................................ 115
Locking/Unlocking the Doors from the Inside ............................................... 12, 124
Locking/Unlocking the Doors from the Outside .................................................. 118
Lockout Prevention System ...................... 122
DOT Tire Quality Grading ........................ 474
Driver’s Knee Airbag .................................. 44
Driving ....................................................... 337
Automatic Transmission ........................... 350
Braking .................................................... 402
Cruise Control ......................................... 356
Shifting Gear ........................................... 351
Starting the Engine .................................. 344
Driving Position Memory System ............. 150
Dust and Pollen Filter ............................... 483E
Elapsed Time............................................. 101
Electric Parking Brake Indicator.................................................... 69
Electric Parking Brake System
Indicator............................................ 69, 520
Electric Power Steering (EPS) System Indicator............................................ 74, 520
Electronic Stability Control (ESC) ............. 393
Emergency ................................................ 527
Emissions Testing (Readiness Codes) ....... 537
Engine ....................................................... 534
Coolant ................................................... 458
Jump Starting .......................................... 512
Oil ........................................................... 453
Remote Engine Start................................ 346
Starting ................................................... 344
Switch Buzzer.......................................... 137
Engine Compartment Cover .................... 452
Engine Coolant ......................................... 458
Adding to the Radiator ............................ 459
Adding to the Reserve Tank..................... 458
Overheating ............................................ 516
Temperature Gauge .................................. 97
Engine Oil ................................................. 453
Adding .................................................... 455
Checking................................................. 454
Displaying Oil Life .................................... 446
Low Oil Pressure Indicator ................. 68, 518
Recommended Engine Oil ....................... 453
ENGINE START/STOP Button .................... 137e-pretensioners
.......................................... 32
EPS (Electric Power Steering) System ........ 74
Exhaust Gas Hazard (Carbon Monoxide) .. 64
Expanded Rear Door Sunshades ............. 180
Expanded View Driver’s Mirror ............... 155
Exterior Care (Cleaning) .......................... 486
Exterior Mirrors ........................................ 154
F
Features.................................................... 191
Filters Dust and Pollen....................................... 483
Oil .......................................................... 456
Flat Tire ..................................................... 491
Floor Mats ................................................ 485
Fluids Automatic Transmission .......................... 460
Brake ...................................................... 461
Engine Coolant ....................................... 458
Windshield Washer ................................. 461
Foot Brake ................................................ 404
Forward Collision Warning (FCW) .......... 375
Front Airbags (SRS) .................................... 40
Front Seat Heaters ................................... 176
Front Seat Heaters and Seat Ventilation .............................................. 177
Front Seats ................................................ 156
Adjusting ................................................ 156
Front Sensor Camera ............................... 359
17 ACURA RLX-31TY26300.book 548 ページ ２０１６年６月１７日　金曜日　午前８時１２分

552
Index
Rear Defogger/Heated Door Mirror Button ...................................................... 149
Rear Seat Heaters ..................................... 178
Rear Temperature Control Dial ............... 189
Rearview Mirror ........................................ 153
Refueling ................................................... 437
Fuel Gauge ................................................ 97
Gasoline .......................................... 437, 532
Low Fuel Indicator ..................................... 73
Regulations ............................... 400, 474, 535
Remote Engine Start with Vehicle
Feedback ................................................. 346
Remote Transmitter .................................. 120
Replacement
Battery............................................. 481, 482
Bulbs ....................................................... 462
Fuses ....................................... 522, 524, 525
Tires ........................................................ 477
Wiper Blade Rubber ................................. 468
Reporting Safety Defects ......................... 536
Resetting a Trip Meter ............................. 100
Reverse Tilt Door Mirror ........................... 154
Right Selector Wheel .......................... 98, 103
Road Departure Mitigation (RDM) .......... 382
On and Off .............................................. 383
S
Safe Driving ................................................. 25
Safety Labels ............................................... 65
Safety Message ............................................. 1 Seat Belts
.................................................... 30
Adjusting the Shoulder Anchor.................. 34
Automatic Seat Belt Tensioners ................. 32
Checking................................................... 36
e-pretensioners ......................................... 32
Fastening .................................................. 33
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Pregnant Women ...................................... 35
Reminder ............................................ 31, 73
Warning Indicator ............................... 31, 73
Seat Heaters .............................. 176, 177, 178
Seats .......................................................... 156
Adjusting ................................................ 156
Front Seats .............................................. 156
Seat Heaters ............................ 176, 177, 178
Security System ......................................... 131
Immobilizer System Indicator ..................... 77
Security System Alarm Indicator................. 77
Selecting a Child Seat ................................. 56
Sequential Shift Mode ............................. 353
Sequential Shift Mode Operation ........... 354
Setting the Clock ...................................... 114
Shift Lever ........................................... 17, 351
Does Not Move ....................................... 515
Operation.......................................... 17, 352
Releasing................................................. 515
Shift Lever Position Indicator ............ 72, 352
Shifting (Transmission) ....................... 17, 351
Shoulder Anchor ........................................ 34
Side Airbags ................................................ 46 Side Curtain Airbags
.................................. 48
SiriusXM ® Radio ....................................... 221
Snow Tires ................................................ 479
Spare Tire (Optional) ....................... 503, 533
Spark Plugs ............................................... 532
Specifications ........................................... 532
Specified Fuel ................................... 437, 532
SPORT Mode ............................................. 355
SPORT Mode Indicator ....................... 78, 355
SRS Airbags (Airbags) ................................ 40
Starting the Engine .................................. 344
Does Not Start ........................................ 509
Engine Switch Buzzer .............................. 137
Jump Starting ......................................... 512
Remote Engine Start ............................... 346
Steering Wheel Adjusting ................................................ 152
Stopping ................................................... 417
Summer Tires .................................... 479, 488
Supplemental Restraint System (SRS) ....... 40
Surround View Camera System ............... 427
Switches (Around the Steering
Wheel) ............................................ 4, 5, 137
System Message Indicator ......................... 76
T
Temperature Sensor................................ 190
Temporary Tire Repair Kit ....................... 492
Tie-down Anchors .................................... 173
Time (Setting) ........................................... 114
17 ACURA RLX-31TY26300.book 552 ページ ２０１６年６月１７日　金曜日　午前８時１２分
