2017 Acura RLX display

67

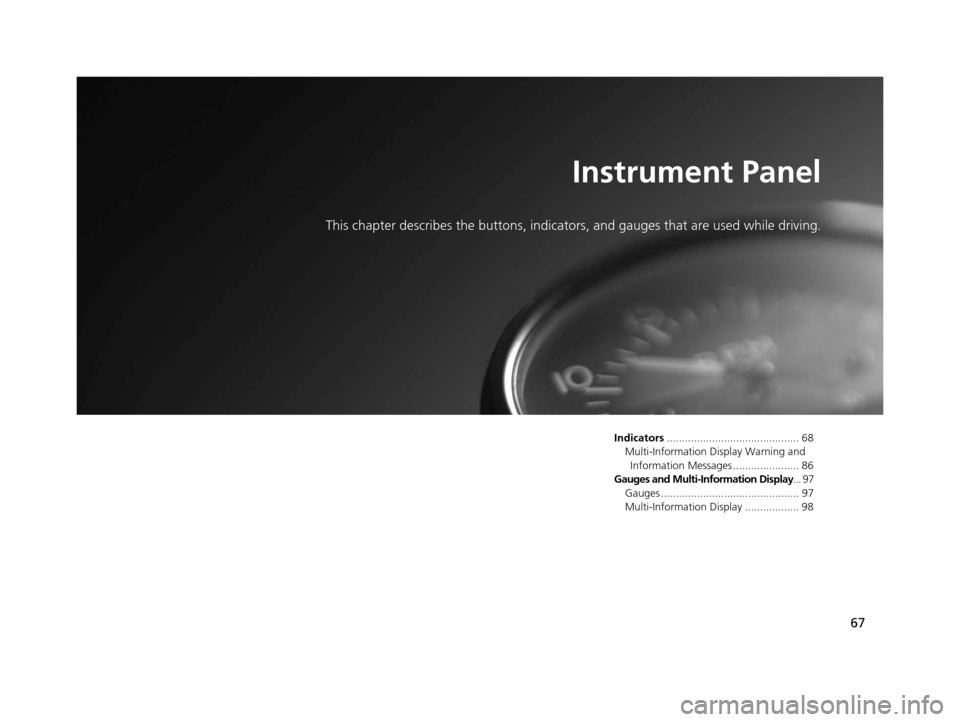

Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Multi-Information Display Warning and Information Messages ...................... 86
Gauges and Multi-Information Display ... 97
Gauges .............................................. 97
Multi-Information Display .................. 98
17 ACURA RLX-31TY26300.book 67 ページ ２０１６年６月１７日　金曜日　午前８時１２分

76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you set the power mode to ON.
●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a compact spare
*, get your regular tire
repaired or replaced and put back on your
vehicle as soon as you can.
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, roll the right
selector wheel to see the message again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-information display does not return
to the normal screen unless the warning is
canceled, or the right se lector wheel is rolled.
—
* Not available on all models
17 ACURA RLX-31TY26300.book 76 ページ ２０１６年６月１７日　金曜日　午前８時１２分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind Spot
Information (BSI)
Indicator
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Stays on while BSI is turned off.
—
●Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.●Comes on while driving - Remove
the obstacle in the vicinity of sensor.
2 Blind Spot Information (BSI)
System* P. 396
●Comes on if there is a problem with
the system.●Comes on while driving - Have your
vehicle checked by a dealer.
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle
checked by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM)* P. 409
* Not available on all models
17 ACURA RLX-31TY26300.book 84 ページ ２０１６年６月１７日　金曜日　午前８時１２分

86
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Roll the ri ght selector wheel to see the message again wit h the
system message indicator on.
MessageConditionExplanation
●Appears if any door or the trunk is not completely closed.●Appears if any door or the tru nk is opened while driving.
The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears if there is a probl em a problem with the e-
pretensioner system*.
●Have your vehicle checked by a dealer.
●Appears when the wa sher fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 461
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Multi-
Information Display P. 447
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 516
* Not available on all models
17 ACURA RLX-31TY26300.book 86 ページ ２０１６年６月１７日　金曜日　午前８時１２分

87
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the transmission fluid temperature is too
high.●Stop in a safe place in (P. Let the engine idle until the
message disappears.
●Appears when there is a prob lem with the sensor on the
battery.●Have your vehicle checked by a dealer.
2 Checking the Battery P. 480
●Appears along with the battery charging system indicator
when the battery is not charging.●Turn off the climate control sy stem and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 518
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
depressing the brake pedal and manually start the engine.
Have your vehicle checked by a dealer.
●Appears if the keyless access remote battery is too weak
to start the engine or the key is not within operating
range to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 510
U.S.
Canada
17 ACURA RLX-31TY26300.book 87 ページ ２０１６年６月１７日　金曜日　午前８時１２分

88
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears after the driver’s door is opened when the power
mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF (LOCK).
●Appears when the power mode is in ACCESSORY.
—
●Appears when you close the do or with the power mode in
ON without the keyless access remote inside the vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 139
●Appears when the keyless access remote battery becomes
weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 481
●Appears three seconds after you bring the keyless access
remote in front of the ENGINE START/STOP button
when To Start, Hold Remote Near Start Button
appears. To Start Engine: Brake + Push appears
sequentially.●Unless you bring the keyless access remote in front of the
ENGINE START/STOP button, this message does not
appear.
2 If the Keyless Access Remote Battery is Weak P. 510
●Appears when you set the power mode to ACCESSORY or
ON.
2 Starting the Engine P. 344
17 ACURA RLX-31TY26300.book 88 ページ ２０１６年６月１７日　金曜日　午前８時１２分

89
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if you press the ENGINE START/STOP button to
turn the engine off with out the shift lever in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Appears if there is a problem with the radiator system.●Drive slowly to prevent overhe ating and have your vehicle
checked by a dealer as soon as possible.
●Appears when there is a problem with the headlights.●Appears while driving - The low beam headlights may
not be on. When conditions allow you to drive safety,
have your vehicle checked by a dealer as soon as possible.
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automatic br ake hold system is turned
off.
2 Automatic Brake Hold P. 405
17 ACURA RLX-31TY26300.book 89 ページ ２０１６年６月１７日　金曜日　午前８時１２分

90
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold button is pressed
without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 405
●Appears when the automatic brake hold button is pressed
without depressing the brake pedal while the automatic
brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 405
●Appears when the parking brake is applied automatically
while it is in operation.2Automatic Brake Hold P. 405
2 Parking Brake P. 402
●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 409
2 Forward Collision Warning (FCW) P. 375
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 361
* Not available on all models
