2017 Acura RDX Navigation Manual

64
uuGuidance uGuidance Mode
System Setup
• Direction List : Displays the map and direction list simultaneously on the map
screen. When you approach a guidance point, the next guidance point appears.
• Next Maneuver : Displays the map and next guidance point simultaneously on
the map screen.
Direction List screen
Guidance direction list Near the next
guidance point
Next Maneuver screen
Next guidance point
Next Maneuver screen Next guidance pointNear the next
guidance point
Next Maneuver screen
16 ACURA RDX NAVI-31TX48300.book 64 ページ ２０１５年８月５日　水曜日　午後４時１２分

65
uuGuidance uStreet Name Guidance
System Setup
Street Name Guidance
H SETTINGS button uNavi Settings uGuidance uStreet Name Guidance
The navigation system includes the street names during voice guidance (e.g., “Turn
right on Main Street”). Rotate to select an option. Press .
The following options are available:
• On (factory default): Voice guidan ce includes the street names.
• Off : Disables the feature.1Street Name Guidance
This feature is only available when the system
language is set to English.
This feature may not be available in non-English
speaking areas.
This function is available on U.S. models only.
16 ACURA RDX NAVI-31TX48300.book 65 ページ ２０１５年８月５日　水曜日　午後４時１２分

66
uuGuidance uNon-map Screens
System Setup

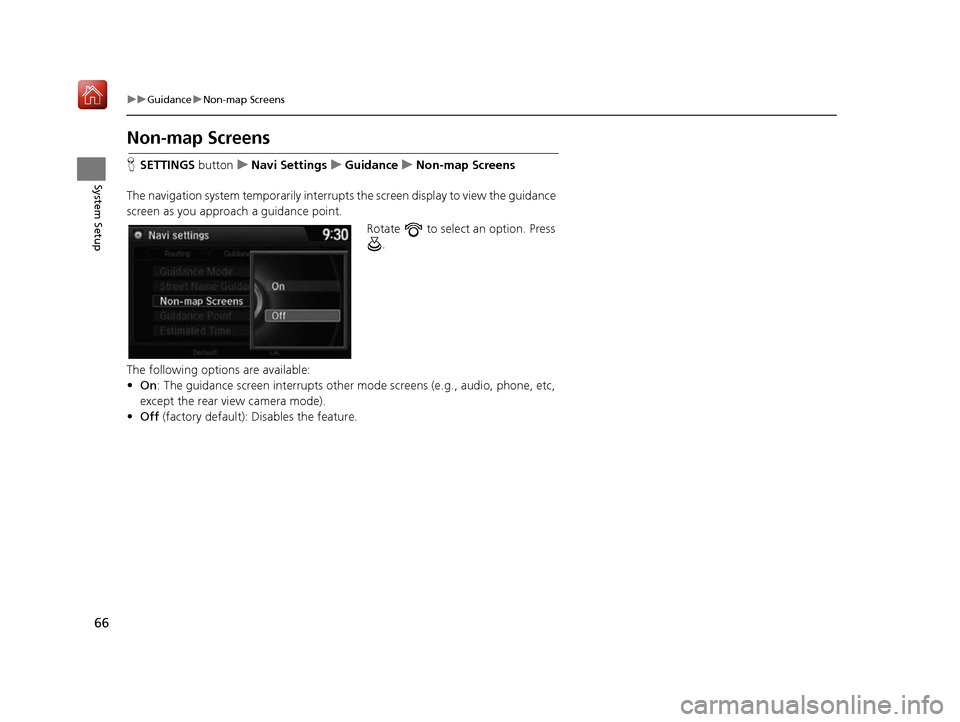

Non-map Screens
H SETTINGS buttonuNavi Settings uGuidance uNon-map Screens
The navigation system temporarily interrupt s the screen display to view the guidance
screen as you approach a guidance point.
Rotate to select an option. Press .
The following options are available:
• On : The guidance screen interrupts other mode screens (e.g., audio, phone, etc,
except the rear view camera mode).
• Off (factory default): Disables the feature.
16 ACURA RDX NAVI-31TX48300.book 66 ページ ２０１５年８月５日　水曜日　午後４時１２分

67
uuGuidance uGuidance Point
System Setup
Guidance Point
H SETTINGS button uNavi Settings uGuidance uGuidance Point
Set the guidance point to display on the map screen. Rotate to select an option. Press .
The following options are available:
• Destination (factory default): Disp lays the remaining/arriva l time and distance to
the destination.
• Next Point : Displays the remaining/arrival time and distance to the next
waypoint.
16 ACURA RDX NAVI-31TX48300.book 67 ページ ２０１５年８月５日　水曜日　午後４時１２分

68
uuGuidance uEstimated Time
System Setup

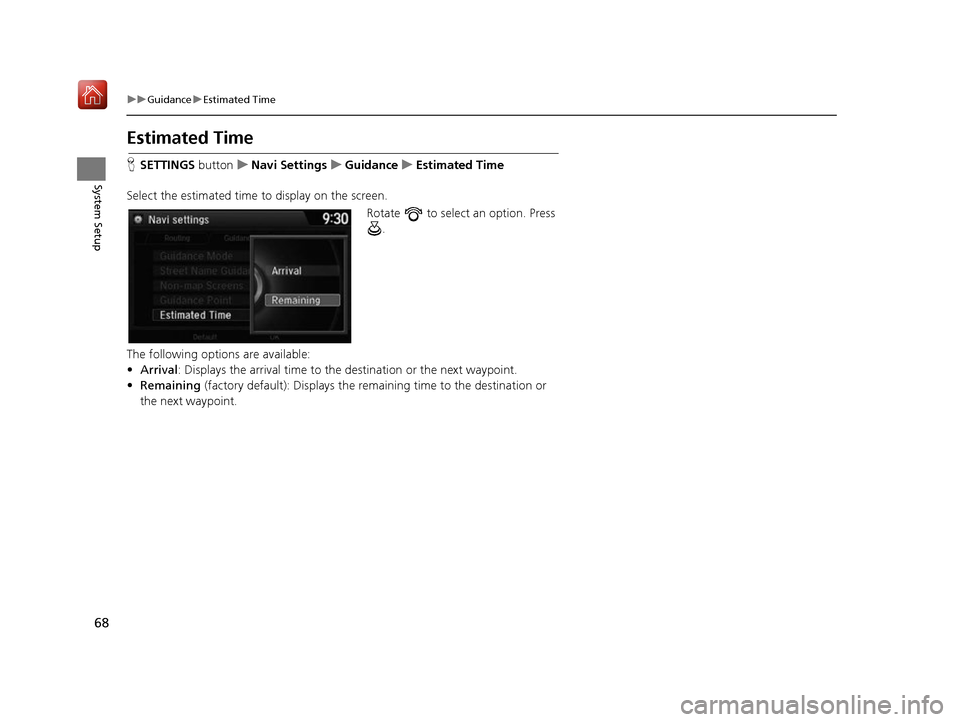

Estimated Time
H SETTINGS buttonuNavi Settings uGuidance uEstimated Time
Select the estimated time to display on the screen. Rotate to select an option. Press .
The following options are available:
• Arrival : Displays the arrival time to the destination or the next waypoint.
• Remaining (factory default): Disp lays the remaining time to the destination or
the next waypoint.
16 ACURA RDX NAVI-31TX48300.book 68 ページ ２０１５年８月５日　水曜日　午後４時１２分

69Continued
System Setup
Map
HSETTINGS button uNavi Settings uMap
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Rotate to select an item. Press .
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on Map P. 71
•Color (Day) : Selects the color of the map for the Day mode.
2Color P. 73
•Color (Night) : Selects the color of th e map for the Night mode.
2Color P. 73
•View : Selects the map orientation ( North-up, Heading-up , or 3D map).
2View (Map Orientation) P. 76
•3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adjustment P. 77
•Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 78
16 ACURA RDX NAVI-31TX48300.book 69 ページ ２０１５年８月５日　水曜日　午後４時１２分

70
uuMap u
System Setup
•Current Location : Displays and saves your current location.
2Current Location P. 79
•Map Legend : Displays an overview of the map features.
2Map Legend P. 80
•Display Tracking : Sets whether to display the tracking dots on the map.
2Display Tracking P. 84
•Delete Tracking : Deletes the trackin g dots on the map.
2Deleting Tracking Dots P. 85
•Correct Vehicle Position : Adjusts the position of the vehicle on the map.
2Correct Vehicle Position P. 86
•System Device Information : Views database, software, device, and vehicle
identification information.
2 System Device Information P. 312
•Map Data Update : Checks the map data update status when updating the map
database.
2 Map Data Update P. 312
16 ACURA RDX NAVI-31TX48300.book 70 ページ ２０１５年８月５日　水曜日　午後４時１２分

71
uuMap uShowing Icons on Map
Continued
System Setup
Showing Icons on Map
H SETTINGS button uNavi Settings uMap uShow Icon on Map
Select the icons that ar e displayed on the map.
1.Rotate to select an item. Press
.
2. Rotate to select an option.
Press .
u Repeat step 1 and 2 as
necessary.
3. Move to select OK. Press .
The following options are available:
• All On : Displays the landmark icons.
2Map Screen Legend P. 9
•Customize : Fine-tunes the icon display.
2Fine-tuning the Icons P. 72
•Off : Hides the landmark icons.
1Showing Icons on Map
If you have PIN-protecte d your address book, enter
your PIN when prompted. Move to select OK. PINs
are optional. 2 PIN Numbers P. 47
