uuChecking and Maintaining Tires uCold Weather Driving
Maintenance
Cold Weather Driving
Summer Only tires and Ultra High Performan ce (UHP) tires are very sensitive to
ambient temperatures and are designed to be used at temperatures above 45°F
(7°C). If the vehicle is operated with Summer Only tires or UHP tires at temperatures
below 45°F (7°C), the tires will provide decreasing amounts of grip and other
performance attributes. If the vehicle is operated with Summer Only tires or UHP
tires at temperatures below -4°F (-20°C), th e tire tread may lose their elasticity and
become brittle, resulting in permanent damage to the tread. A damaged tire may
fail during use. Therefore, if you operate the vehicle when ambient temperatures are
below 45°F (7°C), we recommend that you install other tires (e.g., mud+snow,
winter) that are designed to provide appropriate performance attributes under the
anticipated conditions.1 Cold Weather Driving
3WARNING
Use of Summer Only tires or Ultra High
Performance tires at temperatures below
45°F (7°C) may lead to a loss of
performance and control, which could
result in a crash, se rious injury or death.
17 NSX-31T6N6000.book 402 ページ ２０１６年４月２２日　金曜日　午後３時４４分

403
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
Check the battery terminals for corrosion
monthly.
The battery is protected by a cover.
Remove the cover by pressing the tabs.
Slide the terminal cover on your vehicle’s 12-
volt battery positive + terminal.
The battery condition is monitored by the
sensor on the negative terminal. If there is a
problem with the sensor, the warning
message on the driver information interface
will let you know. Have your vehicle checked
by an authorized Acura NSX dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 164
•The clock resets.2 Clock P. 104
•The navigation system* is disabled.2 Refer to the Navigation System Manual
Charging the AGM Battery
AGM labeled batteries can be damaged if improperly charged. For more information
on how to charge an AGM battery, consult an authorized Acura NSX dealer.
1 12-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean terminals with a damp towel. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult an authorized Acura NSX dealer for
more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance,
wear protective clothing and a face shield,
or have a skilled technician do it.
Tab
Cover
Terminal
Cover
* Not available on all models
17 NSX-31T6N6000.book 403 ページ ２０１６年４月２２日　金曜日　午後３時４４分

412
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 443
•Before installing any electronic accessory, have the installer contact an authorized
Acura NSX dealer for assistance. If possibl e, have an authorized Acura NSX dealer
inspect the final installation.
1 Accessories and Modifications
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
17 NSX-31T6N6000.book 412 ページ ２０１６年４月２２日　金曜日　午後３時４４分

413
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov incial, territorial, or local regulations.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical syst ems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle' s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Acura high-
voltage battery assembly. Genuine Acura high-voltage battery assemblies are
designed to work with your vehicle's hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have b een similarly designed, engineered and
manufactured, and installation of such assemb lies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.1 Modifications
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Acura high-voltage
battery assembly, or it s equivalent, in your
vehicle.
17 NSX-31T6N6000.book 413 ページ ２０１６年４月２２日　金曜日　午後３時４４分

417
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 418
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 419
Handling of the Jack ........................ 430
Power System Won’t Start Checking the Procedure ................... 431
If the Keyless Access Remote Battery is Weak ............................................. 432
Emergency Power System Off........... 433
Jump Starting .................................... 434
Overheating How to Handle Overheating ............. 436 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 438
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 438
If the Brake System Indicator (Red) Comes On ................................................. 439
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 439
If the Electric Parking Brake System Indicator Comes On ....................... 440 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 441
If the Transmission System Indicator Blinks along with the Warning Message... 442
If the Low Oil Level Symbol Appears.....442Fuses Fuse Locations ................................. 443
Inspecting and Changing Fuses ........ 447
Emergency Towing ........................... 448
When You Cannot Unlock the Fuel Fill Door ................................................. 449
When You Cannot Open the Hatch.....450RefuelingRefueling from a Portable Fuel Container .... 451
17 NSX-31T6N6000.book 417 ページ ２０１６年４月２２日　金曜日　午後３時４４分

419Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a sma ll puncture, from a small nail for instance,
you can use the temporary tire repair kit so that you can drive to the nearest service
station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface. Apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Acura NSX dealer or a
roadside assistant to have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
17 NSX-31T6N6000.book 419 ページ ２０１６年４月２２日　金曜日　午後３時４４分

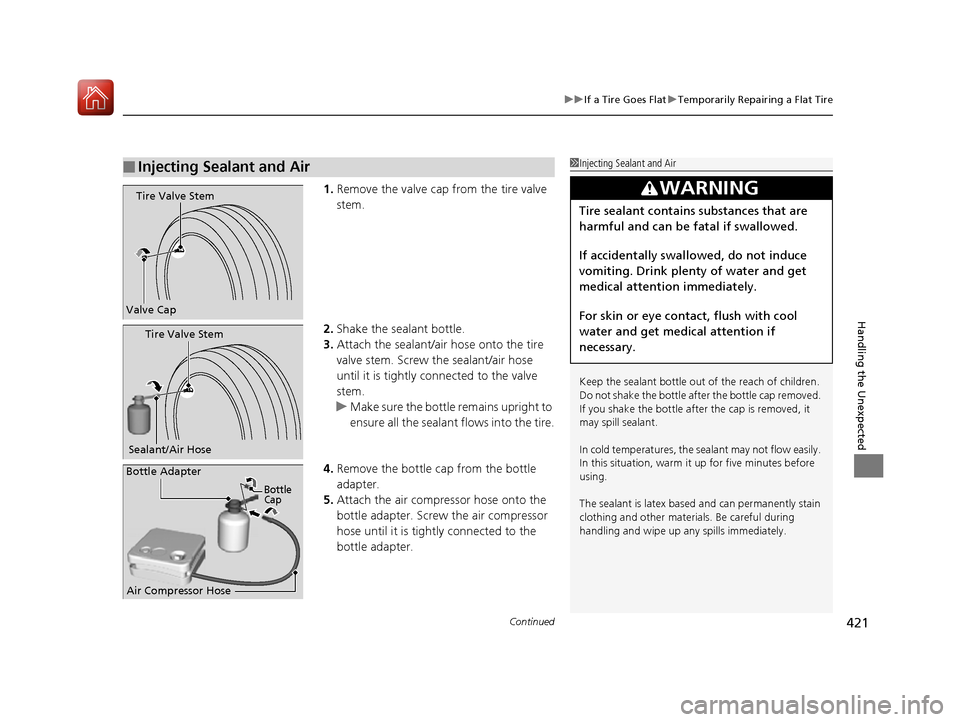

Continued421
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
1. Remove the valve cap from the tire valve
stem.
2. Shake the sealant bottle.
3. Attach the sealant/air hose onto the tire
valve stem. Screw the sealant/air hose
until it is tightly connected to the valve
stem.
u Make sure the bottle remains upright to
ensure all the sealant flows into the tire.
4. Remove the bottle cap from the bottle
adapter.
5. Attach the air compre ssor hose onto the
bottle adapter. Screw the air compressor
hose until it is tightly connected to the
bottle adapter.
■Injecting Sealant and Air1 Injecting Sealant and Air
Keep the sealant bottle out of the reach of children.
Do not shake the bottle after the bottle cap removed.
If you shake the bottle after the cap is removed, it
may spill sealant.
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant is latex based and can permanently stain
clothing and other materi als. Be careful during
handling and wipe up any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/Air Hose Tire Valve Stem
Bottle Adapter
Air Compressor Hose
Bottle
Cap
17 NSX-31T6N6000.book 421 ページ ２０１６年４月２２日　金曜日　午後３時４４分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
422
Handling the Unexpected
6. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 154
7.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 67
8.Turn the air compressor on to inflate the
tire.
u The compressor starts injecting sealant
and air into the tire.
9. After the air pressure reaches 32 psi (220
kPa), turn off the compressor.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit compressor
for more than 15 minutes. The compressor can overheat
and become permanently damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begi n to rise again as the tire
is inflated with air. This is normal. To accurately measure
the air pressure using the ga uge, turn the air compressor
off only after the sealant injection is complete.
If the required air pressure is not reached within 15
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal and your vehicle
will need to be towed.
See an authorized Acura NSX dealer for a replacement
sealant bottle and proper disposal of an empty bottle.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Air Compressor Switch
OFF
ON
17 NSX-31T6N6000.book 422 ページ ２０１６年４月２２日　金曜日　午後３時４４分
