2017 Acura MDX overheating

*if equipped

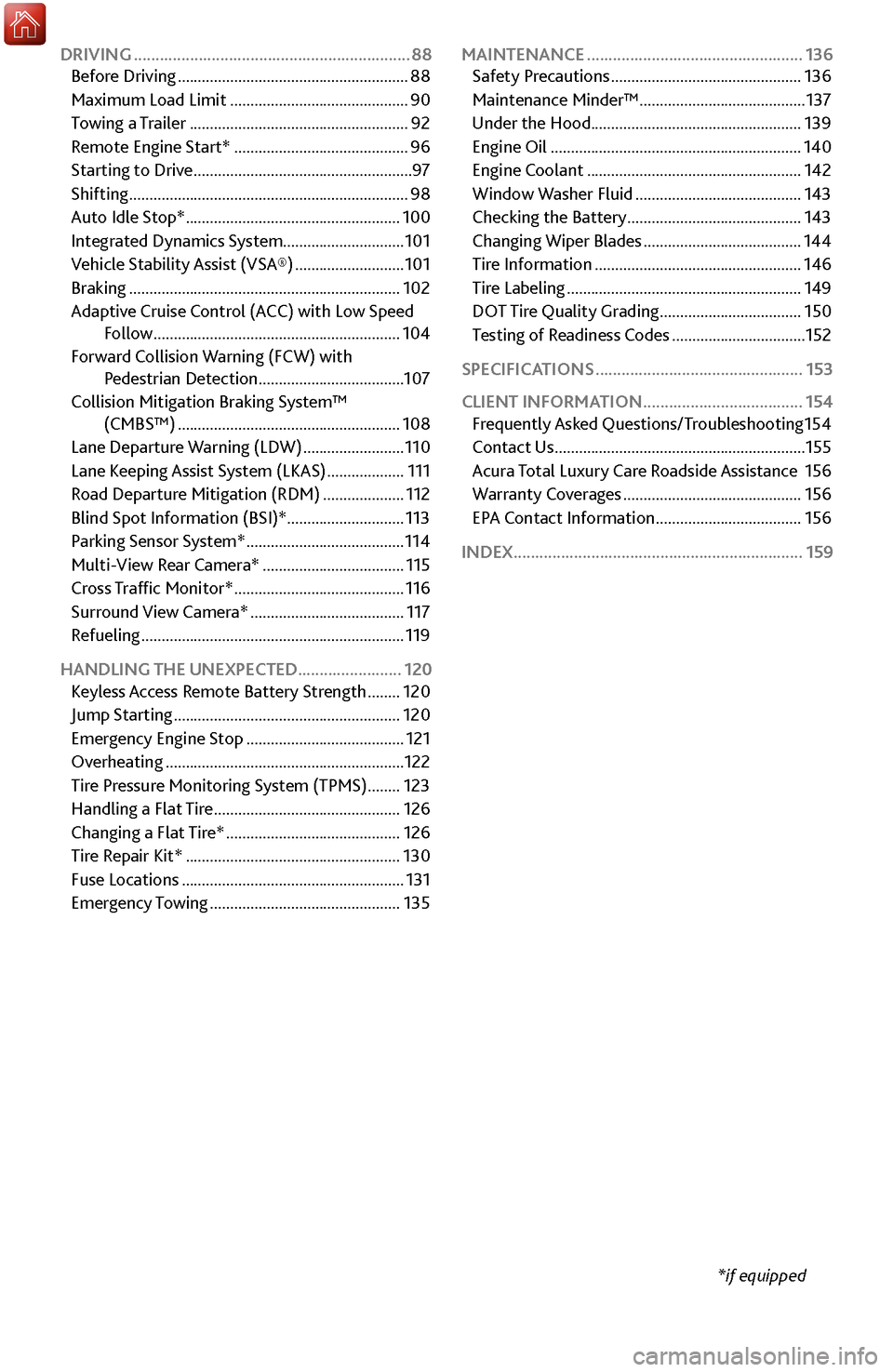

DRIVING
................................................................
88
Before Driving ......................................................... 88
Maximum Load Limit ............................................ 90
Towing

a Trailer
......................................................
92
Remote

Engine Start*
...........................................
96
Starting to Driv

e
......................................................
97
Shifting ..................................................................... 98
Auto Idle Stop* ..................................................... 100
Integrated Dynamics S

ystem
..............................101
Vehicle Stability Assist (VSA®)
........................... 101
Braking ................................................................... 102
Adaptiv

e Cruise Control (ACC)
with Low Speed
F

ollow
.............................................................
104
Forwar

d Collision Warning (FCW) with
Pedestrian Detection
.................................... 107
Collision Mitigation Braking

System™
(CMBS™)
....................................................... 108
Lane Departure

Warning (LDW)
.........................
110
Lane Keeping

Assist System (LKAS)
...................
111
Road Departur

e Mitigation (RDM)
....................
112
Blind Spot Information (BSI)*

............................. 113
Parking Sensor System*
....................................... 114
Multi-View

Rear Camera*
...................................
115
Cross T

raffic Monitor*
..........................................
116
Surround View

Camera*
......................................
117
Refueling ................................................................. 119
HANDLING THE UNEXPECTED ........................

120
Keyless Access Remote Battery Strength
........ 120
Jump Starting ........................................................ 120
Emergency

Engine Stop
.......................................
121
Overheating ........................................................... 122
Tire Pr

essure Monitoring System (TPMS)
........
123
Handling a Flat Tir

e
..............................................
126
Changing a Flat Tir

e*
...........................................
126
Tire R

epair Kit*
.....................................................
130
Fuse Locations ....................................................... 131
Emer

gency Towing
...............................................
135MAINTENANCE
..................................................
136
Safety Precautions ............................................... 136
Maintenance Minder™ ......................................... 137
Under the

Hood
.................................................... 139
Engine Oil
.............................................................. 140
Engine Coolant ..................................................... 142
Window Washer

Fluid
.........................................
143
Checking the Battery ........................................... 143
Changing Wiper Blades ....................................... 144
Tire Information ................................................... 146
Tire Labeling .......................................................... 149
DOT

Tire Quality Grading
...................................
150
Testing

of Readiness Codes
.................................
152
SPECIFICATIONS
................................................ 153
CLIENT INFORMATION
..................................... 154
Fr

equently Asked Questions/Troubleshooting
154
Contact Us .............................................................. 155
Acura

Total Luxury Care Roadside Assistance
156
Warranty Co

verages
............................................
156
EPA C

ontact Information
....................................
156
INDEX...................................................................
159

122 |
HANDLING THE UNEXPECTED
Overheating
If you see the multi-information display (MID) message “Stop Driving When Safe.
Engine Temperature Too Hot,” your engine is overheating. You may also notice the
temperature gauge is at the H mark, the engine suddenly loses power, or steam or
spray comes out from under the hood.
1.
Immediately park the

vehicle in a safe place. Turn
off all accessories and turn on the hazard warning
lights.
2. If no steam or spray is present: Keep the engine

running and open the hood (see page 139).
If steam or spray is present

: Turn off the engine
and wait until it subsides. Then, open the hood.
3.
Check that the cooling

fan is operating. If it is not, immediately stop the engine.
Otherwise, idle the engine until the MID message goes off.

4. Once the engine has cooled down, inspect

the coolant level and check the
cooling system components for leaks. If the coolant level in the reserve tank
is low, add coolant until it reaches the MAX mark. If there is no coolant in the
reserve tank, make sure the radiator is cool, then cover the radiator cap with a
heavy cloth and open the cap. If necessary, add coolant up to the base of the
filler neck, and put the cap back on. Then, fill the reserve tank to the MAX mark.
Once the engine has cooled sufficiently, restart it and check the temperature
gauge. If the temperature needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.
Removing the radiator cap while the engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator
cap.
WARNING
Steam and spray from an overheated engine can seriously scald you.
Do not open the hood if steam is coming out.
WARNING
Continuing to drive with the temperature gauge needle at the H mark may damage
the engine.
NOTICE
MAX MIN
Reserve tank

146 |
MAINTENANCE
Tire Information
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
Inflation Guidelines
•
Properly inflated
tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb label or the specifications (see page
153) for the specified pressure.
•
Underinflated tires

wear unevenly, adversely affect handling and fuel economy,
and are more likely to fail from overheating.
•
Overinflated tir

es make your vehicle ride harshly, are more prone to road
hazards, and wear unevenly.
•
Every day befor

e you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
•
Measure the air pr

essure when tires are cold. This means the vehicle has been
parked for at least 3 hours, or driven less than 1 mile (1.6 km). If necessary, add
or release air until the specified pressure is reached. If checked when hot, tire
pressure can be as much as 4-6 psi (30-40 kPa, 0.3-0.5 kgf/cm
2) higher than
checked when cold.
•
At least once a month

or before long trips, use a gauge to measure the pressure
in all tires, including the spare. Even tires in good condition can lose 1-2 psi
(10-20 kPa, 0.1-0.2 kgf/cm
2) per month.
Inspection Guidelines
Every time you inflate the tires, check for the following:
•
Any damage

to tires, including bumps, bulges, cuts, splits, or cracks in the side
or tread. Remove any foreign objects and inspect for air leaks. Replace tires if
you see fabric or cord.
•
Uneven or ex

cessive tread wear. Have a dealer check the wheel alignment.
•
Cracks or other damage around the

valve stems.
Wear IndicatorsThe groove where the wear indicator is located is
1/16 inch (1.6 mm) shallower than elsewhere on the
tire. If the tread has worn so low that the indicator
is exposed, replace the tire. Worn out tires have
poor traction on wet roads.
Example of a wear indicator mark

| 161
INDEX
Front Door Inner Handle ......................................
34
Fuel Information .......................................... 100, 119
Fuse Locations ....................................................... 131
Garage Opener ........................................................

50
Handling Information
.............................................. 3
Hang-Up/Back button ........................................... 71
Hard Disc Driv

e (HDD) Audio
.............................. 62
Hard Disc Drive (HDD)

Commands
..................158
HDD ........................................................................\
.. 62
HDMI ........................................................................\
68
Headlight Washers ................................................. 37
Headlight-Wiper Integration ............................... 41
Headphones ........................................................... 68
Head Restraints ..................................................... 44
Heated Steering Wheel ......................................... 53
Heated Windshield Button ................................... 53
High beams .............................................................. 29
Home Addr

ess
........................................................ 84
HomeLink Garage Opener .................................... 50
Hood ....................................................................... 139
Immobilizer ........................................................ 27, 28
INFO button ............................................................ 82
Instrument Panel .................................................... 26
Condition Indicators ........................................... 28
Malfunction Indicators ....................................... 26
Multi-Information Display ................................ 30
On/Off Indicators ................................................ 29
Integrated Dynamics S

ystem
.............................101
Interface dial ............................................... 58, 71, 82
Interior Lights .................................................. 38, 40
Intermittent Wipers ............................................... 41
iPod

........................................................................\
....63
iPod® Commands
................................................. 158
Jump Starting ........................................................ 120
Keyless A

ccess System
.................................... 27, 32
Lane

Departure Warning
............................... 27, 110
Lane K

eeping Assist System
................................ 111
Lap/Shoulder Seat Belts .......................................... 5
LAT

CH-Compatible Child Seat
............................ 18
LDW .................................................................. 27, 110
Light Bulbs ............................................................. 153
Lights .................................................................. 29, 37
Exterior Lights ...................................................... 37
Interior Lights ............................................... 38, 40
LINK button ............................................................ 80
LKAS ........................................................................\
. 111
Lock Tab ................................................................... 34
Low fuel .................................................................... 28
Low oil pr

essure
...................................................... 26
Low tire

pressure
.................................................... 28Maintenance
..........................................................
136
Battery ................................................................. 143
Engine Coolant ................................................... 142
Engine Oil ........................................................... 140
Maintenance Minder™ ..................................... 137
Opening the Hood .............................................

139
Service Codes
..................................................... 138
Under the Hood ................................................. 139
Window Washer

Fluid
.......................................143
Wiper Blades ...................................................... 144
Making a Call ........................................................... 74
Malfunction Indicator Lamp.................................

26
Malfunction Indicators
.......................................... 26
Map Legend ............................................................ 86
Master Door Lock S

witch
.....................................34
Maximum Load Limit ............................................ 90
MENU button ............................................. 58, 71, 82
Mirrors ..................................................................... 46
Moonroof ................................................................. 36
Multi-Information Display ................................... 30
System message .................................................. 28
Multi-View

Rear Camera
.....................................115
NAV button ............................................................. 82
Navigation ............................................................... 81
Detour .................................................................... 87
Display and C

ontrols
...........................................82
Entering a Destination ....................................... 84
Find Nearest Place ............................................... 85
Home Addr

ess
.....................................................84
INFO button ......................................................... 82
Interface dial ......................................................... 82
Map Legend ......................................................... 86
MENU button ....................................................... 82
NAV button .......................................................... 82
Place Category ..................................................... 85
Routing ................................................................. 86
SETTINGS button ................................................ 82
Shortcuts ............................................................... 85
Steering Wheel C

ontrols
....................................81
Street Addr

ess
.....................................................84
System

Guidance Volume
.................................83
Talk button ............................................................ 81
Talk

Button Tips
...................................................81
Traffic R

erouting
..................................................87
Turn-by-

Turn Directions
....................................86
Voice Pr

ompt
.......................................................83
Navigation Commands ....................................... 157
ODMD ...................................................................... 58
On-Demand Multi-Use Display (ODMD) ......... 58
One-T

ouch Turn Signal
.........................................40
On/Off Indicators ................................................... 29
Opening the Hood ............................................... 139
Operator Assistance ............................................. 80
Overheating ........................................................... 122
Paddle shifters .........................................................99
