2017 Acura MDX Hybrid service indicator

26
Quick Reference Guide
Handling the Unexpected (P383)
Flat Tire (P385)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P412)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with compact spare tire
Power System Won’t
Start
(P404)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P418)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P409)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P427)
● Call a professional towing service if you
need to tow your vehicle.
17 ACURA MDX E-AWD-31TRX6000.book 26 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

327
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of gasoline with a pump octane less than 87 can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additi ves in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at owners.acura.com In
Canada, visit www.acura.ca for additional informati on on gasoline. For more
information on top tier gasoline, visit www.toptiergas.com.
■Fuel tank capacity: 19.4 US gal (73.3 liters)
Unleaded premium gasoline, pump octane number 91 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
17 ACURA MDX E-AWD-31TRX6000.book 327 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

331
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 332
Safety When Performing Maintenance ..333
Parts and Fluids Used in Maintenance Service...334Maintenance MinderTM..................... 335
Maintenance Under the Hood
Maintenance Items Under the Hood .. 339
Opening the Hood ........................... 340
Engine Compartment Cover ............. 341
Recommended Engine Oil ................ 342
Oil Check ......................................... 343
Adding Engine Oil ............................ 344
Changing the Engine Oil and Oil Filter ...345 Cooling System ................................ 347
Transmission Fluid ............................ 350
Brake Fluid ....................................... 351
Refilling Window Washer Fluid......... 351
Replacing Light Bulbs ....................... 352Checking and Maintaining Wiper Blades... 357Checking and Maintaining Tires
Checking Tires ................................. 361
Tire and Loading Information Label .. 362
Tire Labeling .................................... 362
DOT Tire Quality Grading (U.S. Vehicles).. 364Wear Indicators................................ 366
Tire Service Life ................................ 366 Tire and Wheel Replacement ........... 367
Tire Rotation .................................... 368
Winter Tires ..................................... 369
12-Volt Battery ................................. 370
Remote Transmitter Care Replacing the Button Battery ........... 371
Remote Control and Wireless Headphone Care
*........................... 372Climate Control System Maintenance.. 374Cleaning Interior Care .................................... 375
Exterior Care.................................... 377
Accessories and Modifications ........ 380
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 331 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

336
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Multi-Information
Display (MID)
Maintenance MessageOil Life DisplayExplanationInformation
Maintenance Due Soon15%The remaining engine oil life is 15 to
6 percent. Once you switch the
display by rolling the multi-function
steering-wheel controls, this
message will go off.The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and serviced
soon.
Maintenance Due Now5%The remaining engine oil life is 5 to 1
percent. Roll the multi-function
steering-wheel controls to switch to
another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.
Maintenance Past DueNegative DistanceThe remaining engi ne oil life has
passed its service life, and a negative
distance appears after driving over
10 miles (U.S. models) or 10 km
(Canadian models). Roll the multi-
function steering wheel control to
switch to another display.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
U.S.Canada
17 ACURA MDX E-AWD-31TRX6000.book 336 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

337
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub Items
Main
Item
*1: If the message
Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit
bottle*
●Inspect tie rod ends, steering gearbox, boots, and
drain plug
●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 30,000 miles (48,000 km), then every 25,000 miles (40,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under
-20°F, -29°C), replace every 60,000 miles/100,000 km.
*6: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires twin motor unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the twin motor
unit fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
6●Replace twin motor unit fluid*6
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 337 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

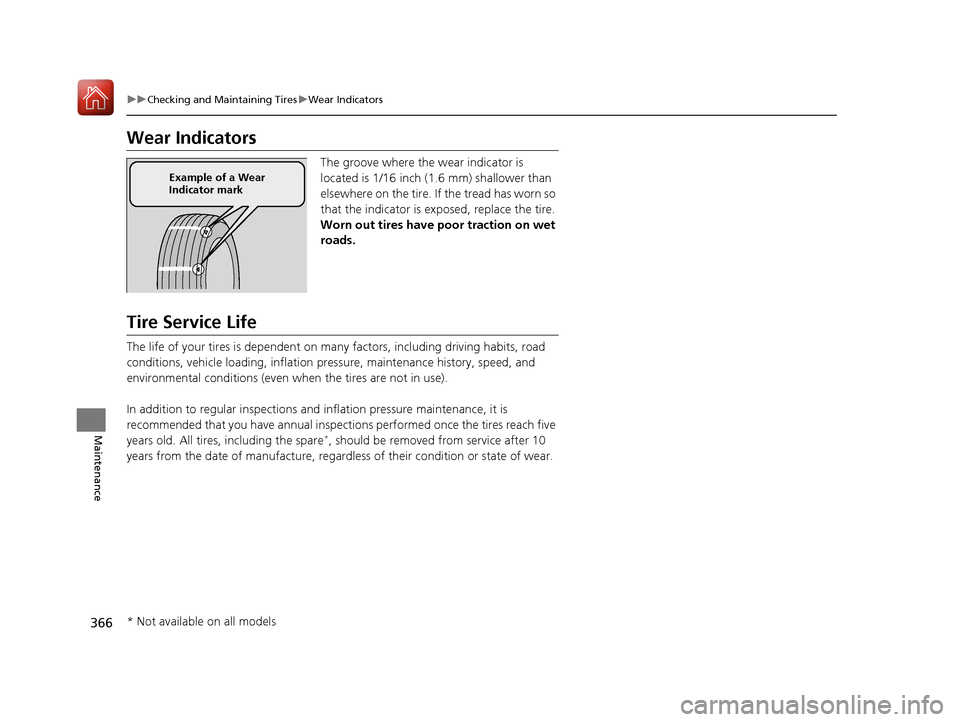

366
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have poor traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pre ssure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular in spections and inflation pres sure maintenance, it is
recommended that you have annual inspecti ons performed once the tires reach five
years old. All tires, including the spare
*, should be removed from service after 10
years from the date of manufacture, regard less of their condition or state of wear.
Example of a Wear
Indicator mark
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 366 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

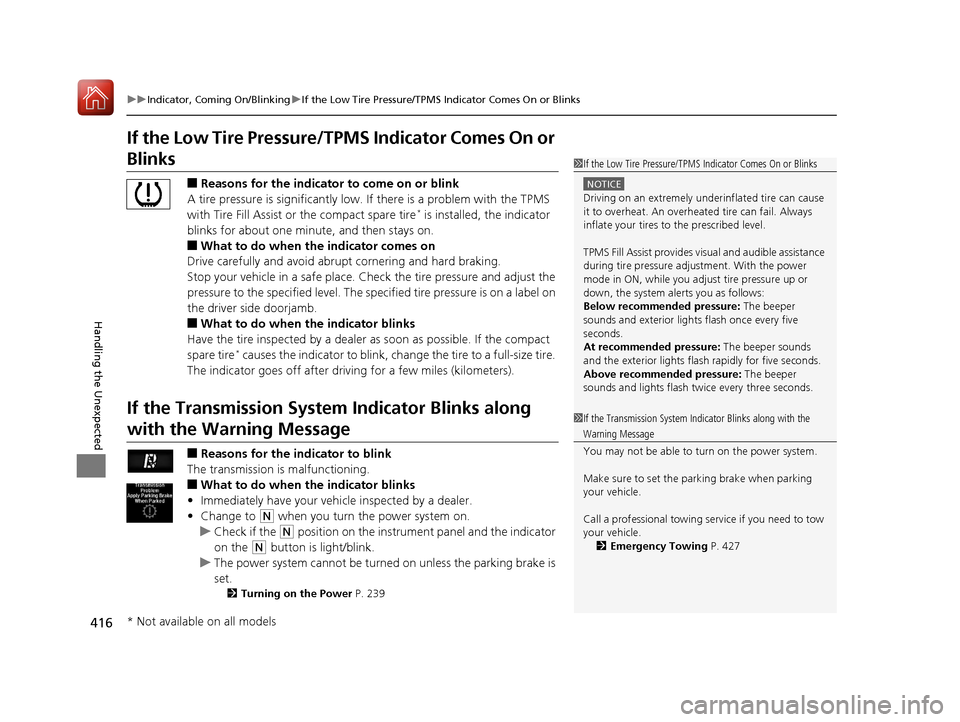

416
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire
* is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change to
(N when you turn the power system on.
u Check if the
(N position on the instrument panel and the indicator
on the
(N button is light/blink.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 239
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and the exterior lights flash rapidly for five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 427
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 416 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

443
Index
Indicator ..................................... 78, 79, 414
Parking Brake.......................................... 299
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 78, 414
Brightness Control (Instrument Panel) ... 179
BSI (Blind Spot Information) System ....... 291
Bulb Replacement .................................... 352
Back-Up Light ......................................... 355
Brake Light and Rear Tu rn Signal Light .... 353
Fog Lights ............................................... 352
Front Turn Signal/ Parking, Daytime
Running and Front Side Marker Lights ... 352
Headlights .............................................. 352
High-Mount Brake Light.......................... 356
Puddle Lights .......................................... 356
Rear License Plate Lights ......................... 356
Side Turn Signal/Emergency Indicator Lights .................................................... 352
Taillights ................................................. 355
Taillights/Rear Side Maker Lights ............. 354
Bulb Specifications ................................... 432
C
Car Wash Mode........................................ 251
Carbon Monoxide Gas ............................... 75
Carrying Cargo ................................. 231, 233
Center Pocket ........................................... 205
Certification Label ................................... 434 Changing Bulbs
......................................... 352
Charging System Indicator ................. 82, 412
Child Safety ................................................. 60
Childproof Door Locks ............................. 149
Child Seat .................................................... 60
Booster Seats ............................................. 74
Child Seat for Infants ................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 68
Larger Children .......................................... 73
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Childproof Door Locks ............................. 149
Cleaning the Exterior ............................... 377
Cleaning the Interior ................................ 375
Client Service Information ....................... 441
Climate Control System ............................ 214
Changing the Mode ................................ 217
Defrosting the Windshield and Windows ............................................... 221
Dust and Pollen Filter ............................... 374
Rear Climate Control System ................... 222
Sensors .................................................... 226
Synchronized Mode ................................. 218
Using Automatic Climate Control ............ 214
Clock .......................................................... 136
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 307
Coat Hook ................................................. 210 Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 307
Compact Spare Tire .......................... 385, 433
Console Compartment ............................. 204
Controls ..................................................... 135
Coolant (Engine) ...................................... 347
Adding to the Radiator ............................ 348
Adding to the Reserve Tank..................... 347
Overheating ............................................ 409
Creeping (Dual Clutch Transmission) ...... 246
Cross Traffic Monitor ............................... 322
Cup Holders .............................................. 206
Customized Features ................................ 125
D
Daytime Running Lights .......................... 171
Dead Battery ............................................. 407
Defrosting the Windshield and Windows ................................................. 221
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 435
Dimming Headlights ............................................... 168
Rearview Mirror....................................... 184
Dipstick (Engine Oil) ................................. 343
Directional Signals (Turn Signal) ............. 167
Door Mirrors ............................................. 185
17 ACURA MDX E-AWD-31TRX6000.book 443 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分
