2017 Acura MDX Hybrid key

404
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the multi-informati on display, check the following items and
take appropriate action:
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display (MID) Warning
and Information Messages P. 99
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remo te is in its operating range.
2POWER Button Operating Range P. 164
2If the Keyless Access Remote Battery is
Weak P. 405
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
Problem Apply Parking Brake When Parked message
appears.The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 416
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 426
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 90
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 407
17 ACURA MDX E-AWD-31TRX6000.book 404 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

405
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the indicator on the POWER button
flashes, and the READY indicator does not come on.
Turn on the power system as follows: 1.Touch the center of the POWER button
with the A logo on the keyless access
remote while the indicator on the POWER
button is flashing. The buttons on the
keyless access remote should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds while th e indicator stays on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
17 ACURA MDX E-AWD-31TRX6000.book 405 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

421

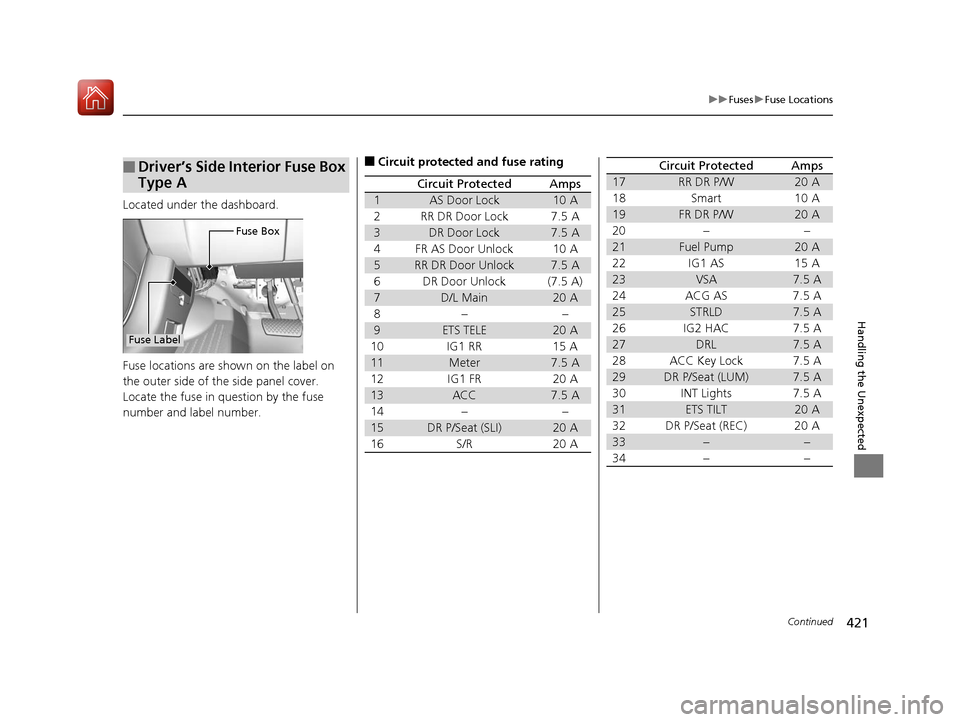

uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1AS Door Lock10 A
2RR DR Door Lock7.5 A
3DR Door Lock7.5 A
4FR AS Door Unlock10 A
5RR DR Door Unlock7.5 A
6DR Door Unlock(7.5 A)
7D/L Main20 A
8−−
9ETS TELE20 A
10 IG1 RR 15 A
11Meter7.5 A
12 IG1 FR 20 A
13ACC7.5 A
14 − −
15DR P/Seat (SLI)20 A
16 S/R 20 A
17RR DR P/W20 A
18 Smart 10 A
19FR DR P/W20 A
20 − −
21Fuel Pump20 A
22 IG1 AS 15 A
23VSA7.5 A
24 ACG AS 7.5 A
25STRLD7.5 A
26 IG2 HAC 7.5 A
27DRL7.5 A
28 ACC Key Lock 7.5 A
29DR P/Seat (LUM)7.5 A
30 INT Lights 7.5 A
31ETS TILT20 A
32 DR P/Seat (REC) 20 A
33−−
34−−
Circuit ProtectedAmps
17 ACURA MDX E-AWD-31TRX6000.book 421 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

435
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC (Federal Communications Commissio n)
and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expres sly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Indus try Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must ac cept any interference, including interference that may cause unde sired
operation of the device.
AcuraLink
Audio System
Blind Spot Information System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver
Collision Mitigati on Braking SystemTM
Immobilizer System
Remote Transmitter
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback
17 ACURA MDX E-AWD-31TRX6000.book 435 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

444
Index
Doors......................................................... 137
Auto Door Locking .................................. 150
Auto Door Unlocking ............................... 150
Door Open Message .................................. 36
Keys ........................................................ 137
Locking/Unlocking the Doors from the Inside ............................................... 18, 147
Locking/Unlocking the Doors from the
Outside .................................................. 139
Lockout Prevention System ...................... 145
DOT Tire Quality Grading ........................ 364
Driver’s Knee Airbag .................................. 52
Driving ....................................................... 229
Braking .................................................... 299
Dual Clutch Transmission ......................... 246
Off-Highway Driving Guidelines ............... 237
Shifting Gear ........................................... 247
Turning on the Power .............................. 239
Driving Position Memory System ............. 181
Dual Clutch Transmission ......................... 246
Creeping ................................................. 246
Fluid ........................................................ 350
Kickdown ................................................ 246
Operating the Shift Button................. 21, 249
Shifting.................................................... 247
Dust and Pollen Filter ............................... 374
Dynamic Mode button ............................. 256
E
Elapsed Time............................................. 122 Electric Parking Brake
Indicator.................................................... 80
Switch ..................................................... 299
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 287
Emergency ................................................ 427
Emissions Testing (Readiness Codes) ....... 437
Energy Efficiency ........................................ 12
Engine ....................................................... 434
Coolant ................................................... 347
Jump Starting .......................................... 407
Oil ........................................................... 342
Remote Engine Start................................ 241
Starting ................................................... 239
Engine Compartment Cover .................... 341
Engine Coolant ......................................... 347
Adding to the Radiator ............................ 348
Adding to the Reserve Tank..................... 347
Overheating ............................................ 409
Engine Oil ................................................. 342
Adding .................................................... 344
Checking................................................. 343
Displaying Oil Life .................................... 335
Low Oil Pressure Indicator ................. 82, 412
Recommended Engine Oil ....................... 342
EPS (Electric Power Steering) System ............................................... 89, 414
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 377
Exterior Mirrors ........................................ 185
F
Features.................................................... 227
Filters Dust and Pollen....................................... 374
Oil .......................................................... 345
Flat Tire ............................................. 385, 392
Floor Mats ................................................ 376
Fluids
Brake ...................................................... 351
Dual Clutch Transmission ........................ 350
Engine Coolant ....................................... 347
Windshield Washer ................................. 351
Fog Lights ................................................. 171
Folding Down the Second Row Seat ...... 192
Folding Down the Third Row Seat .......... 198
Foot Brake ................................................ 302
Front Airbags (SRS) .................................... 48
Front Seats ................................................ 187
Adjusting ................................................ 187
Front Sensor Camera ............................... 257
Fuel ..................................................... 23, 327
Fuel Economy and CO
2 Emissions ............ 330
Gauge .................................................... 117
Instant Fuel Economy .............................. 122
Low Fuel Indicator..................................... 85
Range ..................................................... 122
Recommendation.................................... 327
Refueling ................................................ 327
Fuel Economy and CO
2 Emissions ............ 330
Fuel Fill Cap ................................................ 23
17 ACURA MDX E-AWD-31TRX6000.book 444 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

445
Index
Fuel Fill Door...................................... 23, 328
Unable to Unlock .................................... 428
Fuses ......................................................... 418
Inspecting and Changing ........................ 426
Locations ........................ 418, 421, 424, 425
G
Gasoline (Fuel) Economy................................................. 330
Gauge .................................................... 117
Information............................................. 327
Low Fuel Indicator..................................... 85
Refueling ................................................ 327
Gauges ...................................................... 117
Gear Position Indicator ...................... 83, 249
Gear Shift Positions Dual Clutch Transmission ........................ 247
Glass (care) ............................................... 378
Glove Box ................................................. 203
H
Handling the Unexpected ....................... 383
Hazard Warning Button .............................. 4
Head Restraints ........................ 193, 195, 196
Headlight Washers ................................... 178
Headlights ................................................ 168
Aiming.................................................... 352
Auto High-Beam System ......................... 172
Automatic Operation .............................. 169 Dimming ......................................... 168, 171
Operating ................................................ 168
Heated Door Mirrors ................................ 180
Heated Steering Wheel ............................ 211
Heated Windshield ................................... 180
Heater (Steering Wheel) .......................... 211
Heaters (Seat) ................................... 212, 213
High Beam Indicator .................................. 89
High Voltage Battery ............................... 298
Hill Start Assist System ............................. 244
Hybrid Vehicle
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD® )............ 9
I
Identification Numbers ............................ 434
Engine, Motor, and Transmission ............. 434
Vehicle Identification ............................... 434
IDS (Integrated Dynamics System) ........... 256
Illumination Control ................................. 179
Button ..................................................... 179
Immobilizer System .................................. 158
Indicator .................................................... 90
Indicators .................................................... 78
12-Volt Battery Charging System ....... 82, 412
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF).................... 94, 259
Anti-lock Brake System (ABS) ..................... 87
Auto High-Beam ........................................ 87
Automatic Brake Hold ....................... 81, 303 Automatic Brake Hold System ........... 81, 303
Blind Spot Information (BSI) ....................... 98
Brake System (Amber) ............................... 79
Brake System (Red) ............................ 78, 414
Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 96, 97
Electric Parking Brake ................................ 80
Electric Parking Brake System ............ 80, 415
Fog Lights ................................................. 90
Gear Position............................................. 83
High Beam ................................................ 89
High Temperature ..................................... 86
Immobilizer System ................................... 90
Keyless Access System ............................... 91
Lane Keeping Assist System (LKAS) .... 92, 281
Lights On .................................................. 90
Low Fuel ................................................... 85
Low Oil Pressure ................................ 82, 412
Low Temperature ...................................... 86
Low Tire Pressure/TPMS ..................... 89, 416
M (sequential mode) I ndicator/Sequential
Mode Gear Selection ............................... 83
Malfunction Indicator Lamp............... 82, 413
POWER SYSTEM Indicator ................. 85, 417
READY ...................................................... 86
Road Departure Mitigation (RDM) ............. 93
Seat Belt Reminder .............................. 39, 85
Security System Alarm ............................... 91
Speed-sensitive Electric Power Steering (EPS) System ...................... 89, 414
SPORT+ mode ........................................... 86
17 ACURA MDX E-AWD-31TRX6000.book 445 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

446
Index
Supplemental Restraint System ............ 57, 87
System Message ........................................ 91
Transmission System .......................... 84, 416
Turn Signal ................................................ 89
Vehicle Stability Assist (VSA®)
System ............................................. 88, 287
VSA ® OFF .......................................... 88, 288
Information ............................................... 431
Instrument Panel ........................................ 77
Brightness Control ................................... 179
Integrated Dynamics System (IDS) ........... 256
Dynamic Mode button ............................. 256
Interior Lights ........................................... 201
Interior Rearview Mirror .......................... 184
J
Jack (Wheel Nut Wrench) ......................... 389
Jump Starting ............................................ 407
K
Key Number Tag ....................................... 138
Keyless Access System ............................... 139
Keyless Lockout Prevention ..................... 145
Keys ........................................................... 137
Lockout Prevention .................................. 145
Number Tag ............................................ 138
Rear Door Won’t Open ............................ 149
Remote Transmitter ................................. 144
Types and Functions ................................ 137 Kickdown (Dual Clutch Transmission)
..... 246
L
Lane Keeping Assist System (LKAS)......... 279
Indicator.................................................... 92
LATCH (Child Seats) .............................. 65, 70
LED Puddle Light ...................................... 143
Lights ................................................. 168, 352
Automatic ............................................... 169
Bulb Replacement ................................... 352
Daytime Running Lights........................... 171
High Beam Indicator .................................. 89
Interior .................................................... 201
Light Switches ......................................... 168
Lights On Indicator .................................... 90
Turn Signals ............................................ 167
Load Limits ................................................ 233
Locking/Unlocking .................................... 137
Auto Door Locking/Unlocking.................. 150
Childproof Door Locks............................. 149
From Inside ............................................. 147
From Outside .......................................... 139
Keys ........................................................ 137
Using a Key ............................................. 145
Lockout Prevention System ..................... 145
Low Battery Charge ................................. 412
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 82, 412
Lower Anchors ...................................... 65, 70
Lubricant Specifications Chart ................. 433Luggage (Maximum Load Limit)
............. 233
Lumbar Support ....................................... 187M
Maintenance............................................ 331
12-Volt Battery ....................................... 370
Brake Fluid .............................................. 351
Cleaning ................................................. 375
Climate Control System .......................... 374
Coolant .................................................. 347
Maintenance Minder
TM............................ 335
Oil .......................................................... 343
Precautions ............................................. 332
Radiator .................................................. 348
Remote Control ...................................... 372
Remote Transmitter ................................ 371
Replacing Light Bulbs .............................. 352
Safety ..................................................... 333
Service Items ........................................... 337
Tires........................................................ 361
Transmission Fluid ................................... 350
Under the Hood ...................................... 339
Wireless Headphone ............................... 373
Malfunction Indicator Lamp ............. 82, 413
Map Lights ................................................ 202
Maximum Load Limit ............................... 233
Meters, Gauges ........................................ 117
MID (Multi-information Display) ............ 119
Mirrors ...................................................... 184
Adjusting ................................................ 184
17 ACURA MDX E-AWD-31TRX6000.book 446 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分
