2017 Acura MDX Hybrid Owner's Manual

24
Quick Reference Guide
AcuraWatchTM
AcuraWatchTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is in
the front grille.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
(P259)
Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM) System
(P274)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings.
Lane Keeping Assist
System (LKAS)
(P279)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P307)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
17 ACURA MDX E-AWD-31TRX6000.book 24 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

25
Quick Reference Guide
Maintenance (P331)
Under the Hood (P339)
● Check engine oil, engine coolant, windshield washer fluid
and inverter coolant. Add when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P352)
● Inspect all lights regularly.
Wiper Blades (P357)
● Replace blades if they leave streaks
across the windshield.
Tires (P361)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
17 ACURA MDX E-AWD-31TRX6000.book 25 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

26
Quick Reference Guide
Handling the Unexpected (P383)
Flat Tire (P385)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P412)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with compact spare tire
Power System Won’t
Start
(P404)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P418)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P409)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P427)
● Call a professional towing service if you
need to tow your vehicle.
17 ACURA MDX E-AWD-31TRX6000.book 26 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

27
Quick Reference Guide

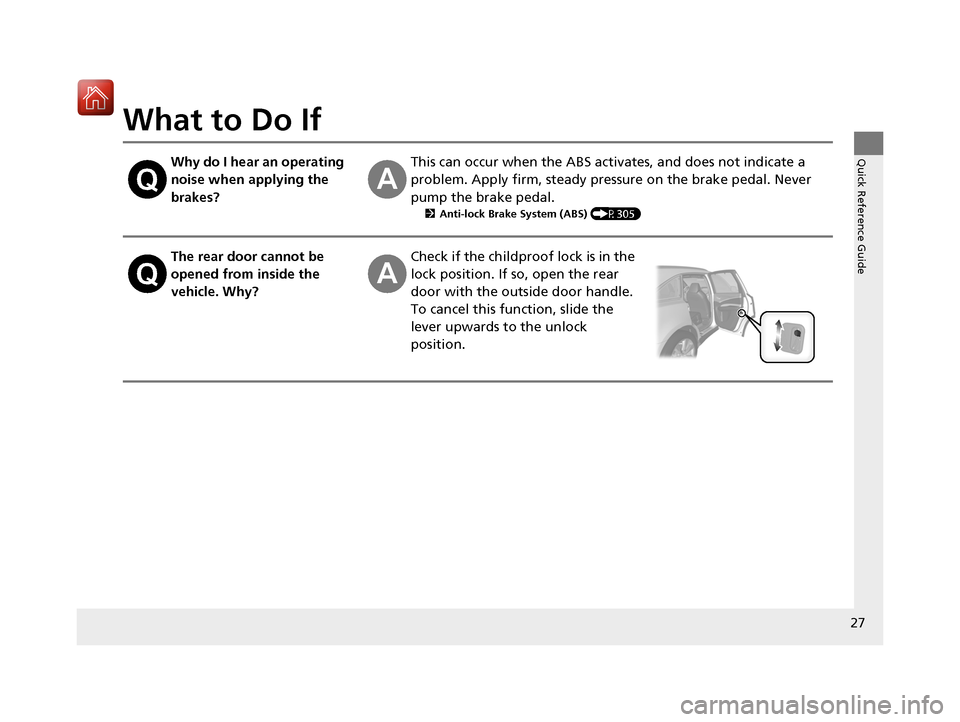

What to Do If
Why do I hear an operating
noise when applying the
brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P305)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, slide the
lever upwards to the unlock
position.
17 ACURA MDX E-AWD-31TRX6000.book 27 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

28
Quick Reference Guide
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pulling the electric parking
brake switch does not
release the parking brake.
Why?Pull the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring System (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P416)
17 ACURA MDX E-AWD-31TRX6000.book 28 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

29
Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why does the gear position
automatically change to
(P
when I open the driver’s
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver’s door and manually change the gear
position. u
When opening the driver’s door (P250)
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Unleaded gasoline with a
Pump Octane Number
(PON) of 91 or higher is
recommended.
Is it possible to use
unleaded gasoline with a
Pump Octane Number
(PON) of 87 or lower on
this vehicle?Unleaded gasoline with a Pump Octane Number (PON) of 91 or
higher is recommended.
Use of lower octane gasoline can cause occasional metallic
knocking noise in the engine and will result in decreased engine
performance.
Use of gasoline with a pump octane less than 87 can lead to
engine damage.
17 ACURA MDX E-AWD-31TRX6000.book 29 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

30
17 ACURA MDX E-AWD-31TRX6000.book 30 ページ ２０１７年１月２０日　金曜日　午後２時５３分

31
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 32
Important Handling Information ......... 34
Your Vehicle’s Safety Features ............ 35
Safety Checklist ................................. 36
Seat Belts About Your Seat Belts ........................ 37
Fastening a Seat Belt .......................... 40
Seat Belt Inspection ............................ 44 Airbags
Airbag System Components ............... 45
Types of Airbags ................................ 48
Front Airbags (SRS) ............................ 48
Driver’s Knee Airbag .......................... 52
Side Airbags....................................... 54
Side Curtain Airbags .......................... 56
Airbag System Indicators .................... 57
Airbag Care ....................................... 59 Child Safety
Protecting Child Passengers ............... 60
Safety of Infants a nd Small Children .. 62
Safety of Larger Children ................... 73
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 75
Safety Labels Label Locations .................................. 76
