2017 Abarth Punto manual radio set

Automatic tuning ............................................................ 245
Manual tuning .................................................................. 245
Autostore function ........................................................ 246
Emergency alarm reception ......................................... 247
EON function ................................................................. 247
Stereophonic broadcasters .......................................... 247
CD PLAYER .................................................................... 248
Introduction .................................................................... 248
CD player selection ....................................................... 248
CD loading/ejection ....................................................... 249
Display readings .............................................................. 250
Track selection ................................................................ 250
Fast forward/rewind through tracks .......................... 250
Pause function ................................................................. 250
CD MP3 PLAYER ........................................................... 251
Introduction .................................................................... 251
MP3 mode ....................................................................... 251
Selection of MP3 sessions with hybrid discs ............ 251
Display readings .............................................................. 252
Selection of next/previous folder ............................... 252
Folder structure ............................................................. 252
AUX (only with Blue&Me™)..................................... 253
Introduction .................................................................... 253
AUX mode ...................................................................... 253
TROUBLESHOOTING ............................................... 254
RADIO
INTRODUCTION ........................................................ 222
Suggestions ...................................................................... 222
Technical specifications ................................................. 224
QUICK GUIDE .............................................................. 225
Steering wheel controls ................................................ 228
General information ...................................................... 229
FUNCTIONS AND ADJUSTMENTS ........................ 231
Turning the car radio on .............................................. 231
Turning the car radio off .............................................. 231
Selecting the radio functions ....................................... 231
Selecting CD function ................................................... 231
Audio source memory function .................................. 231
Volume adjustment ........................................................ 232
Mute/Pause function ...................................................... 232
Audio adjustments ......................................................... 233
Preset/User/Classic/Rock/Jazz functions ................... 235
User Eq Settings function ............................................. 235
Menu ................................................................................. 236
Phone function................................................................. 241
Phone set-up ................................................................... 242
Anti-theft protection ..................................................... 243
RADIO (Tuner) .............................................................. 244
Introduction .................................................................... 244
Selecting a frequency band ........................................... 244
Preselection buttons ..................................................... 245
Storing the last station listened to ............................. 245
RADIO
221
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 221

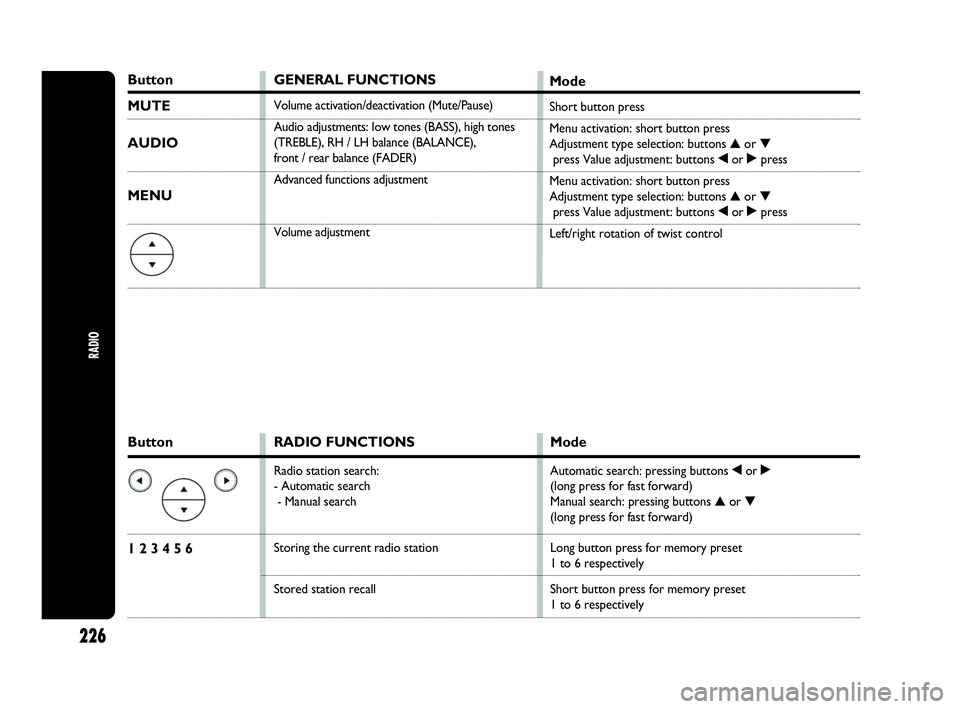

Button
1 2 3 4 5 6
RADIO FUNCTIONS
Radio station search:
- Automatic search
- Manual search
Storing the current radio station
Stored station recall
Mode
Automatic search: pressing buttons ¯or ˙
(long press for fast forward)
Manual search: pressing buttons ▲or ▼
(long press for fast forward)
Long button press for memory preset
1 to 6 respectively
Short button press for memory preset
1 to 6 respectively
Button
MUTE
AUDIO
MENU
GENERAL FUNCTIONS
Volume activation/deactivation (Mute/Pause)
Audio adjustments: low tones (BASS), high tones
(TREBLE), RH / LH balance (BALANCE),
front / rear balance (FADER)
Advanced functions adjustment
Volume adjustment
Mode
Short button press
Menu activation: short button press
Adjustment type selection: buttons ▲or ▼
press Value adjustment: buttons ¯or ˙press
Menu activation: short button press
Adjustment type selection: buttons ▲or ▼
press Value adjustment: buttons ¯or ˙press
Left/right rotation of twist control
RADIO
226
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 226

RADIO
229
GENERAL INFORMATION
The radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequency bands;
❒RDS (Radio Data System) with TA function (traffic
information) - TP (traffic programmes) - EON
(Enhanced Other Network) - REG (regional
programmes);
❒AF: alternative frequency search selection in RDS
mode;
❒set-up for emergency alarm;
❒automatic/manual station tuning;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM band (6 on
FM1, 6 on FM2, 6 on FMT), 12 on MW band (6 on
MW1, 6 on MW2);
❒automatic storage (Autostore function) of 6 stations
in the dedicated FM band;
❒SPEED VOLUME function: automatic volume
adjustment depending on the car speed;
❒automatic Stereo/Mono selection.CD section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/rewind through tracks;
❒CD Display function: display of disc name and time
elapsed since the start of the track;
❒Playing audio CDs, CD-Rs and CD-RWs.
On multimedia CDs, besides audio tracks,
there are data tracks too. Playing this type
of CD can cause hissing at a volume that
may jeopardise road safety as well as causing
damage to the final stages and the speakers.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 229

RADIO
245
PRESET BUTTONS
The buttons numbered from 1 to 6 are used to set the
following preselections:
❒18 in the FM band (6 in FM1, 6 in FM2, 6 in FMT or
“FMA” on some versions);
❒12 in the MW band (6 in MW1, 6 in MW2).
To listen to a preset station, select the desired frequency
band and then press the corresponding preset button
briefly (from 1 to 6).
By pressing the preset button for more than 2 seconds,
the tuned station will be stored. The storing phase is
confirmed by a beep.
STORING THE LAST STATION LISTENED TO
The radio automatically stores the last station that was
selected for each reception band, that is then tuned into
when the radio is turned on or when the reception band
is changed.AUTOMATIC TUNING
Briefly press the ¯or ˙button to start the automatic
tuning search for the next station that can be received in
the selected direction.
If the button ¯or ˙is pressed for longer, the rapid
search is started. When the button is released, the tuner
will stop on the next station that can be received.
If the TA function (traffic news) is on, the tuner searches
only for stations that broadcast traffic news.
MANUAL TUNING
This is used to manually search for stations in the
preselected band.
Select the desired frequency band and then press the
button ▲or ▼briefly and repeatedly to start the search
in the desired direction.
If the button ▲or ▼is pressed longer, the rapid search
starts and then stops when the button is released.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:28 Pagina 245

263
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
– engine marking ........................ 206
– vehicle identification
number plate ............................... 205
Ignition switch ............................... 11
– steering wheel lock ................ 12
Important notes ............................ 2
In an emergency ............................ 151
Installing electrical/electronic
devices (important notes) ........ 106
Instrument panel ........................... 13
– right hand drive version ........ 258
Interior fittings................................ 61
Interiors (cleaning) ....................... 200
Isofix (child seat)
– passenger seat compliance
with regulations on Isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118
– universal Isofix child seat
capability ...................................... 120
Keys ................................................ 5
– Code card ................................ 5
– key with remote control ...... 6
– key without remote control .. 9
– remote control battery
replacement ................................. 7– replacing the cover of
the remote control .................... 8
– request for additional
remote controls ......................... 8
Knowing your car .......................... 3
Levers on the steering
wheel .....................................49-51
Lubricant specifications................ 217
Lubricants (specifications).... 217-218
Main beam headlamps
– bulb replacement .................... 162
– switching on ............................. 50
Main beam headlights
– bulb replacement .................... 162
– switching on ............................. 50
“Manettino Abarth” car
dynamic control system
(DSS – Driving Sport Switch) .. 96
Manual climate control system ... 39
Maximum speed ............................ 213
Mirrors ............................................ 35
– electrochromic rear-view ..... 35
– rear-view .................................. 35
– wing ........................................... 36
MSR system ................................... 91
Nozzles
– windscreen/rear
window washer............................ 199
Number plate lights
– bulb replacement .................... 167
On-board computer (trip) ......... 29
On-board instruments
(panel) ......................................13-14
Paintwork (maintenance) ........... 201
– bodywork colour plate .......... 206
Parking lights .................................. 58
Parking the car ............................... 133
Performance ................................... 215
Pollen filter ..................................... 192
Portable navigation system
(preparation for installation) .... 105
Portable navigator
(installation presetting) ............. 105
Power supply (technical data) .... 208
Preparation to install a portable
navigation system ....................... 105
Protecting the environment ....... 108
Radio .............................................. 221
Radio transmitters
and mobile phones ..................... 106
259-266 PUNTO Abarth GB 1ed 17-07-2012 13:47 Pagina 263
