2017 Abarth Punto Owner handbook (in English)

The data contained in this publication is intended merely as a guide. Abarth reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your Abarth dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
ABARTHPUNTO
ENGLISH
COP LUM ABARTH PUNTO GB 7-02-2012 14:27 Pagina 1

We really know your car because we invented, designed and built it: we really know every single detail.
At Abarth Service authorised workshopsyou can find technicians directly trained by us,
offering quality and professionalism for all service operations.
Abarth workshops are always close to you for the regular servicing operations, season checks
and practical recommendations by our experts.
With Abarth Genuine Parts you keep the reliability, comfort and performance features
of your new car unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our cars; we recommend them because
they come from our steady commitment in research and development of highly innovative technologies.
For all these reasons: rely on Genuine Parts, because they are the only ones designed
by Abarth for your car.
SAFETY:
BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL MAINTENANCECOMFORT: SUSPENSION
AND WINDSCREEN WIPERS PERFORMANCE: SPARK PLUGS,
INJECTORS AND BATTERIESLINEACCESSORI
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS
COP LUM ABARTH PUNTO GB 7-02-2012 14:27 Pagina 2

CHOOSING GENUINE PARTS
IS THE MOST NATURAL CHOICE
PERFORMANCE
GENUINE PARTS
COMFORT
GENUINE PARTS
SAFETY
GENUINE PARTS
AMBIENT
GENUINE PARTS
VALUES
GENUINE PARTS
ACCESSORIES
GENUINE PARTS
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina I

HOW TO RECOGNISE
GENUINE PARTS
Pollen filter
Genuine
Parts
Shock absorber
Genuine
Parts
Brake pads
Genuine
Parts
To recognise a Genuine Part, check that the component bears our brands, always clearly visible on Genuine Parts,
from the braking system to windscreen wipers, from shock absorbers to pollen filter.
AllGenuine Parts undergo strict controls, both during design and manufacturing stages,
by specialists using vanguard materials, to test the component reliability.
This to guarantee performance and safety for you and your passengers on board, for a long time.
Always ask for and make sure a Genuine Part has been used.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina II

Dear Customer,
Thank you for selecting Abarth and congratulations on your choice of an Abarth Punto.
We have written this handbook to help you get to know all the features of your car and use it in the best possible
way.
You should read it right through before taking to the road for the first time.
It contains important information, advice and instructions for the use of the car which will help you get the very best
out of your Abarth.
Read the warnings and indications, marked with the following symbols:
personal safety;
car safety;
environmental protection.
The enclosed Warranty Booklet lists the services that Abarth offers to its customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Abarth Customers.
Enjoy reading. Happy motoring!
❒OWNER HANDBOOK 1-220❒RIGHT HAND DRIVE VERSION 257-258
❒RADIO 221-254
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 1

REFUELLING
Only refuel with unleaded petrol with octane rating
(RON) not less than 95 conforming to the European
specification EN 228.
The use of petrol that does not conform to the
above-mentioned specification will cause the EOBD
warning light to come on and the irregular operation
of the engine.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the
gearshift lever to neutral; fully depress the clutch
without pressing the accelerator, then turn the ignition
key to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures
during operation. Do not park the car on grass, dry
leaves, pine needles or other flammable material: fire
hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous
diagnosis of the components linked to emissions to
ensure better respect for the environment.ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical
accessories (with the risk of gradually draining the
battery), contact an Abarth Dealership. They can
calculate the overall electrical requirement and check
that the vehicle electric system can support the
required load.
CODE card (for versions/markets where provided)
Keep the card in a safe place, not in the car.
Make sure you have the electronic code written on
the CODE card with you at all times.

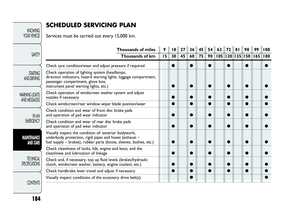

SCHEDULED SERVICING
Correct car servicing is essential for ensuring it stays in
tip-top condition and safeguards its safety features, its
environmental friendliness and low running costs for
a long time to come.
THE OWNER HANDBOOK CONTAINS…
... important information and warnings on the correct
use and maintenance of your car over time as well as
safe driving tips. Pay special attention to the symbols
"(personal safety) #(car safety) !(environmental
protection).
VERY IMPORTANT
K


001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 2

KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
F0U001Abfig. 1
1.Adjustable side air vents – 2.Fixed side air vents – 3.Left steering column stalk: external lights – 4.Instrument
panel –
5.Right steering column stalk: windscreen wiper controls, rear window wiper, trip computer – 6.Panel
controls – 7. Portable navigation system setup (for versions/markets, where provided) –
8.Adjustable central air
vents –
9.Fixed upper air vent – 10.Front airbag – passenger side – 11.Glove compartment – 12.Light guide –
13.Radio (for versions/markets where provided) – 14.HVAC controls – 15.Ignition device – 16.Front airbag
– driver’s side –
17. Steering wheel adjustment lever – 18.Control panel: headlamp alignment adjustment/
reconfigurable multifunction display.
CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
3
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 3

THE FIAT CODE SYSTEM
This is an electronic engine locking system which
increases protection against attempted thefts of the car.
It is automatically activated when the ignition key is
removed.
An electronic device is fitted in each ignition key grip.
The device transmits a radio-frequency signal when the
engine is started through a special aerial built into the
ignition switch. The modulated signal, which changes
each time the engine is started, is the “password”, by
means of which the control unit recognises the key and
enables to start the engine.
OPERATION
Each time the vehicle is started by turning the ignition
key to MAR, the Fiat CODE system control unit sends
a recognition code to the engine control unit to
deactivate the immobiliser.
The acknowledgement code is sent only if the Fiat
CODE system control unit has recognised the code
transmitted from the key.
Each time the ignition key is turned to STOP, the Fiat
CODE system deactivates the functions of the engine
management control unit.
If the code is not recognised correctly during ignition,
the
Ywarning light comes on in the instrument panel.
SYMBOLS
Special coloured labels have been attached near or
actually on some of the components of your car. These
labels bear symbols that remind you of the precautions
to be taken as regards that particular component.
The plate summarising the symbols used can be found
under the bonnet, fig. 2.
F0U003Abfig. 2
CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR VEHICLE
4
