18In brief
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 143.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 140.
Starting off
Check before starting off ● tyre pressure and condition 3 197, 3 229
● Engine oil level and fluid levels 3 178.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 35, 3 44,
3 50.
● Brake function at low speed, particularly if the brakes are wet.

Instruments and controls73Instruments and
controlsControls ....................................... 74
Steering wheel adjustment ........74
Steering wheel controls .............74
Heated steering wheel ...............74
Horn ........................................... 75
Windscreen wiper/washer .........75
Rear window wiper/washer .......77
Outside temperature ..................77
Clock ......................................... 78
Power outlets ............................. 78
Inductive charging .....................79
Ashtrays .................................... 79
Warning lights, gauges and indi‐ cators ........................................... 80
Instrument cluster ......................80
Speedometer ............................. 83
Odometer .................................. 84
Trip odometer ............................ 84
Tachometer ............................... 84
Fuel gauge ................................ 85
Engine coolant temperature gauge ....................................... 85
Service display .......................... 85
Control indicators ......................86Turn signal................................. 86
Seat belt reminder .....................87
Airbag and belt tensioners .........87
Airbag deactivation ....................88
Charging system .......................88
Malfunction indicator light ..........88
Service vehicle soon .................88
Stop engine ............................... 88
System check ............................ 89
Brake and clutch system ...........89
Antilock brake system (ABS) .....89
Gear shifting .............................. 89
Lane departure warning ............89
Electronic Stability Control and Traction Control system ...........90
Electronic Stability Control and Traction Control system off ......90
Engine coolant temperature ......90
Preheating ................................. 90
Diesel particle filter ....................90
AdBlue ....................................... 90
Deflation detection system ........91
Engine oil pressure ....................91
Low fuel ..................................... 91
Autostop .................................... 91
Exterior light .............................. 91
High beam ................................. 92
High beam assist .......................92
Low beam .................................. 92
Fog light ..................................... 92Rear fog light............................. 92
Rain sensor ............................... 92
Cruise control ............................ 92
Speed limiter ............................. 92
Traffic sign assistant ..................92
Door open .................................. 92
Information displays .....................93
Driver Information Centre ..........93
Info display ................................ 95
Head-up display ........................97
Vehicle messages ........................98
Warning chimes .........................99
Battery voltage .......................... 99
Vehicle personalisation ..............100
Telematics service .....................103
OnStar ..................................... 103

Instruments and controls83OverviewOTurn signal 3 86XSeat belt reminder 3 87vAirbag and belt tensioners
3 87VAirbag deactivation 3 88pCharging system 3 88ZMalfunction indicator light
3 88HService vehicle soon 3 88STOPStop engine 3 88JSystem check 3 89RBrake and clutch system
3 89uAntilock brake system (ABS)
3 89RGear shifting 3 89)Lane departure warning
3 89bElectronic Stability Control
and Traction Control system
3 90aElectronic Stability Control
and Traction Control system
off 3 90!Preheating 3 90%Diesel particle filter 3 90YAdBlue 3 90wDeflation detection system
3 91IEngine oil pressure 3 91Y oLow fuel 3 91W oEngine coolant temperature
high 3 90DAutostop 3 918Exterior light 3 919Low beam 3 92CHigh beam 3 92fHigh beam assist 3 92>Fog light 3 92øRear fog light 3 92 Speedometer
Indicates vehicle speed.

Instruments and controls91Flashes yellowThe remaining driving range is
between 0 and 600 km.
Top-up the AdBlue® as soon as
possible to avoid a breakdown by a
qualified workshop. You can add up
to 10 litres of AdBlue® to its tank.
Deflation detection system
w illuminates or flashes yellow.
Illuminates
Tyre pressure loss in one or more
wheels. Stop immediately and check
tyre pressure.
Flashes
Fault in system. Consult a workshop.
Engine oil pressure
I illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly after the engine starts.Illuminates when the engine is
runningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer.
During an Autostop, the brake
servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop 3 178.
Low fuel
o illuminates yellow.
Level in fuel tank is too low.
Refuelling 3 168.
Bleeding the diesel fuel system
3 182.
Autostop
D illuminates or flashes green.
Illuminates green
Engine is in an Autostop.
Flashes green
Autostop is temporarily unavailable,
or Autostop mode is invoked
automatically.
Stop-start system 3 132.
Exterior light
8 illuminates green.
The exterior lights are on 3 107.

Vehicle care175Vehicle careGeneral Information...................175
Accessories and vehicle modifications .......................... 175
Vehicle storage ........................176
End-of-life vehicle recovery .....176
Vehicle checks ........................... 177
Performing work ......................177
Bonnet ..................................... 177
Engine oil ................................. 178
Engine coolant ......................... 179
Washer fluid ............................ 179
Brakes ..................................... 180
Brake fluid ............................... 180
Vehicle battery ......................... 180
Diesel fuel system bleeding .....182
Wiper blade replacement ........182
Bulb replacement .......................183
Halogen headlights ..................183
LED headlights ........................ 185
Fog lights ................................. 185
Tail lights ................................. 186
Side turn signal lights ..............189
Number plate light ...................190
Interior lights ............................ 190
Instrument panel illumination ...190Electrical system ........................190
Fuses ....................................... 190
Engine compartment fuse box . 191
Instrument panel fuse box .......193
Vehicle tools .............................. 195
Tools ........................................ 195
Wheels and tyres .......................196
Winter tyres ............................. 196
Tyre designations ....................196
Tyre pressure .......................... 197
Tyre deflation detection system .................................... 198
Tread depth ............................. 199
Changing tyre and wheel size . 199
Wheel covers ........................... 200
Tyre chains .............................. 200
Tyre repair kit .......................... 200
Wheel changing .......................203
Spare wheel ............................ 206
Jump starting ............................. 207
Towing ....................................... 209
Towing the vehicle ...................209
Towing another vehicle ...........210
Appearance care .......................211
Exterior care ............................ 211
Interior care ............................. 213General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Opel. Furthermore, such
changes may affect driver assistance
systems, may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the type approval,
impacting the validity of your vehicle
registration.

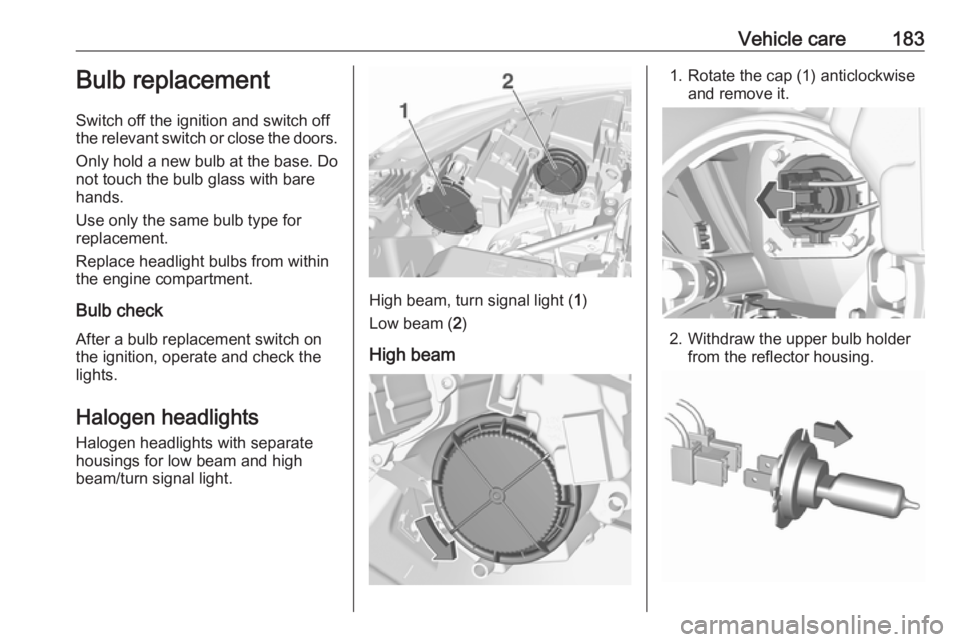

Vehicle care183Bulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base. Do
not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Bulb check After a bulb replacement switch on
the ignition, operate and check the
lights.
Halogen headlights Halogen headlights with separate
housings for low beam and high
beam/turn signal light.
High beam, turn signal light ( 1)
Low beam ( 2)
High beam
1. Rotate the cap (1) anticlockwise and remove it.
2. Withdraw the upper bulb holderfrom the reflector housing.

241RRadio Frequency Identification (RFID) ..................................... 237
Radio remote control ...................23
Rain sensor .................................. 92
Reading lights ............................ 113
Rear floor storage cover ..............68
Rear fog light ....................... 92, 111
Rear seats .................................... 48
Rear view camera ...................... 163
Rear window wiper/washer .......... 77 Recommended fluids and lubricants ........................ 215, 220
Refuelling ................................... 168 Registered trademarks ...............235
Reversing lights .........................112
Ride control systems ..................146
Roof .............................................. 41
Roof load ...................................... 71
Roof rack ..................................... 71
S Safety belts ................................... 49
Seat adjustment ....................... 7, 45
Seat belt ........................................ 8
Seat belt reminder .......................87
Seat belts ..................................... 49
Seat heating ................................. 47
Seat position ................................ 44
Selective catalytic reduction .......137Selector lever ............................. 140
Service ............................... 126, 214
Service display ............................ 85
Service information ....................214
Service vehicle soon .................... 88
Side airbag system ......................55
Side blind spot alert ....................159
Sidelights .................................... 107
Side turn signal lights ................189
Software acknowledgement .......233
Software update ......................... 235
Spare wheel ............................... 206
Speed limiter......................... 92, 149
Speedometer ............................... 83
Starting and operating ................128
Starting off ................................... 18
Starting the engine ....................131
Steering ...................................... 128
Steering wheel adjustment ......9, 74
Steering wheel controls ...............74
Stop engine .................................. 88
Stop-start system........................ 132
Storage ......................................... 64
Storage compartments .................64
Sunvisor lights ........................... 113
Sun visors .................................... 41
Symbols ......................................... 4
System check ............................... 89T
Tachometer ................................. 84
Tail lights ................................... 186
Three-point seat belt .................... 50
Tools .......................................... 195
Tow bar....................................... 170
Towing ................................ 170, 209
Towing another vehicle .............210
Towing equipment .....................171
Towing the vehicle .....................209
Traffic sign assistant .....................92
Trailer coupling ........................... 170
Trailer towing ............................. 171
Transmission ............................... 17
Transmission display .................140
Tread depth ............................... 199
Trip odometer .............................. 84
Turn and lane-change signals ...111
Turn signal ................................... 86
Tyre chains ................................ 200
Tyre deflation detection system . 198
Tyre designations ......................196
Tyre pressure ............................ 197
Tyre pressures ........................... 229
Tyre repair kit ............................. 200
U Ultrasonic parking assist............. 151
Upholstery .................................. 213
Using this manual ..........................3
