Driving and operating131Driving hints
Driving economically
ECO mode ECO mode is a function that
optimises fuel consumption. It affects
engine power and torque,
acceleration, gear shift indication,
heating, air conditioning and electrical consumers.
ActivationPress ECO. Control indicator
illuminates when activated and a corresponding message appears in
the Driver Information Centre 3 100.
During driving, it is possible to
temporarily disable ECO mode, e.g.
to increase engine performance, by
depressing the accelerator pedal
firmly.
ECO mode is reactivated when
pressure is reduced on the
accelerator pedal.
Deactivation
Press ECO again. Control indicator
extinguishes.
Control of the vehicle
Never coast with engine not
running (except during Autostop)
Many systems will not function in this
situation (e.g. brake servo unit, power
steering). Driving in this manner is a
danger to yourself and others. All
systems function during an Autostop,
but there may be a controlled
reduction in power steering assist and
vehicle speed is reduced.Stop-start system 3 134.
Pedals To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.
Use only floor mats which fit properly and are fixed by the retainers on the
driver's side.
Driving downhill
Engage a gear when driving downhill
to ensure that sufficient brake
pressure is available.
Steering If power steering assist is lost
because the engine stops or due to a system malfunction, the vehicle can
be steered but may require increased
effort.

Driving and operating133Steering wheel lockRemove key from ignition switch and
turn steering wheel until it engages.9 Danger
Never remove the key from
ignition switch during driving as
this will cause steering wheel lock.
Starting the engine
Manual transmission: operate clutch.
Manual transmission automated:
operate brake; transmission
automatically shifts to N.
Do not accelerate.
Turn the key to position 2 for
preheating, and hold until control
indicator N extinguishes from the
Driver Information Centre.
Notice
Depending on vehicle, if a gear is
engaged during preheating, a
message may appear in the Driver
Information Centre (DIC) 3 100
indicating that the clutch pedal must be depressed when starting the
engine.
Turn key to position 3 and release.
The increased engine speed
automatically returns to normal idling
speed as the engine temperature
rises.
Start attempts should not last longer
than 15 seconds. If engine does not
start, wait 15 seconds before
repeating starting procedure. If
necessary, depress accelerator
before repeating starting procedure.Notice
Rear-wheel drive: When starting on
a level surface with an unladen
vehicle, it is recommended that
second gear is selected when
starting off.
Before restarting or to switch off the
engine, turn key back to 0.
During an Autostop, the engine can
be started by depressing the clutch
pedal. Stop-start system 3 134.
Turbo engine warm-up
Upon start-up, engine available
torque may be limited for a short time, especially when the engine
temperature is cold. The limitation is
to allow the lubrication system to fully
protect the engine.

Driving and operating157Engine Drag Torque ControlThe engine drag torque control
system is an integral feature of
ESP® Plus
. When downshifting under
slippery road conditions, the engine
speed and torque increases to help
prevent locking of the drive wheels
during sudden deceleration.
Fault
If the system detects a fault, control indicator b 3 97 illuminates together
with A 3 95 in the instrument cluster
and a corresponding message
appears in the Driver Information
Centre 3 100.
The Electronic Stability Program
(ESP® Plus
) is not operational. Have
the cause of the fault remedied by a
workshop.
Vehicle messages 3 101.
Limited-slip rear axle
Rear-wheel drive vehicles may be
equipped with an automatic locking
rear differential which automatically controls the torque transmitted toeach rear wheel, enhancing traction
in the event of soft ground, mud or
snow-covered road surfaces.9 Warning
Do not let this special safety
feature tempt you into taking risks
when driving.
Adapt speed to the road
conditions.
When vehicle speed reaches
20 mph, or once the rear wheels
return to surfaces with normal grip,
e.g. paved roads, the system
automatically deactivates,
sometimes accompanied by a noise
(with no consequence to vehicle
behaviour).
The system can also be deactivated
manually once normal grip conditions have resumed by briefly releasing the
accelerator.
Driver assistance
systems9 Warning
Driver assistance systems are
developed to support the driver
and not to replace the driver's
attention.
The driver accepts full
responsibility when driving the
vehicle.
When using driver assistance
systems, always take care
regarding the current traffic
situation.
Cruise control
The cruise control can store and
maintain speeds of 20 mph and
above. Deviations from the stored
speeds may occur when driving uphill or downhill. The stored speed will
flash in the Driver Information Centre
3 100.

Vehicle care207
3. Vehicles with Front-wheel drive:If equipped, attached heightener
to lifting pad when changing a
front wheel.

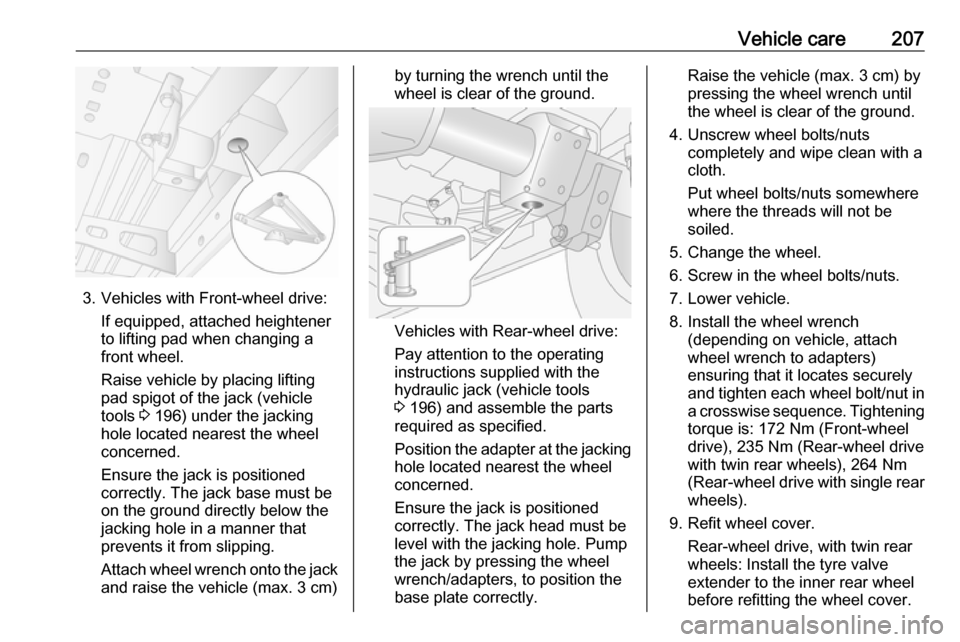

Raise vehicle by placing lifting
pad spigot of the jack (vehicle
tools 3 196) under the jacking
hole located nearest the wheel
concerned.
Ensure the jack is positioned
correctly. The jack base must be
on the ground directly below the
jacking hole in a manner that
prevents it from slipping.
Attach wheel wrench onto the jack
and raise the vehicle (max. 3 cm)
by turning the wrench until the
wheel is clear of the ground.
Vehicles with Rear-wheel drive:
Pay attention to the operating
instructions supplied with the
hydraulic jack (vehicle tools
3 196) and assemble the parts
required as specified.
Position the adapter at the jacking
hole located nearest the wheel
concerned.
Ensure the jack is positioned
correctly. The jack head must be
level with the jacking hole. Pump
the jack by pressing the wheel
wrench/adapters, to position the
base plate correctly.
Raise the vehicle (max. 3 cm) by pressing the wheel wrench until
the wheel is clear of the ground.
4. Unscrew wheel bolts/nuts completely and wipe clean with a
cloth.
Put wheel bolts/nuts somewhere
where the threads will not be
soiled.
5. Change the wheel.
6. Screw in the wheel bolts/nuts.
7. Lower vehicle.
8. Install the wheel wrench (depending on vehicle, attach
wheel wrench to adapters)
ensuring that it locates securely
and tighten each wheel bolt/nut in a crosswise sequence. Tighteningtorque is: 172 Nm (Front-wheel
drive), 235 Nm (Rear-wheel drive
with twin rear wheels), 264 Nm
(Rear-wheel drive with single rear
wheels).
9. Refit wheel cover. Rear-wheel drive, with twin rear
wheels: Install the tyre valve
extender to the inner rear wheel
before refitting the wheel cover.

208Vehicle careNotice
If applicable, fit anti-theft bolts
nearest the tyre valve (otherwise it
may not be possible to refit the wheel cover).
10. Stow the replaced wheel 3 208
and the vehicle tools 3 196.
11. Have the new wheel balanced on the vehicle. Check the tyre
pressure of the installed tyre
3 243 and also the wheel bolt/nut
torque as soon as possible.
Have the defective tyre renewed or
repaired.
Spare wheel Some vehicles are equipped with atyre repair kit instead of a spare wheel
3 202.
If mounting a spare wheel which is
different from the other wheels, this
wheel might be classified as a
temporary spare wheel and the
corresponding speed limits apply,
even though no label indicates this.
Seek the assistance of a workshop to
check the applicable speed limit.Caution
The use of a spare wheel that is smaller than the other wheels or in combination with winter tyres
could affect driveability. Have the defective tyre replaced as soon as
possible.
The spare wheel is held under the
vehicle frame using a winch and
secured by tightening a cable using
the wheel wrench and adapters
(depending on vehicle).
It may be necessary to jack the
vehicle up to gain access to the spare
wheel on a fully loaded vehicle with a flat rear tyre.
To release the spare wheel, loosen
cable by connecting the wheel
wrench and adapters (depending on
vehicle) to the slot position illustrated
and lower the wheel fully by turning
wrench clockwise.
Caution
Only use the wheel wrench and
adapters (depending on vehicle)
to lower the spare wheel.
The use of pneumatic tools is
prohibited. This may result in
damage to the winch cable and
equipment.

224Technical dataEngine data
Sales designation
2.3 CDTI 1252.3 CDTI 110,
2.3 CDTI 110
ecoFLEX2.3 CDTI
BITURBO 1352.3 CDTI 1502.3 BITURBO 163Engine identifier codeM9T (MH) 1)
, (MD) 2)
,
(MJ) 2)M9T (MR) 2)M9T (MN)2)M9T (MF)2)M9T (MP) 3)
, (MU) 4)Number of cylinders44444Piston displacement
[cm 3
]22982298229822982298Engine power [kW]9281100110120at rpm35003500350035003500Torque [Nm]310285340/350 5)3503603)
/380 4)at rpm1250-20001250-20001500-250015001500-2750Fuel typeDieselDieselDieselDieselDiesel1)
Euro 4.
2) Euro 5.
3) Euro 5.
4) Euro VI with AdBlue.
5) Front-wheel drive/Rear-wheel drive.

Technical data225Sales designation2.3 CDTI 1102.3 CDTI 1302.3 BITURBO 1302.3 BITURBO 1452.3 BITURBO 170Engine identifier codeM9T (MW)6)M9T (MY)6)M9T (M1)7)M9T (MS) 6)
, (MT) 7)M9T (ML) 6)Number of cylinders44444Piston displacement [cm 3
]22982298229822982298Engine power [kW] (PS)819696107125at rpm35003500350035003500Torque [Nm]290320330360380at rpm1250150015001500-27501500-2750Fuel typeDieselDieselDieselDieselDiesel6) Euro 6 with AdBlue.
7) Euro VI with AdBlue.
AdBlue 3
141.

251Changing tyre and wheel size ...201
Charging system .......................... 95
Child locks ................................... 26
Child restraint installation locations ................................... 63
Child restraints.............................. 61
Child restraint systems ................61
Cigarette lighter ........................... 87
Cleaning the vehicle ...................215
Climate control ............................. 15
Climate control systems .............114
Clock ............................................ 85
Coat hooks ................................... 71
Collision damage repair ..............247
Control indicators.......................... 91
Control of the vehicle .................131
Controls ........................................ 82
Convex shape .............................. 34
Coolant ....................................... 176
Coolant and antifreeze ...............219
Coolant heater ............................ 121
Cornering light ....................109, 185
Coupling ball bar ........................170
Cruise control ...................... 99, 157
Cupholders .................................. 71
D Danger, Warnings and Cautions ...4
Dashboard .................................... 10
Daytime running lights ...............108Declaration of conformity ............245
DEF ............................................ 141
Demisting and defrosting ..............15
Diesel exhaust fluid ....................141
Diesel fuel ................................... 166
Diesel fuel filter .......................... 181
Diesel fuel system bleeding .......181
Diesel particle filter ....................140
Door locks..................................... 21
Door open .................................... 99
Doors ............................................ 27
DPF (diesel particle filter) ...........140
Drink holders ................................ 71
Driver assistance systems ..........157
Driver Information Centre ...........100
Driving characteristics and towing tips .............................. 169
Driving economically................... 131
Driving hints ................................ 131
E ECO mode .................................. 131
ecoScoring.................................. 102
Electric adjustment ......................35
Electrical accessories ...................85
Electrical system......................... 192
Electronic climate control system 116
Electronic driving programmes ..150
Electronic Stability Program 97,
155, 170Electronic Stability Program off ...97
Emergency exit .......................38, 40
End-of-life vehicle recovery .......174
Engine compartment fuse box ...193
Engine coolant ........................... 176
Engine coolant temperature ........97
Engine coolant temperature gauge ....................................... 89
Engine data ............................... 224
Engine Drag Torque Control ......155
Engine exhaust .......................... 140
Engine identification ...................222
Engine oil ...........175, 219, 223, 242
Engine oil additives ....................219
Engine oil level monitor ................90
Engine oil pressure ......................98
Engine oil viscosity grades .........219
Enhanced Traction function....... ................................ 154, 155, 157
Event data recorders ..................247
Exhaust gases ............................ 140
Exit lighting ................................ 113
Exterior care .............................. 215
Exterior light ................................. 99
Exterior lighting ....................12, 106
Exterior mirrors ............................. 34
F Fault ........................................... 151
Fire extinguisher ........................... 78
